New Design PVC WPC Handrail Profile Making Machine

Product Overview

Description

 PVC ceiling panel pvc profile machine / PVC PE WPC profile extrusion line

Production line configuration reference(  pvc door and window profile extrusion line )



Item	component	quantity
1.	double screw extruder	1set
2.	mould	whole 1set
3.	vacuum calibration tank	1set
4.	hauling machine	1set
5.	cutter	1set
6.	stacker	1set



detail descriptions;

1.extruder specification



Model	YF180	YF240	YF300	YF400	YF500	YF600
Max. width of product(mm)	180	240	300	400	500	600
Extruder model	SJSZ55/110	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJZ80/156
Max. extrusion capacity(kg/h)	150	250	250	250	360	360
Extruder power(kw)	22	30/37	30/37	30/37	55	55
Cooling water(M3/h)	5	7	7	8	10	12
Compressed air(M3/min)	0.2	0.3	0.3	0.3	0.4	0.5







This conical twin screw extruder is qualified for upvc,pvc,wpc powder extrusion directly to produce various kinds of plastic profile.

2.full set of mould can safisfy different kinds of profile production(max profile width is 600mm)

3.high level vacuum extent

5.automatic length accounting device for precise cutting

5.saw cutting machine ,adopt advanced Germany technology

6.stainless steel and pneumatic controlled

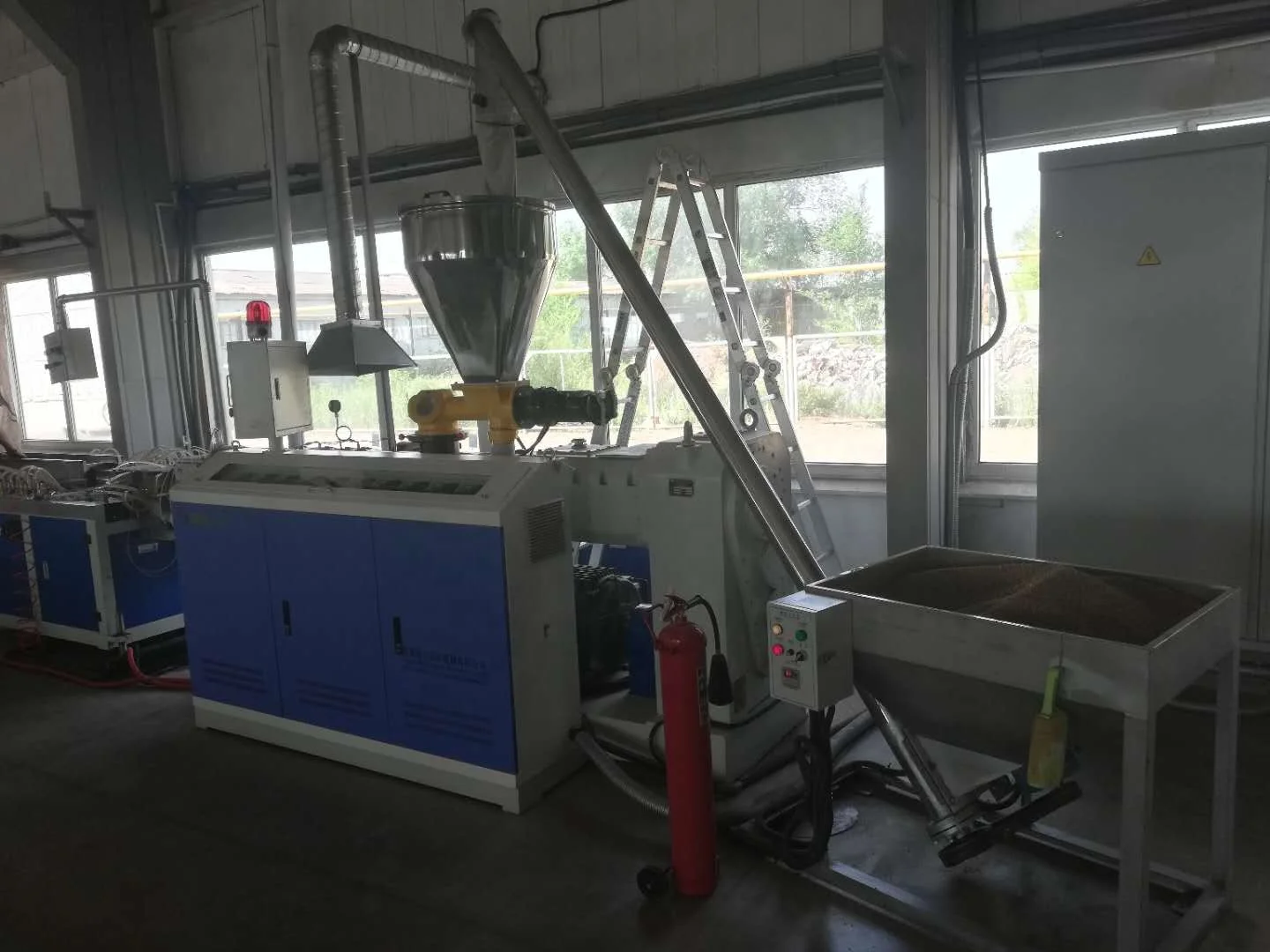

 contical twin screw extruder for   pvc door and window profile extrusion line

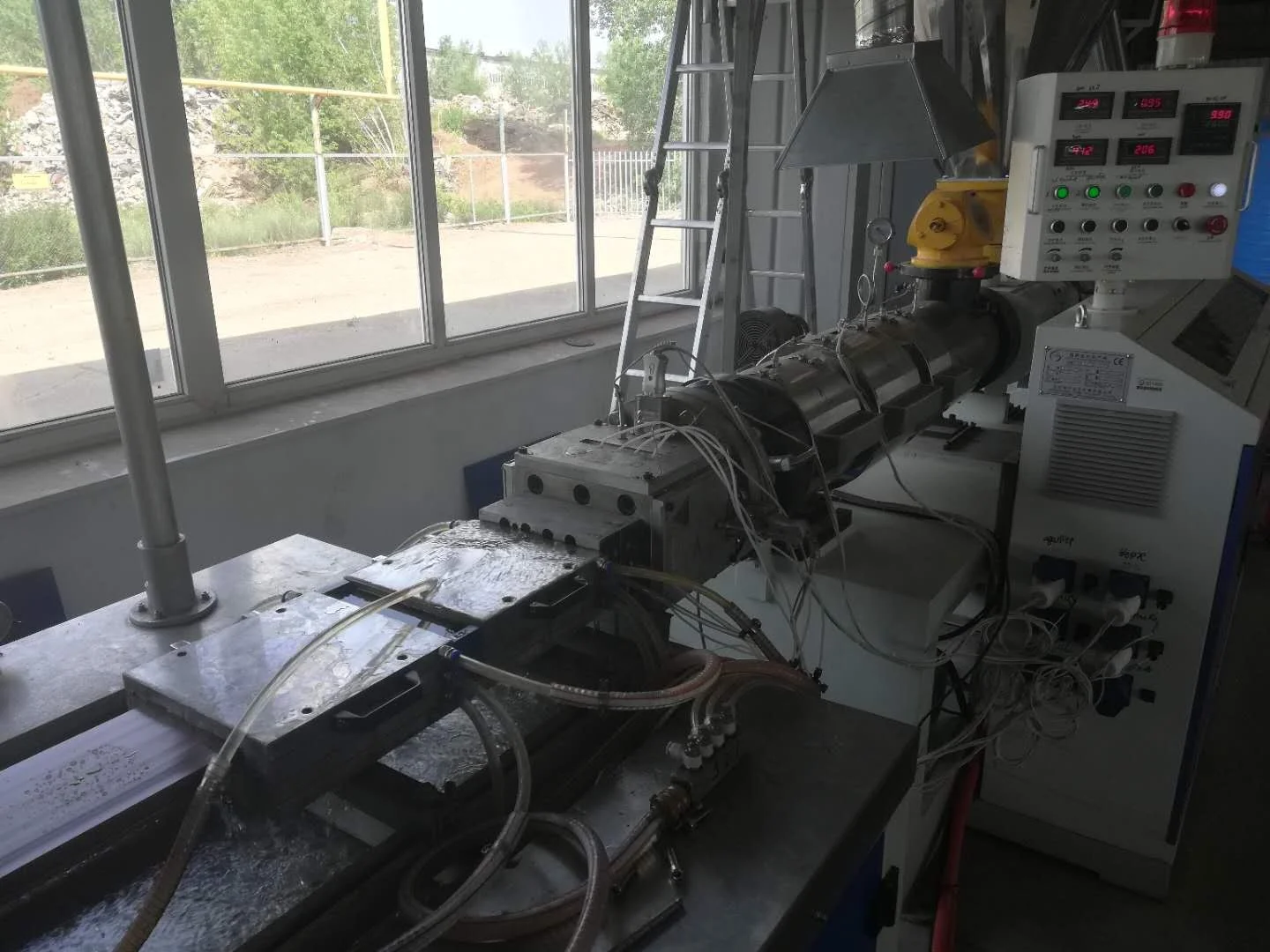

 Mold part  for  pvc door and window profile extrusion line



Vacuum calibration table for   pvc door and window profile extrusion line











Hauling machine for  pvc door and window profile extrusion line

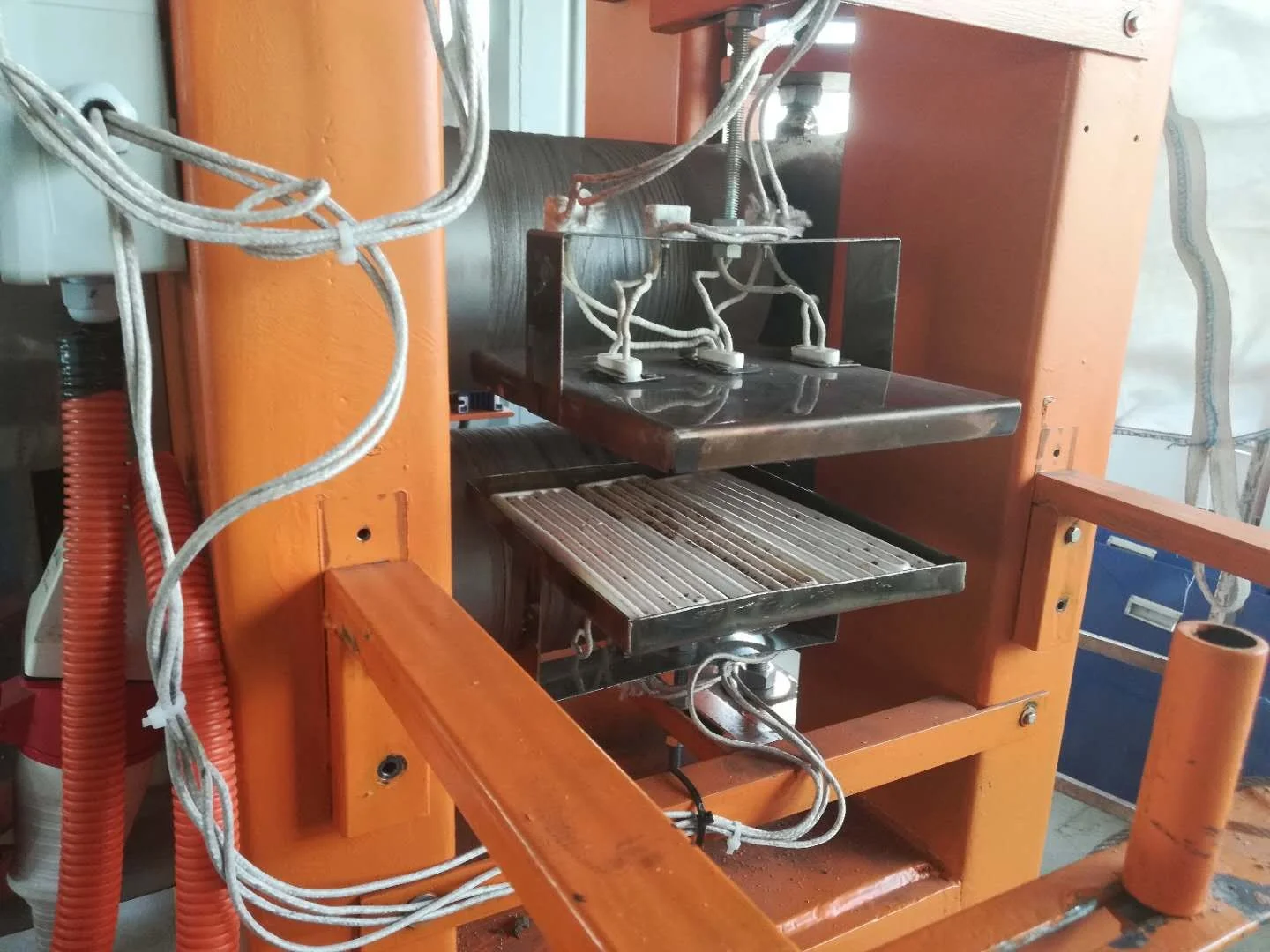

Other auxiliary machine in   pvc door and window profile extrusion line

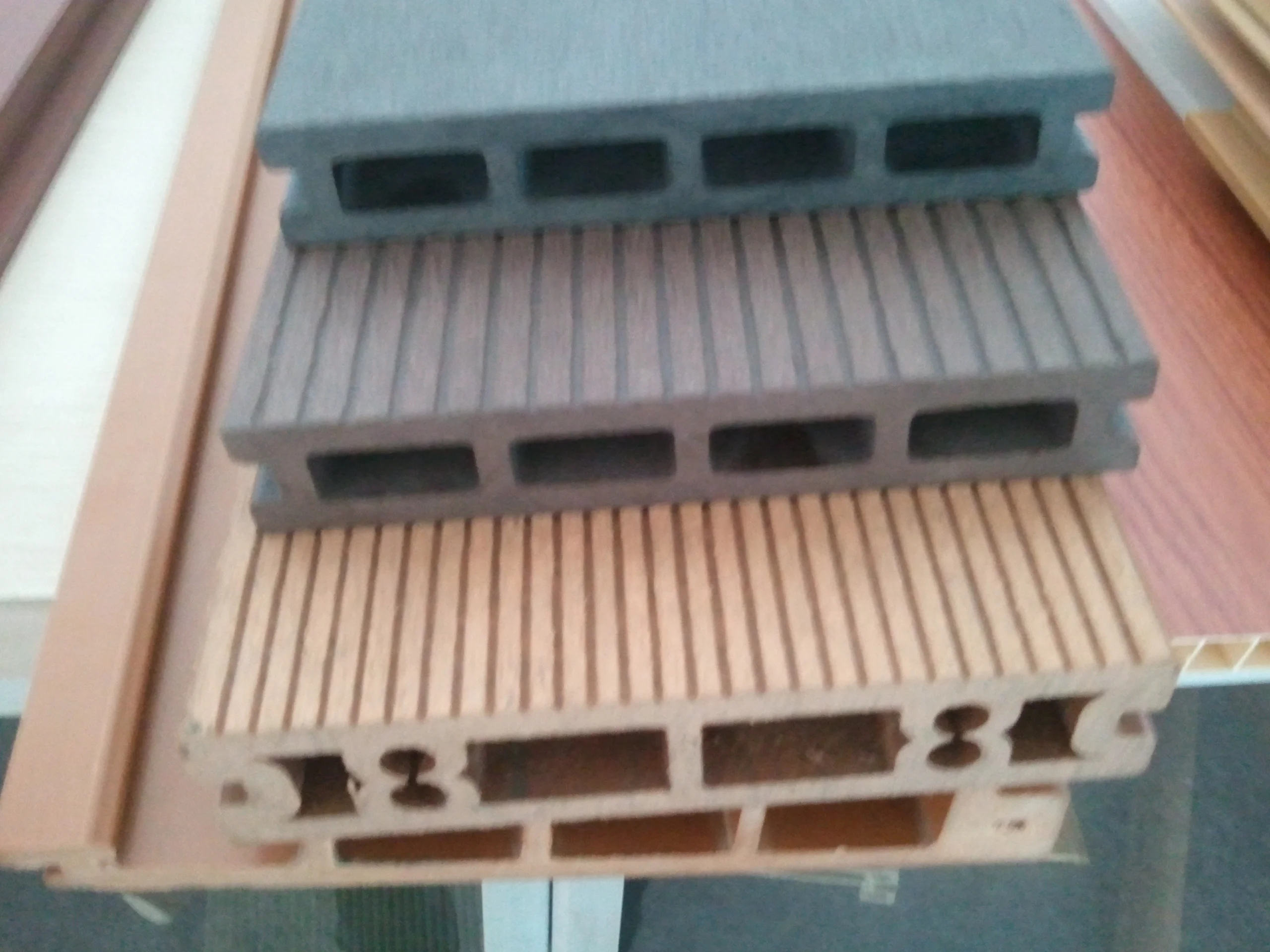

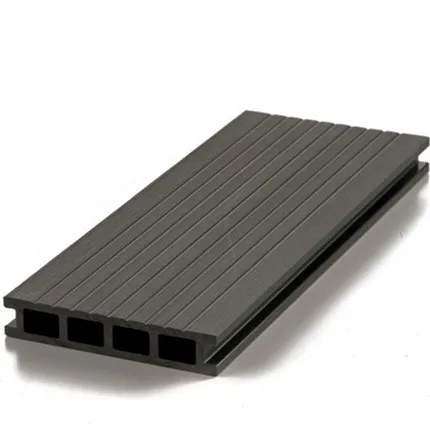

Final product reference
