Gear motor brushless electric wheelchair parts wheelchair

Share on (62304180669):


Price:$245.00 - $250.00

Quantity:


Product Overview

Description

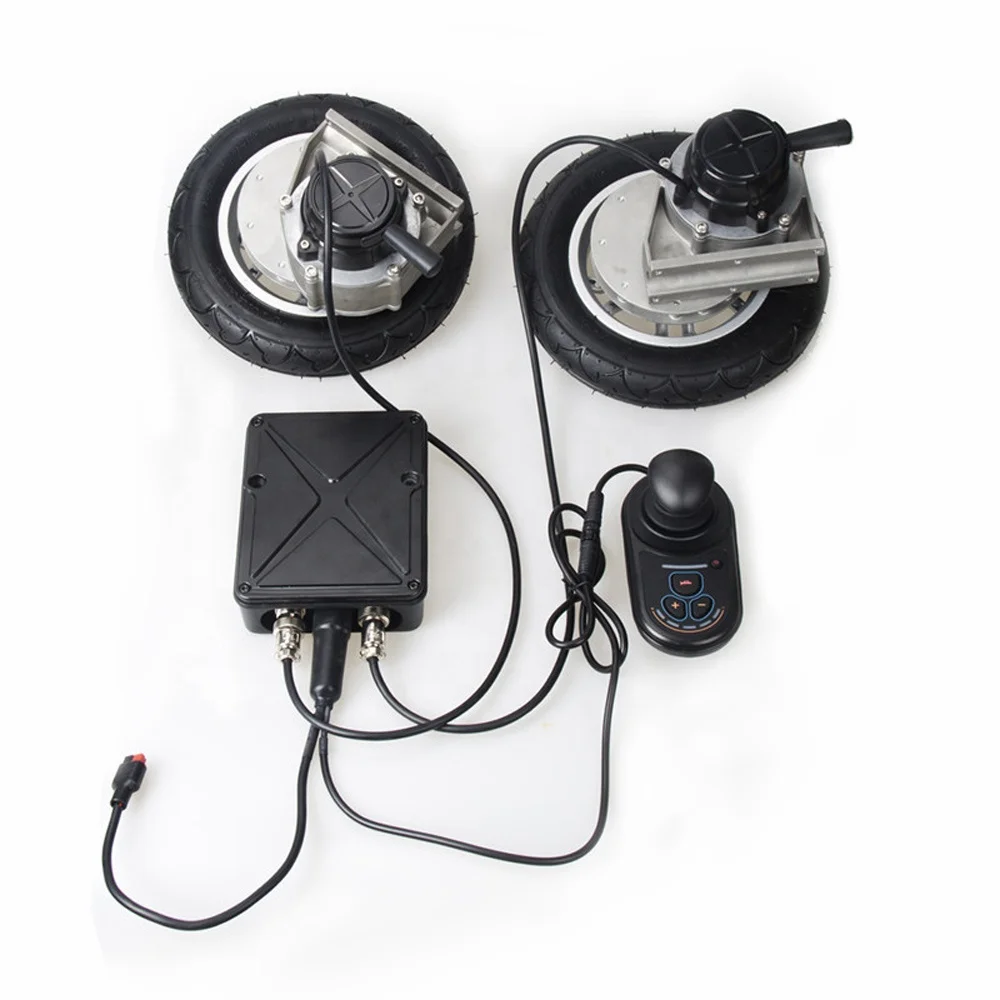

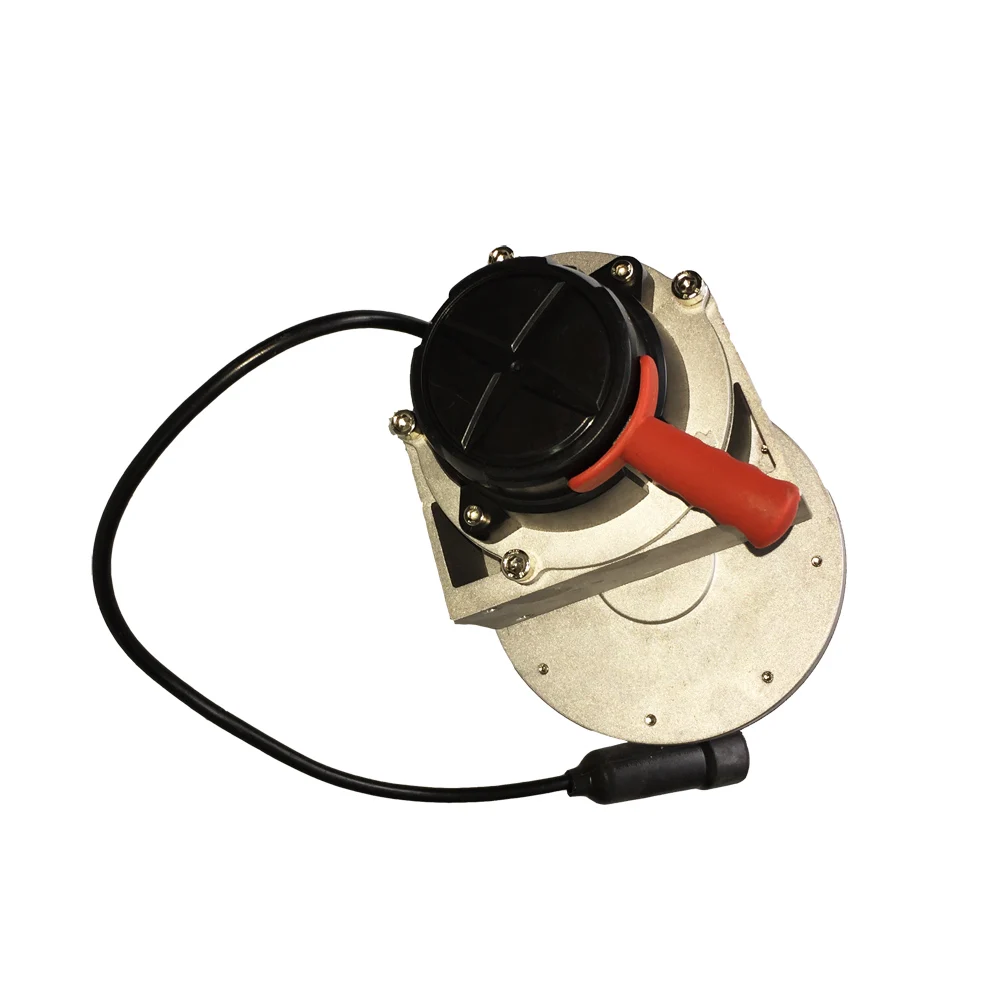

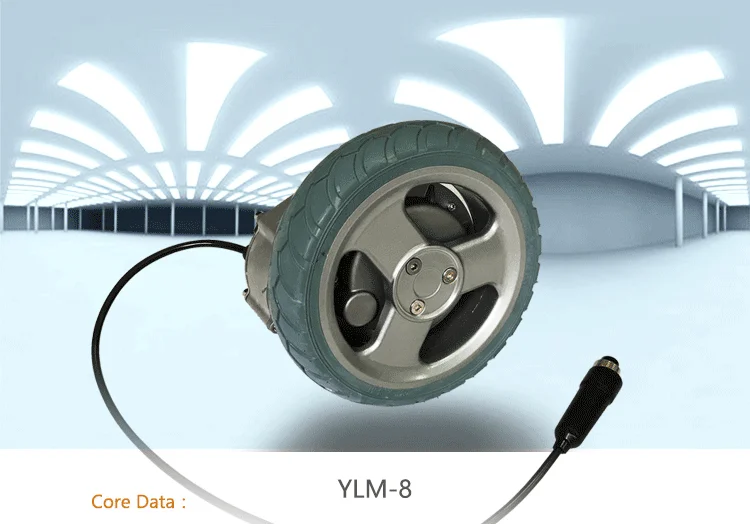

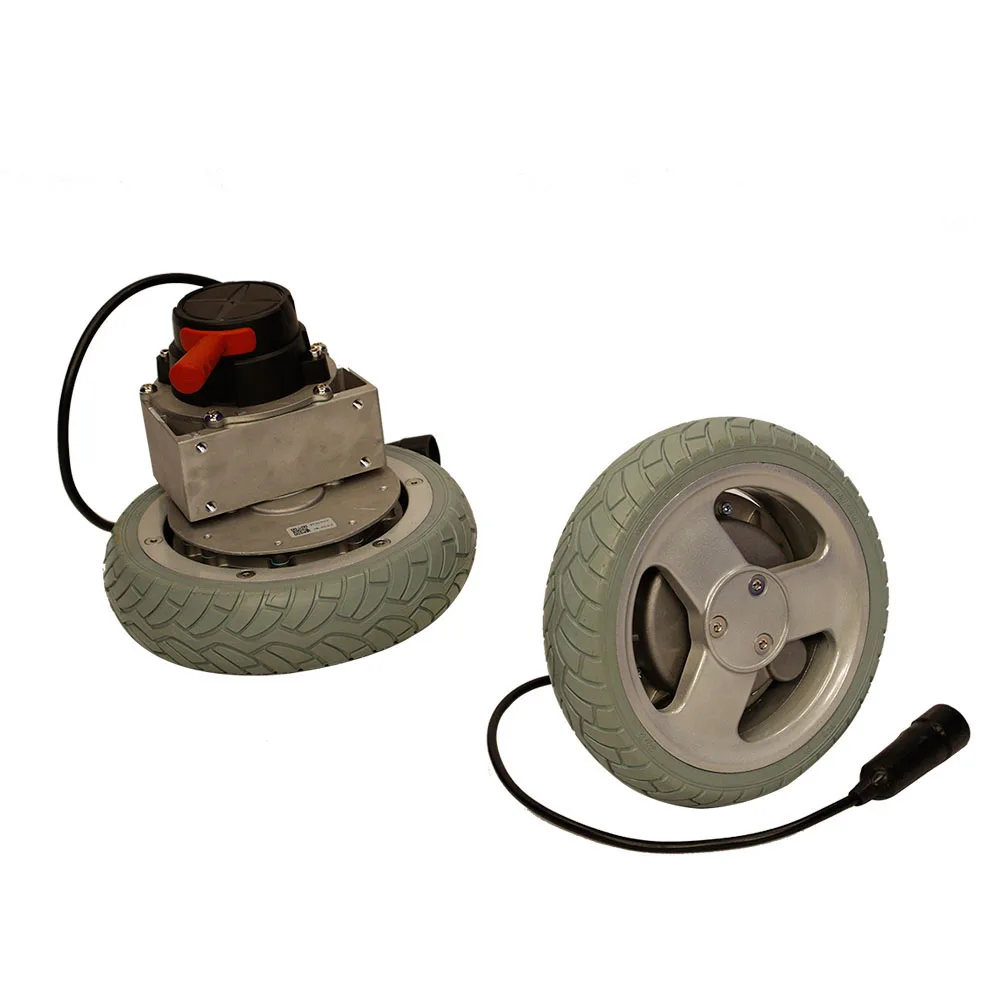

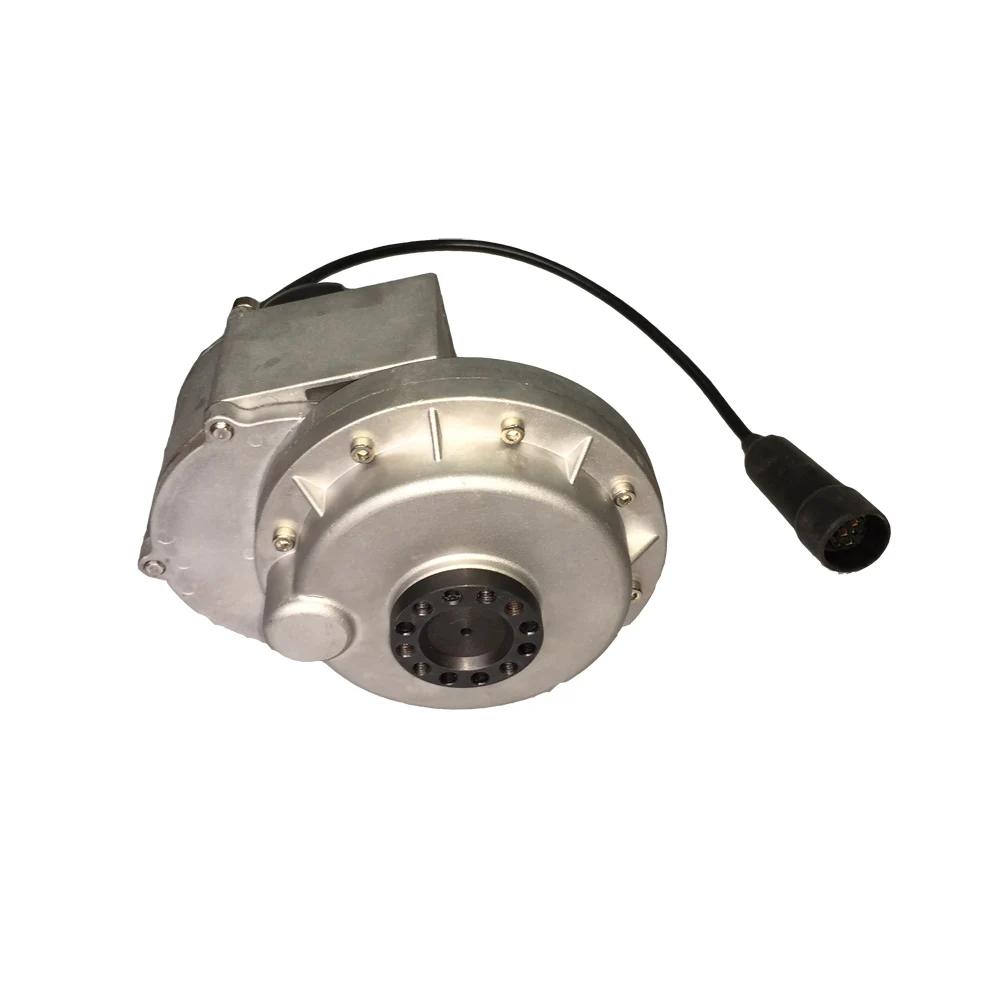

YLM-8 portable lightweight electric wheelchair motor kit


Products Description




 Product Advantages:

1. Brushless motor, high efficiency, long working lifespan, free of maintenance;

  1. 2. Single-stage gear power transission, low loss and long driving range;
  2. 3. Small size, light-weight, suitable for various portable electric Wheelchairs;
  3. 4. Speed and power of the motor at users' option;
  4. 5. Rectangle plate installation, compatible with a variety of models;
  5. 6. Adaptive 8 inches inflate-free type;
  6. 7. With anti-tip wheels (user selectable).


Product Paramenters
Product Name
  Brushless Dc Motor Price Electric Wheelchair Motor
Rated Power
250W
Rated Voltage
24V dc
Insulation Class
F Class
No-load Speed
3400rmp
No-load Output Speed
 150rmp
Starting Current
≤ 1..8A max
No-load Current
≤ 1.1A
Insulation Voltage
0~550Vac/ 1mA/ 1sec
Reducer Speed Ratio
23:1
Electromagnetic Brake
3N.m 24V dc
Wheel diameter
8 inch



Further specifications:

Brake type                                Electromagnetic brake

Brake level                               3N.m 24Vdc

Reduction Grade (dB)              ≤60

Torque                                      0~30 N.M

Insulation Class                        F

Insulation voltage                     0 ~ 550Vac/1mA/1sec



Tests & Certifications:

IP65



CE/EN61000/EN60950/ISO90001







Features:

1. Brushless motor, high efficiency, long working liftspan, free of maintenance


2. Single-stage gear power transmission, low loss and long driving range


3. Adaptive 8 /10 /12 inch tyre


4. Rectangle plate installation, compatible with a variety of models


5. Speed and power of the motor at users option



Product Details








Hot Sale Products

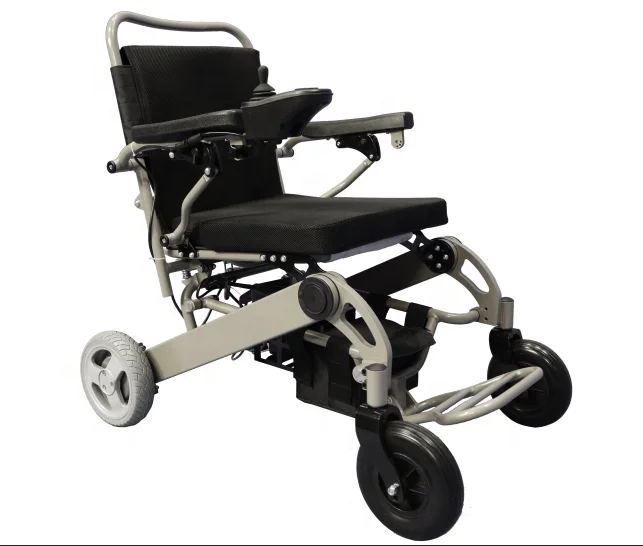

Portable Folding Power Wheelchair


1.5-second folding or unfolding,carry as a luggage on plane or on train.
2. Very light weight,only 25.5kg(without battery)
3. Frame material:Aluminum Alloy
4. Small volume after folding
5. Frame material:Aluminum Alloy
6. Certification:CE;EMC;TUV;ISO9001
7. High efficiency brushless gear motor



YL-V12 Aluminum alloy frame lightweight lithium battery portable folding handicapped electric wheelchair for elderly people
Folding Size
1080*640*420 mm
Unfold Size
1080*640*920 mm
Package Size
480*720*840 mm
Lithium Battery
24v 17A (Max 34AH)
Drive Range
26KM /50KM
Weight Capacity
150KG





Joystick & Controller for power wheelchair



1) Advanced PID algorithm

2) Electromagnetic brake
3) Emergency power protection
4) Automatic load compensation
5) Closed loop speed controller design
6) High-definition LED screen displays
7) Programmed parameters
8) Flexible cable for easy alignment
9) Common to the industry-standard interface mode



Joystick Handle

size for handle: 165*81*109mm

Control Box

size for controller: 173*135*47mm





Certifications






Our Company










One-stop electric wheelchair mabufacturer


Nanjing Yuanlang Electric Technology Development Co.,Ltd,founded in 2005,is a manufacturer of large-scale medical equipment. We have strong product development and manufacturing capabilities. Our main products are electric wheelchair series,electric wheelchair motor series,electric wheelchair joystick controller series products. We can provide customers with a full range of electric wheelchair solutions.



Our company have passed ISO9000 quality systerm certification and ISO13485:2003 quality systerm certification.Our products have passed the test of Chinese authorities and CE cetification of European Union.They are popular with customers in Europe, America and Southeast Asia.We are always ready to provide customized solutions for our customers.



We will continue to be the leader of China's rehabilitation equipment industry with the spirit of innovation, responsibility and dedication.



What could we offer?
Welcome know more about our company.

1.Folding power wheelchair and related kits
2.Over 18 years of export experience
3.Advanced production and QC equipment from German and Japan
4.9,000m2 facility including a Class 10,000 dust-free workshop
5.OEM and ODM projects are welcome
6.Samples completed in 3 days

Any questions, pls feel free to let us know.


Our Services






Warranted for one full year (checking and repairing or replacement services) from the date of purchasing, the returns are not being damaged by any man-made factors.


  • 1. Your inqury related to our products or prices will be replied in 24 hours.
  • 2. Well-trained and experience staffs to answer all your requires in fluent English.
  • 3. OEM&ODM, any your customized wireless chargers we can help you to design and put into your products.
  • 4. Protection of your sales area, ideas of design and all your private information.




Packaging & Delivery






Packaging Detail:

Within 15 days after payment for electric wheelchair.

Each electric wheelchair is packaged in single package size:660*340*210mm.


Shipping Detailed:

Delivery time: within 3 working days after payment for sample order and 15 working days after payment for bulk order.


FAQ


Q1.How about your product quality? We are worry about the quality.

A: Our design including structure and detailed security and prescision has ehanced greatly, there are good reputation and terminal user satisfication. Certifications are provided.

Q2. How about your delivery time?

A: Generally, it will take 3 to 7 days after receiving your advance payment.The specific delivery time depands on the items and the quantity of your ouder.

Q3.  What is your sample  policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no mater where they come from.
