Fully Automatic Counting Frozen Meatballs Packaging Machine Sweet Dumpling Packing Machine For Fish Ball Frozen
- Category: >>>
- Supplier: Foshan Hosng Packaging Machinery Co. Ltd.
Share on (62304233034):
Product Overview
Description

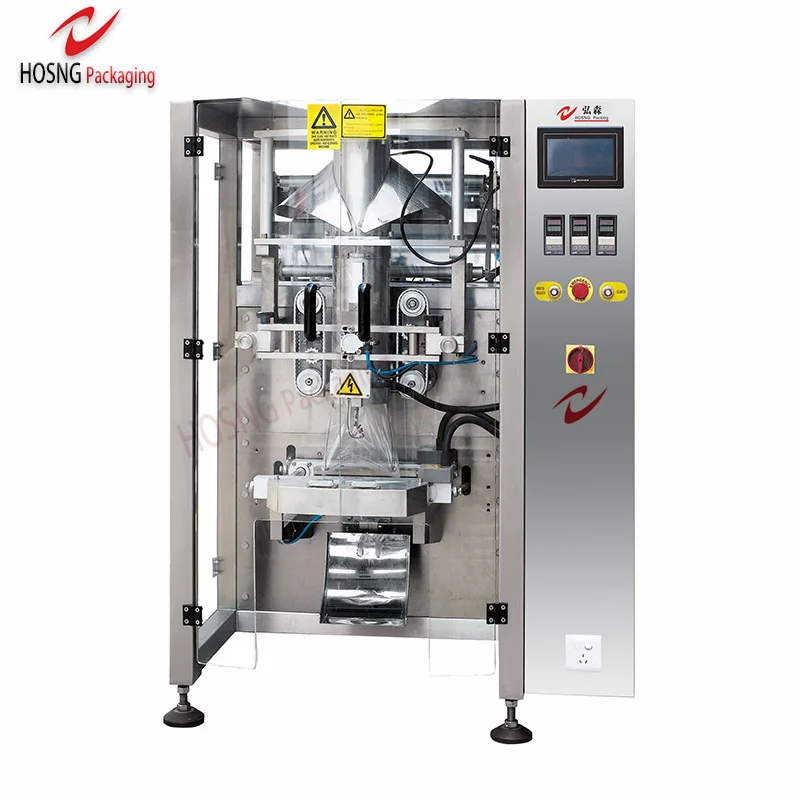

Fully Automatic Counting Frozen Meatballs Packaging Machine Sweet Dumpling Packing Machine For Fish Ball Frozen
| Technical Datas |
| Model | HS-320A | HS-398A | HS-420A | HS-520A | HS-720A |
| Packing size | W:50-150mm | W:70-200mm | W:80-200mm | W:90-250mm | W:110-350mm |
| L:50-200mm | L:50-300mm | L:50-300mm | L:80-350mm | L:100-420mm | |
| Packing speed | 20-60 bag/min | 10-60 bag/min | 15-80 bag/min | 30-80 bag/min | 10-60 bag/min |
| Range of measuring | 700ml | 150-1500ml | 150-1500ml | Max 1500ml | Max 4000ml |
| The max width of packing film | 320mm | 420mm | 420mm | 520mm | 720mm |
| Air consumption | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 200L/min 0.6MPa | 300L/min 0.8MPa |
| Main power/voltage | 2.7KW/220V 50-60Hz | 2.5KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 2.2KW/220V 50-60Hz | 4.0KW/220V 50-60Hz |
| Main power/voltage | 350KG | 450KG | 450KG | 450KG | 800KG |
| Dimension | (L)1100* (W)800*(H)1940mm | (L)1400*(W)970*(H)1700mm | (L)1400*(W)970*(H)1700mm | (L)1480* (W)1200*(H)1700mm | (L)1780*(W)1350*(H)2000mm |
| Film thickness | 0.04-0.10mm | ||||
| Bag making mode | Pillow-type bag, Standing bag, punching device,Link-bag device | ||||
| Bag making mode | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | ||||
I. The scope of packaging
It’s suitable to use in packing the high accuracy and easy fragile material , such as : sugar and rice and puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
Packing Film
Our Multihead weighting packing machine can use various of pcaking film like PE, PET+PE, Aluminum metallized films, Pure aluminum film, OPP+CPP etc.

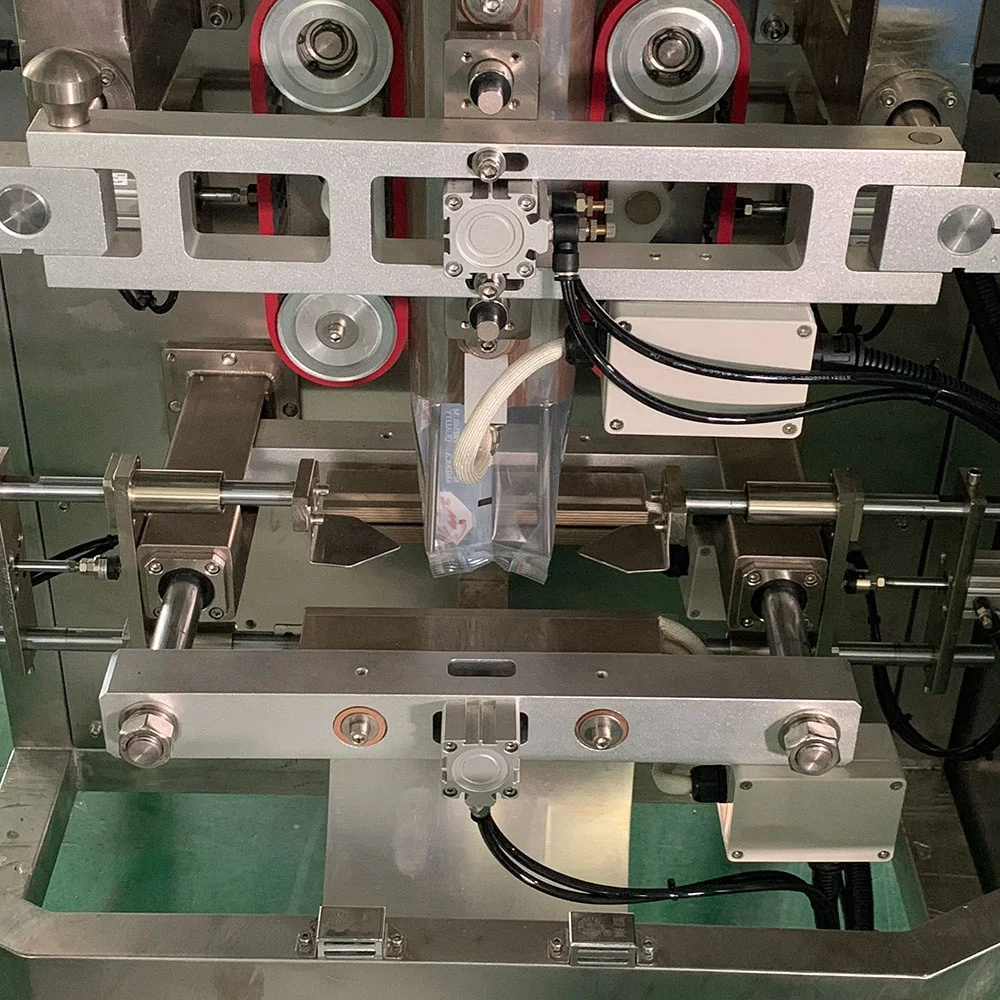

Product structure
Main Features

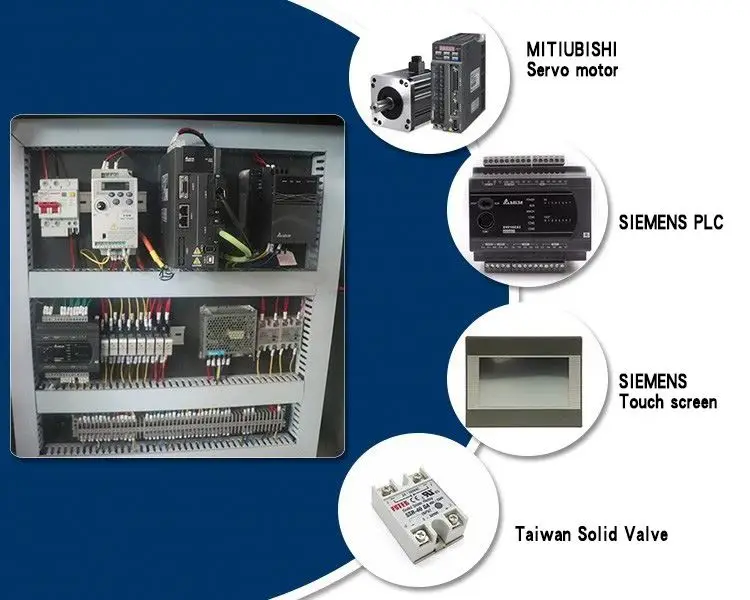

1) Imported PLC control system and color touching screen enable easy and efficeint operation
2) The bag type is diversified, and it can provide customers with pillow-shoaped bags, gusset bags, hanging hole bags, and even bags
3) Imported servo film transport system, imported color standard sensor, accurate positioning, excellent machine performance and beautiful packaging
4) A variety of automatic alarm protection functions are used to minimize losses

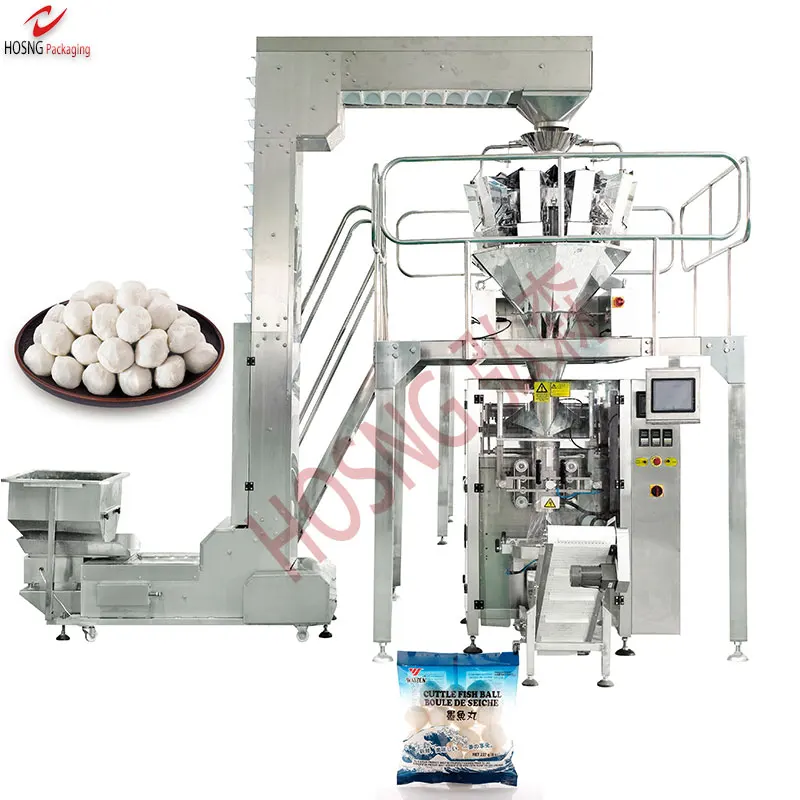

Working process
* Hosng packaging Machinery can customize the suitable one for you according to your requiredment. << Just Tell us : Bag Size required.>>
| Contact Us | Start Order | View Website |
Related Products
Company Information
Trade Shows
Certifications
| FAQ |
Q1: When Hosng Pack was founded ?
A: It started in 2007, till now it around 12 years experience in Packaging Industry.
Q2: How about your delivery time?
A: Commonly it needs 30 days for production, but if there is anything urgent, can be finished within 15 days if spare parts in stock.
Q3: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
Q4: How do you recommend to me the suitable packing machine?
A: You need to offer us detailed packing requirements, including packing products, bag size, packing weight, bag type,etc.
Q5: Can arrange technician to oversea for commissioning ?
A: Yes, we can if you need, but you need to pay the fees including: Visa charges, return ticket, accommodation and labor fees. We also accept you arrange technician to learn in our factory before shipping.
