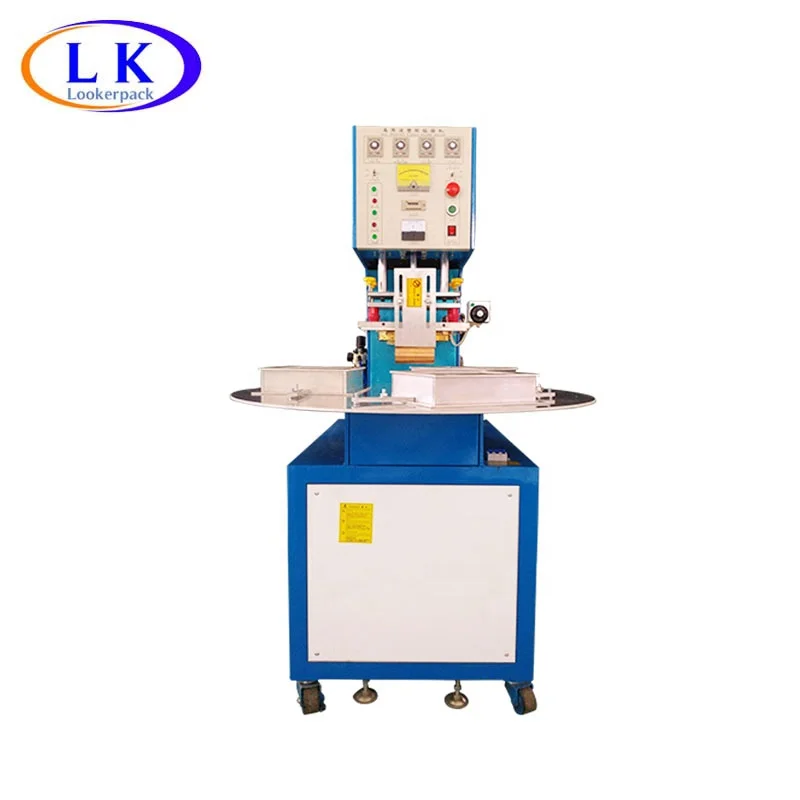

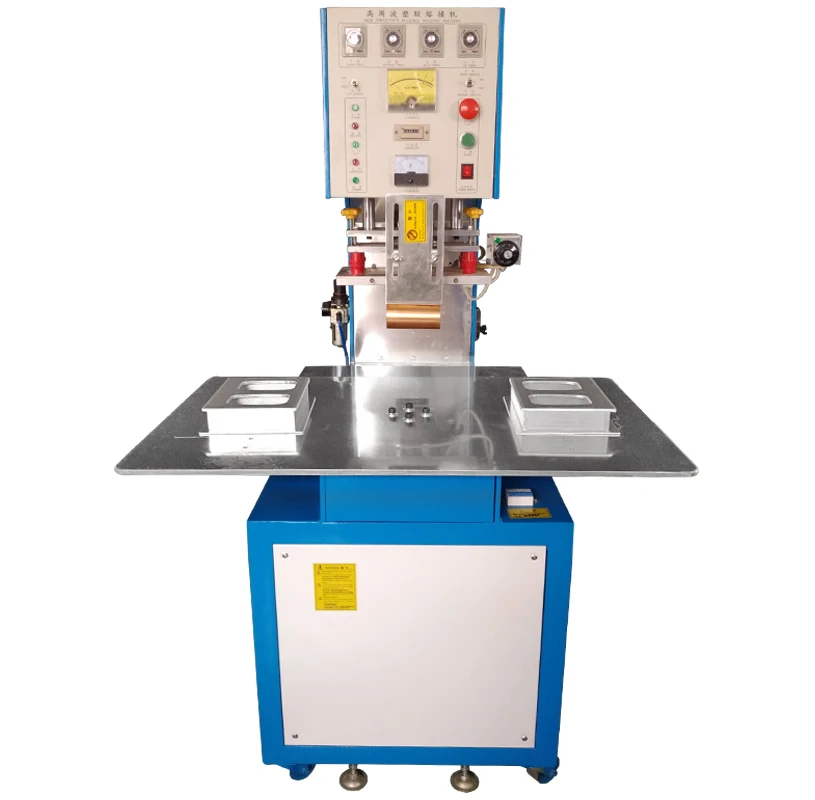

5 кВт высокочастотный пластиковый сварочный аппарат для упаковки крана
- Category: >>>
- Supplier: Guangzhou Looker Packaging Machinery Co. Ltd.
Share on (62304237980):
Product Overview
Description
Product Description
Working Principle.
Using high frequency thermal bonding to heaten the workpiece through high frequency mold , arrive at plastic with plastic welding, plastic with paper card, or paper card with paper card plastic bonding, the surface of the card is usually coated with a layer of PVC or APET, PETG glue, under the action of high frequency melting as a whole.
Machine Application.

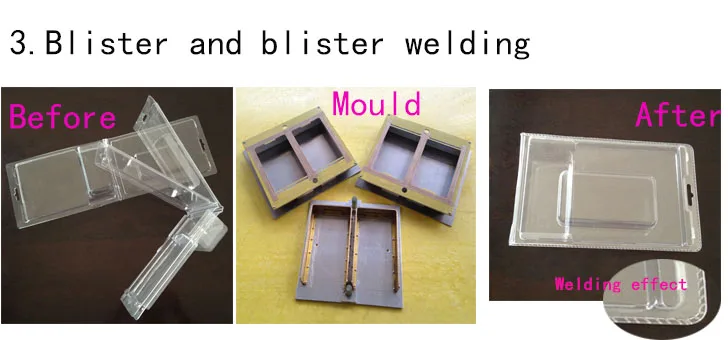

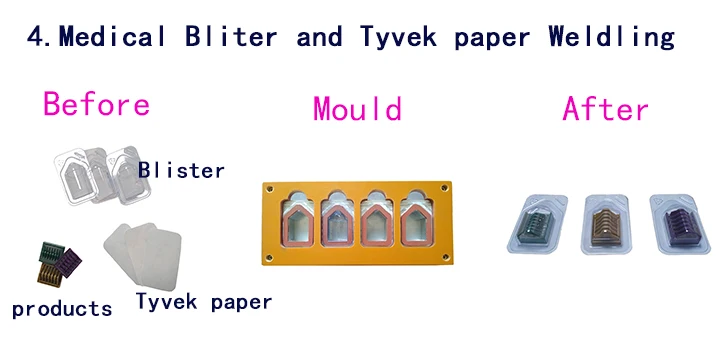

It's suitable for welding Blister&Blister, Blister&Paper card, Paper card&Paper card,Blister&Tyvek paper. Widely used in stationery, toys, electronic products, hardware, cosmetic etc.
Machine Parameters | ||
Model | LK-5000A | |
Power supply | AC380V 50/60Hz | |
Output Power | 5000W | |
Oscillation frequency | 27.12MHZ | |
Working speed | 400-600 pcs/H | |
Rectifier | Silicon Diode | |
Oscilallation Tube | 7T85RB | |
Gap of electrodes | 250mm | |
Max Welding area | 460*610 mm | |

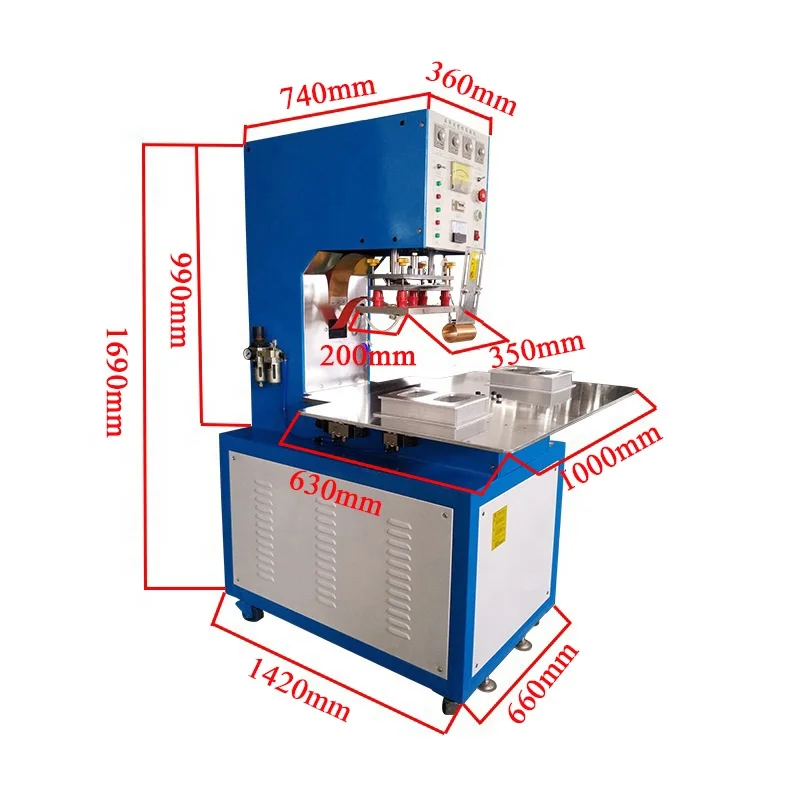

Machine size | 1000*670*1650 mm | |
Weight (Net/Gross weight) | 400/430KG | |
Main Features.
1 Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
5 Can be automatically completed secondary welding process, improve work efficiency.
6 Stepless temperature heating system, make work more efficient.
7.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
8. International standard industrial band of 27.12 MHz.
Detailed Images

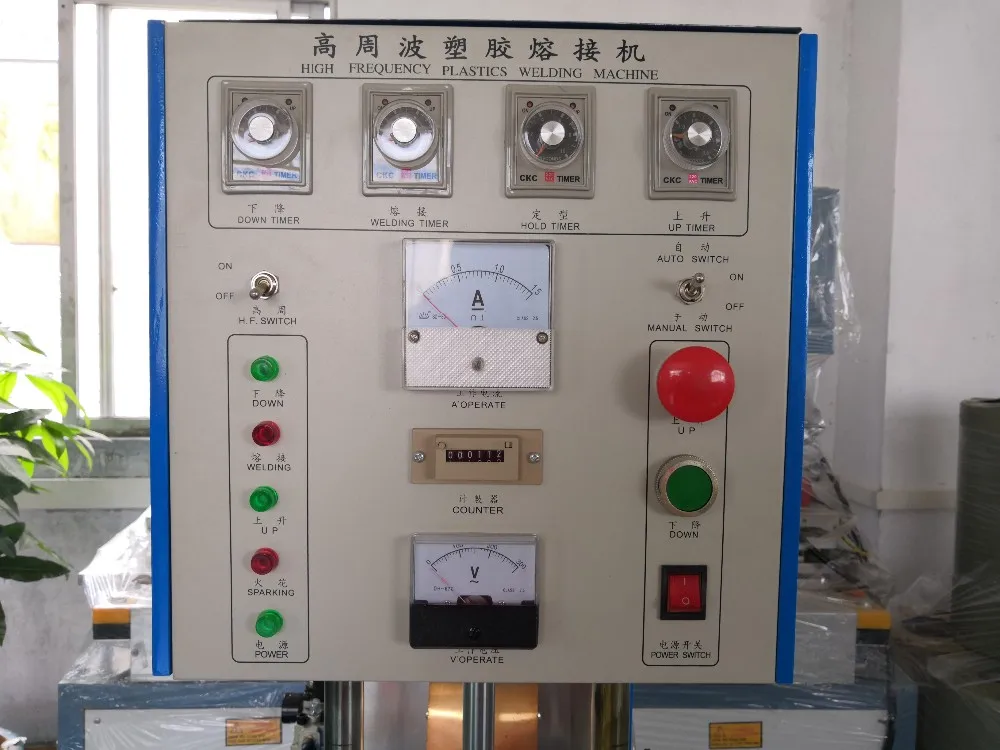

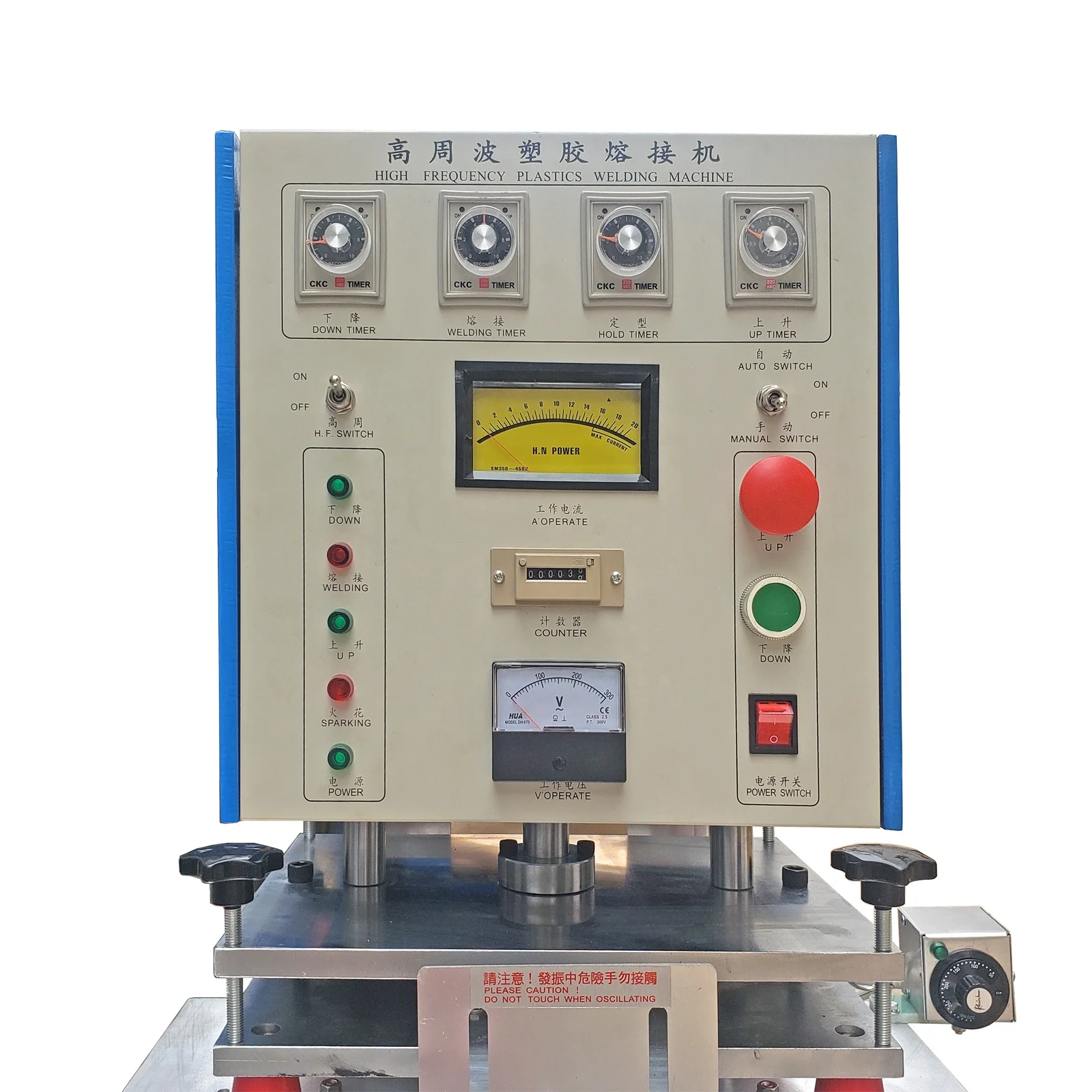

Control board
Almost all the control switch is on the board,easy to understand and operate.

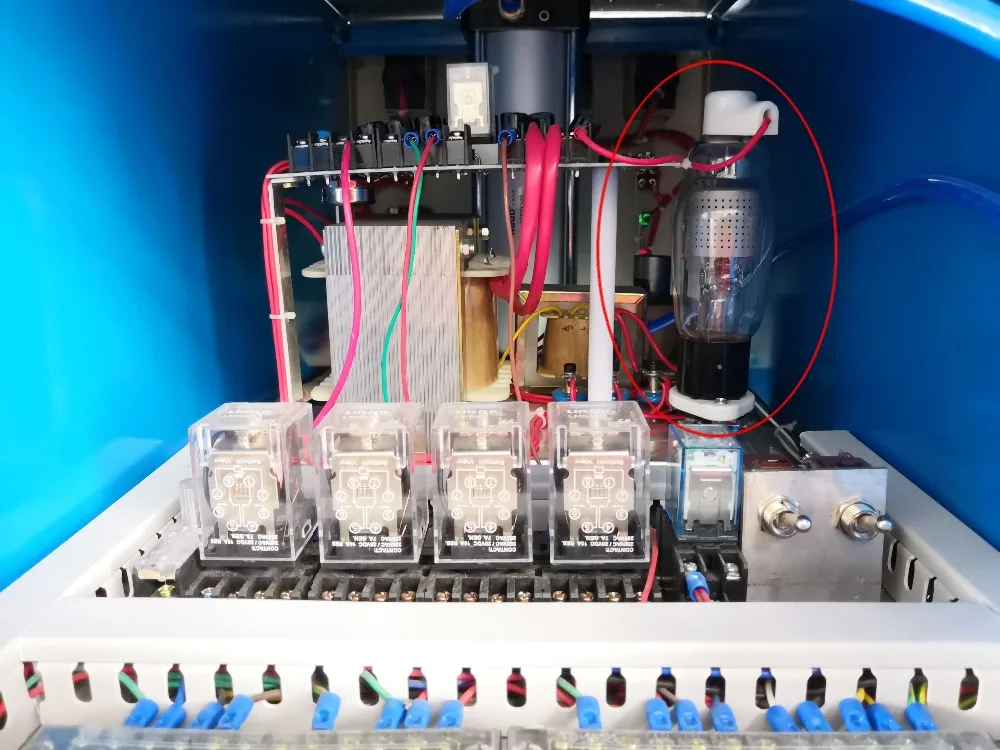

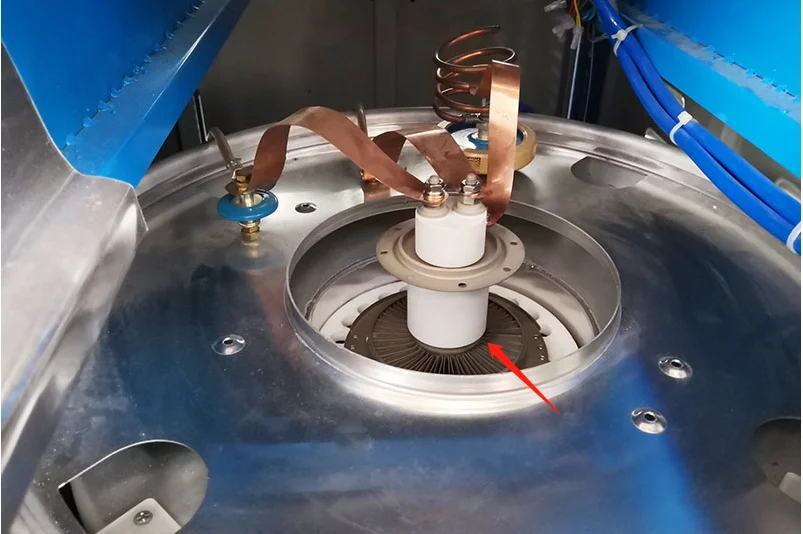

Vacuum tube
Using vacuum tube, the output power is stable and reliable.

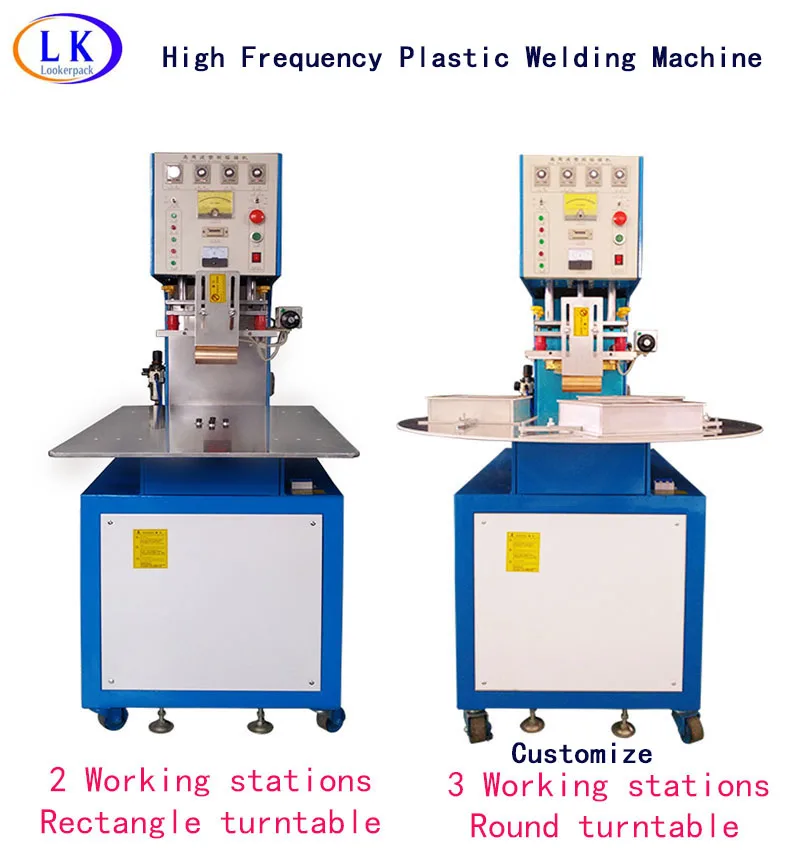

Working turntable
Material: Aluminum
Working position: 2 or 3 working postions(Optional)
Manually adjust the mould by the four corners, horizontal adjustment, adjust die easily.
Sparks Tube
Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.

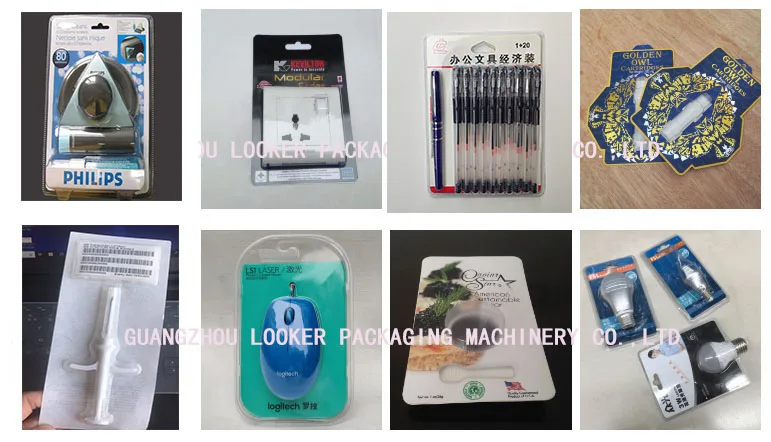

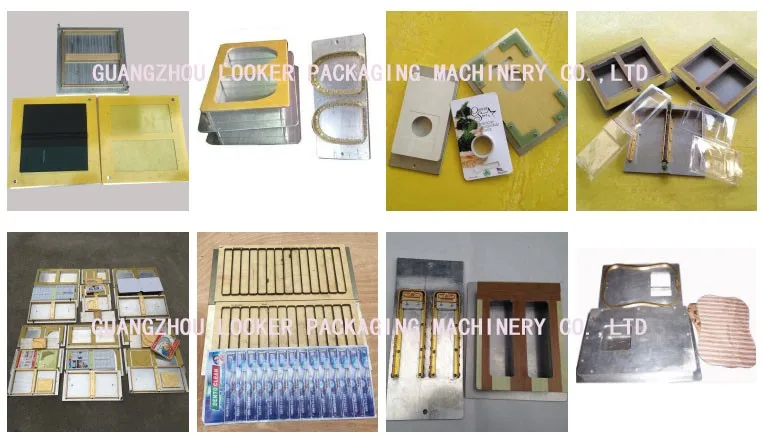

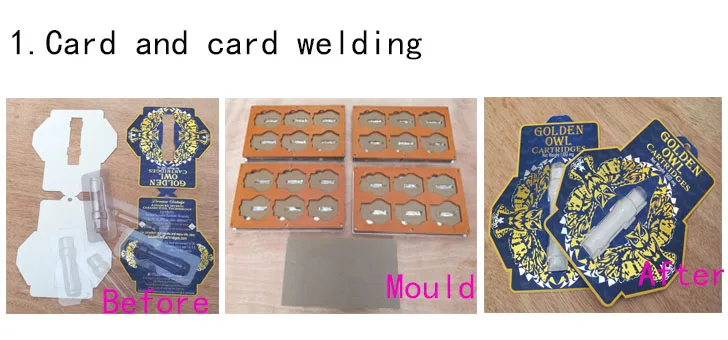

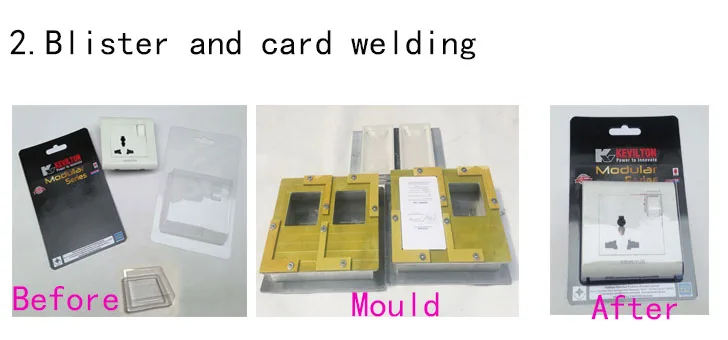

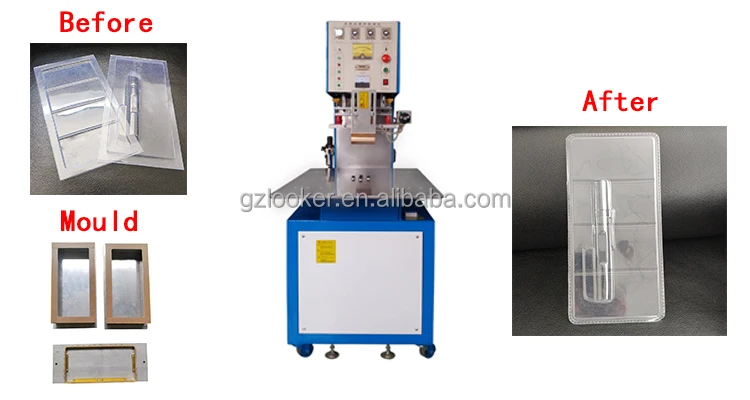

\t\t\t\t\t\t\t\t\tMoulds & Samples \t\t\t\t\t\t\t
Certifications
Packing & Delivery

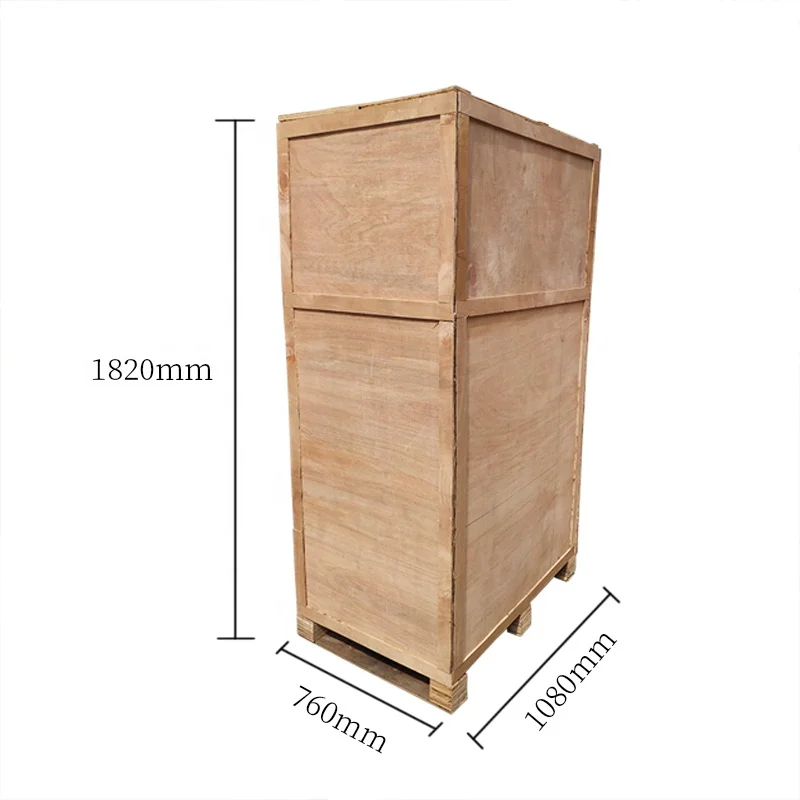

Packaging | ||
Size | 1080(L) *760 (W) * 1820 (H) | |
Weight | 370KG | |

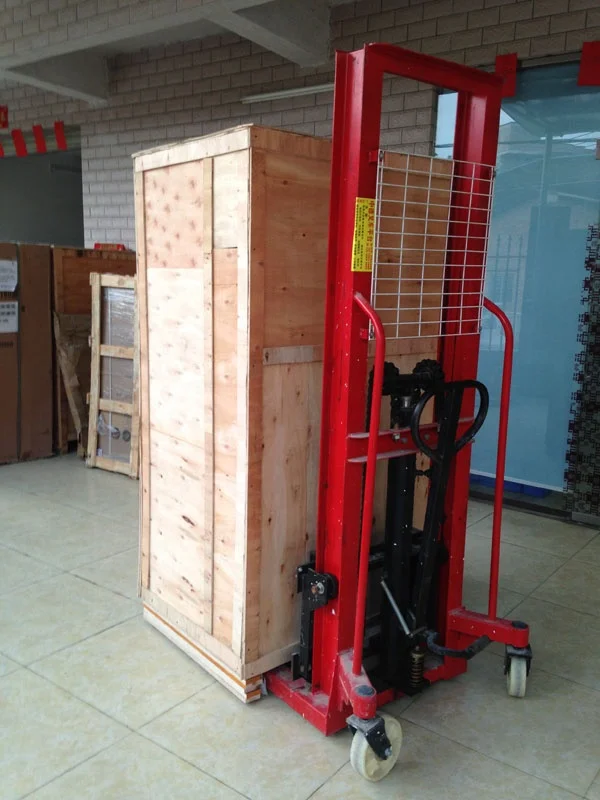

Packaging Details | Machine packing inside is plastic films and outside is plywood case,it's suitable for exporting directly.Our wood case is very strong,it can bear long time shipping on the sea. And machine with preservative film, which can stop the salty sea water entering into it. | |
Delivery Details.
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest shipping by sea.
2. Below 1CBM or 100KG, we suggest air freight.
The price showed on our website just the machine FOB price, please contact us before you place order.
Our services
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
1.A step-by-step free English manual and operation video to easily know how to operate the machine.

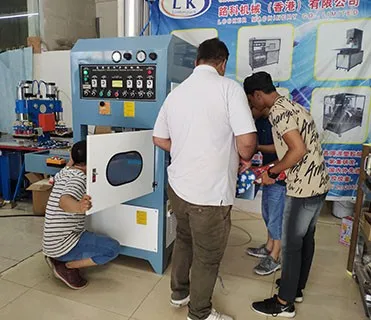

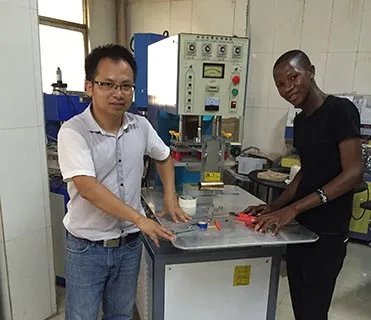

2.Our senior engineers are skillful and fluent in English.They have rich oversea experiences and are vailable to oversea services .Below with some pictures our engineers trained customers how to install and operate the machines.
