Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140 220mm 500 Kgs/set
- Category: Flooring Accessories >>>
- Supplier: Huzhou Xinfeng Wood Plastic Composite Co. Ltd.
Share on (62304300634):
Product Overview
Description
Product Description

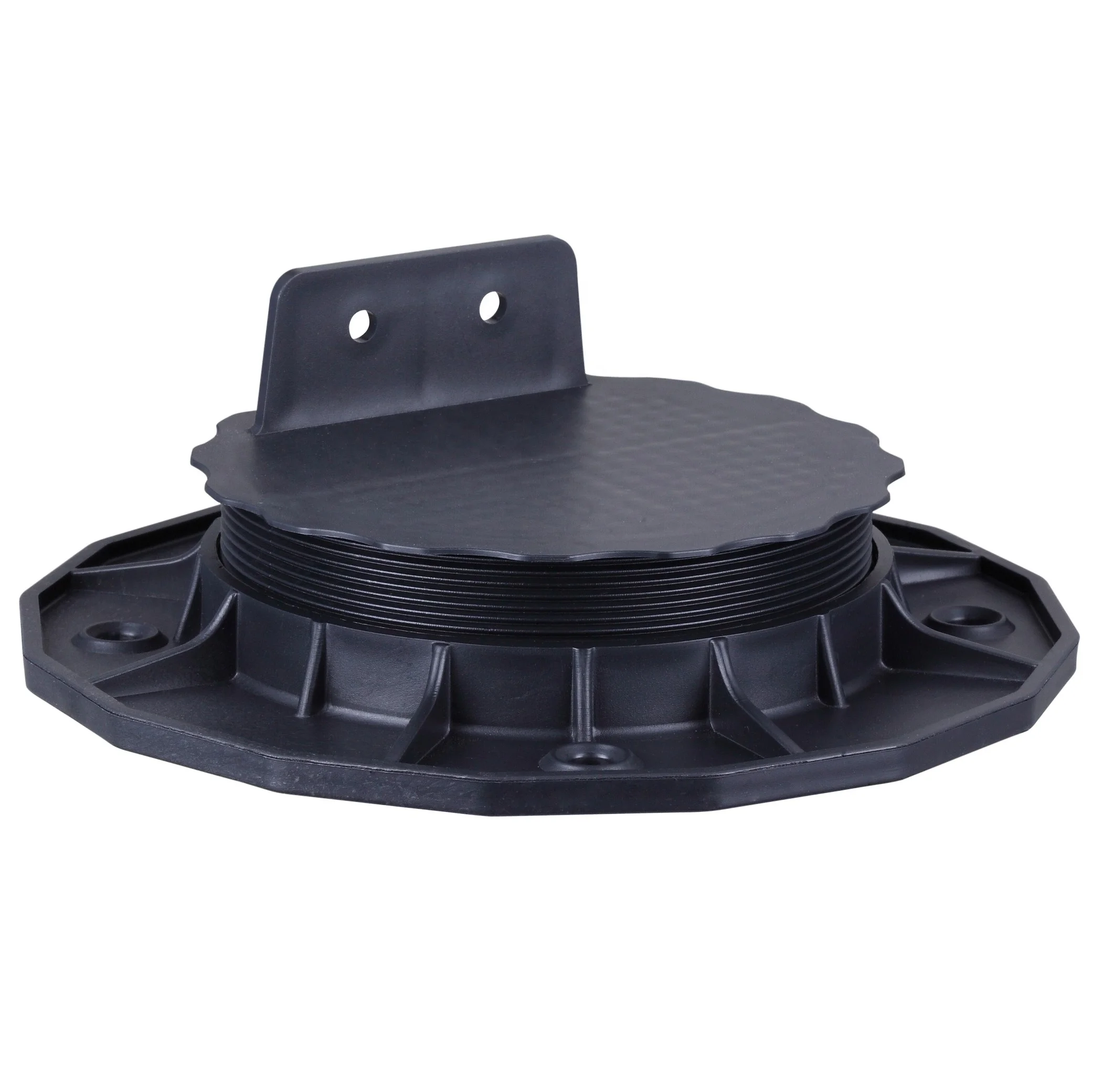

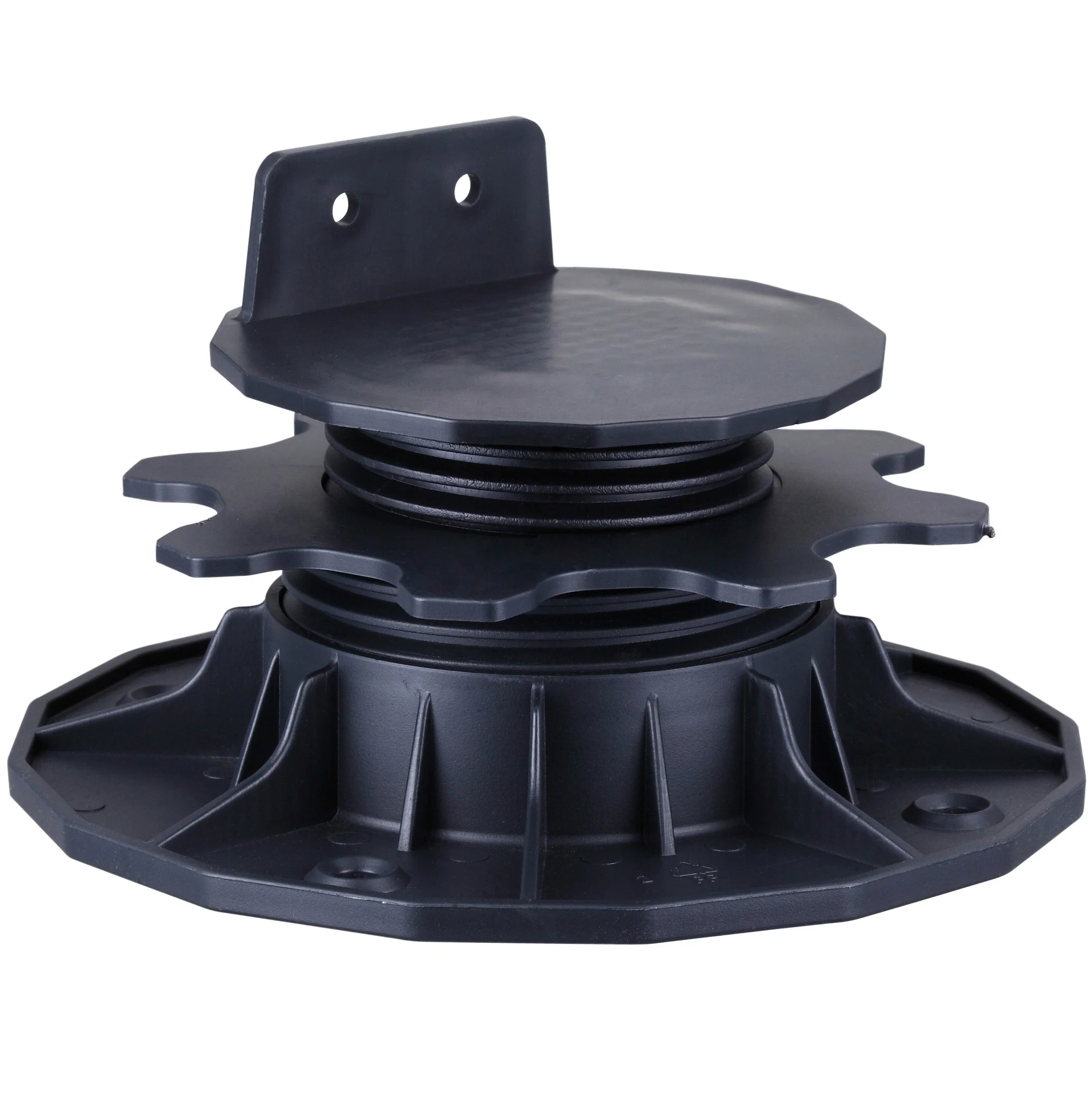

Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
These pedestals are made of enhanced polypropylene. They are widely used in areas such as water fountain, balcony and public square. It can be used to support WPC or metal joists as well as marble tiles. In addition, they are durable, easy to install and maintenance-free. Their enhanced PP material is not only environmental friendly but also makes them highly resistant corrosion and aging.
Product Name | Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set | |
Material | Polypropylene | |
Color | Black | |
Size | Base diameter: 160mm (200mm also available) | |
Height Range | XF-T205B: 140-220mm (Other height range, see below item images) | |
Loading Capacity | 500kg/set (1000kg/m2) | |
Applicable Temperature | -20℃~60℃ (-4℉~140℉) | |
Warranty | 10 years | |
Certificates | ISO9001, ISO14001, BSCI, CE, REACH, SGS | |
Function | Height Adjustable Supporting for Decking board joists/Tiles/Pavers | |
Sample | Free; Parcel freight by customer | |
Lead Time | 15 days | |
- B series are ideal for traditional decking installation with joists. - D and C series will make installation and leveling of tiles a easy task. - E series are designed to achieve fast and toolless installation with our special designed aluminum joists. [Please don't hesitate to ask us for recommendation of most suitable products] | ||
Detailed Images
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
Model No. | XF-T201B |
Adjustable Range | 18~32 mm |
Base Diameter | 160 mm |
Head Diameter | 108 mm |
Quantity/Carton | 120 pieces |
Support | 1000 kg/m2 |
Warranty | 10 years |
Color | Black |
Model No. | XF-T202B |
Adjustable Range | 35~70 mm |
Base Diameter | 160 mm |
Head Diameter | 100 mm |
Quantity/Carton | 48 pieces |
Support | 1000 kg/m2 |
Warranty | 10 years |
Color | Black |
Model No. | XF-T203B |
Adjustable Range | 65~100 mm |
Base Diameter | 160 mm |
Head Diameter | 100 mm |
Quantity/Carton | 48 pieces |
Support | 1000 kg/m2 |
Warranty | 10 years |
Color | Black |
Model No. | XF-T204B |
Adjustable Range | 66~145 mm |
Base Diameter | 160 mm |
Head Diameter | 100 mm |
Quantity/Carton | 48 pieces |
Support | 1000 kg/m2 |
Warranty | 10 years |
Color | Black |
Model No. | XF-T205B |
Adjustable Range | 140~220 mm |
Base Diameter | 160 mm |
Head Diameter | 100 mm |
Quantity/Carton | 24 pieces |
Support | 1000 kg/m2 |
Warranty | 10 years |
Color | Black |
XF-T201C | XF-T202C | XF-T204C | XF-T205C |
18-32mm | 35-70mm | 66-145mm | 140-220mm |
120 pcs/ Carton | 72 pcs/ Carton | 48 pcs/ Carton | 24 pcs/ Carton |
XF-T201D | XF-T202D | XF-T204D | XF-T205D |
30-45mm | 45-80mm | 76-155mm | 150-230mm |
72 pcs/ Carton | 48 pcs/ Carton | 48 pcs/ Carton | 24 pcs/ Carton |
Packing & Delivery
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
1. For Small Order Pedestals less than 200 pcs, we suggest Parcel by Air, carton packing only;
2. For Big order Pedestals, we can pack according your needs.
3. Sea Freight: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15 days after confirm the order.
6. Shipping Date: usually 30 days.
3. Sea Freight: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15 days after confirm the order.
6. Shipping Date: usually 30 days.
Our Advantages
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
Xinfeng adjustable pedestals offer a wide range of solutions for your leveling and elevation needs, such as to create an elevated platform or to compensate unevenness of the ground.
These pedestals are made of enhanced polypropylene and can hold up to 800kg of weight.
Come with different head components suitable for traditional joists, tiles and our unique click system.
Come with different head components suitable for traditional joists, tiles and our unique click system.
Installation
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
Step 1.
Clean the ground and lay out the pedestals according to your design. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
Step 2.
Lay down the joists, adjust PP adjustors until all joists are on an even level. To adjust height, rotate the top cap of PP adjustor.
Step 3.
Fix the joist onto the PP adjustor directly with screws from side and above.
For WPC/Metal Joists | 9 pcs/ square meter |
For Tiles/Pavers | |
600*600mm (24") | 3 pcs/ square meter |
500*500mm (20") | 4 pcs/ square meter |
400*400mm (16") | 7 pcs/ suqare meter |
300*300mm (12") | 11 pcs/ square meter |
Product Showcase
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set

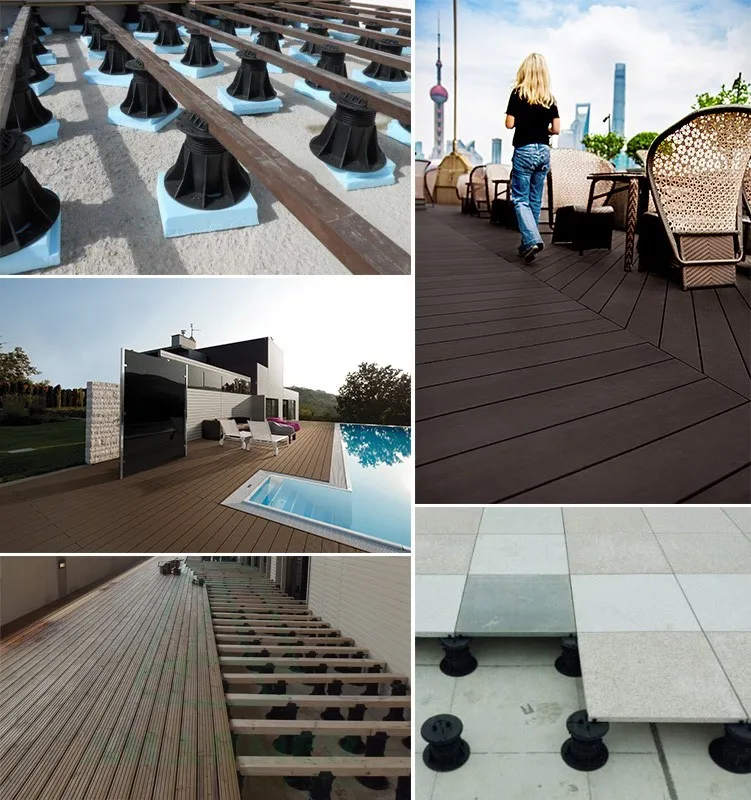

Plastic Pedestals are the ideal choice for supporting decking boards, joists, terrace tiles, slabs, grates or any other pavement
flooring. Such as balcony, patio, swimming pool sides, roof, garden, fountain, park, square, outdoor walkways and platforms.
[Please don't hesitate to ask us for recommendation of most suitable products]
flooring. Such as balcony, patio, swimming pool sides, roof, garden, fountain, park, square, outdoor walkways and platforms.
[Please don't hesitate to ask us for recommendation of most suitable products]
Company Profile
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
1. Factory located in Deqing county, Huzhou City, Zhejiang province, 65,000 square meters area;
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
Certifications
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
1. Xinfeng factory qualified by ISO9001, ISO14001, audited by BSCI;
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
WHY XINFENG PEDESTALS |
1000kg/m2 loading capacity |
Tested by Intertek and SGS |
50 Years of expected working life |
Anti-UV, none poisonous and harmful materials |
Free Samples |
OEM ODM & LOGO customizing service |
30 years of manufacturing Experience |
10 years of wpc product manufacturing experience |
Pedestals Joist Deck Support Plastic Durable Waterproof Adjustable Plastic Pedestals for Raised Floor 140-220mm 500 Kgs/set
Xinfeng supplies WPC Decking, WPC Fence System, Interlocking DIY Tiles and Plastic Pedestals for Raised Floor.
If you like our products, please do not hesitate to contact with us.
We shall reply yout within 24 hours.
Choose Xinfeng, Choose Higher Quality, Choose Better Purchasing Experience.
