1QC 2QC Ladle Refractory Slide Gate Plate for Steel making

Product Overview

Description

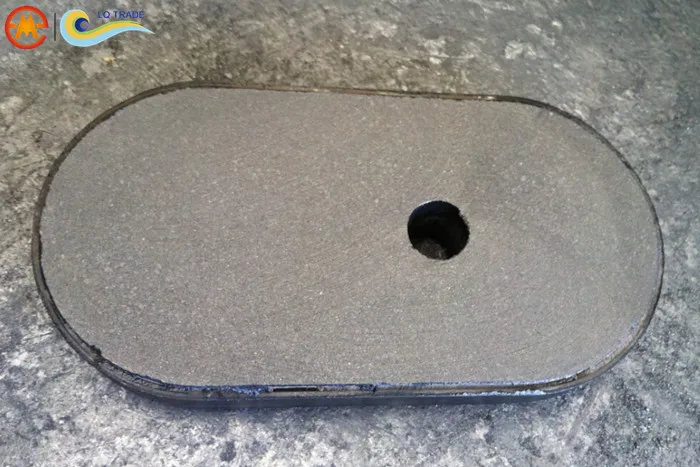

1QC 2QC Ladle Refractory Slide Gate Plate for Steel-making

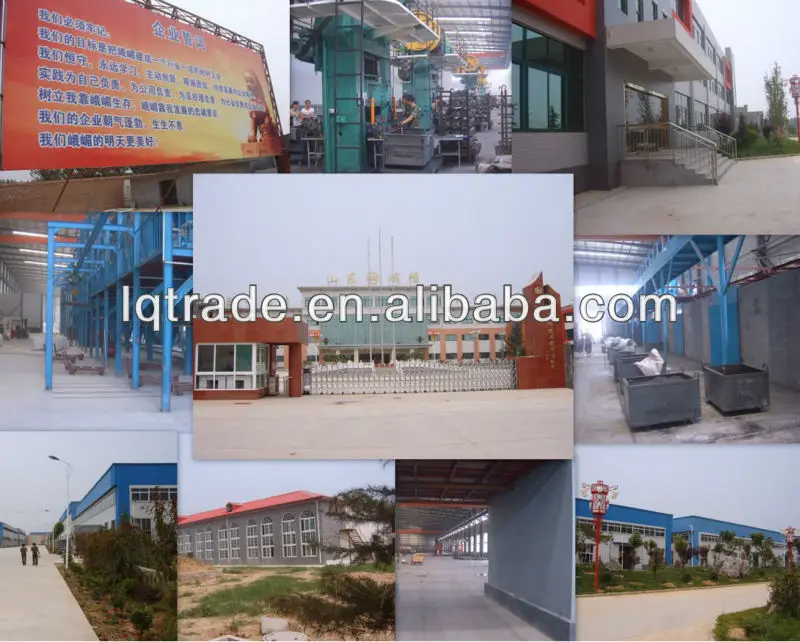

1. Our Factory



Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design, development, production, and import and export trade in one group of Companies, a national large-scale backbone enterprise for refractory materials. Our company covers an area of more than 300 thousand square meters, have advanced technology and equipment, testing equipment and instruments. We mainly produce fireclay refractories, high aluminum refractories, carbon-containing refractories, and have the production line of a variety of high-purity synthetic materials.

Our most popular products: All series of Ladle and Tundish refractories

Our annual production capacity of slide gate plates is more than 80,000 tons.

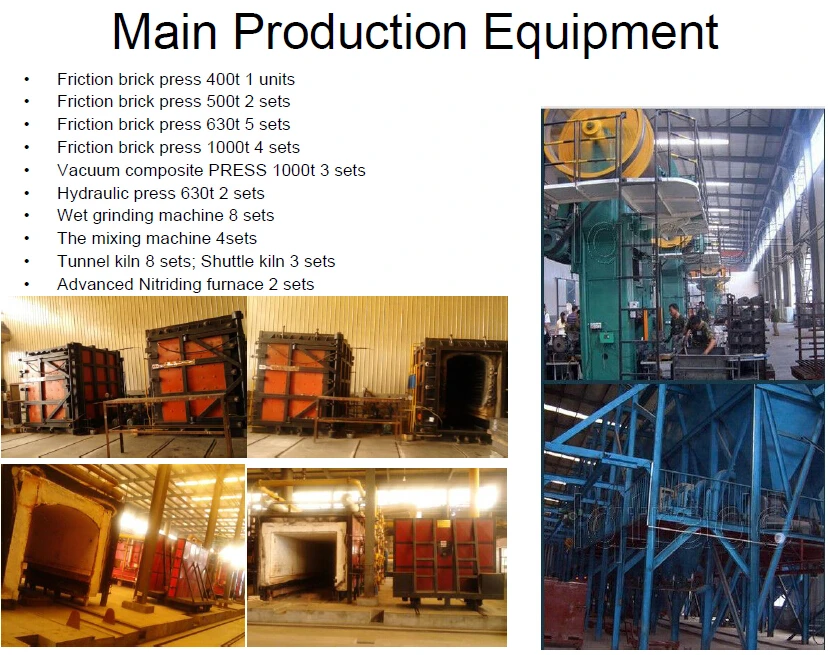

Main Production Equipment to make LINQUAN Refractory Slide Gate Plate Mechanism for Steel Ladle:

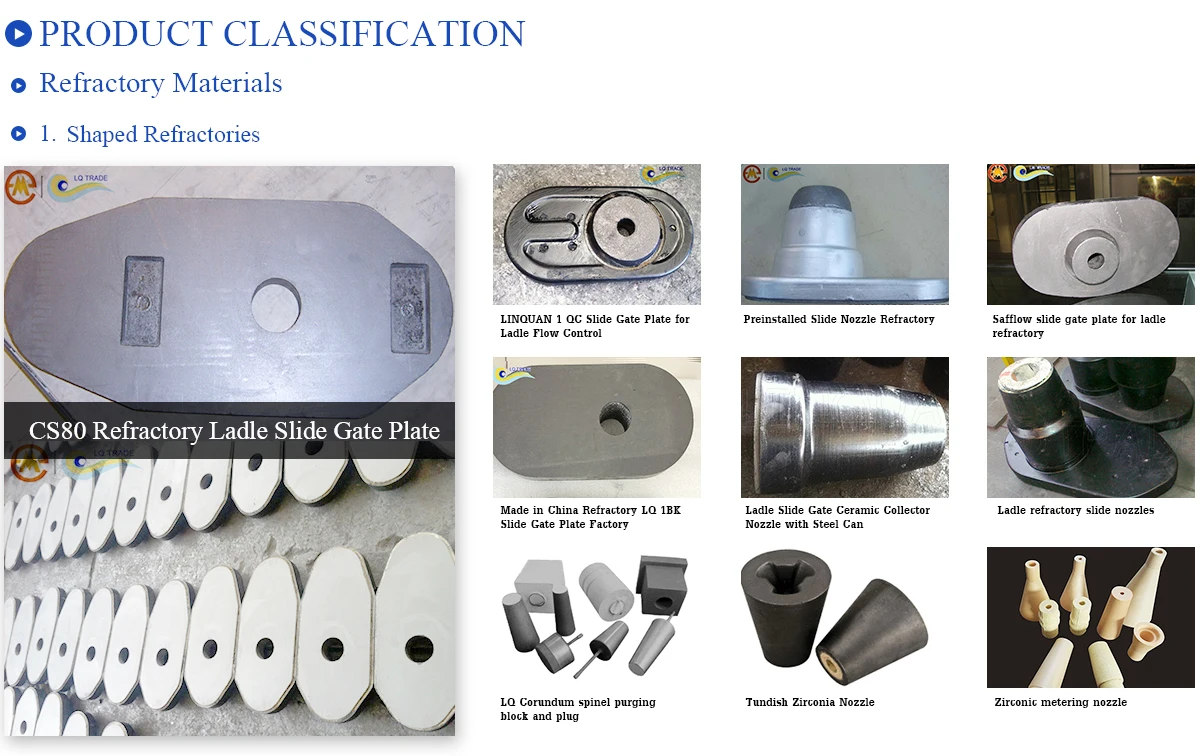

2 .List of our main products:

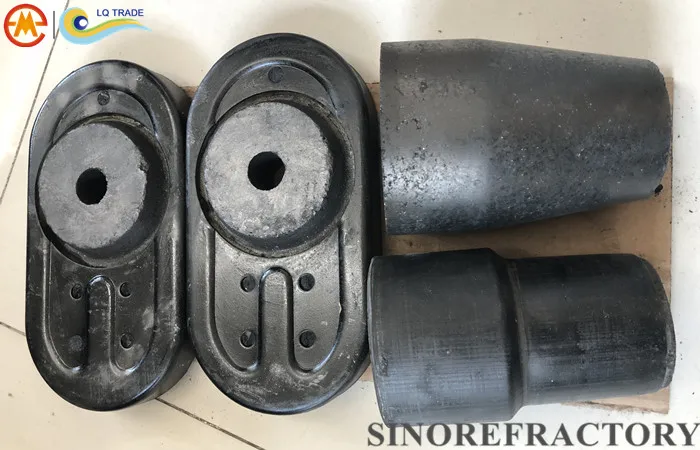

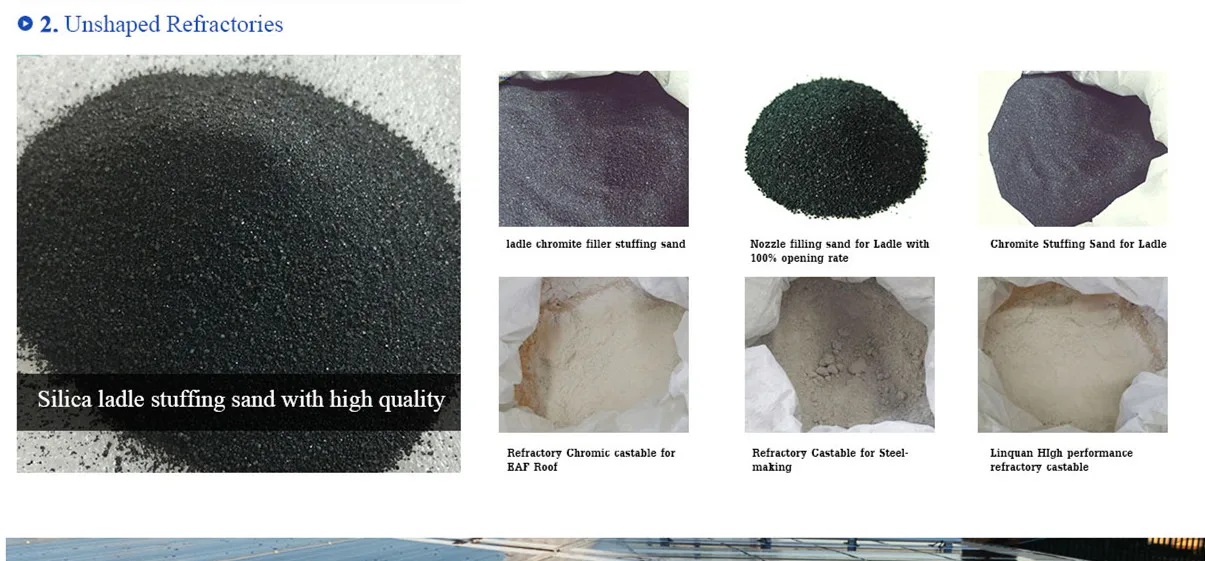

Ladle Slide plate, ladle and tundish nozzle, well block, porous block, refractory castable, refractory brick, parts of raw materials..ladle slide gate system mechanism

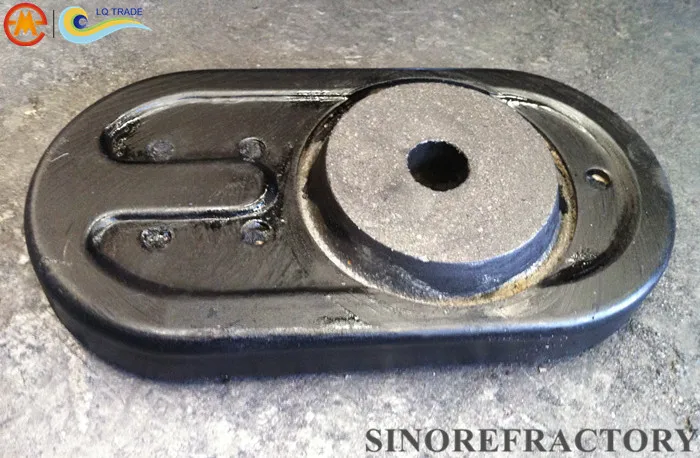

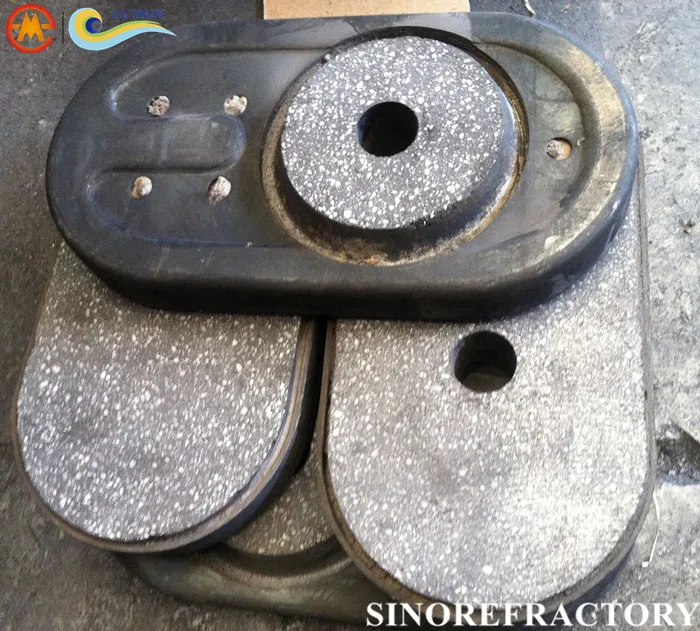

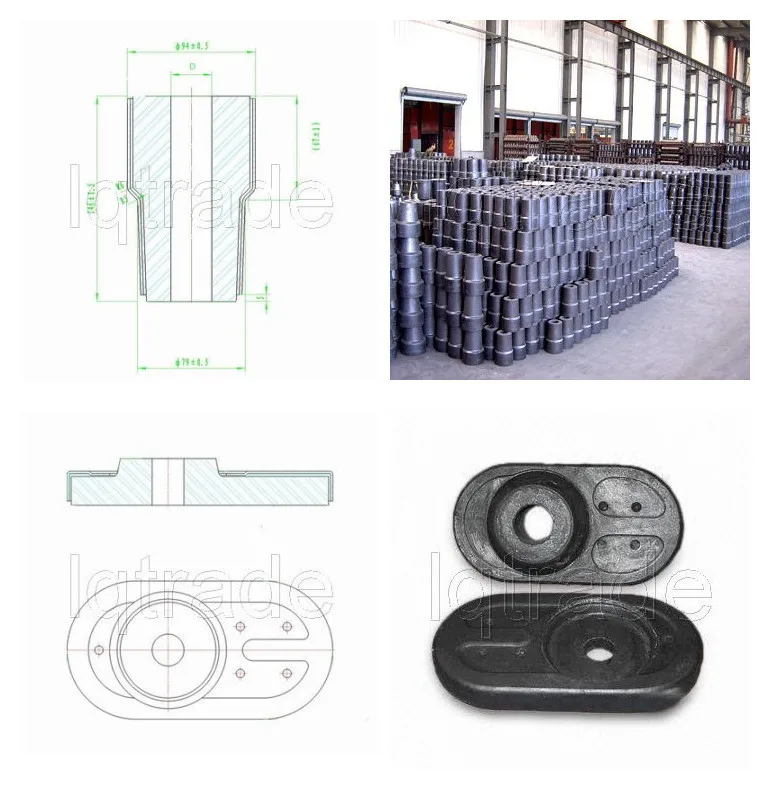

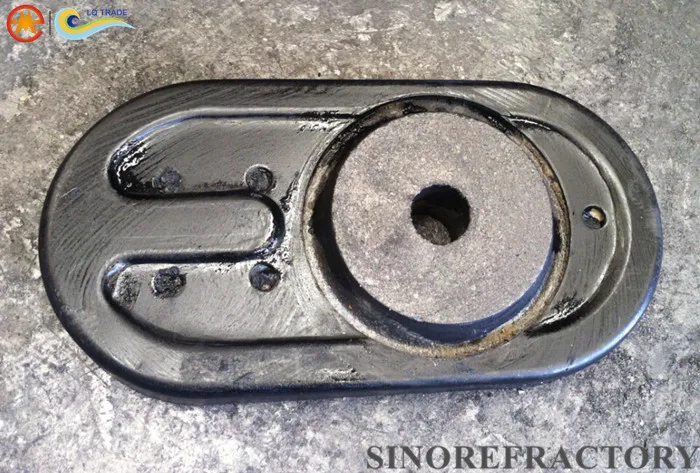

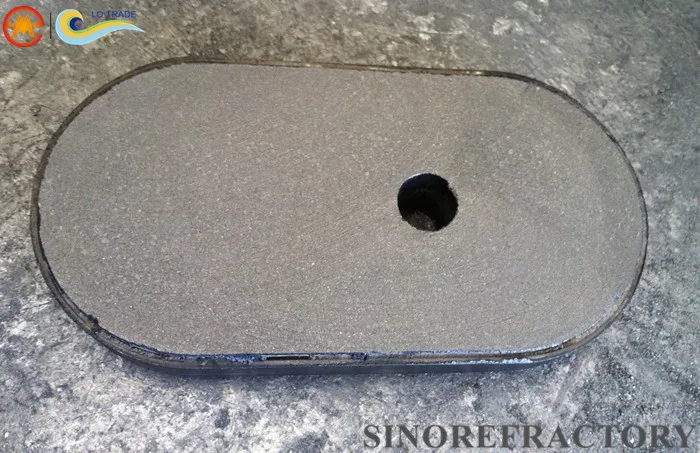

3.  Details of LINQUAN Brand Refractory Slide Gate Plate for Steel Ladle

This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.







Al-Zr-C Material
Al2O3	C	ZrO2	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
85	3	5	7	3.1	120



Al-C Material
Al2O3	C	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
90	3	9	3.00	120



Depending on the requirements of the customers, these plates are manufactured in different qualities, namely Alumina Carbon, Alumina Spinnel Carbon, Magnesia Spinnel Carbon and Alumina Zirconia Carbon.

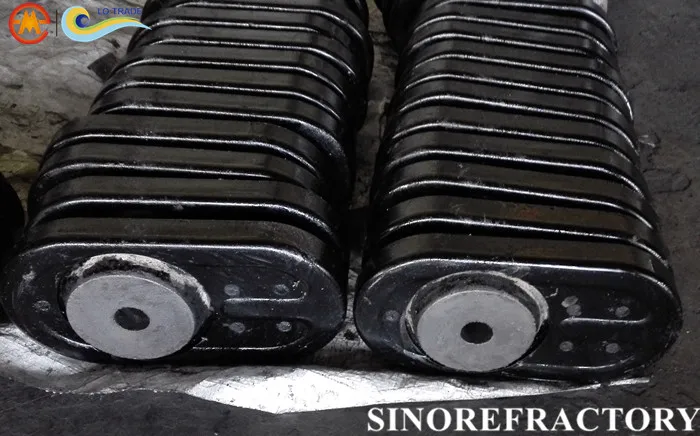

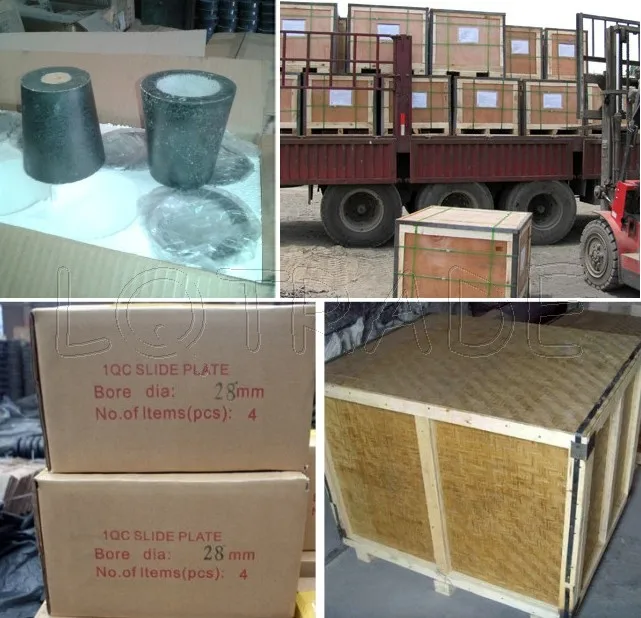

4. Package of LINQUAN Refractory Slide Gate Plate Mechanism for Steel Ladle



Packaging: carton+ wooden case+pallet.

Transportation&storage:Keep dry and handle with case.
To be kept upright.







5. Certification for 1QC 2QC Ladle Refractory Slide Gate Plate for Steel-making

Welcome to inquiry on LINQUAN Brand Refractory Slide Gate Plate for Steel Ladle, will give you a best solution!
