Product Overview
Description

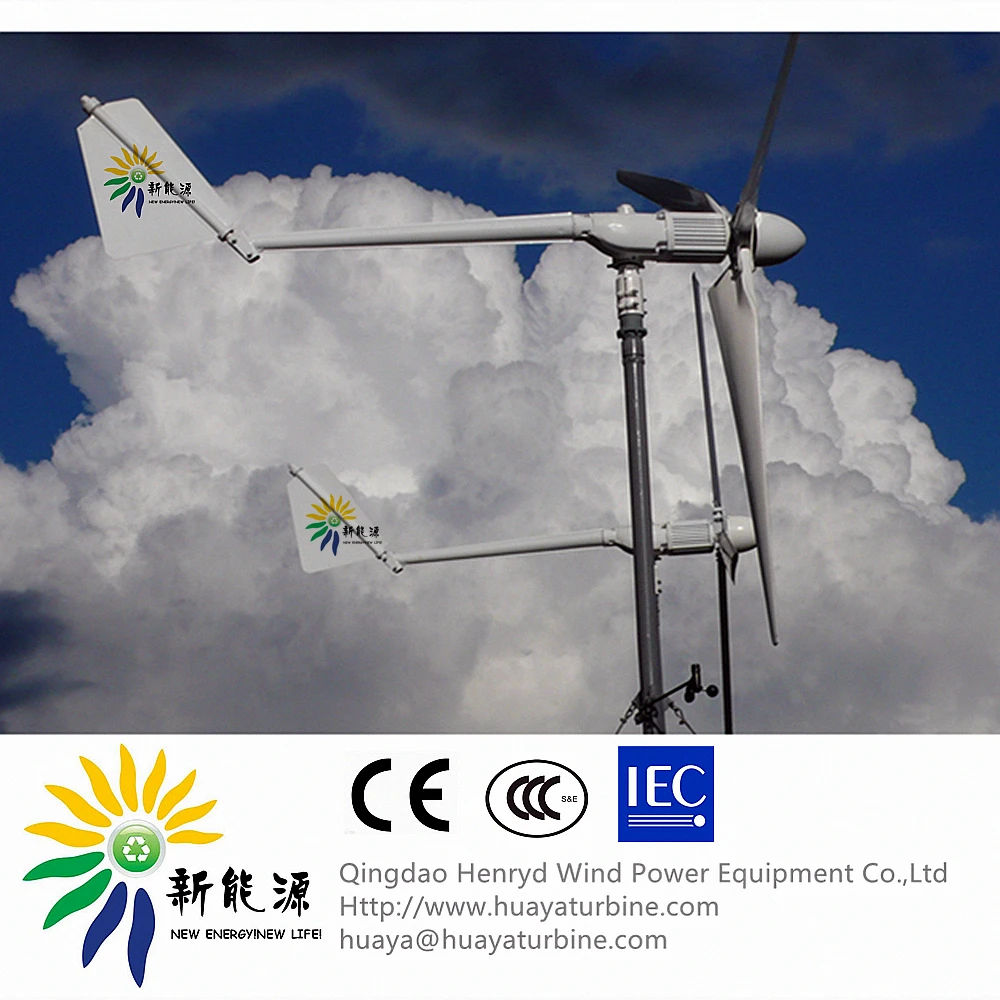

2.5kw Wind energy system, Residencial wind power generator 2.5kw Wind Generator
FD3.8-2.5kw wind turbine for rich or normal wind speed place

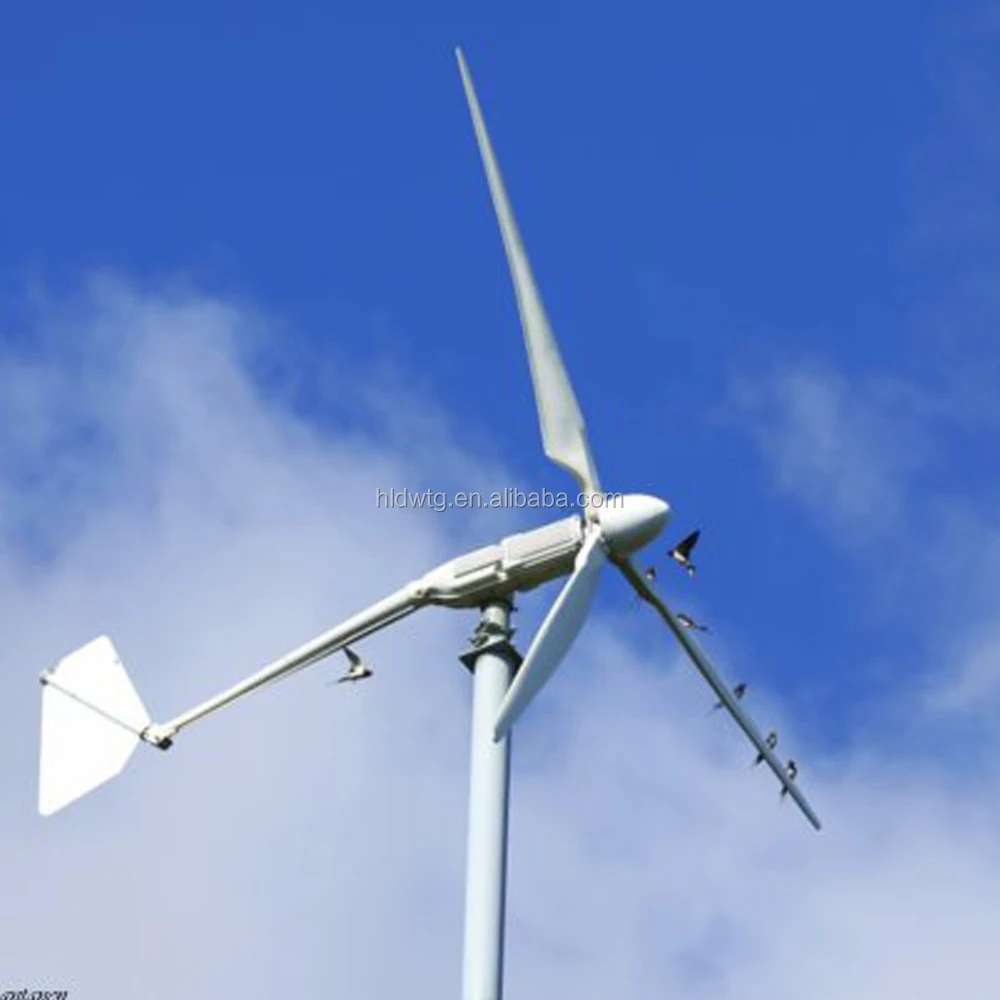

Product Description
- FD3.8-2.5kw fixed pitch wind turbine advantage
Fixed pitch wind turbine main body 2.5kw including: 3 pcs FRB blades, nose cone, hub, generator, nacelle, tail rod, tail vane.
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s, low rated wind speed 10m/s
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- tilting up tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order. Guy wire tower cost is lower and easy to delivery.
- We provide completely on grid system kit, off grid system kit, wind solar hybrid on/off grid system kit. Grid power and diesel generator as backup power
2.FD3.8-2.5kw wind turbine technical parameters
We have FD4-2.5kw, for lower average wind speed place
Special antiseptic treatment for island, seaside use
| Rotor Diameter (m) | 3.8 |
| Material and number of the blades | Reinforced fiber glass*3 |
| Rated power/maximum power | 2500/3600w |
| Rated wind speed (m/s) | 10 |
| Startup wind speed (m/s) | 2.5 |
| Working wind speed (m/s) | 3~35 |
| Survived wind speed(m/s) | 50 |
| Rated rotate speed(r/min) | 320rpm |
| Working voltage | DC24V/48V/120V/240V/300V |
| Generator style | Three phase, permanent magnet |
| Charging method | Constant voltage current saving |
| Speed regulation method | Yaw+ Auto brake |
| Weight | 123kg |
| Tower height (m) | 9 |
| Suggested battery capacity | 12V/200AH Deep cycle battery 4pcs |
| Life time | 20years |
3. Production Capacity: 300 sets per month
4. Main market: US, Canada, Australia, New Zealand, European...
5. Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
6. 2.5kw wind turbine output power data
| Power(w) | Wind speed(m/s) | working voltage(V) | Output power(W) |
| 2500 | 3 | 98 | 251 |
| 4 | 138 | 672 | |
| 5 | 156 | 1004 | |
| 6 | 175 | 1506 | |
| 7 | 196 | 1973 | |
| 8 | 235 | 2198 | |
| 9 | 263 | 2319 | |
| 10 | 282 | 2504 | |
| 11 | 300 | 2692 | |
| 12 | 323 | 2791 | |
| 13 | 338 | 2857 | |
| 14 | 347 | 2907 | |
| 15 | 376 | 2974 | |
| 16 | 380 | 3135 | |
| 17 | 380 | 3381 | |
| 18 | 380 | 3409 | |
| 19 | 380 | 3487 | |
| 20 | 380 | 3510 |
- Application

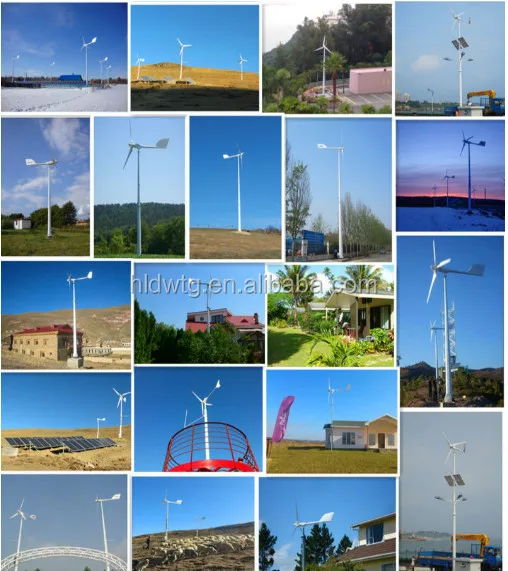

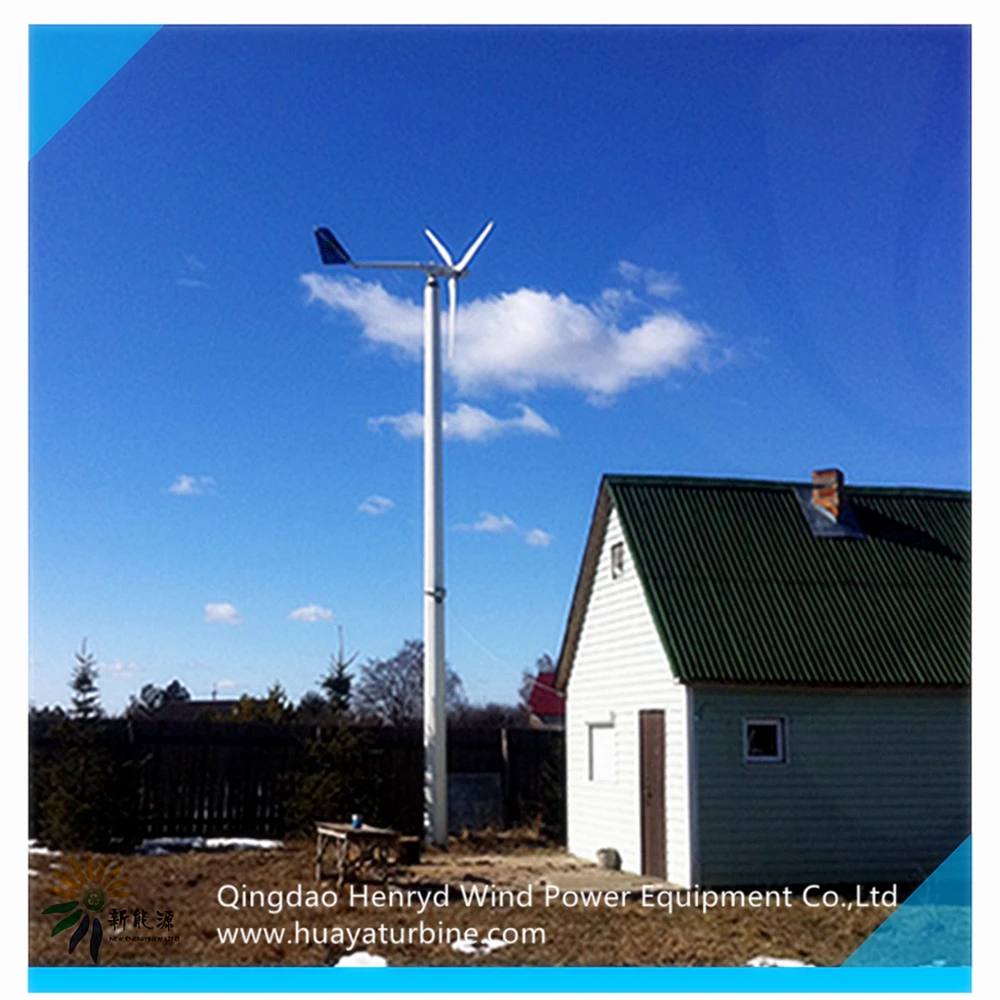

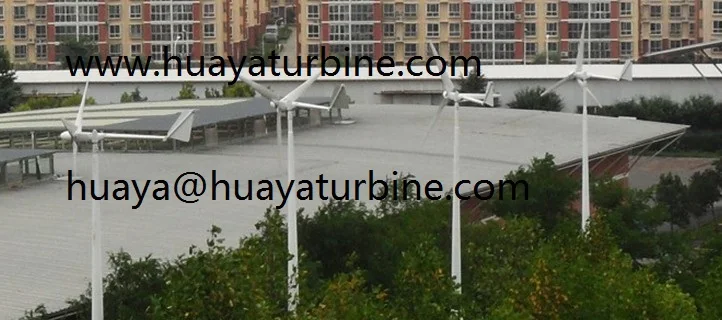

Home, farm, signal station, island, garden...

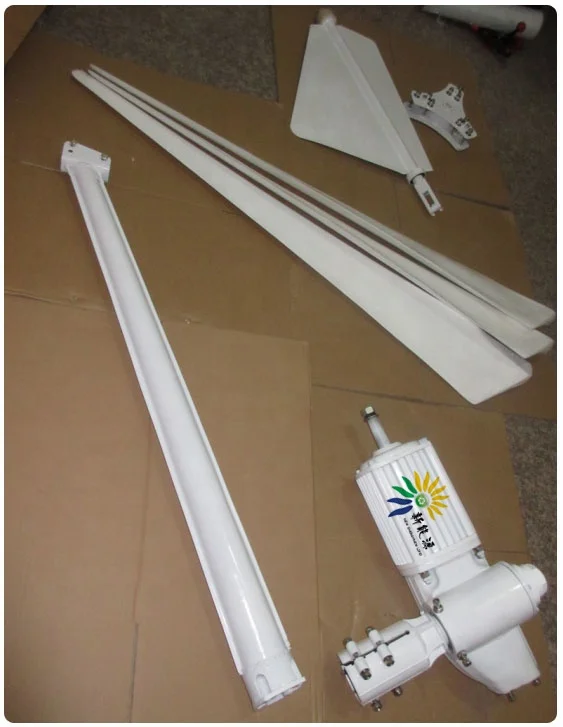

7. Assembly (blades, hub, generator with nacelle, tail rod, tail vane)
blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery
Clamp hub, safety and reliable

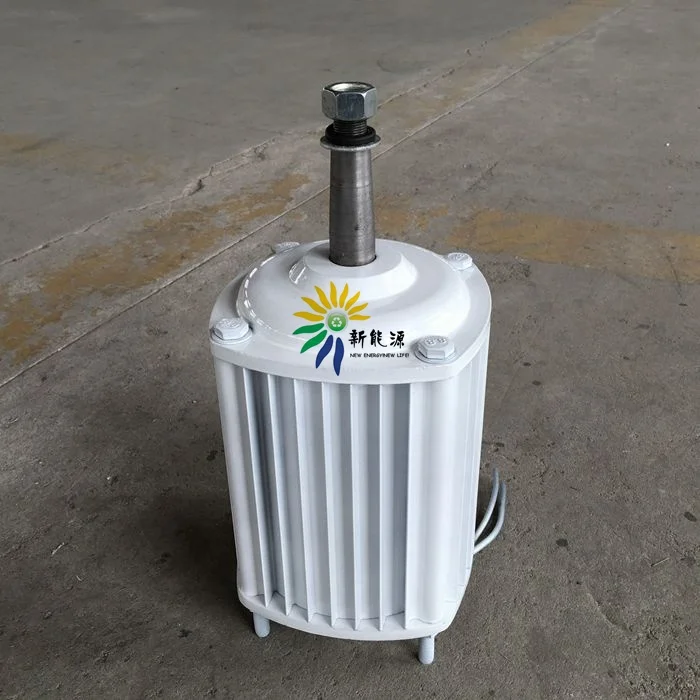

Aluminum housing and nacelle
Rare earth material, high efficiency
low start up torque 1.5N.m.
Provide plate form test record for each set
We sell the pma seperately.

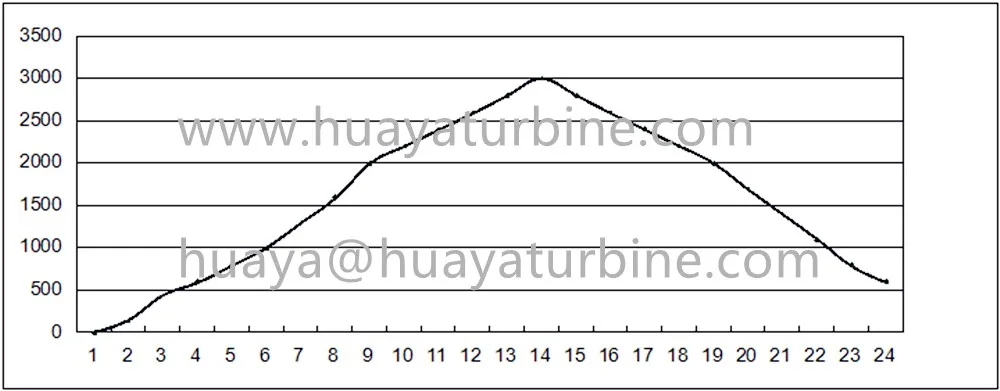

8. Output power curve
9. Working system

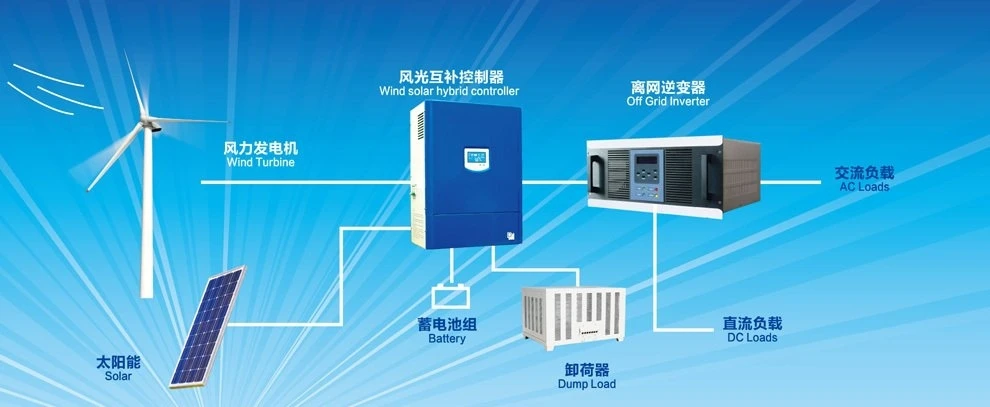

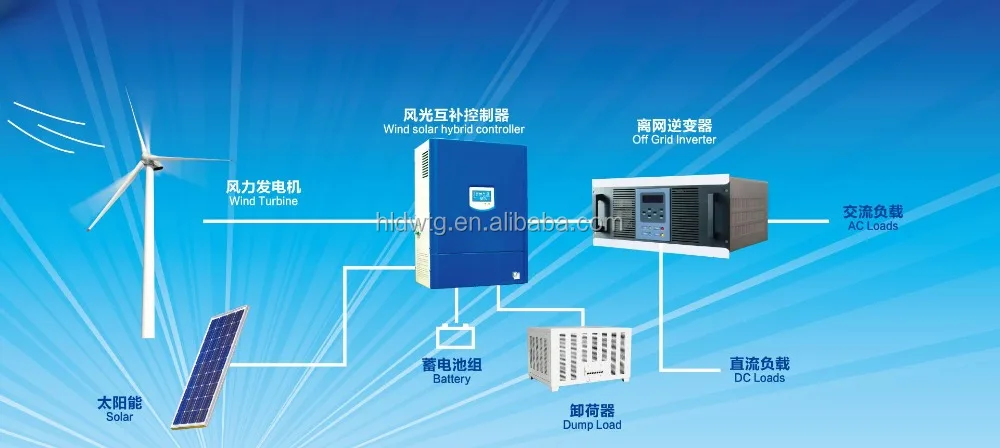

On grid working system: (can be hybrid with solar panel)
2.5kw wind turbine with tower + 3kw PWM on grid controller with dump load + 3k grid tie inverter;
Off grid working system: (can be hybrid with solar panel)
2.5kw wind turbine with tower + PWM off grid controller with dump load+ battey group + 3kva pure sine wave inverter
10. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

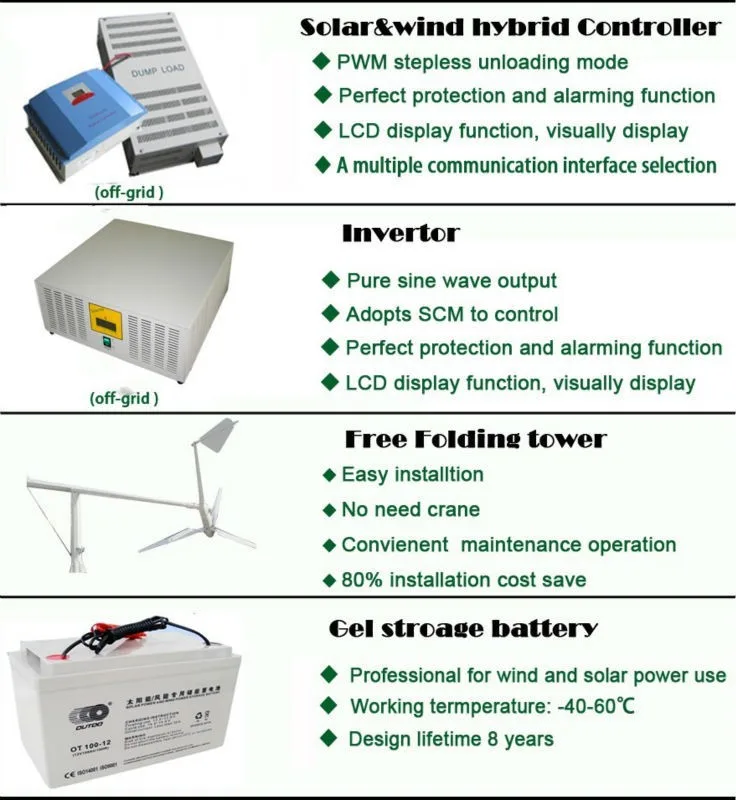

11.Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
3kw on grid controller with dump load normal spec:
Power of the equipped wind turbine (W) | 3K |
Operating mode | Continuous |
Function | Commutation, control |
Operating environment | Temperature -30~40℃, humidity≤80% |
PWM unloading voltage (DCV) | ≥350V |
Brake voltage (DCV) | 380±2V |
Brake delay time (min) | 10-20 minutes |
Self-provided connecting wire of the PWM dump load(mm²) | >4mm² |
PWM unloading fuse (A) | 16A |
DC output fuse (A) | 16A |
3kw off grid charge controller normal spec:
Wind turbine power (W) | 3KW |
Solar panel power (W) | 1000W |
Battery | 48 |
Operating mode | Continuous |
Function | Charge, control |
Operating environment | Temperature -30-40℃, humidity≤80% |
PWM dump load voltage (v) | >58V |
Three-phase dump load voltage of the wind turbine (v) | 60V±1 |
Recovery charging voltage of the wind turbine (v) | 56V±1 |
Power shortage of the battery (V) | 40V±1 |
Solar stop charge voltage(V) | 60V±1 |
Recovery charging voltage of the solar(v) | <58V |
Self-provided connecting wire of the battery (mm²) | >16mm² |
Self-provided connecting wire of the PWM dump load (mm²) | >12mm² |
PWM fuse(A) | 63A |
12. Matched grid tie inverter 3k/5k, pure sine wave inverter single phase
Inverter output voltage, frequency can be manufactured according to different countries request.
The DC Max voltage |
600Vdc |
The DC range | 30V~540Vdc |
The rating max DC input current | 20Adc |
The rating grid voltage | 230Vac or 240Vac |
The grid voltage range | 180~270Vac (adjustable) |
Operation phase | single |
Rating grid output current | 13.0Aac/12.5Aac |
Rating output power | 3.0KW |
Grid current THD | Total THd<4%, |
The DC injection current | <20mA |
Output power factor | >0.99 |
Grid frequency range | 47.0~52.0Hz /57.0~62.0Hz(adjustable) |
Max efficiency | >96.5% |
Design lifetime | >20 years |
Operation environment temperature | 25~60 |
Other wind turbine model list:
| Model | Working voltage |
| FD2.2-300W | DC24V |
| FD2.5-500W | DC24V |
| FD2.8-1KW | DC24V/DC48V |
| FD3.2-1.5kw | DC24V/DC48V |
| FD3.2-2KW | DC24V/DC48V |
| FD3.8-2.5kw | DC48V |
| FD4-3KW | DC48v |
| FD4-4KW | DC120v |
| FD5-5KW | DC120v |
| FD8-10KW | DC120V |
| FD8-15kw | DC240 |
| FD10-15KW | DC240V |
| FD10-20KW | DC500V |
| FD10-25KW | DC500V |
| FD12-30KW | DC500V |
| FD2.8-500W | DC24V |
| FD3.2-1KW | DC24V/DC48V |
| FD3.8-2KW | DC24V/DC48V |
| FD6-5KW | DC120V |
| FD10-10KW | DC120V |
| FD12-20KW | DC500 |
Packaging & Shipping
FD3.8-2.5kw wind turbine main body + 48v controller with dump load
1 plywood case
Packing size: 1.91*0.64*0.35m
Cubage: 0.43cbm
Gross weight 129kgs
Normally we delivery the products by sea or by air. If you need us check the delivery cost, pls let us know the destination port to you. Then we will check the delivery cost accordingly.
Packing details for 2.5kw wind turbine + controller with dump load
| Item# | Product description | Spec | Unit | Q'ty | Remark |
| 1 | main body | FD3.8-2.5kw 48v | set | 1 | |
| hex nut | M20*1.5 | pcs | 1 | 8.8 grade | |
| flat washer | φ20 | pcs | 1 | ||
| split pin | φ4*25 | pcs | 1 | ||
| hexagon bolt | M10*25 | pcs | 4 | ||
| hexagon bolt | M10*80 | pcs | 4 | ||
| hex nut | M10 | pcs | 4 | ||
| flat washer | φ10 | pcs | 8 | ||
| 2 | blades | 2.5kw L=1.85m | pcs | 3 | |
| 3 | hub | 2.5kw | set | 1 | |
| hexagon bolt | M12*80 | pcs | 9 | 8.8 grade | |
| hex nut | M12 | pcs | 9 | ||
| flat washer | φ12 | pcs | 9 | ||
| elastic pin | φ5*25 | pcs | 3 | ||
| hexagon bolt | M6*20 | pcs | 3 | 8.8 grade | |
| flat washer | φ6 | pcs | 3 | ||
| 4 | nose cone | 2.5kw | pcs | 1 | |
| 5 | tail | 2.5kw | set | 1 | |
| 6 | tail rod | 2.5kw | pcs | 1 | |
| hexagon bolt | M10*70 | pcs | 2 | 8.8 grade | |
| self lock nut | M10 | pcs | 2 | ||
| flat washer | φ10 | pcs | 2 | ||
| 7 | controller | 2.5kw 48v | set | 1 | |
| dump load | set | 1 |
Our Services
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
Company Information
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Certification and test report
FAQ
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
