High pressure water wash car washing machine systems fully automatic

Product Overview

Description

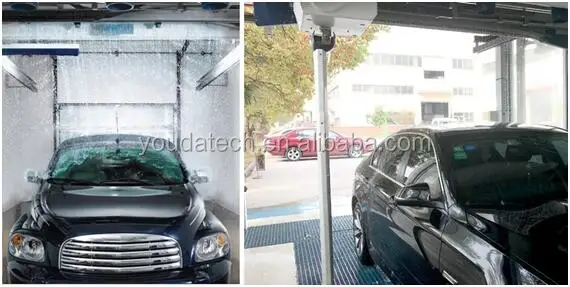

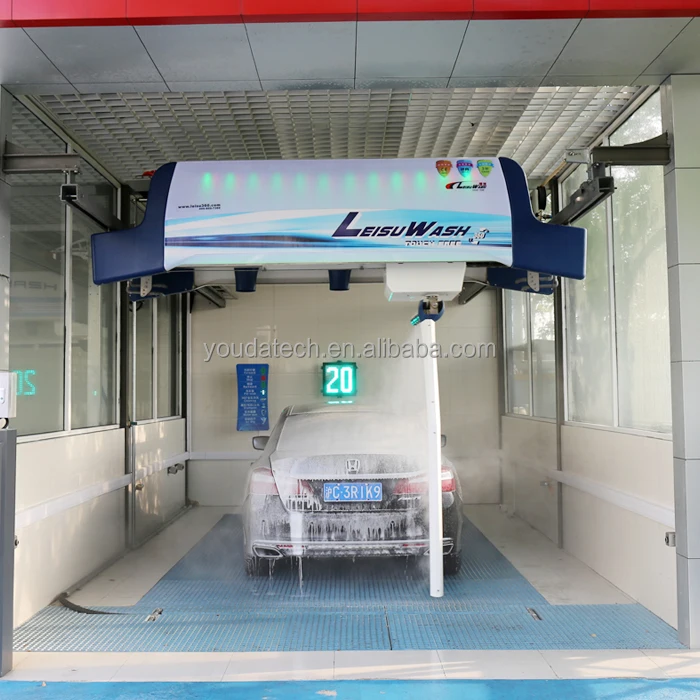

Touchless car wash

Smart 360 Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to "think for itself", increasing up-time and optimizing the wash process.



Description:

1. Touchless car wash spray foam, water and wax automatically.

2. The machine washes the car around 360 degree by 1 arm.

3. High pressure pre-wash for under chassis and wheels.

4. Intelligent LED Tip Screen and voice prompt during wash progress.

5. High pressure pumps with free of wipes liquids wash car precisely.

6. CPU+PLC control system can easy to operate and maintenance.

7. Fault self checking and warning systems.

8. Built-in dryers equipped with four high efficiency motors and fans.



World famous brands components, such as Germany PINFI high pressure pump, Japan NSK bearing, France Schneider electric parts, DELTA PLC, and German PEPPERL+FUCHS sensors etc.











Technical Data:



Main machine size	3500mm*1200mm*900mm
Water pump size	1200mm*700mm*600mm
Chemical mixing system size	800mm*450mm*1400mm
Rail length	7500mm

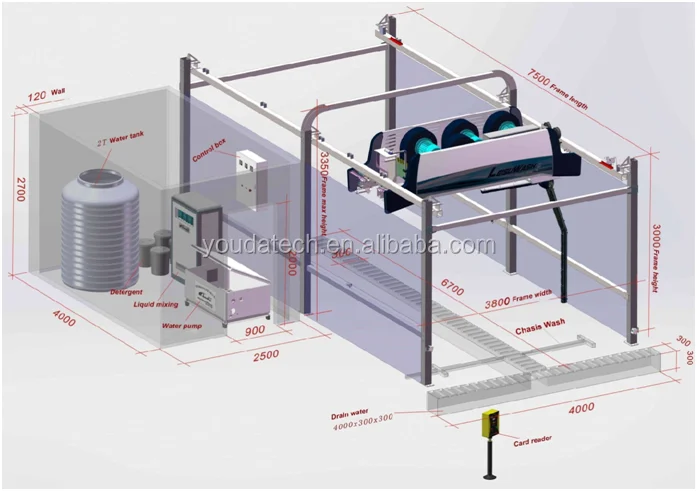

Min Mounting Dimensions (Lx W x H )	7600mm*3850mm*3350mm
Max car wash size(Lx W x H )	5900mm*2900mm*2050mm
Power Requirement	380V/22Kw, 50Hz/60Hz
Air switch	80A air switch
Total power	45kw
Water pump motor power	15~22Kw
Air fan motor power	20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters
Longitudinal motor power	0.37Kw stepless frequency control
Transversal motor power	0.75Kw servo drive system
Rotary motor power	0.75Kw servo drive system
Chemical mixing system motor power	1.5kw
Central processor	Industrial PLC embedded central processor + dual-core system
Drive System	Servo drive system
Detection system	Smart three-dimensional monitoring system
Sensor System	Ultrasound+ Absolute value of the digital encoder
Speed	360 wash 28 seconds, energy saving 60%
Pre-soak consumption	20~50ML/Car ( Depends on chemical proportioning )
Polish shampoo consumption	50~100ML/Car
Crystal wax consumption	20~40ML/Car
Water consumption	Standard wash 100L/car, Fine wash 150L/car
Electricity consumption	Standard wash 0.52 KW·H/car, Fine wash 1 KW·H/car

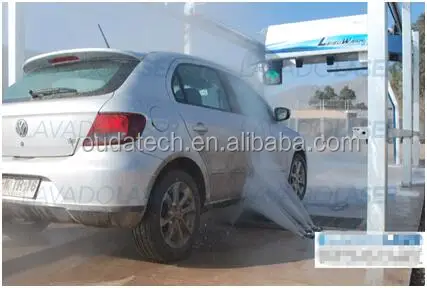

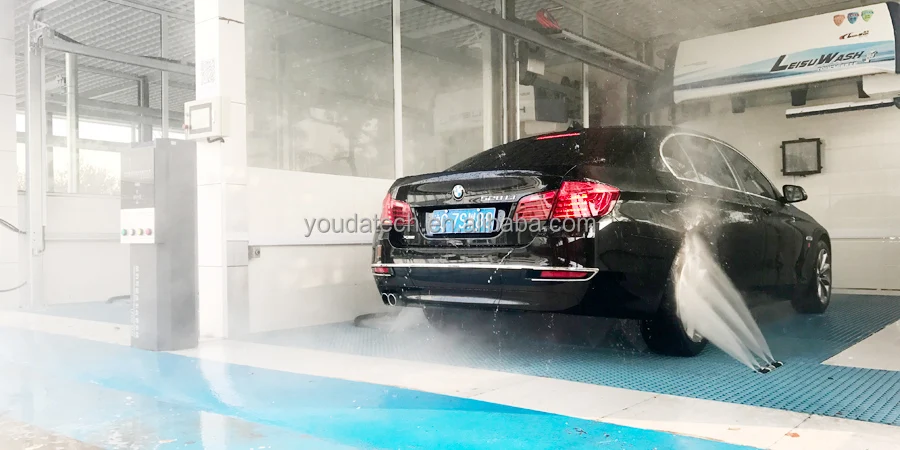

  High pressure pre-wash for under chassis and wheels.

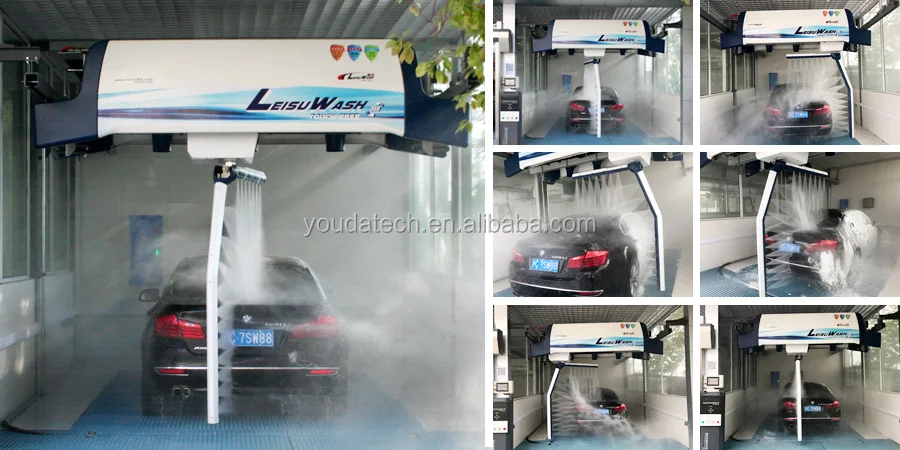

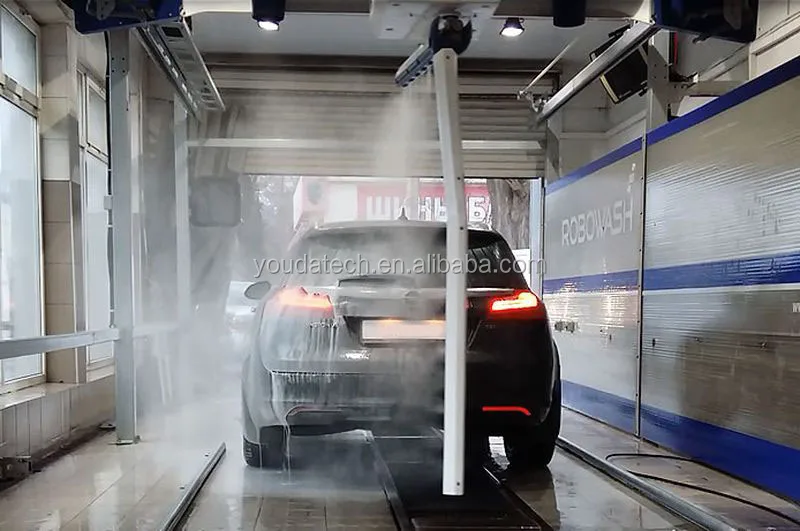

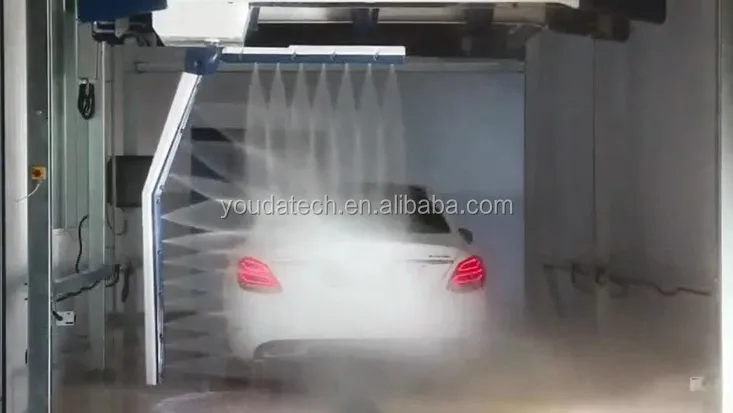

360 rotate arm with high pressure water wash

Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle

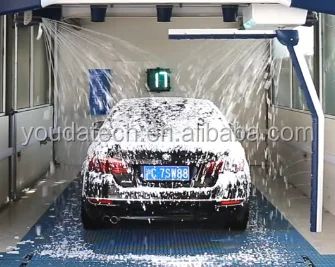

Polish Shampoo auto spray

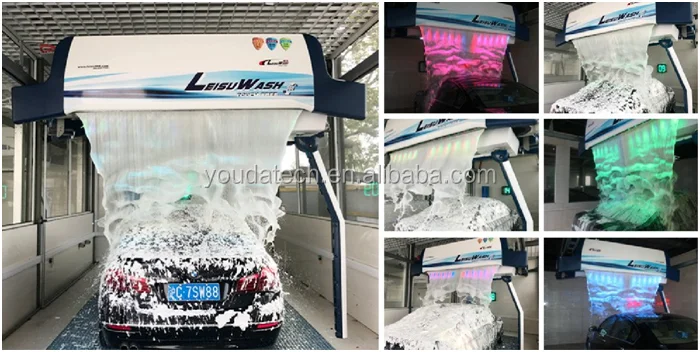

 Overflow with Colorful LED light will attract drivers off street and onto your wash bay.

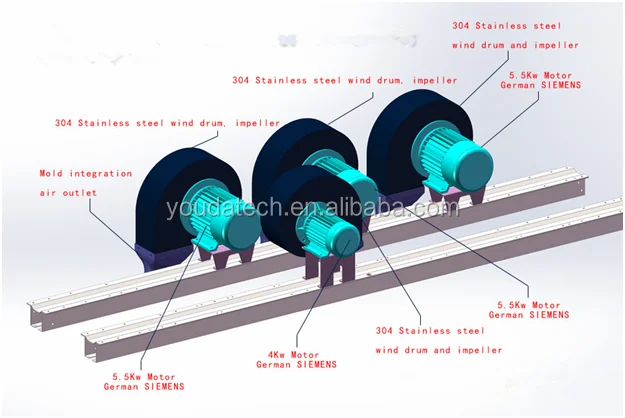

Unique embedded fast air drying system



Overflow Embedded Fast Air Dry System

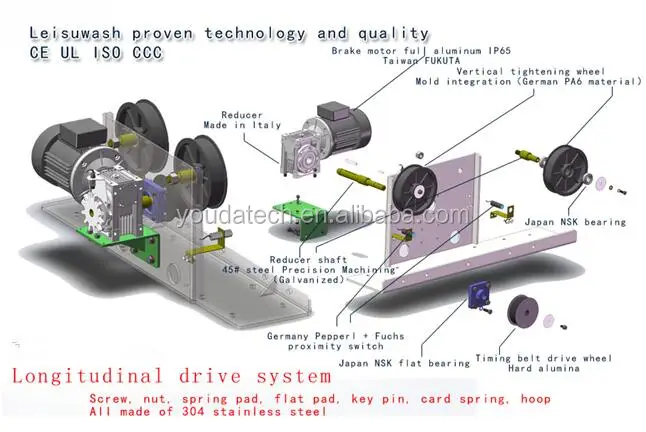

Overflow Longitudinal Drive System

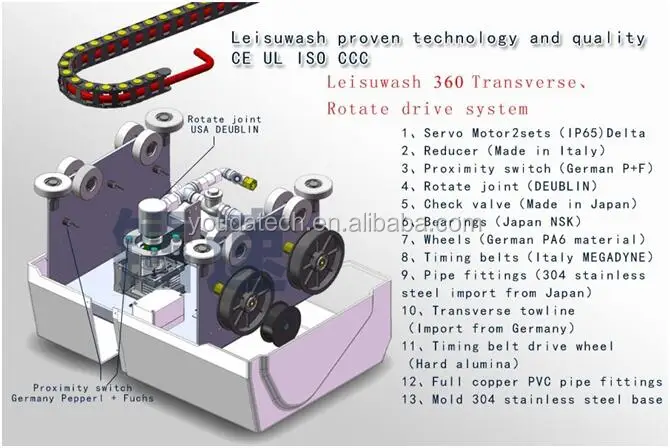

Overflow Transverse, Rotate Drive System

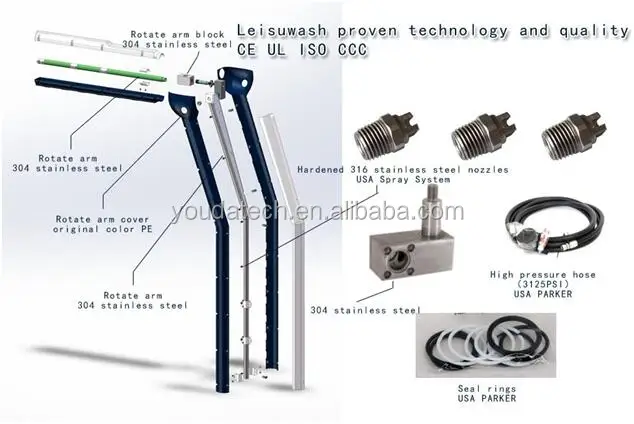

Overflow Rotate Arm
