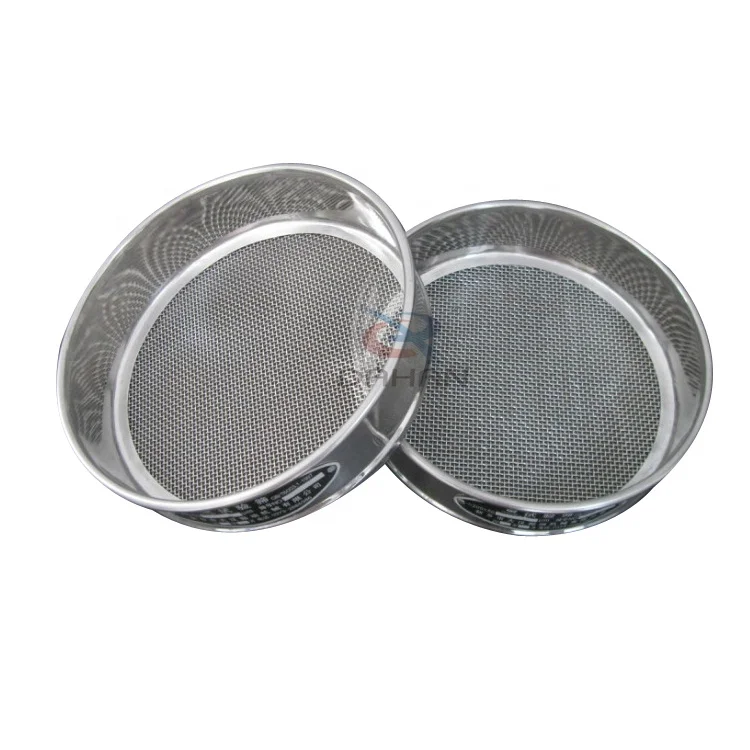

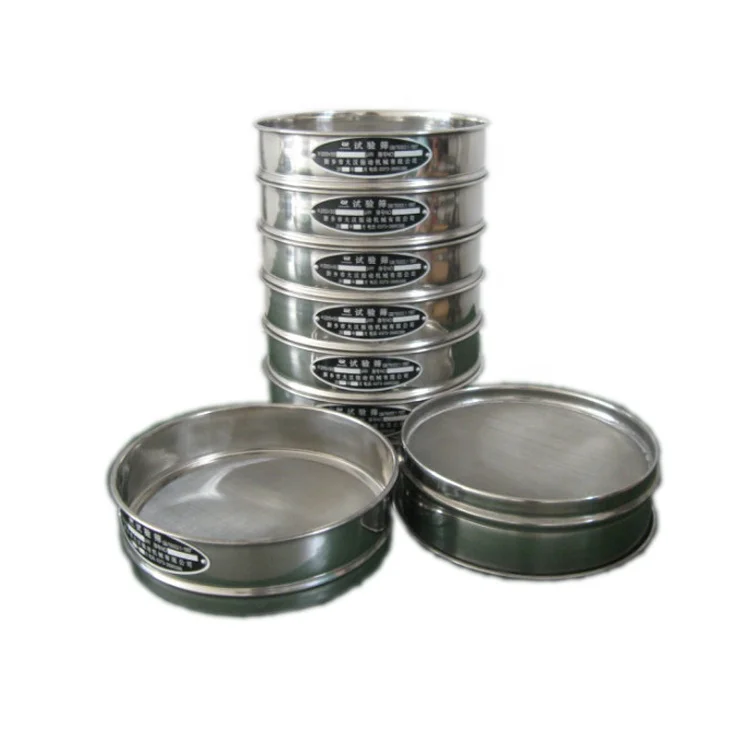

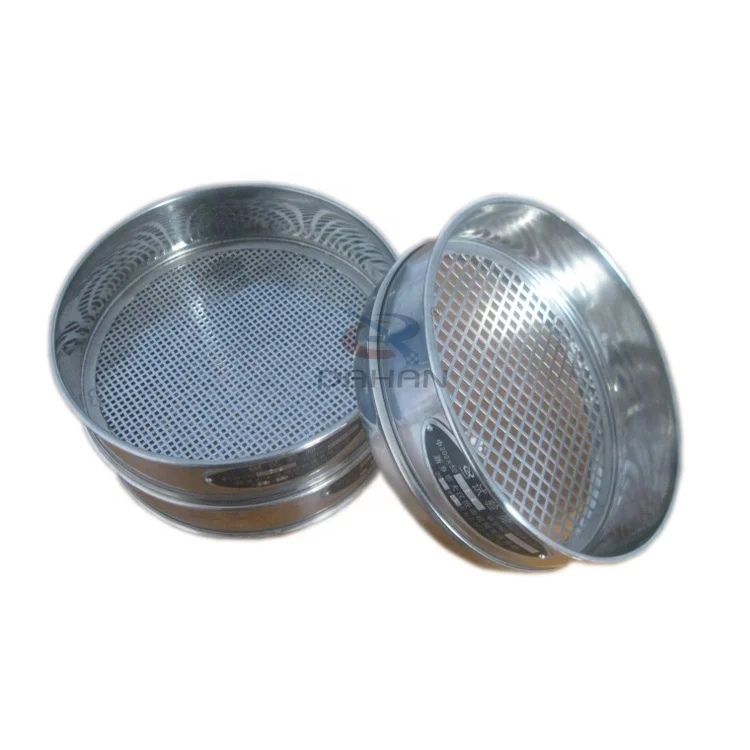

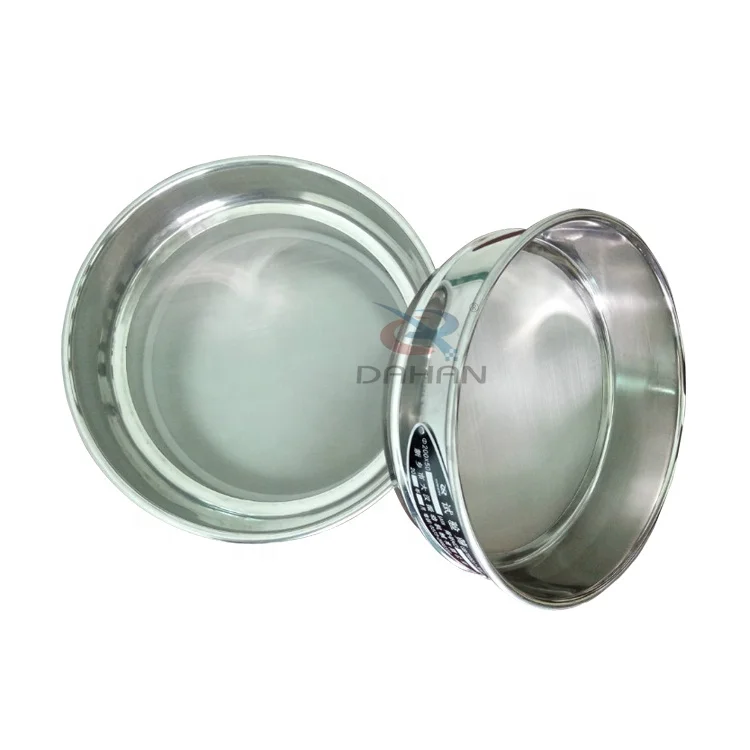

100 150 200 Micron Mesh Size Flour Test Sieve Wire Sieve is divided into Φ200 test sieve and Φ300 test sieve, and is divided into a wire woven mesh test sieve and a metal perforated plate test sieve according to the sieve surface material.

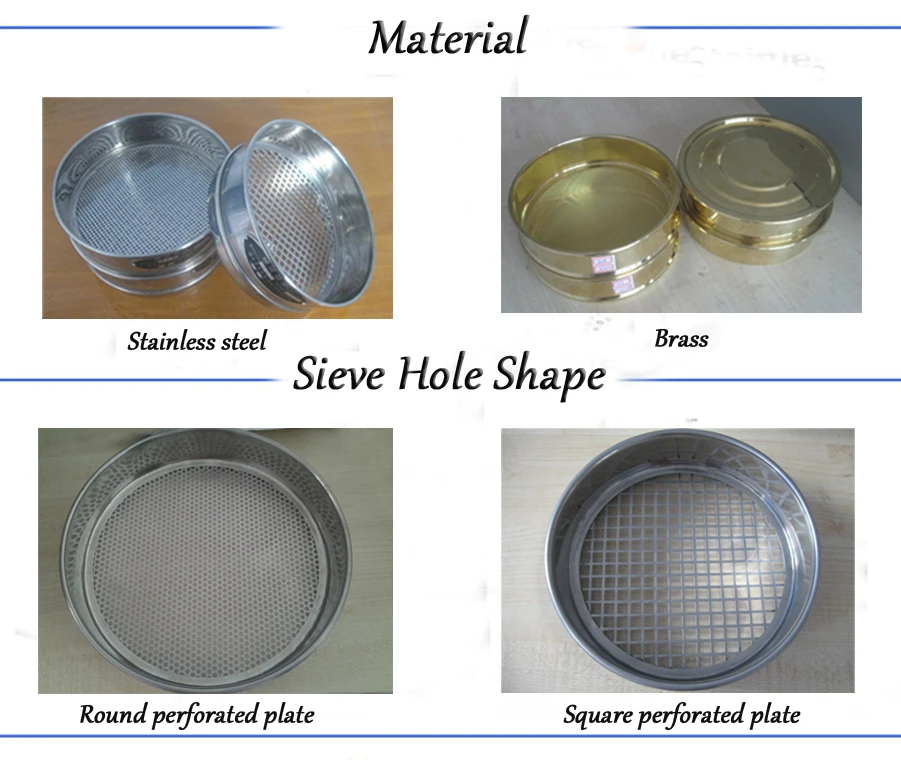

The wire woven mesh test sieve is produced by the national standard GB/T6003.1-1997. The basic size of the mesh is 2.36mm-0.038mm, in line with the international standard ISO3310-1:1990 R20/3, R20, R40/3 series, the screen material is brass, tin bronze, stainless steel.
The standard screen size as follow:
No.
Type
Mesh(mm)
No.
Type
Mesh(mm)
1
8#
2.360
15
70#
0.212
2
10#
2.000
16
80#
0.180
3
12#
1.700
17
100#
0.150
4
14#
1.400
18
120#
0.125
5
16#
1.180
19
140#
0.106
6
18#
1.000
20
170#
0.09
7
20#
0.850
21
200#
0.075
8
25#
0.710
22
230#
0.063
9
30#
0.600
23
270#
0.053
10
35#
0.500
24
325#
0.045
11
40#
0.425
25
400#
0.038
12
45#
0.355
26
500#
0.028
13
50#
0.300
27
>500#
<0.028
14
60#
0.250
Main Features
Screen frame using SUS304 from polished stainless steel tension, thickness 0.6 mm, the overall shape of durable, non-magnetic, screen and screen frame fixed by soldering, do not slack. The following 300 degree heat resistant.
Product Application

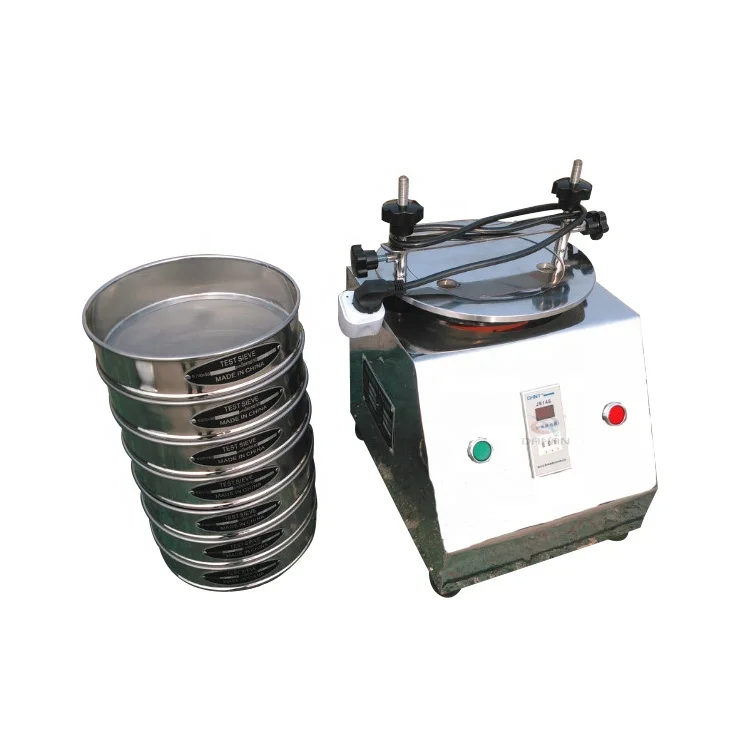

micron sizes test sieve is mainly used for the particle size analysis of granular materials, and is used in a tapping standard sieve machine or a standard sieve machine to classify the particle size composition of various powder materials. It is widely used in the screening of granular materials in abrasive, metallurgy, metallurgy, pharmacopoeia, chemical building materials and other industries.
Company Information
Certifications
We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard. Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.
Packaging & Shipping
1) We offer free,professional,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
2) We usually use international well-known logistics companies,according to your shipment address.If you have a designated forwarder company,please let us know.
Our Services
1)We provide 12months quality warranty to make sure your machine well runs consistently.
2)Professional engineer design the production line for you. 3)Recommend suitable equipment according to your special demand. 4)Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible.
FAQ
Q:What is the real delivery time of your factory?
A:10 to 15 days for general series products,meanwhile,customized products would need 20 days to 40 days based on different situations.
Q:How do you ensure the quality of your products?
A:Generally,our equipments are the most durable type in the industry,this is also the feature of the label impression of DH for most of our customers at home or abroad.
However,we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q:How do you after-sale service work if the product got damaged?
A:In the guarantee time 12 months,our general aftersale serve.
We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard. Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.
