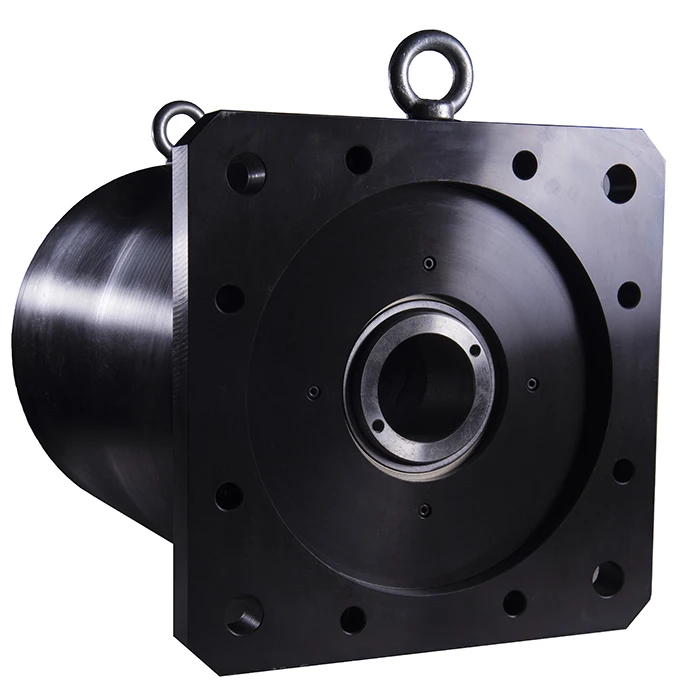

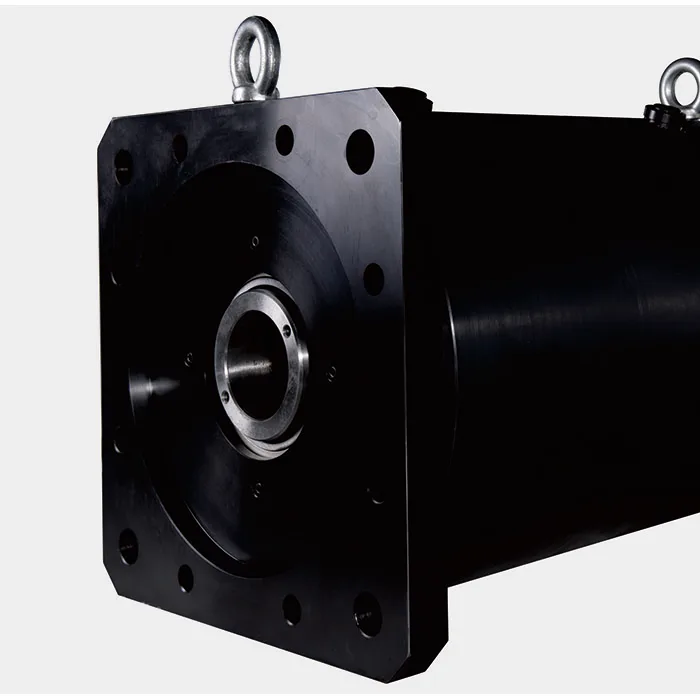

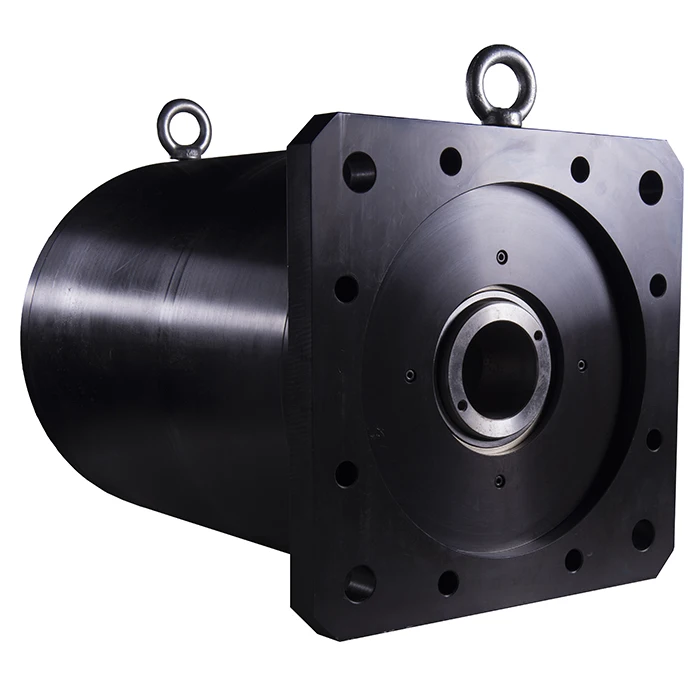

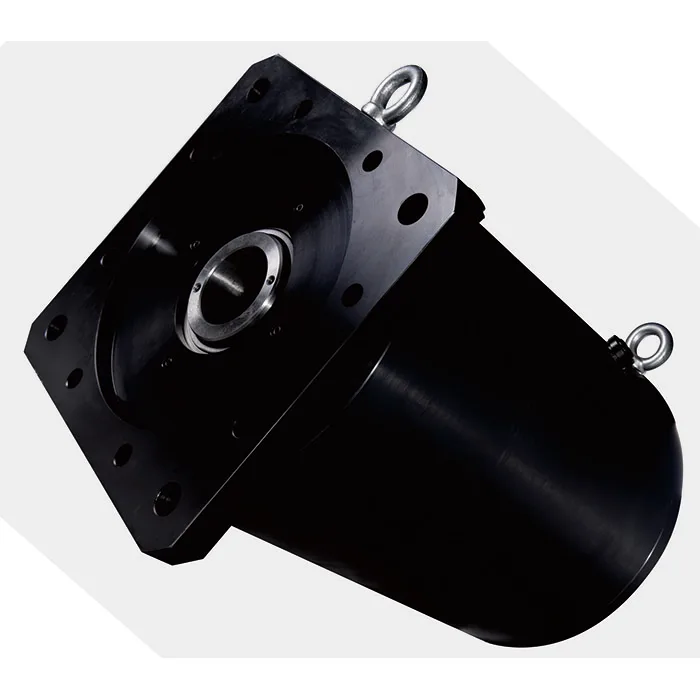

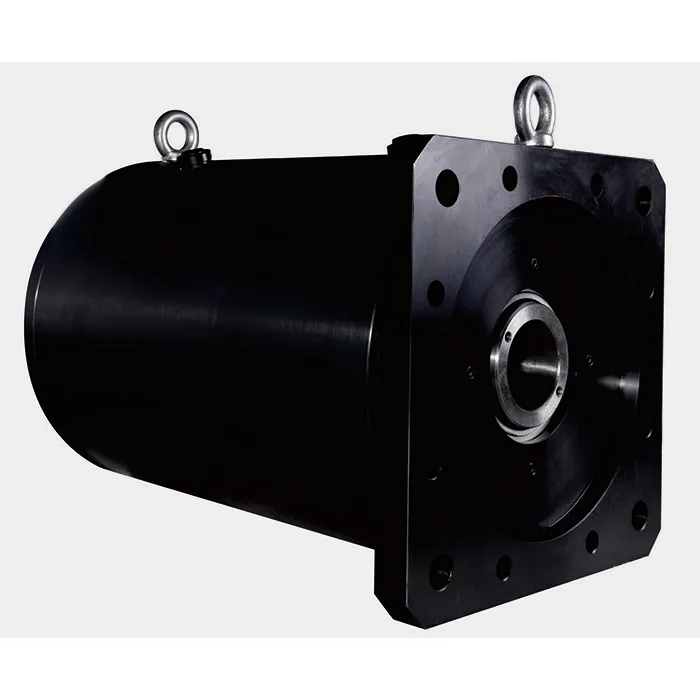

Synmot New Original High Torque AC Three Phase Servo direct Motor dd motor

Product Overview

Description



Synmot direct-driven servo motors are permanent magnet synchronous motors with the high torque capablity ,the main features including :high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.



Product Parameter:

Model	Rated torque	Rated voltage	Rated speed	Rated power	Rated current	Kt	Ke	Max speed	Max torque	Rotor intertia	Poles	weight	length
	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	Rpm	N.m	kg.cm2	Poles	kg	mm
300H37D35B	1000	380	350	37	91	12.2	740	400	3000	2060	20	133	475
300H55D35B	1500	380	350	55	136	12.2	740	400	4500	3010	20	180	580
300H92D35B	2500	380	350	92	214	12.2	740	400	7500	5000	20	245	780
350H35D35B	960	380	350	35	88	11.7	710	400	2880	2860	20	148	380
350H55D35B	1500	380	350	55	138	11.7	710	400	4500	3940	20	225	485
350H59D35B	1600	380	350	59	147	11.7	710	400	4800	5560	20	235	530
350H59D35B	1600	380	350	59	147	11.7	710	400	4800	5570	20	245	538
360H37D35B	1000	380	350	37	91	12.2	740	400	3000	2060	20	166	485
360H55D35B	1500	380	350	55	136	12.2	740	400	4500	3010	20	250	590
450H44D35B	1200	380	350	44	106	12.1	730	400	3600	6140	8	440	628
450H59D35B	1600	380	350	59	137	12.4	748	400	4800	7980	8	510	728



Mounting Dimensions:
