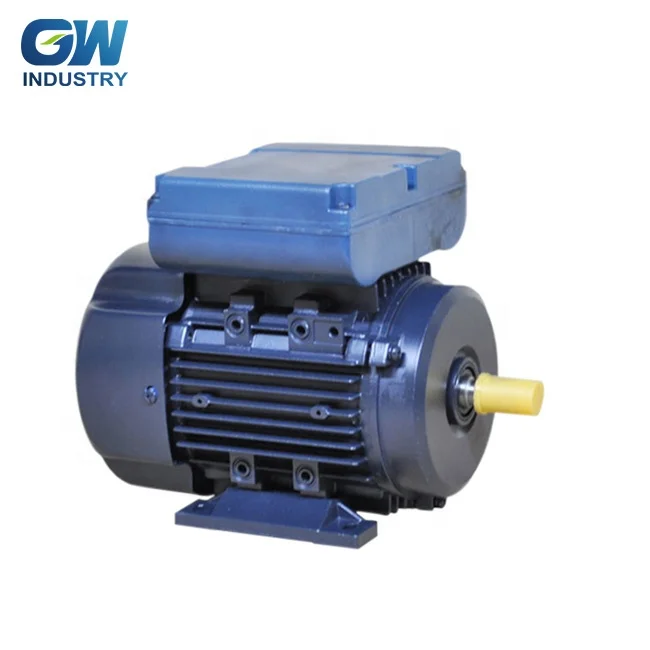

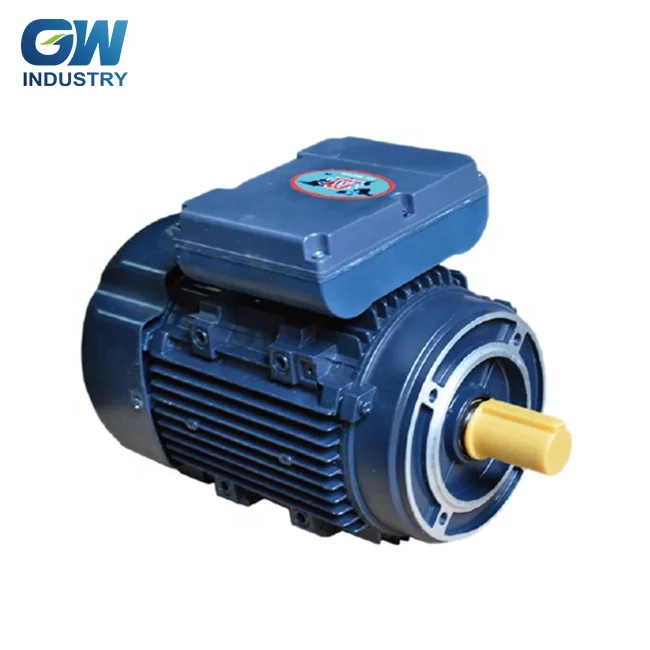

GW YLJ Series Single phase two capacitor small ac electric motor 220v 2.2kw
- Category: >>>
- Supplier: GW Electric (shanghai) Co. Ltd.
Share on (62304842907):
Product Overview
Description
Product Description
Single phase dual capacitor ac electric motor 220v 2.2kw
· ICE standard design
· High quality of starting performance
· Apply to fan/blower, pump, compressor and small machine
· Mounting: B3,B14,B34,B5,B35
☆:Only for coping with foot
Motor Technical Data
HP/KW | RPM | FRAME | GW REF. NO. | VOLTAGE | FLA | INS. CLASS | IP CODE | DUTY | WGT LB/KG |
.33/.25 | 1400 | ☆71 | 71B33L15H14FN | 220 | 2.05 | F | 55 | CONT | 13.2/6.0 |
.50/.37 | 2800 | ☆71 | 71B05L30H14FN | 220 | 2.47 | F | 55 | CONT | 13.2/6.0 |
1400 | ☆71 | 71B05L15H14FN | 220 | 3.09 | F | 55 | CONT | 15.4/7.0 | |
.75/.55 | 2800 | ☆71 | 71B75L30H14FN | 220 | 3.4 | F | 55 | CONT | 15.4/7.0 |
1420 | 80 | 80B75L15H14FN | 220 | 3.6 | F | 55 | CONT | 21.4/9.7 | |
1.0/.75 | 2830 | 80 | 80B10L30H14FN | 220 | 4.76 | F | 55 | CONT | 20.0/9.1 |
1420 | 80 | 80B10L15H14FN | 220 | 4.5 | F | 55 | CONT | 22.5/10.2 | |
1.5/1.1 | 2830 | 80 | 80B15L30H14FN | 220 | 6.66 | F | 55 | CONT | 23.1/10.5 |
1420 | 90 | 90B15L15H14FN | 220 | 6.51 | F | 55 | CONT | 34.2/15.5 | |
2.0/1.5 | 2850 | 90 | 90B20L30H14FN | 220 | 8.6 | F | 55 | CONT | 36.2/16.4 |
1420 | 90 | 90B20L15H14FN | 220 | 8.85 | F | 55 | CONT | 38.6/17.5 | |
3.0/2.2 | 2830 | 90 | 90B30L30H14FN | 220 | 12.53 | F | 55 | CONT | 38.6/17.5 |
Packing & Delivery
Packaging Details:\tExport standard: inner box+carton+wooden case
Delivery Detail:\tWithin 20-30 days after received the deposit
Application Case
FAQ
Q1. What's your company's main products?
A: Our company is specialized in AC three phase motor and single phase motor.
Q2. What's your payment term?
A: 30% T/T in deposit,the rest against on the copy of B/L
Q3. What's the MOQ for your production?
A: The MOQ is 100pcs or depends on your products requirements
Q4. Is it all right to make customer's own brand name?
A: OEM is ok
Q5. Where is your loading port?
A: Shanghai, China or else port as for your request
Q6. Are you a manufactuer or trading company?
A: We are a manufactuer
