AMPLEC 70 amp 12V 24V Intelligent PWM Solar Charge Controller with USB and DC output
- Category: >>>
- Supplier: Dongguan Amplec Electronic Co. Ltd.
Share on (62304955283):
Product Overview
Description
30A 50A 70A PWM solar charge controller
Most parameters displayed explicity.
PWM charging mode with 3 stages
Adaptable to Sealed, GEL, Flooded and other customized battery type.
Auto-detect battery voltage or maintain a fixed voltage
All working parameters can be reset, saved and transferred to a computer or other terminal equipment.
Besides regular input, output and battery protection,protection of over-current from solar panel is applied.
USB output,12V DC output
Most parameters displayed explicity.
PWM charging mode with 3 stages
Adaptable to Sealed, GEL, Flooded and other customized battery type.
Auto-detect battery voltage or maintain a fixed voltage
All working parameters can be reset, saved and transferred to a computer or other terminal equipment.
Besides regular input, output and battery protection,protection of over-current from solar panel is applied.
USB output,12V DC output

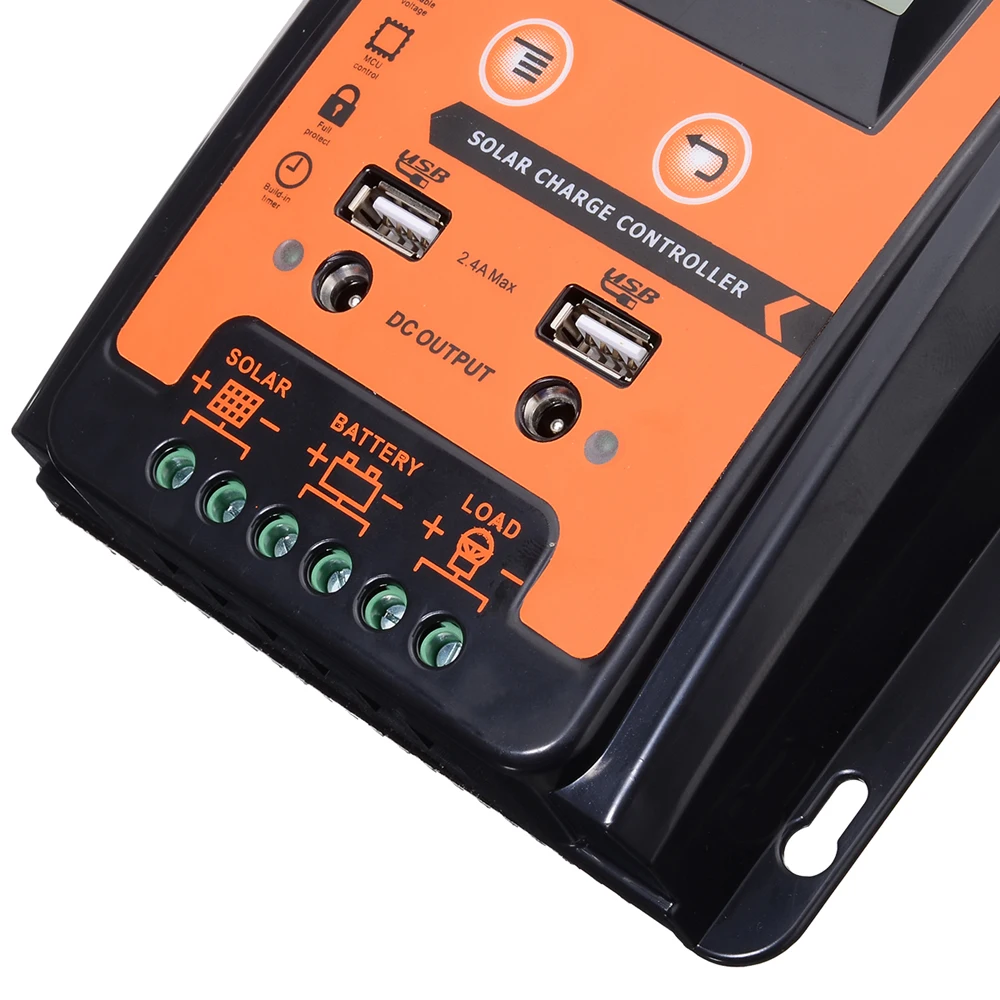

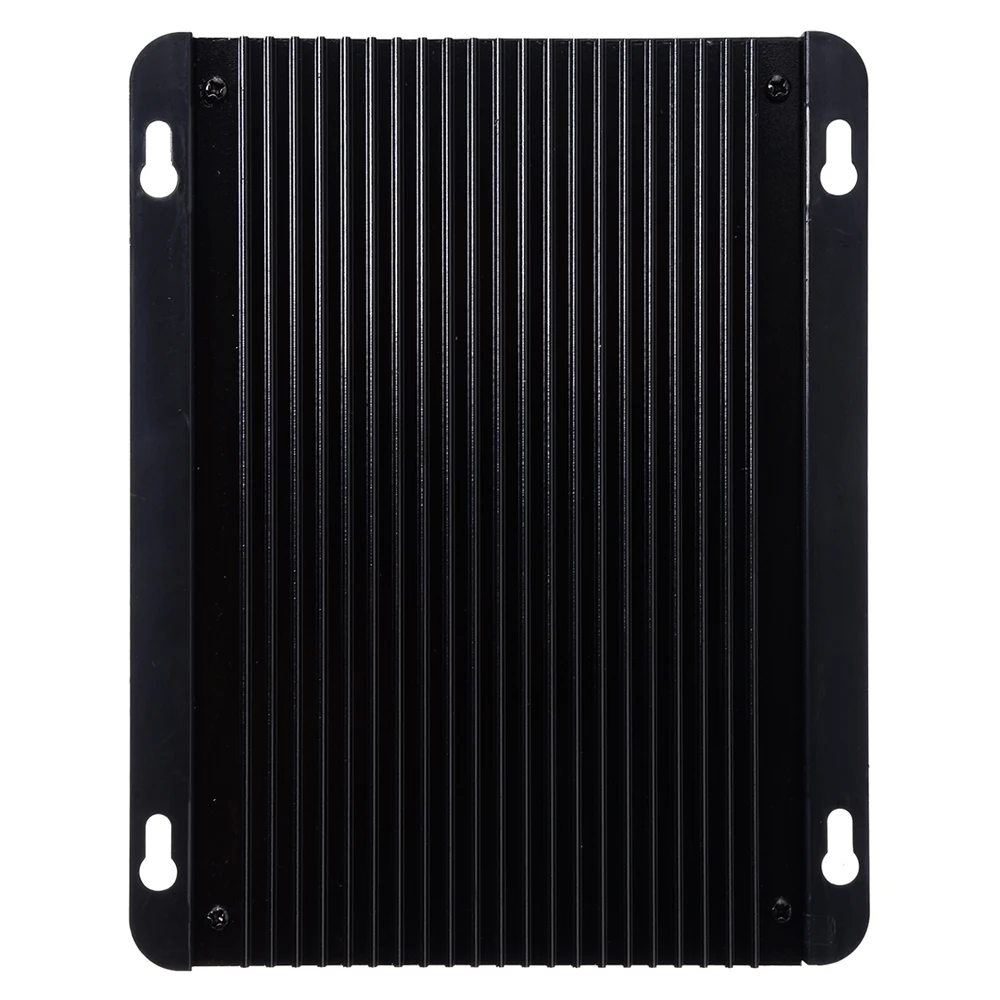

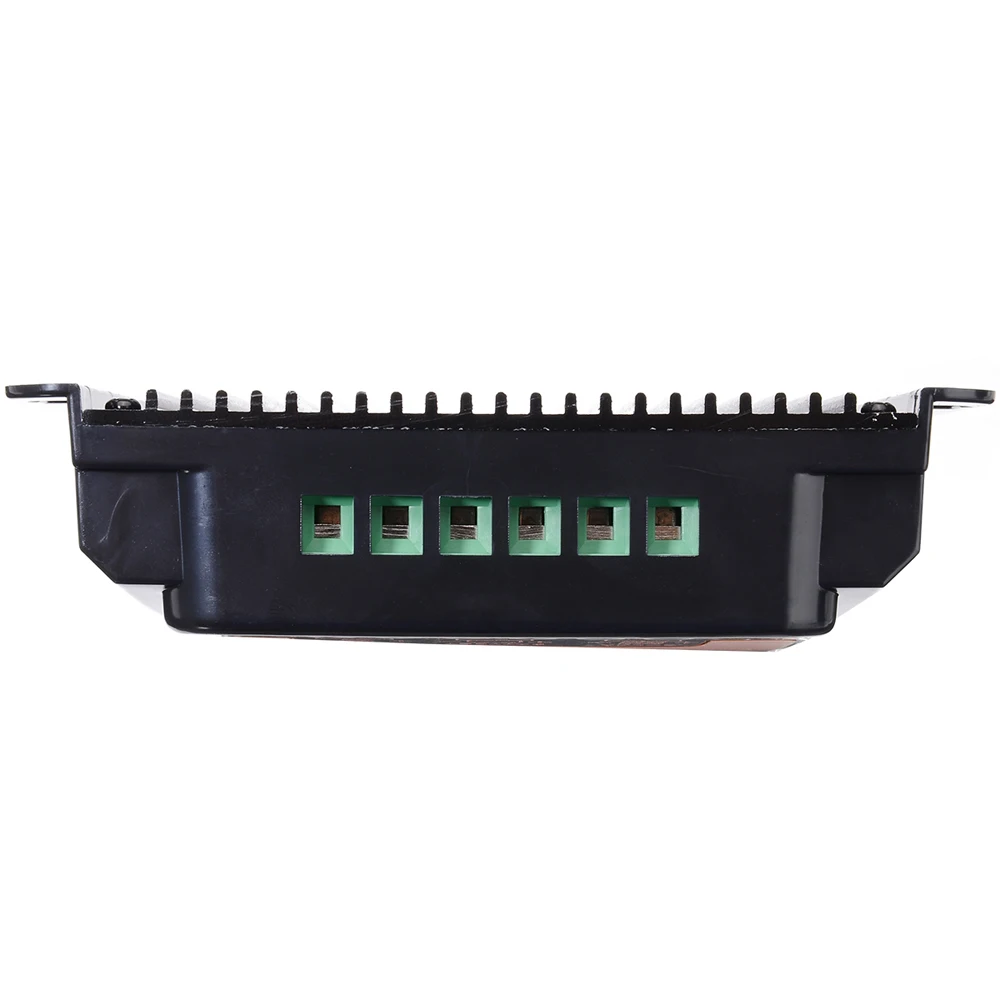

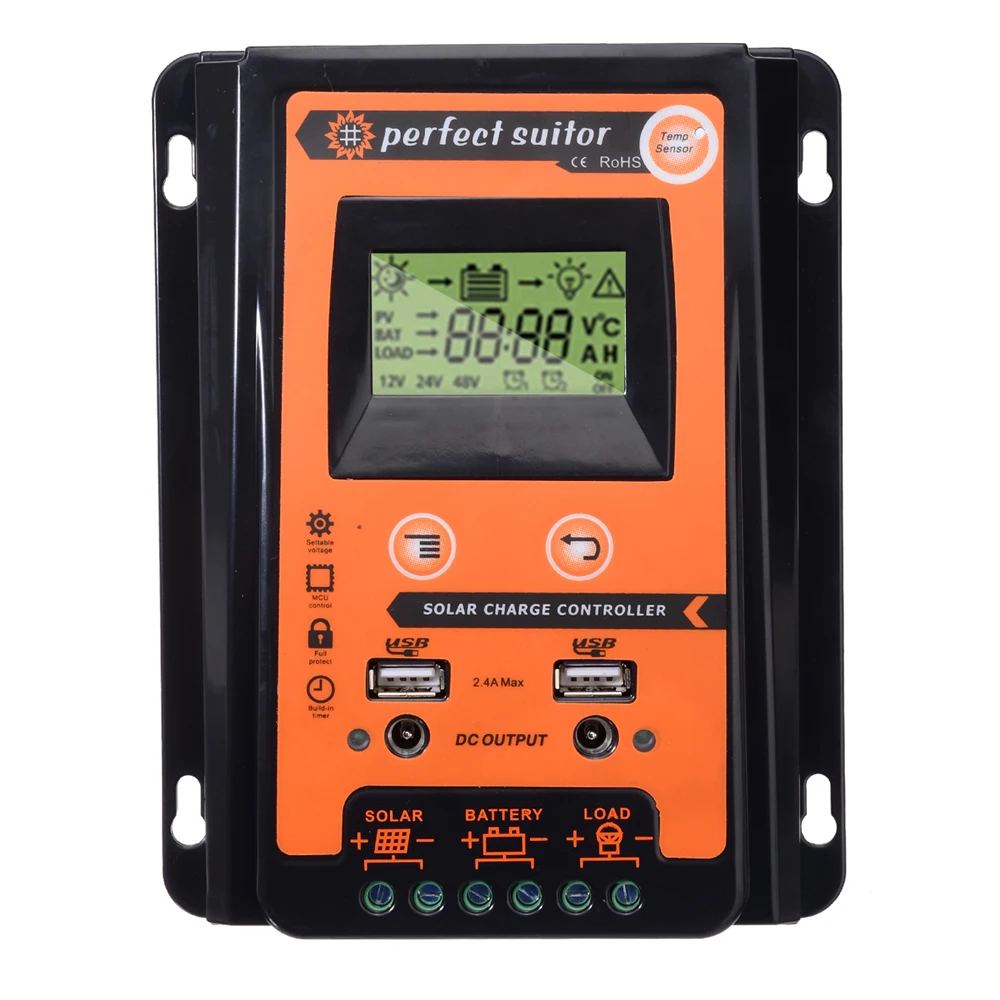

Detailed Images
Parameter
Model No | BYC30A/50/70A | ||
System Voltage | 12V/24V | ||
Max Input Voltage | 50V | 100V | |
Self-Consumption | ≦12MA | ||
Max Charge Current | 30A/50A/70A | ||
Max Discharge Current | 30A | ||
LVD | 11.0V/22V | 44V | |
LVR | 12.6V (12V) ADJ 11V...13.5V 25.2V (24V) ADJ 11V...27V | 50.4V ADJ11V...54V | |
Float Voltage | 13.8V (12V) ADJ13V...15V 27.6V (24V)ADJ13V...30V | 55.2V ADJ13V....60V | |
Boost charging | 1pcs battery voltage less than 12v start boost charging 2 hours | ||
Battery over voltage protection | 16.5V(12V)/33V(24V) | 66V | |
Charging Mode | PWM | ||
Temperature Compensation | -24mV/℃ for 12V system,-48V/℃ for 24v system | ||
Working Temperature | -20℃----+50℃ | ||
Terminal Scale | 14-6AWG | ||
Waterproof grade | IP32 | ||
Packing & Delivery
Product Dimension | 230mmx201mmx55mm |
Weight | 1.16kg |
QTY/ctn | 12pcs |
CTN size | 44.8*39*28.3cm |
Weight | 14.5kg |
