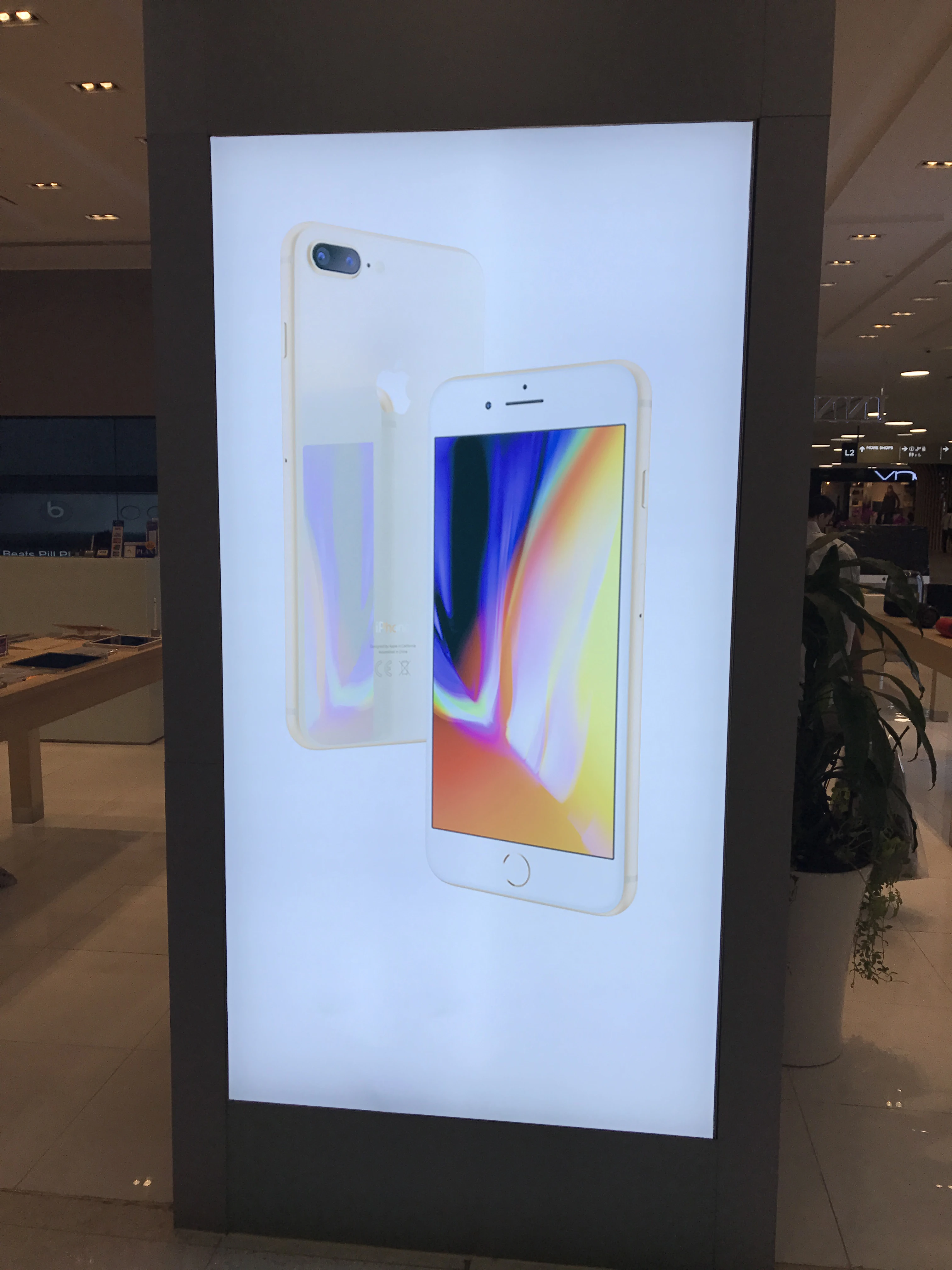

Flexible led strip could be use in slim light box, celling, living room, kitchen and so on.

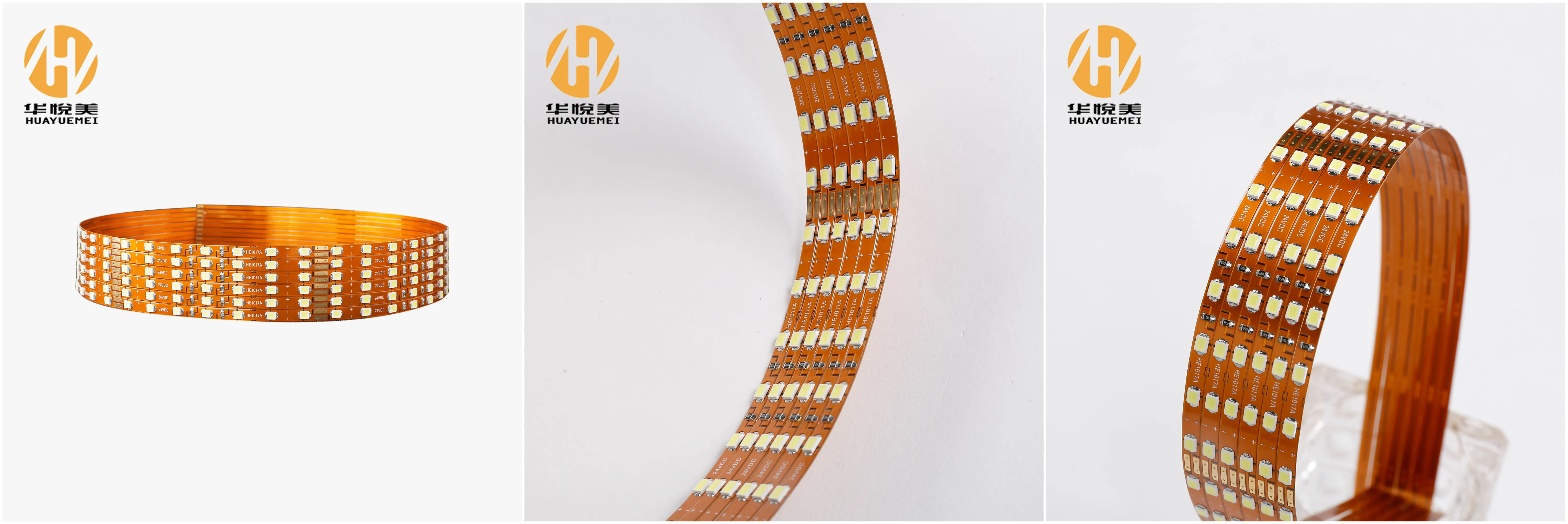

Detailed Images

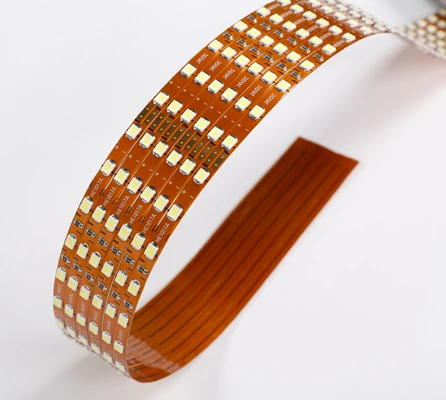

Product detail drawing

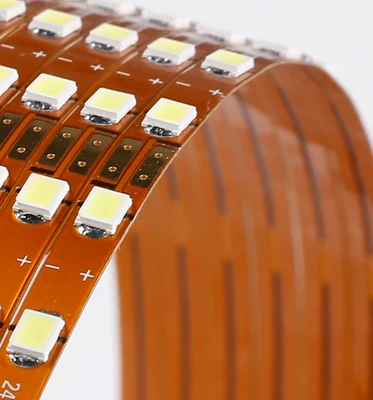

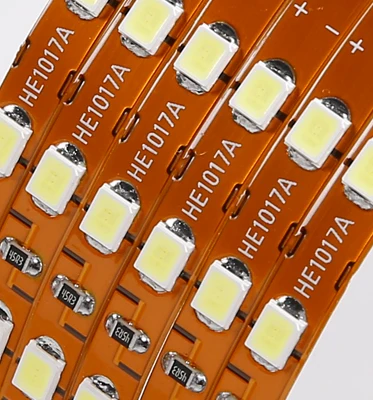

Adpot FR4 Board, with high quality. The best quality resistance to proect the led strip.
Flexible led board could be change different type , fit for slim light box, special light box.

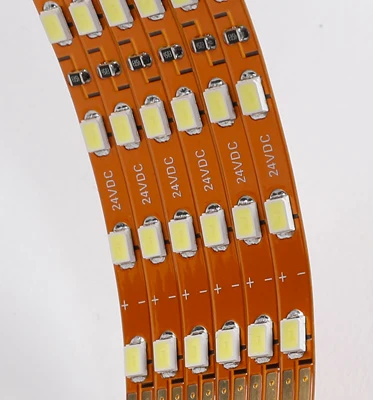

LED Chip use EPISTAR. Or you can choose other led chip, wecould according to your request to customized.
Introduction of product advantages or application effect or application mode
Color temperature
The could temperature is according to your request to customized, Ordinary the could be warm white, white, cool white and so on. Diffrent color temperature show different light effects. It depend on what light effect you want to choise.
Brightness of LED strips is determined using the metric lumens. Unlike incandescent bulbs, different LED strips can have different levels of efficiency, so a wattage rating is not always meaningful in determining actual light output.
LED strip brightness is typically described in lumens per foot (or meter). A good quality LED strip should provide at least 450 lumens per foot (1500 lumens per meter), which provides approximately the same amount of light output per foot as a traditional T8 fluorescent lamp. (E.g. 4-ft T8 fluorescent = 4-ft of LED strip = 1800 lumens).
Cutting size
This kind ogf led strip could be cut by your self, different strip has different cuting size,
How to connect the strip
Each LED strip segment must be connected to a DC power supply, or another LED strip segment that is connected to a DC power supply (daisy chain). The connection method will depend on the type of wires or plugs provided with the LED strip, as well as whether or not the DC power supply includes a plug. If you are familiar and comfortable with soldering, oftentimes this can provide the most cost effective and flexible solution.
Not sure how or don't want to deal with solder? You can also use solderless connector accessories to connect LED strip segments to power supplies and other LED strip segments.
Input voltage & Power supply
Most LED strips are configured to operate at 12V or 24V DC. When running off of a standard mains supply power source (e.g. household wall outlet) at 120/240V AC, the power needs to be converted to the appropriate low voltage DC signal. This is most frequently and simply accomplished using a DC power supply.
Make sure that your power supply has enough power capacity to power the LED strips (detailed steps here). Every DC powesupply will list its maximum rated current (in Amps) or power (in Watts).
Determine the total power draw of the LED strip using the following formula:Power = LED power (per ft) x LED strip length (in ft)
Example scenario connecting 5 ft of LED strip where LED strip
power consumption is 4 Watts per foot:Power = 4 Watts per ft x 5 ft = 20 Watts
The power draw per foot (or meter) is almost always listed in an LED strip's datasheet.
Product Presentation

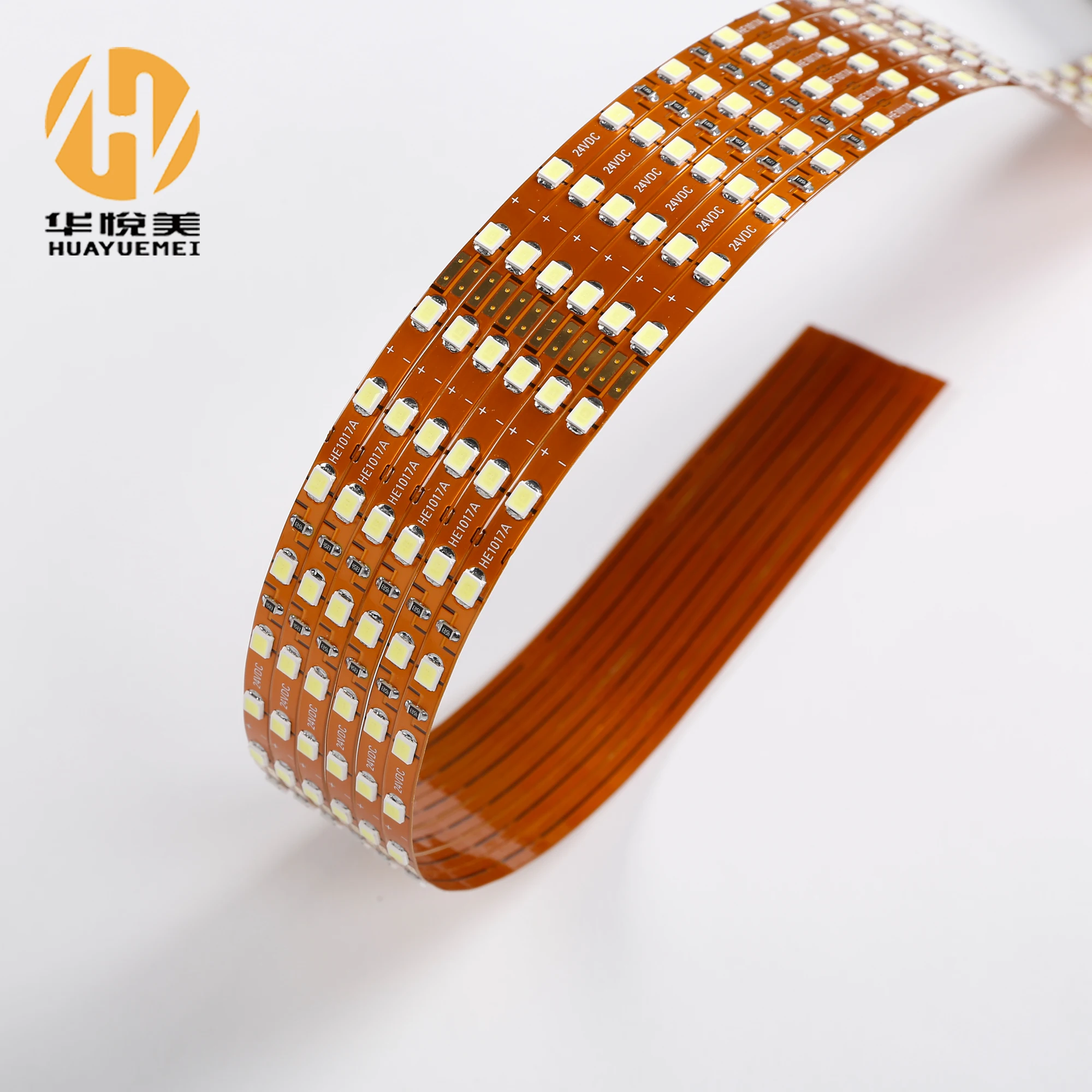

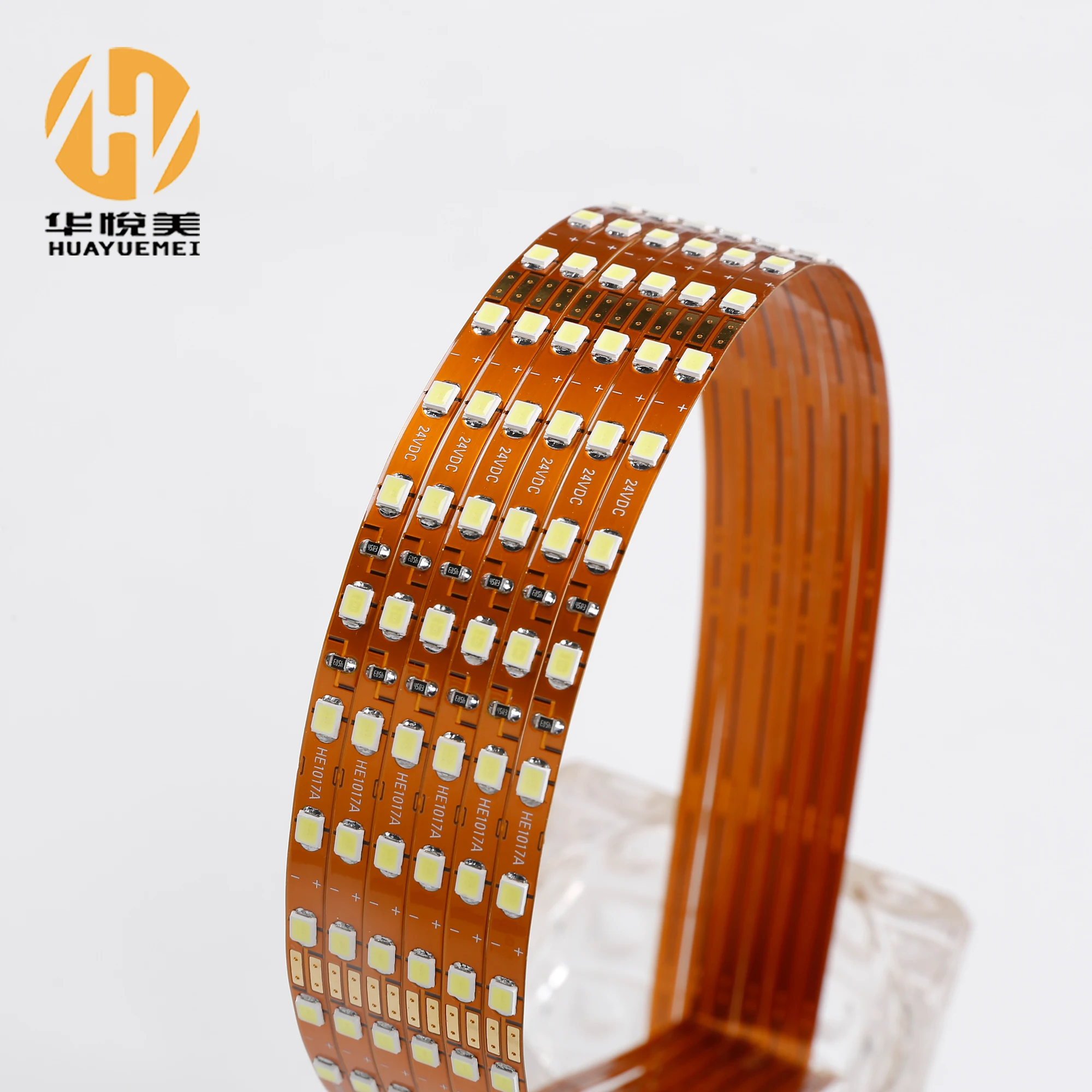

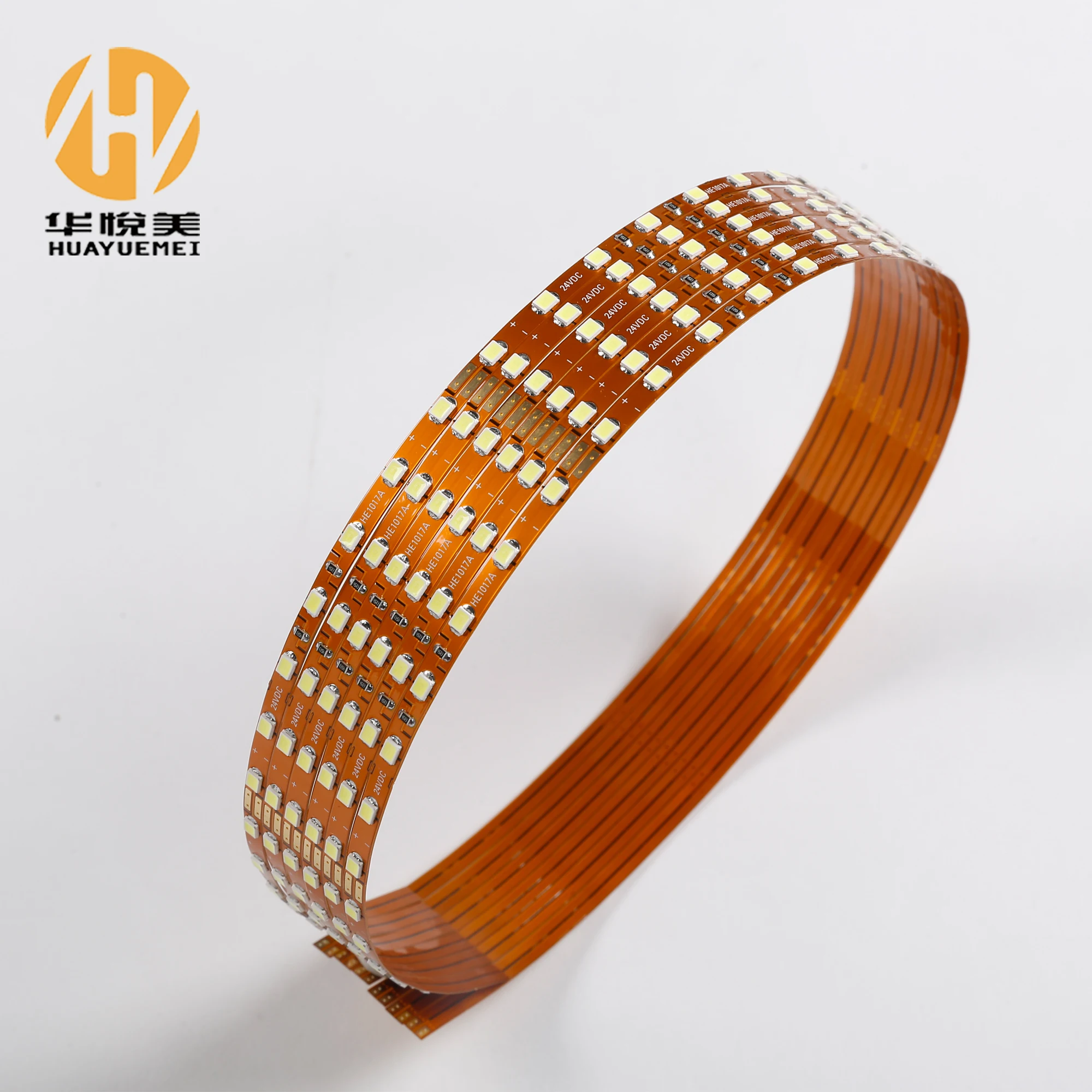

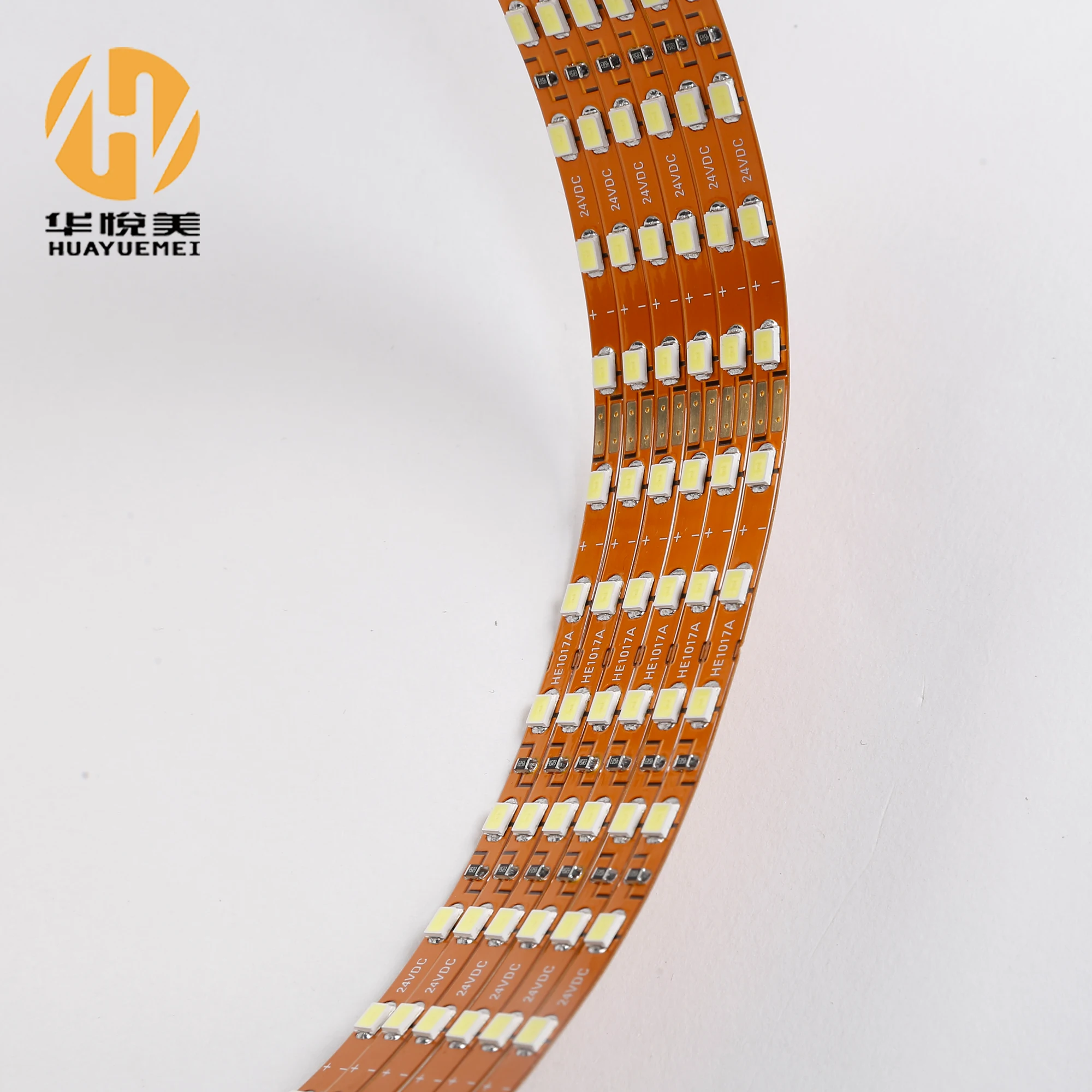

Product introduction: 42 LEDS-SMD2835-DC24V
Could be use in slim light box, special light box, living , kitchen and so on.
Product Name
2835 Flexible LED Strip Light
Material
FR4
Power
5.46W/PCS
Voltage
DC24V
Type of Lamp-house
Slim light box
Model
HE1017A
Style
Flexible led strip
Size introduction and size picture
尺寸介绍货尺寸图片
Power
Model
LED Size
LED QTY
LUMEN
Voltage
4.6W/CT
HE1005A
SMD2835
30PCS/Strip
150LM/W
DC12V
6.5W
HE1030A
SMD2835
21pcs/strip
150LM/W
DC24V
14.4W/M
HE3101A
SMD5050
60LED/M
130LM/W
DC12V

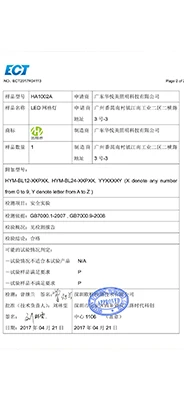

Certificate
Related Products

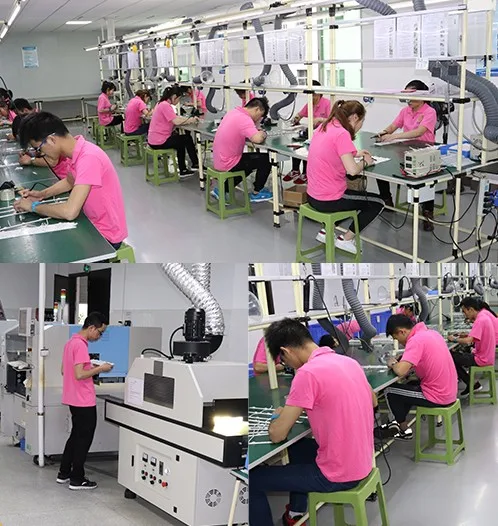

Company Introduction
Established in 2006,Guangdong Huayuemei Lighting Technology Co.,Ltd (short for HYM)is a professional manufacturer and exporter that is concerned with design, development and production of LED lighting source.
We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our modern and outstanding R&D center covering an area of 2232㎡，we now have 48 employees, an annual sales figure that exceeds USD3,000,000 and are currently exporting 80% of our production worldwide.

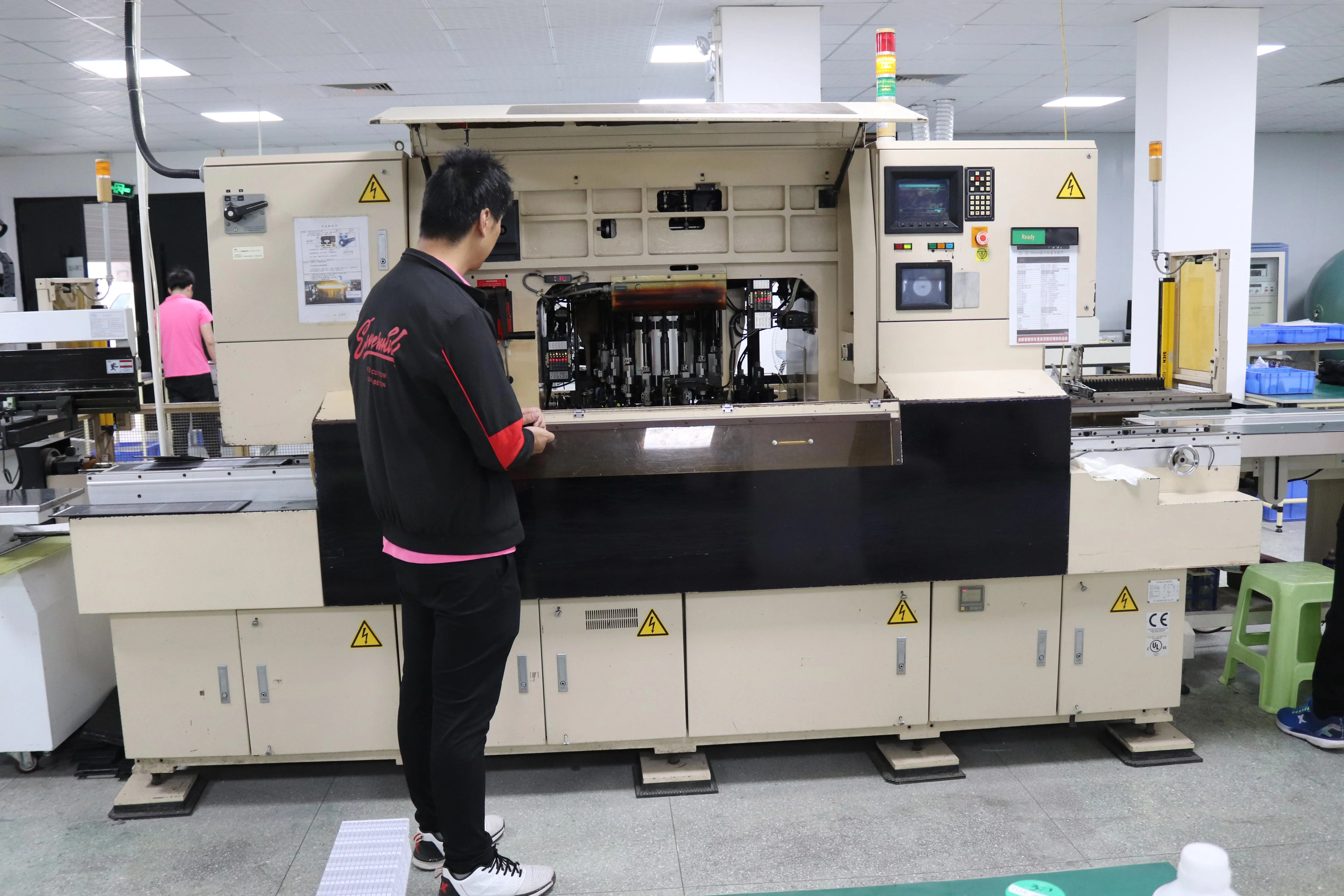

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have certification of CE,ROHS,UL and passed the BV inspection.
As a result of our high quality products and outstanding customer service, our products were sold to more than 20 countries.
We sincerely welcome you to visit our company or contact us for cooperation!
Packing&Shipping
FAQ
Q1. Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2:Sample needs 1-3 days, mass production time needs 5-7 workdays for order less than 1000 pcs.
Q3. Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 3 years warranty to our products.
Q8:Do you accept OEM services?
A8: Yes, we are the specialist for customizde as your requests .
Q9: How to deal with the faulty?
A9: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
