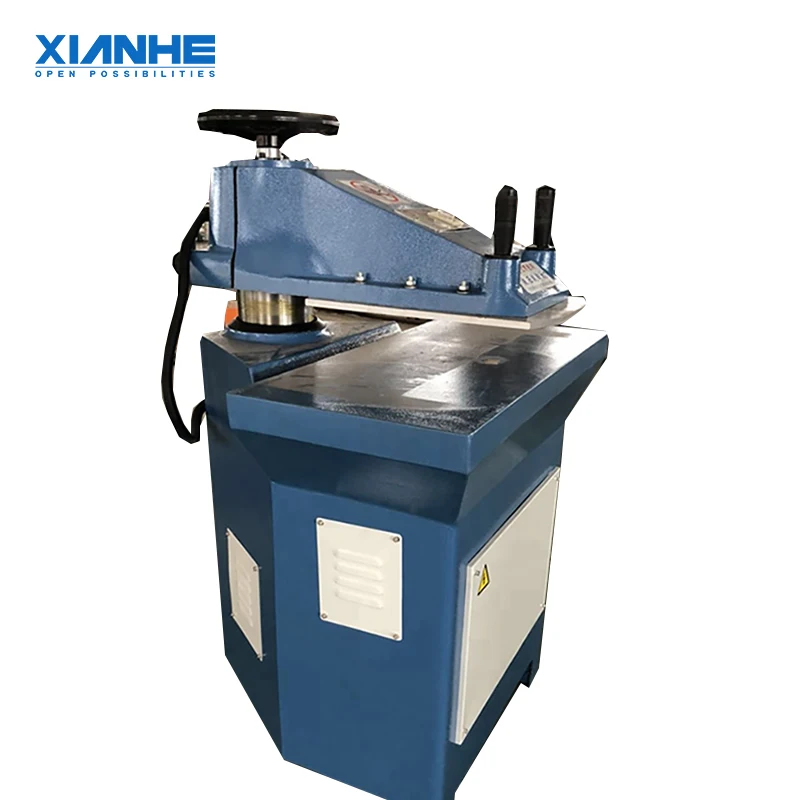

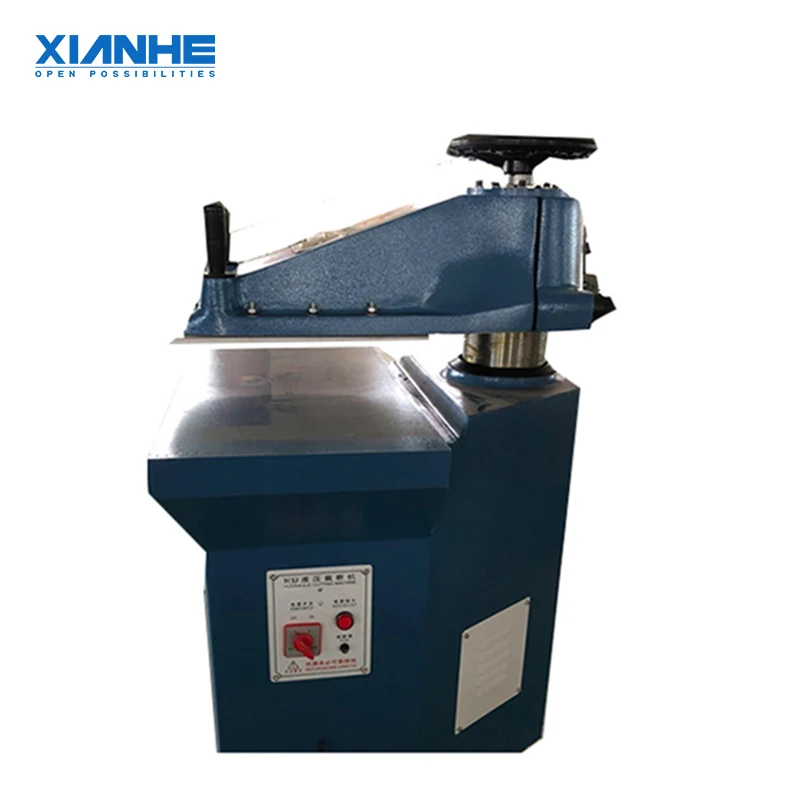

high quality manual hydraulic swing arm clicker press cutting machine for leather
- Category: >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (62305634824):
Product Overview
Description
Products Description
Hydraulic swing arm cutting machine/clicker press/die cutting machine:
Our machine's die cutting range is huge of uses and applications across manufacturing industry, known as clicking press or clicker press.
To assure maximum access and visibility, the swing arm can be easily moved to one side by the operator in order to gather cut pieces and re-position the tool for the next cut.
Features:
* Cut materials that are soft or semi-rigid
* Cut materials in single or multiple layers
* Fast, quiet, easy to operate
* Swing beam (arm) allows full access and visibility
* Use all standard tool types – strip steel, wood form, forged steel
* Low friction swing beam (arm) Varying tool heights can be used without adjustment
* Double acting hydraulic cylinder
* Simple daylight adjustment
* Quiet, vibration free operation
* Safe, twin button operation
* Complete with high grade polypropylene cutting board, hydraulic oil and operating manual
Our machine's die cutting range is huge of uses and applications across manufacturing industry, known as clicking press or clicker press.
These machines are safe and easy to operate with the operator having only to place the material on the working table of the press, position the cutting tool on the material and press the button on the handle. The beam descends under hydraulic power to cut the required cut shape from single or multiple layers of material.
To assure maximum access and visibility, the swing arm can be easily moved to one side by the operator in order to gather cut pieces and re-position the tool for the next cut.
Features:
* Cut materials that are soft or semi-rigid
* Cut materials in single or multiple layers
* Fast, quiet, easy to operate
* Swing beam (arm) allows full access and visibility
* Use all standard tool types – strip steel, wood form, forged steel
* Low friction swing beam (arm) Varying tool heights can be used without adjustment
* Double acting hydraulic cylinder
* Simple daylight adjustment
* Quiet, vibration free operation
* Safe, twin button operation
* Complete with high grade polypropylene cutting board, hydraulic oil and operating manual

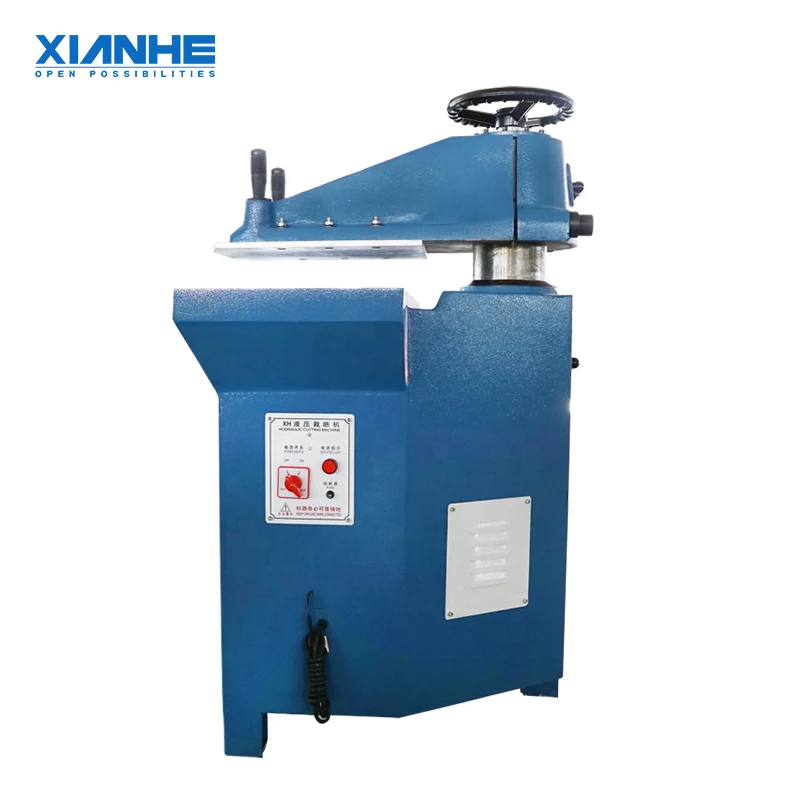

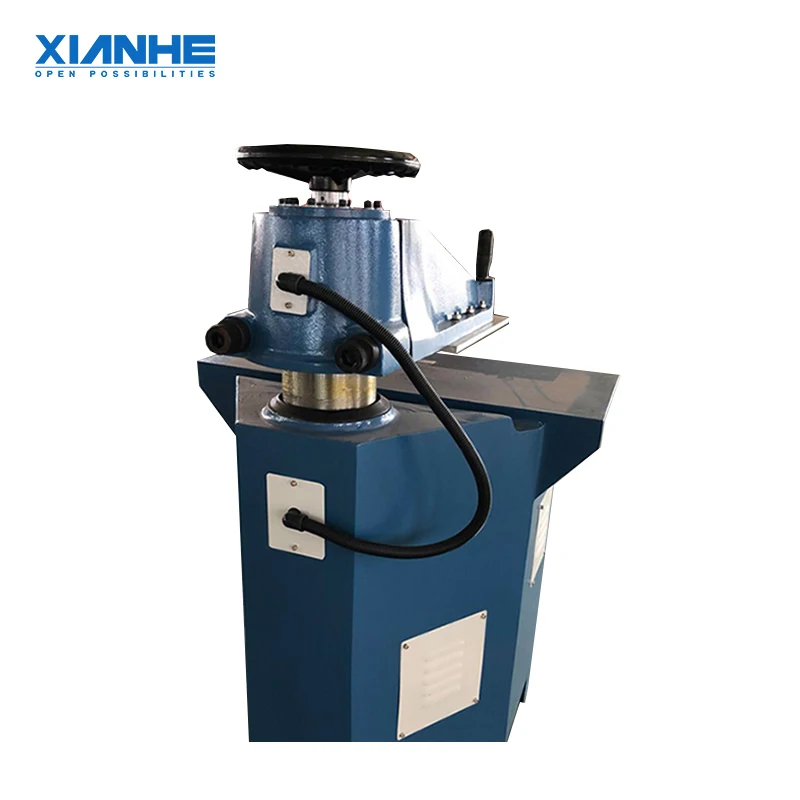

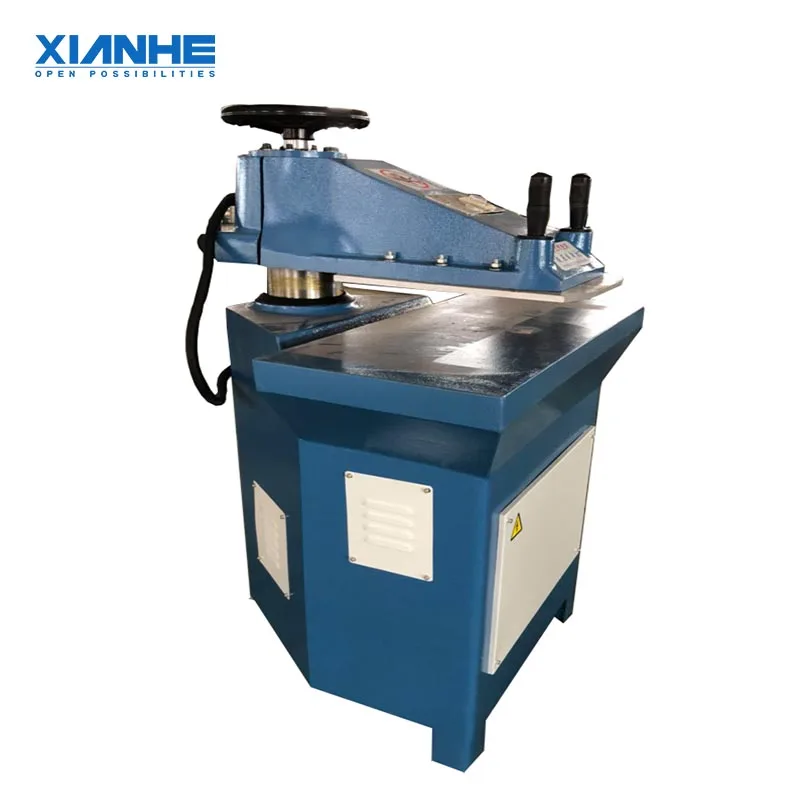

Detailed Images
Product Paramenters
Model | SW/C-200 |
Cutting Force | 20T |
Stroke | 5-100mm |
Distance between upper & lower board | 65-150mm |
Working Table | 500*1000mm |
Upper Board | 350*550mm |
Power | 1.5kW |
Voltage/Hz | 380V/220V 50Hz/60Hz |
Weight | 620kg |
Machine Dimension | 1000*950*1400mm |
Package Dimension | 1080*1030*1600mm |

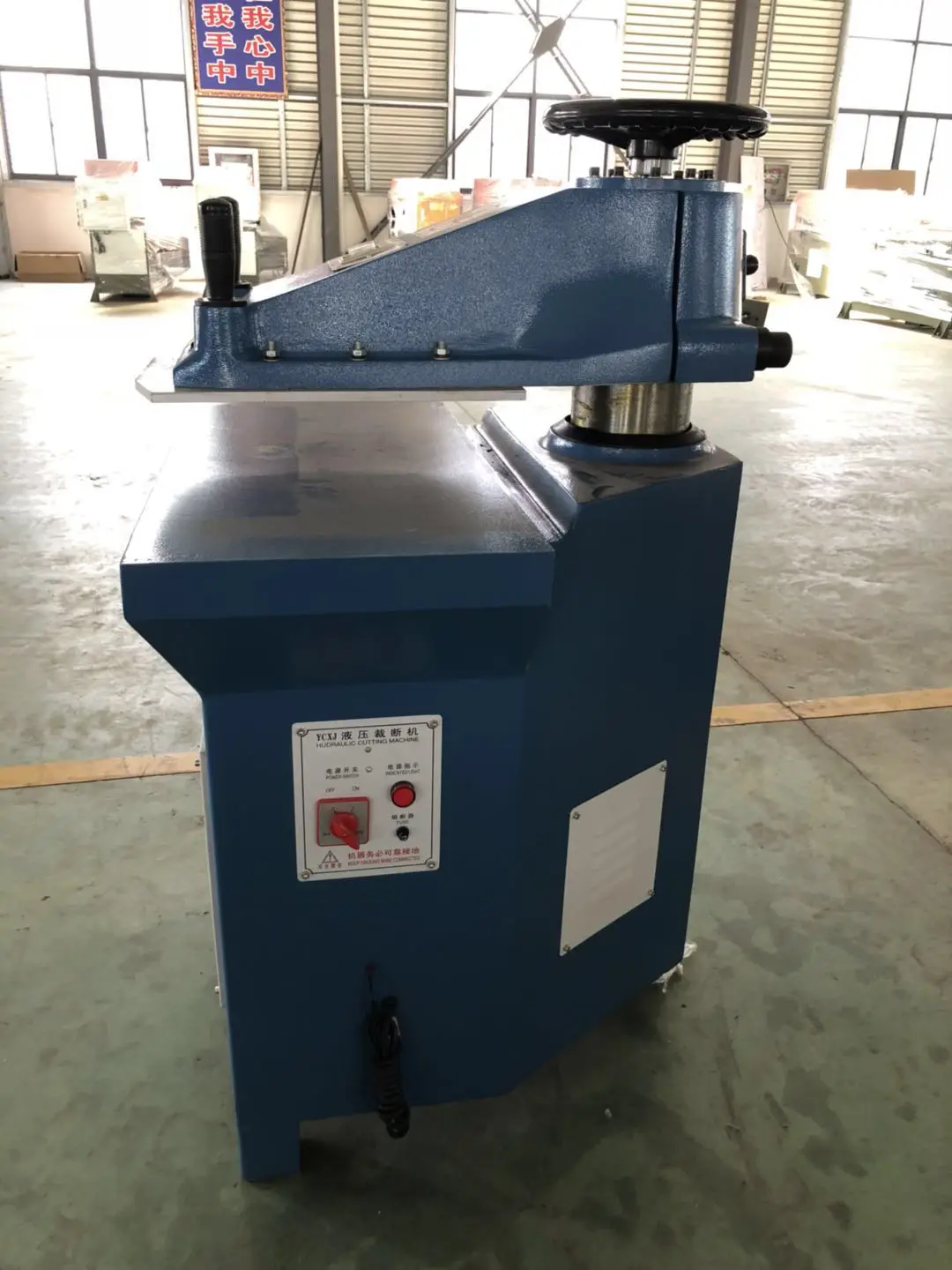

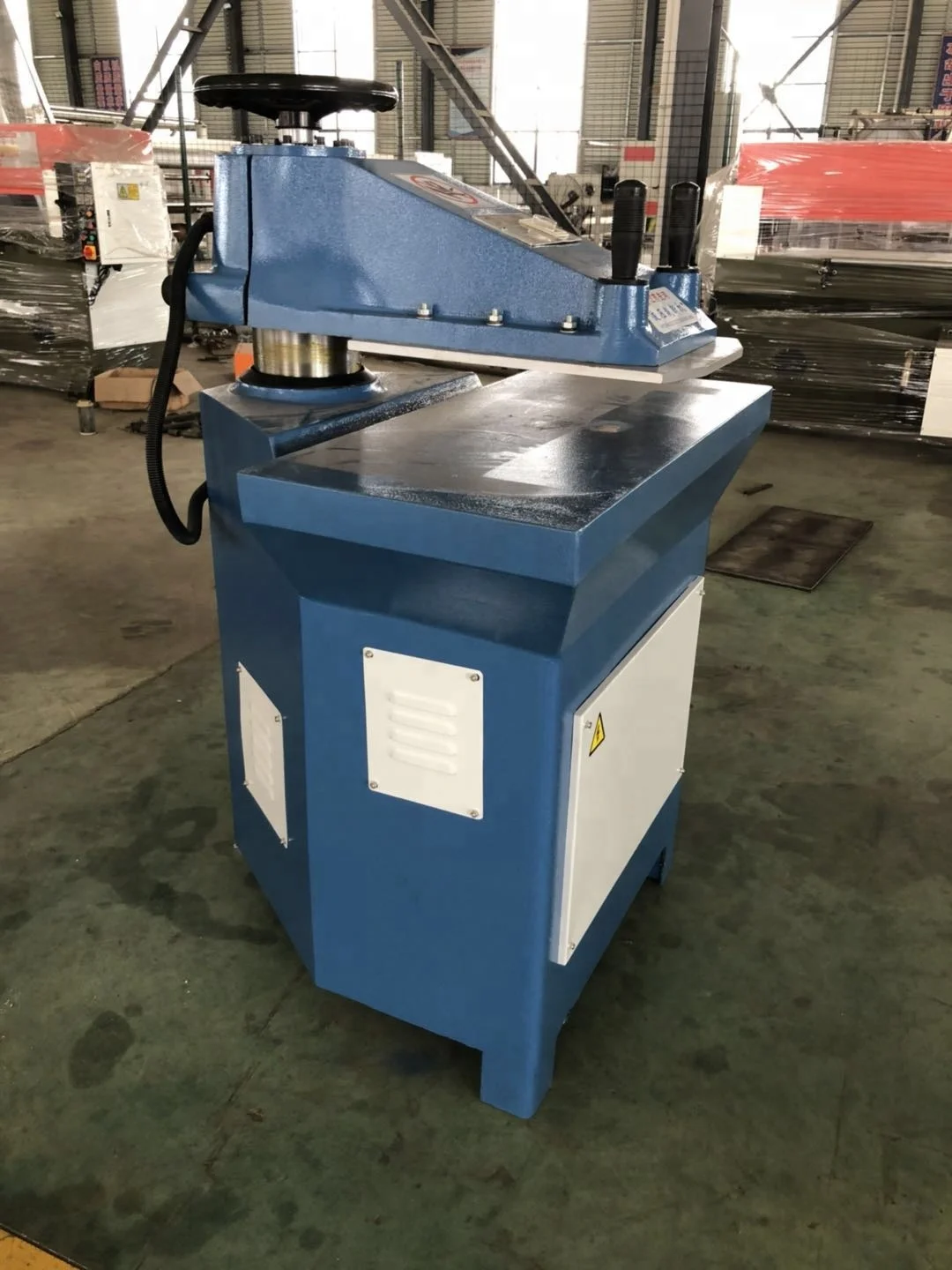

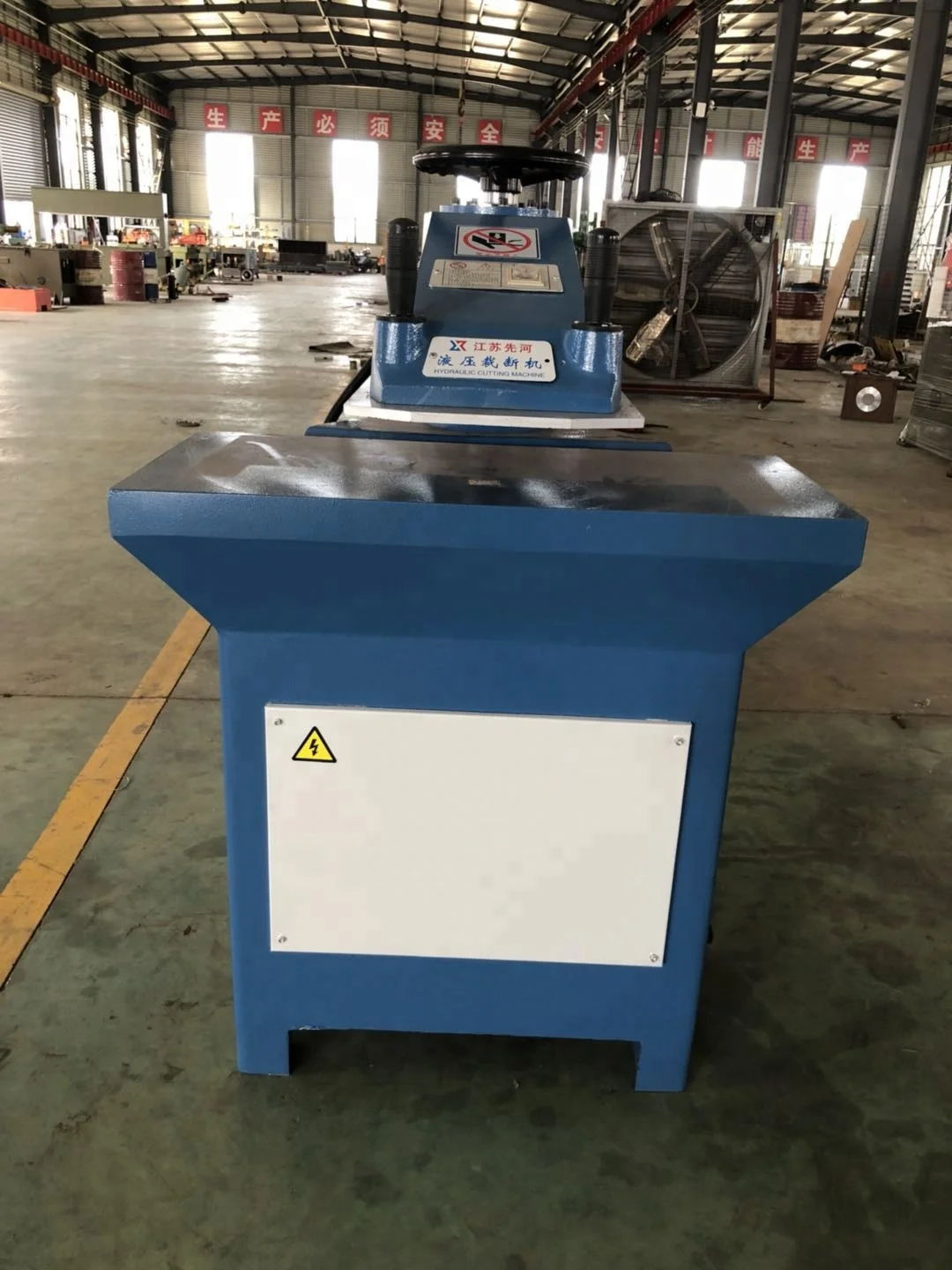

Some images
