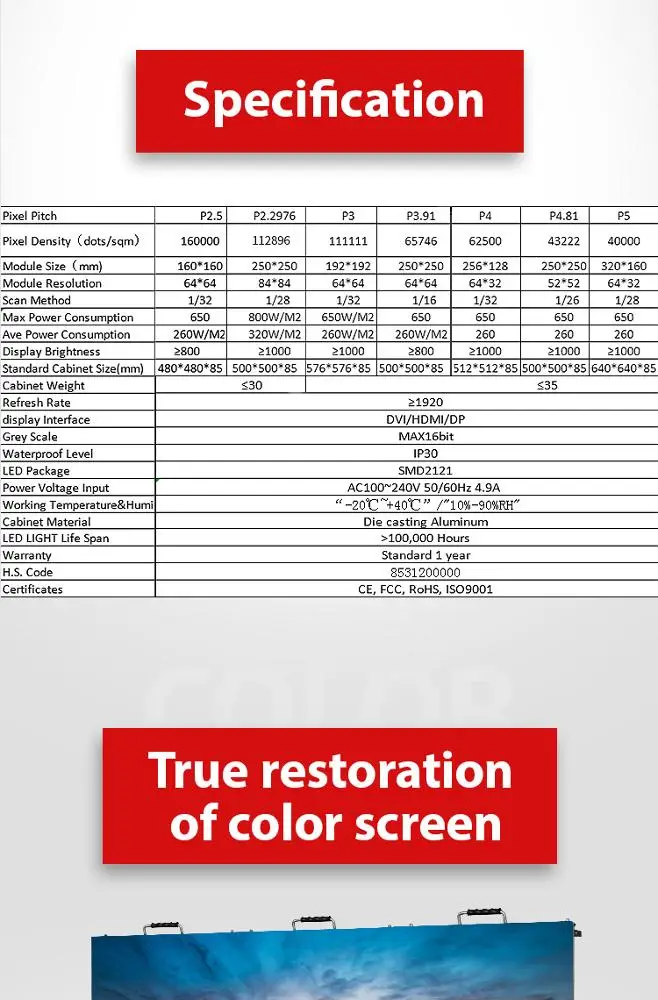

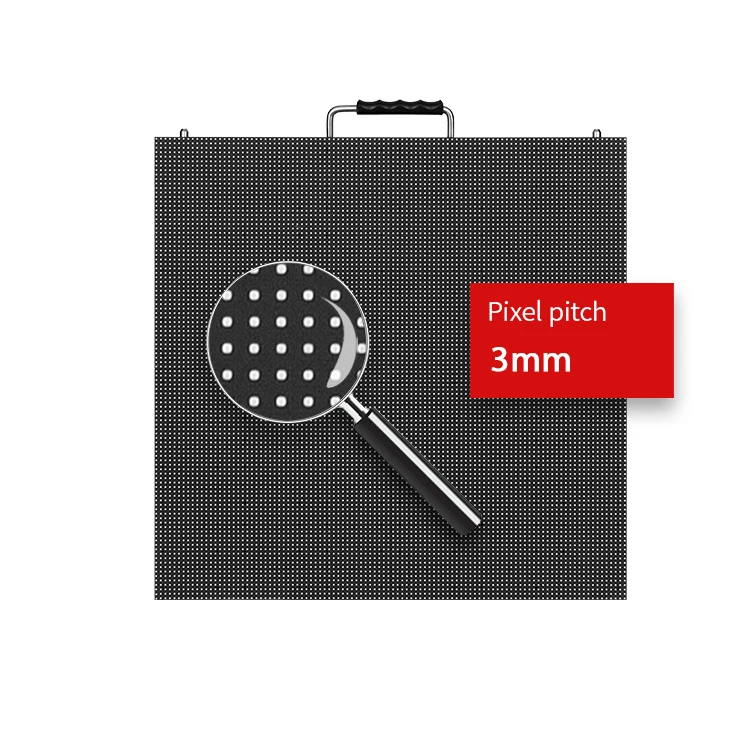

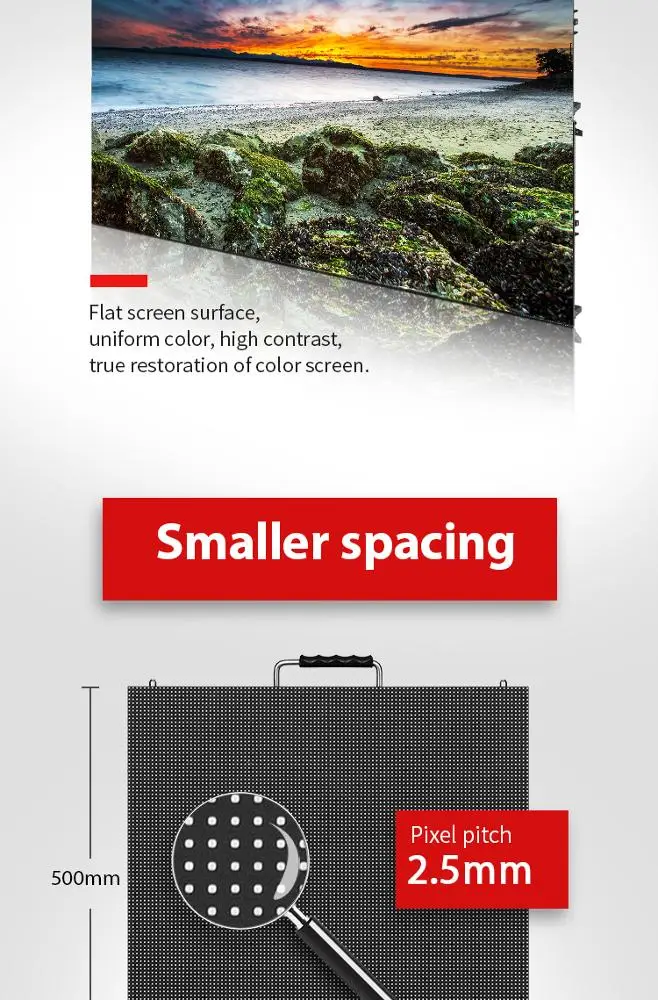

| Pixel Pitch | P2.5 | P2.2976 | P3 | P3.91 | P4 | P4.81 | P5 |
Pixel Density (dots/sqm) | 160000 | 112896 | 111111 | 65746 | 62500 | 43222 | 40000 |
| Module Size | 160*160 | 250*250 | 192*192 | 250*250 | 256*128 | 250*250 | 320*160 |
| Resolution | 64*64 | 84*84 | 64*64 | 64*64 | 64*32 | 52*52 | 64*32 |
| Scan Method | 1/32 | 1/28 | 1/32 | 1/16 | 1/32 | 1/26 | 1/28 |
Max Power Consumption | 650W/M2 | 800W/M2 | 650W/M2 | 650W/M2 | 650W/M2 | 650W/M2 | 650W/M2 |
Ave Power Consumption | 260W/M2 | 320W/M2 | 260W/M2 | 260W/M2 | 260W/M2 | 260W/M2 | 260W/M2 |
| Brightness | ≥800nites | ≥1000 | ≥1000 | ≥800 | ≥1000 | ≥1000 | ≥1000 |

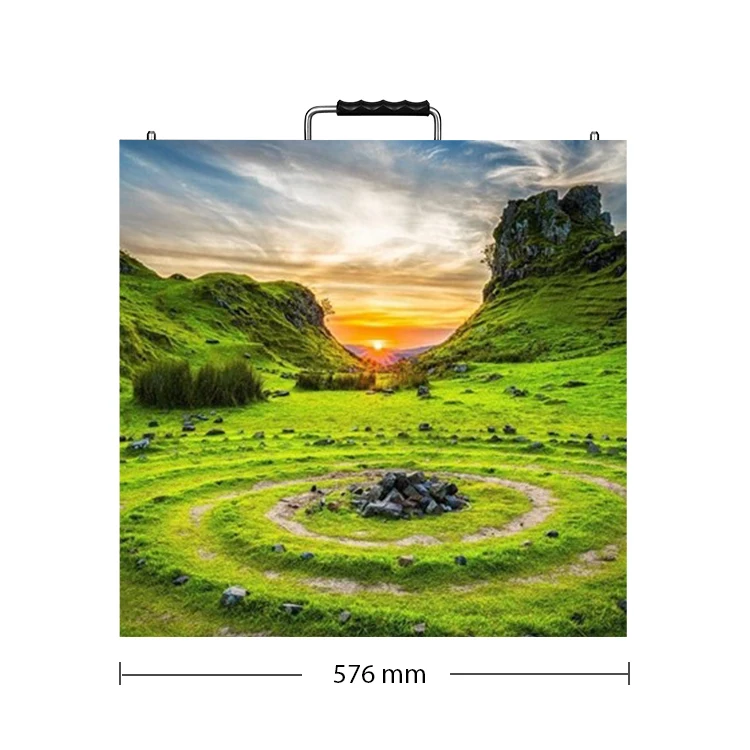

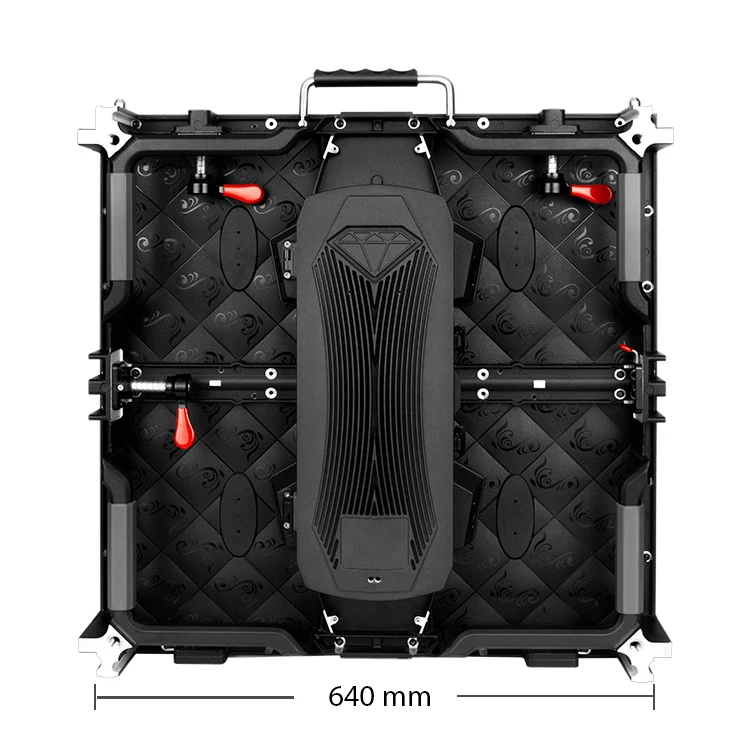

Cabinet Size (mm) | 480*480*85 | 500*500*85 | 576*576*85 | 500*500*85 | 512*512*85 | 500*500*85 | 640*640*85 |
| Net Weight | ≤30 | ≤35 | |||||
| Refresh Rate | ≥1920 ≥1920 | ||||||

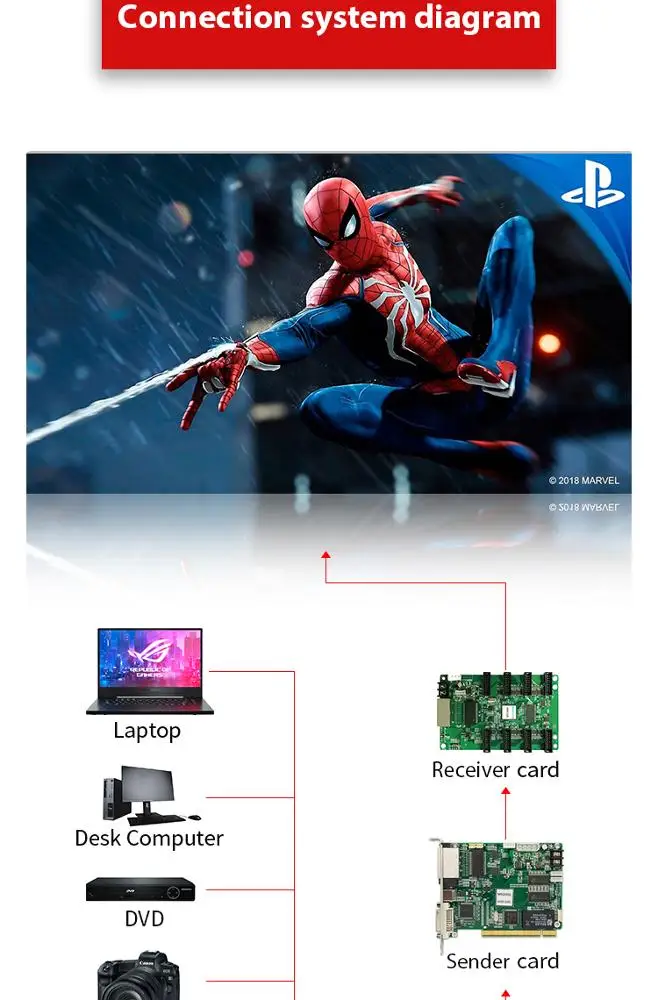

| Interface | DVI/HDMI/DP | ||||||
| Grey Scale | MAX16bit | ||||||
| Waterproof | IP30 | ||||||
| LED Package | SMD2121 | ||||||
Power Input | AC100~240V 50/60Hz 4.9A | ||||||
Working Temperature | -20℃~+40℃ | ||||||
| Working Humidity | 10%-90%RH | ||||||

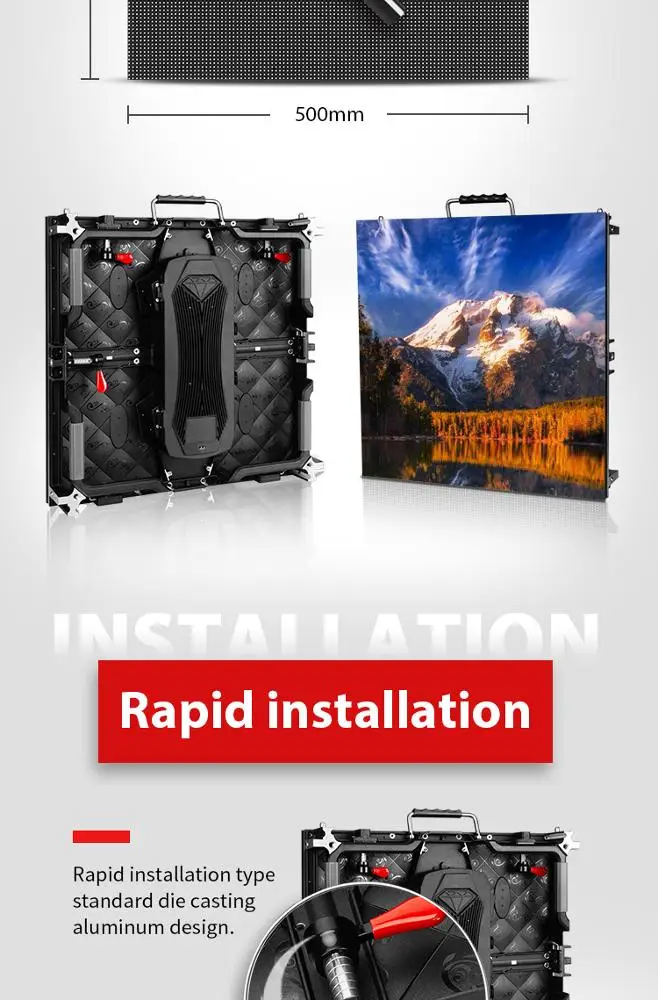

| Material | Die casting Aluminum | ||||||
| Life Span | >100,000 Hours | ||||||
| Warranty | Standard 1 year | ||||||
| H.S. Code | 8531200000 | ||||||
| Certificates | CE, FCC, RoHS, ISO9001 | ||||||
