good price hc zd260 car beauty paint booth
- Category: >>>
- Supplier: Shanghai Hoton Auto Equipment Co. Ltd.
Share on (62305742472):
Product Overview
Description
WHY SELECT HOTON:SPRAY BOOTH(HOTON COMPARE WITH OTHER)
Which do you select follow those explain?China market don't like Europe factory,there have good products and bad products,and have any product price that you hope, you need know more knowledge ,then you can select better quanlity product,follow HOTON,I can suggest you more better goods and lower price!JOHN +8613801993101. |
good price hc-zd260 car beauty good price hc-zd260 paint booth
learn more copy url to Browse://www.cnautoequipment.com/cnauto/main4.asp
HC-ZD260C Spray Booth (Item:711260)

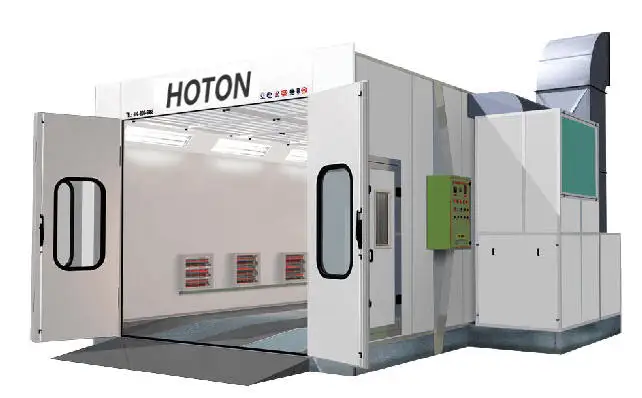

1:Product Picture
A:Close door
B:Open door
2: Technical parameter
Outside Size (mm) | 7000×5200×3370 | Front Door(mm) | 3000(w)×2600(H) |
Inside Size(mm) | 6900×3900×2650 | Total Power(km) | 10+30kw |
3: Details of the introduction
Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards 0.326mm, 50mm Thick, density 12kg/m2 ,Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel |  |
Basement&Ramp | Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.inner 1m Ramp,outside 1m Ramp ,ramp is 3m*1m. |  |
Inhaling Ventilator | Blower capacity: 22000m3/h,Power: 4kw/set,Quantity: 2 sets |  |
Outlet Ventilator | No |
|
Purification System | Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m3 |  |
Heating System | 30pc Infrared heating tub Max Temp:80.C, Heating Time: 8-10min(50-60℃), |  |
Light System | LED Light: 24pcs 16w Philips Lamp; 1200 Lux |  |
Controlling System | Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm |
|
Fan pipe | 700*700*910MM 4PC |
4:You can select part
Fireproof silicone wallboard | add $300 | |
Let the light in the wallboard | Add$420 | |
Water paint Air supply dry system | Add$1300 | |
Photocatalytic waste gas treatment system | Add $3600 | |
Stainless steel glass door | Add$1500 | |
Fan pipe(0.91M,700*700) | Add:$40 | |
Inhaling Ventilator 4kw | Add:$300 |

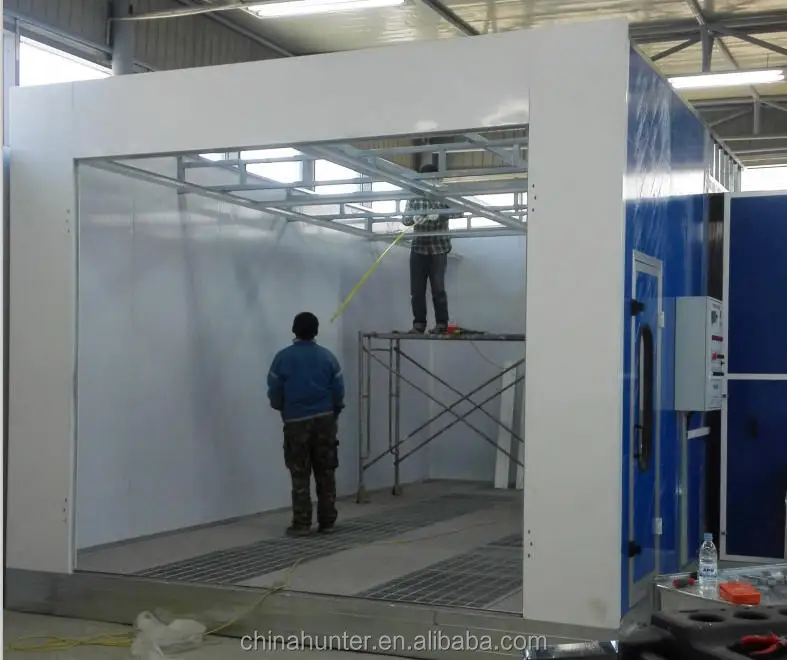

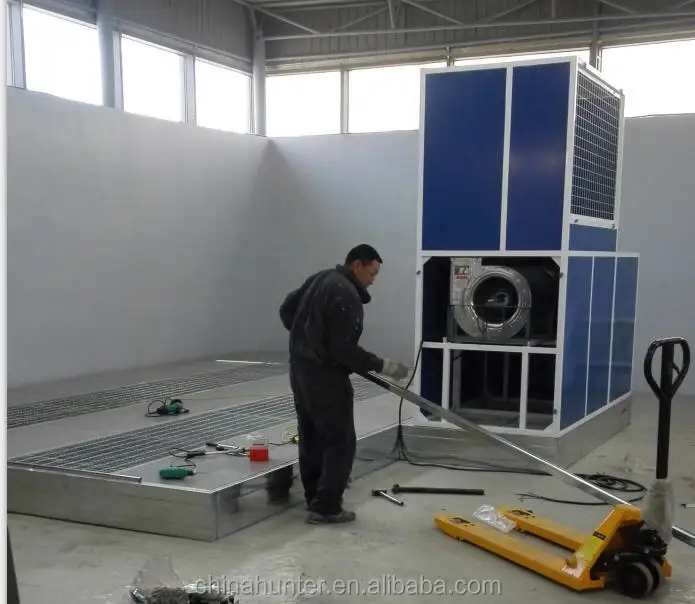

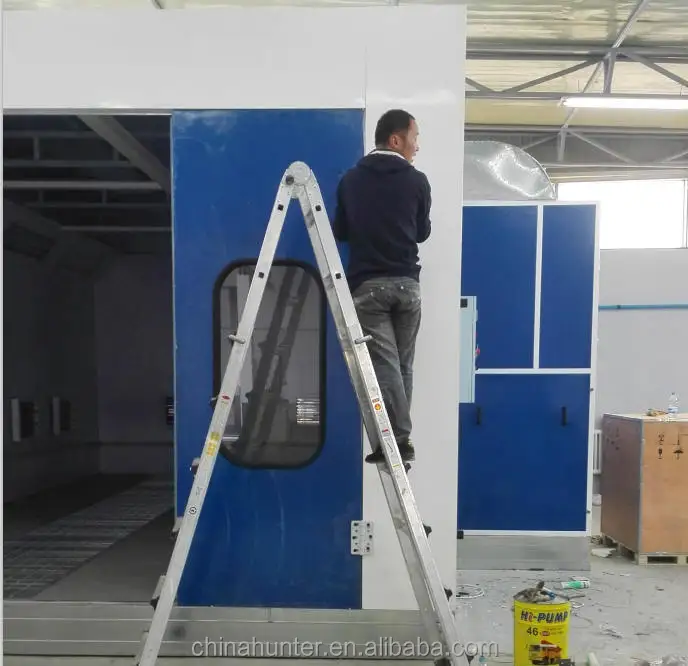

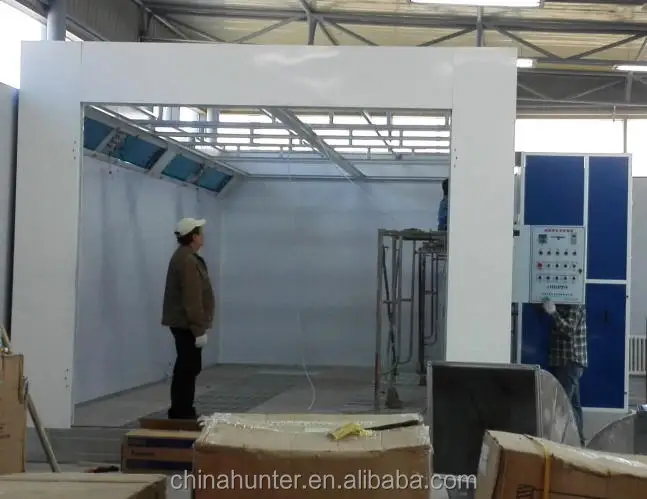

5:Install case
