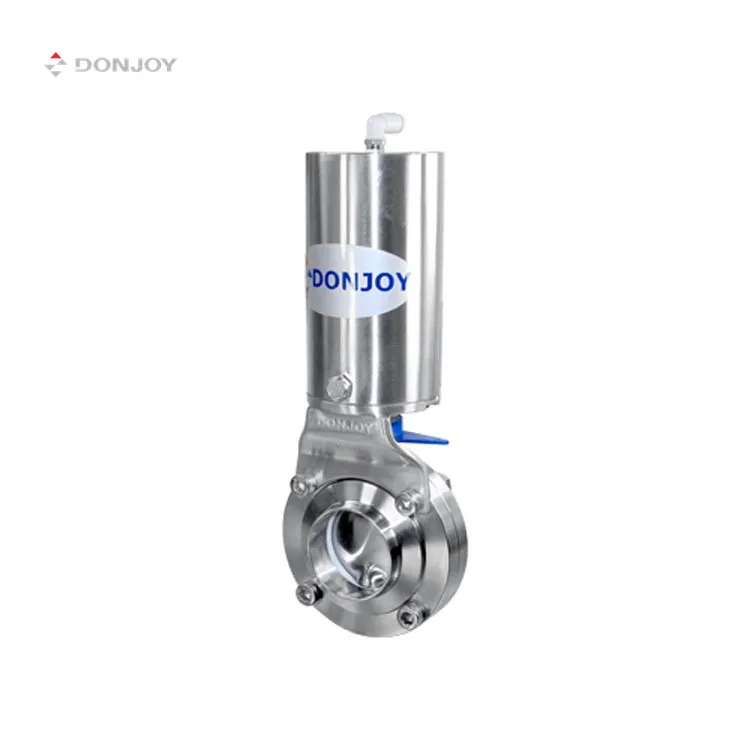

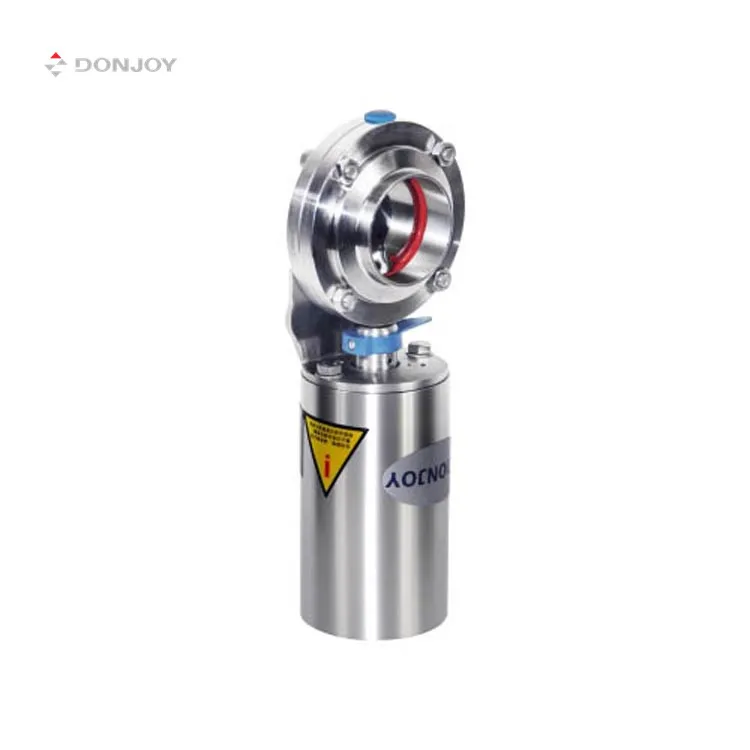

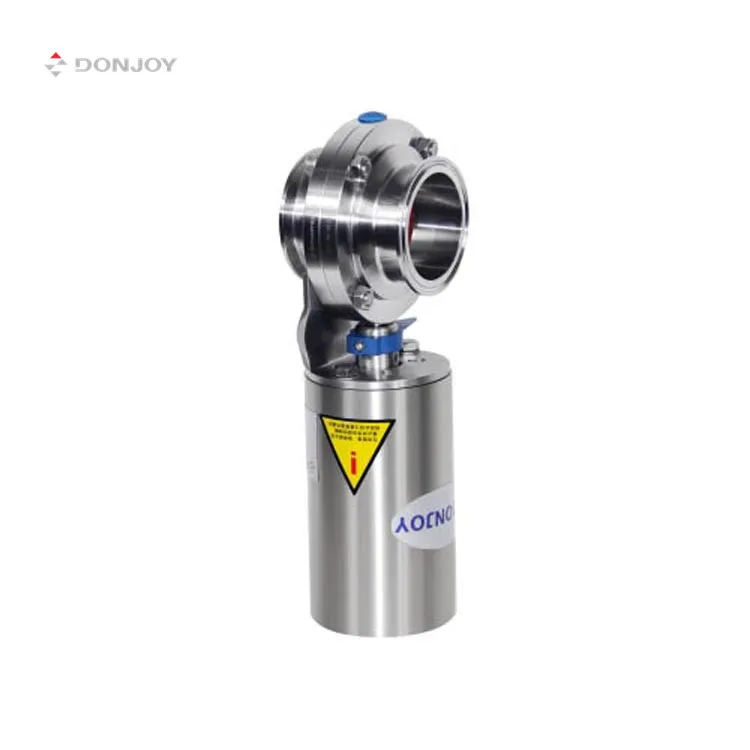

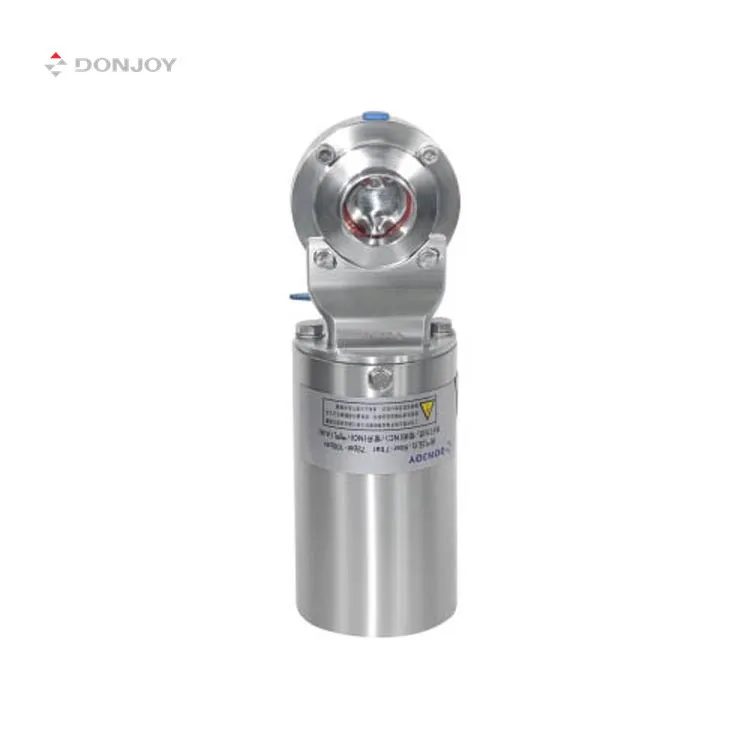

DONJOY manufacturer stainless steel SS304 SS316L sanitary pneumatic butterfly valve with position sensor
- Category: Butterfly Valves >>>
- Supplier: Donjoy Technology Co. Ltd.
Share on (62305954293):
Product Overview
Description
Max.working pressure | 10Bar |
Max.Working Temperature | 120 degree C |
Valve Body Material | 1.4404/1.4301, SS304/SS316L |
Seal Material | EPDM (standard) FPM/SILICON/NBR |
Availably size | 1/2"-12", DN10-DN300 |
Availably connection | Clamp / weld / thread/ weld thread/ flange |
Availably standard | 3A/DIN/SMS/RJT/ISO/IDF |
Operated | Manual,Pneumatic, Electric |
Control | Sensor, C-TOP, C-top controller(AS-I) |
Handle option | pull handle, plastic/SS multi-positon handle |
Handle application | Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
Actuator application | Stainless steel actuator/ Horizontal pneumatic actuator |
Certificate | ISO, PED/97/23/EC |
