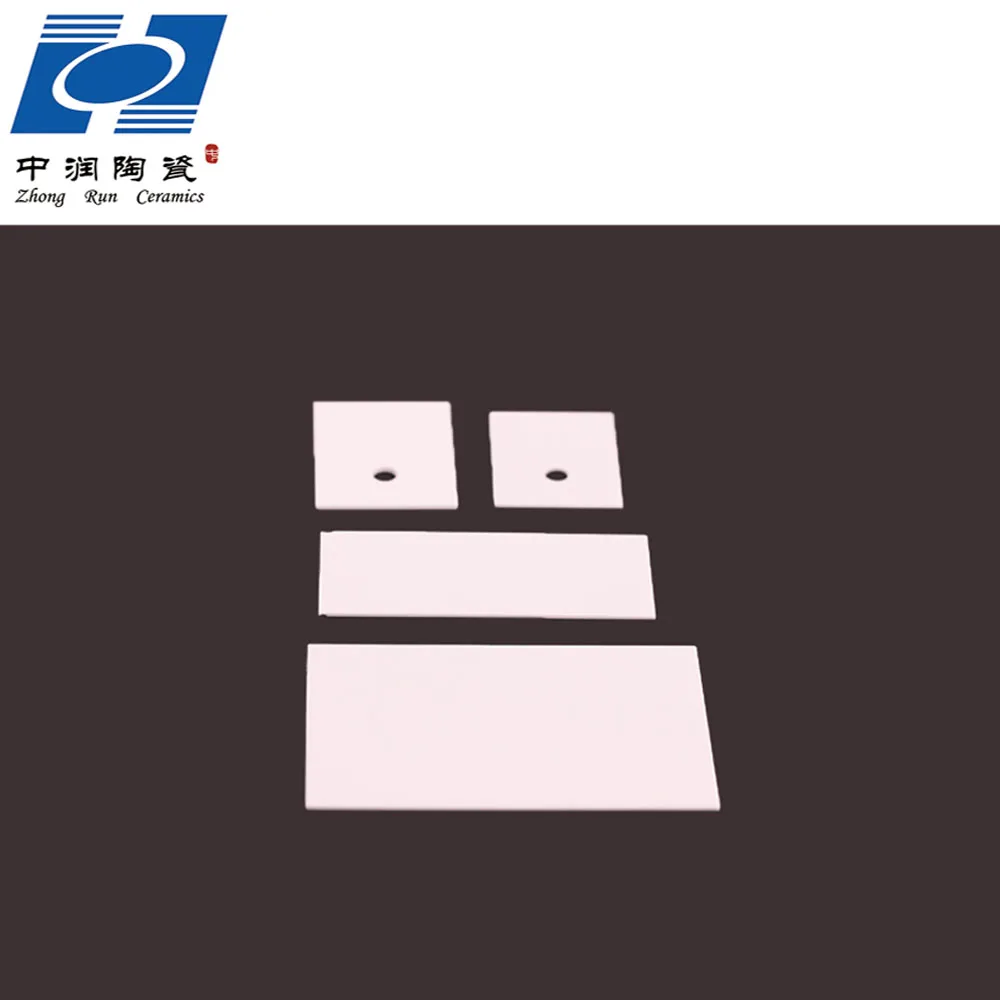

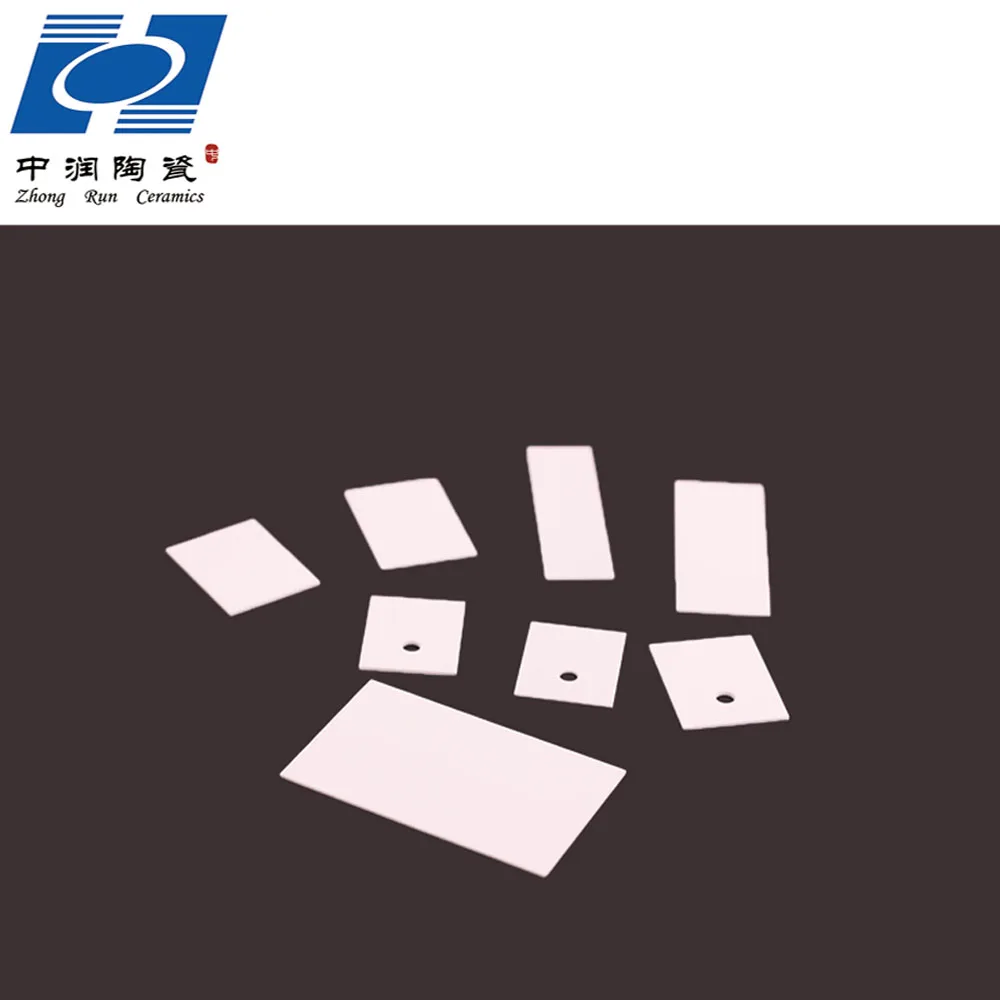

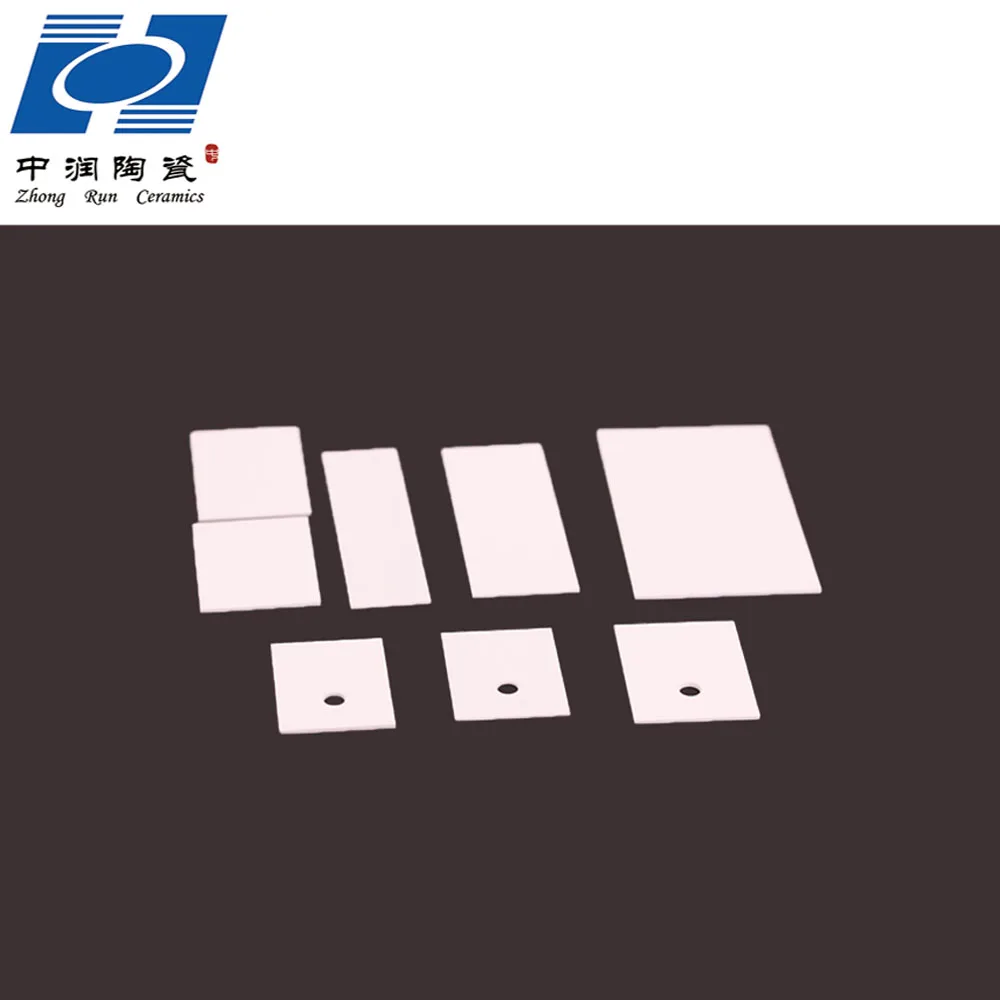

Dielectric ceramic type high Temperature Alumina ceramic substrate
- Category: >>>
- Supplier: Yixing Zhong Run Ceramics Technology Co. Ltd.
Share on (62306234778):
Product Overview
Description
Product Description
Material introduction
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics.
Material | 95%-99% (AL2O3) Alumina Ceramics | Item | Dielectric ceramic type ceramic Substrate |
Producing Method | Hot pressing /Dry pressing | Color | White |
Packing | Carton /Pallet/Wooden case (According to clients requirement ) | Delivery time | Standard Product-Within 3 days |
New developed items | 15days | Items Design | According to client’s drawing or samples |

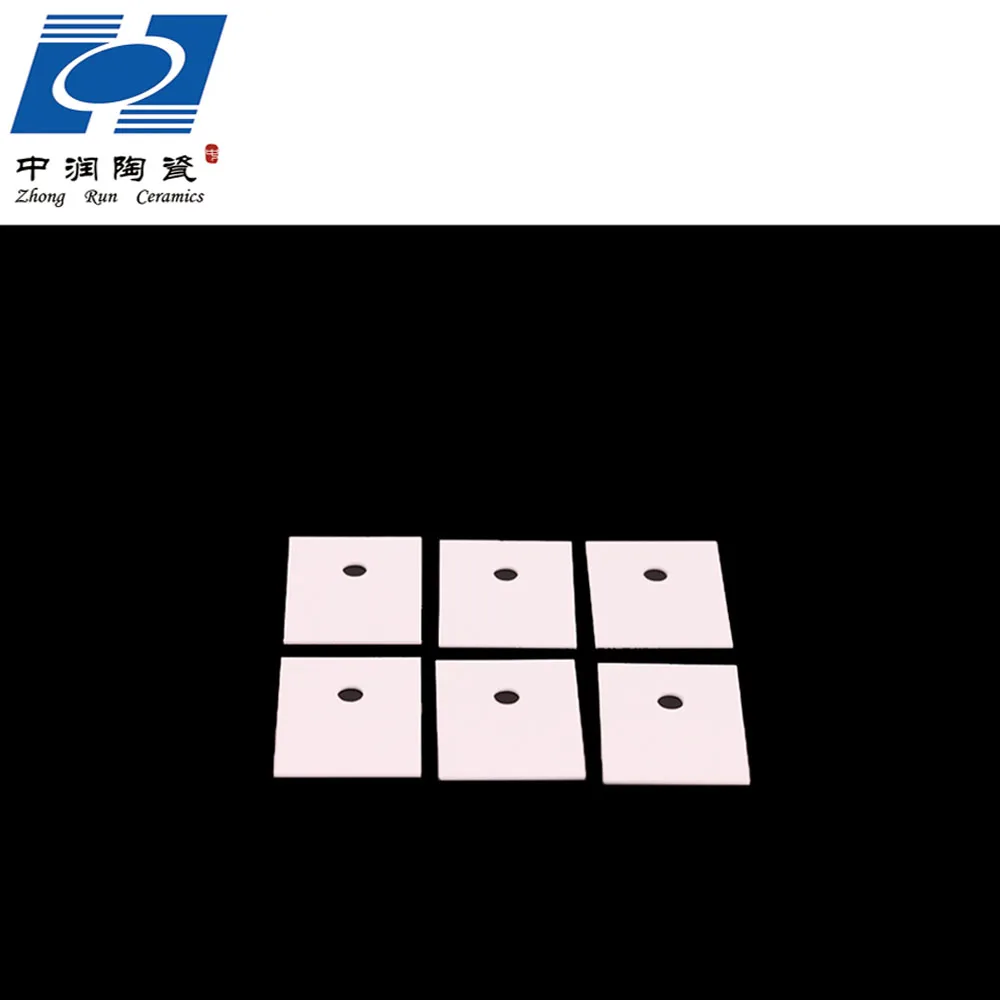

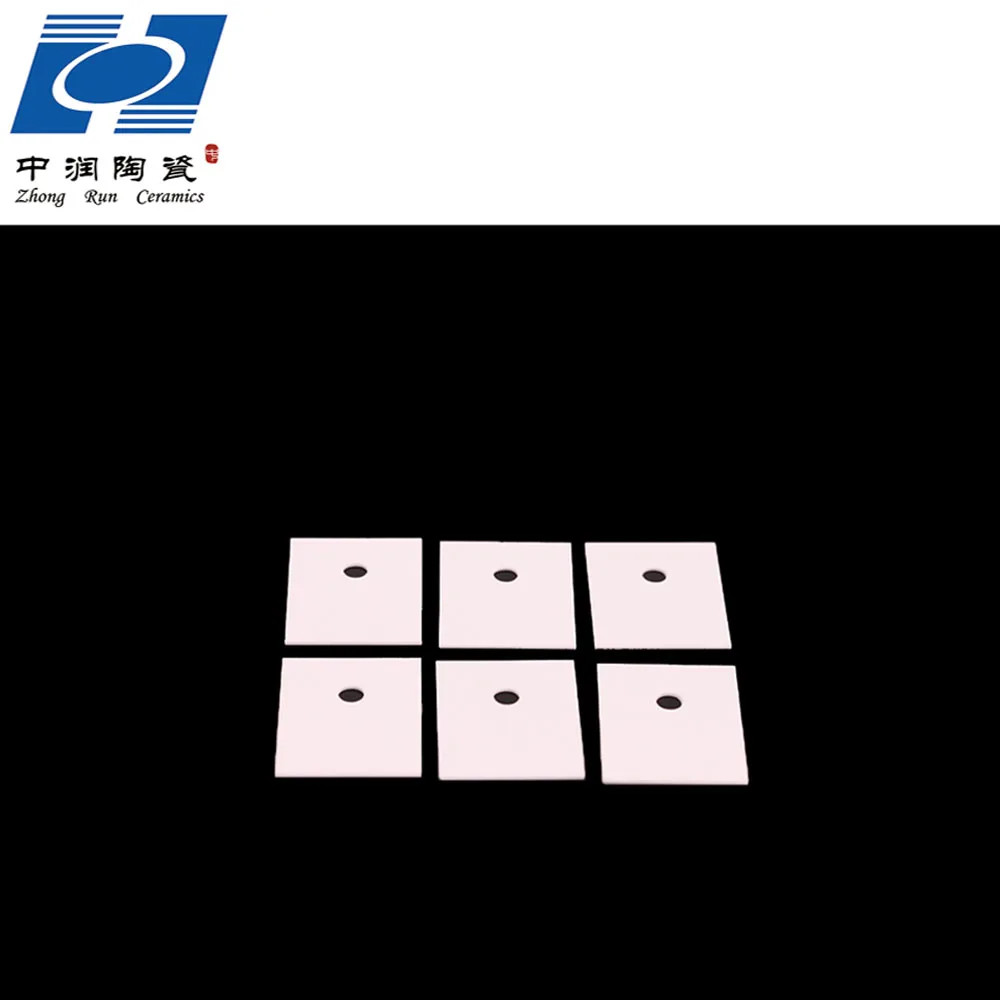

Detailed Images
Specification :
We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics, This material may be used in applications that require High elevated temperatures ,High dielectric strength, excellent electrical resistance . wear or corrosion resistance .high temperature capability .High Electrical insulation.
Applications :
Electric appliance industry/Automotive industry/Mechanical industry
Engineering industry/Electrical heating element industry/LED Lighting Industry
Technical Parameter
Alumina Content | 80-85% | 90-96% | > 99.5% | 99% |
General Application | Lower Cost Electrical & Mechanical | High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing | Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance | Porous, Easily Degassed & Machinable |
Porosity (%) | 0-.05 | 0-.05 | 0-.05 | Variable |
Density (gm/cm3) | 3.45-3.50 | 3.55-3.75 | 3.75-3.95 | 2.4 |
Flexural Strength (kpsi) | 35.0-40.0 | 40.0-50.0 | 50.0-55.0 | - |
Comprehensive Strength (kpsi) | 260.0 | > 300.0 | > 300.0 | - |
Tensile Strength (kpsi) | 15.0-20.0 | 20.0-28.0 | 20.0-28.0 | - |
Linear Coefficient of Thermal Expansion ((cm/cm/°C) 25-300°C 25-700°C) | 5.9X10-6 6.5X10-6 | 6.3X10-6 7.0X10-6 | 6.5X10-6 7.5X10-6 | 6.5X10-6 7.5X10-6 |
Dielecctric Constant at 25°C (1 MH 10 MH) | 8.5-8.9 8.4-8.8 | 9.2-9.8 9.0-9.6 | 9.5-9.9 9.3-9.7 | - |
Dielectric Strength (Volt/mil) | 200 | 225 | 225 | - |
Te Value (°F °C) | 1472 800 | > 1832 > 1000 | > 1832 > 1000 | > 1832 > 1000 |
Thermal Conductivity at 25°C (cal/sec/cm2/cm/°C) | .03-.04 | .04-.06 | .07-.08 | - |
Thermal Shock | Good | Good | Good | Good |
Safe Use Temperature (°F °C) | 2550 1400 | 3000-3100 1650-1700 | 3275 1800 | 3275 1800 |
Application Scenarios
Product packaging
Packing
When the ceramic insulator bead is finished, the person will be responsible for the packing.
Moulding
The moulding methods are manual, automatic and dry pressing. Ceramics are made by these three methods.
Sintering
Our company has two kilns, which have advantages in similar enterprises. We can burn more ceramic insulator bead in a short time.
Company Introduction
Yixing Zhong Run Ceramics Technology Co., Ltd. is a manufacturing company specialized in pressing industrial ceramics.
We make use of several forming and machining techniques to process components made from alumina ceramics, steatite ceramics, zirconia ceramics, cordierite ceramics, mgo ceramics, corundum ceramics, etc. These materials can be used in such applications as require wear and corrosion resistance, with high temperature capability, abrasion resistant and electrical resistance.
Our main materials are widely used in electrical appliance industry, automotive industry, mechanical industry, LED lighting industry, heating industry, electrothermal industry, engineering industry, etc.
Zhong Run Ceramics believes in manufacturing quality products and delivering products as per the customers' drawing and samples.
We aim at excellence by setting superior standards of performance and commitments!
