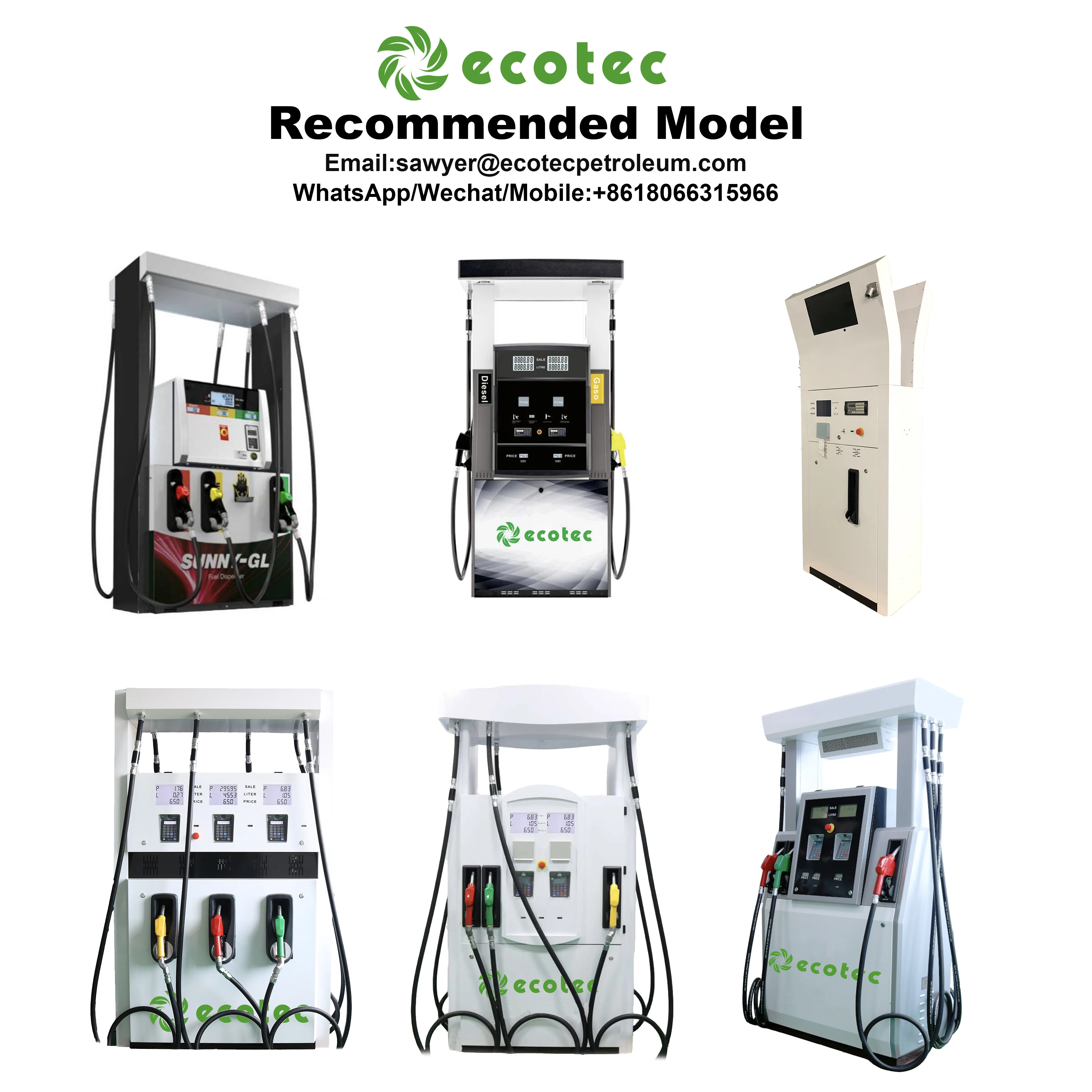

Ecotec LCD Display Single & Double Max 8 Nozzle Fuel Dispenser for sale
- Category: >>>
- Supplier: Wenzhou Ecotec Energy Equipment Co. Ltd.
Share on (62306244005):
Product Overview
Description
Product Description
Available for 1 to 8 nozzle, both suction and submersible
For 1 nozzle:
Fuel Dispenser M112
1 x Product (Submersible type)
1 x Tatsuno pump
2 x Tatsuno meter
2 x nozzle 11A, 3/4" NPT, outlet: 13/16"
2 x Black, length:4 M with coupling
2 x Solenoid valve MSF-20BA
2 x Breakaway valve, 3/4 inch
1 x Electronic controller WA122,with RS485
2 x Preset keyboard Z26, white color
2 x Display board X110,886, white
All Painting Body
Power supply: 220V, 50hz
Package: Standare Export caton
With one printer, NO LIGHT
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Owner and User
Fuel dispenser J series is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all

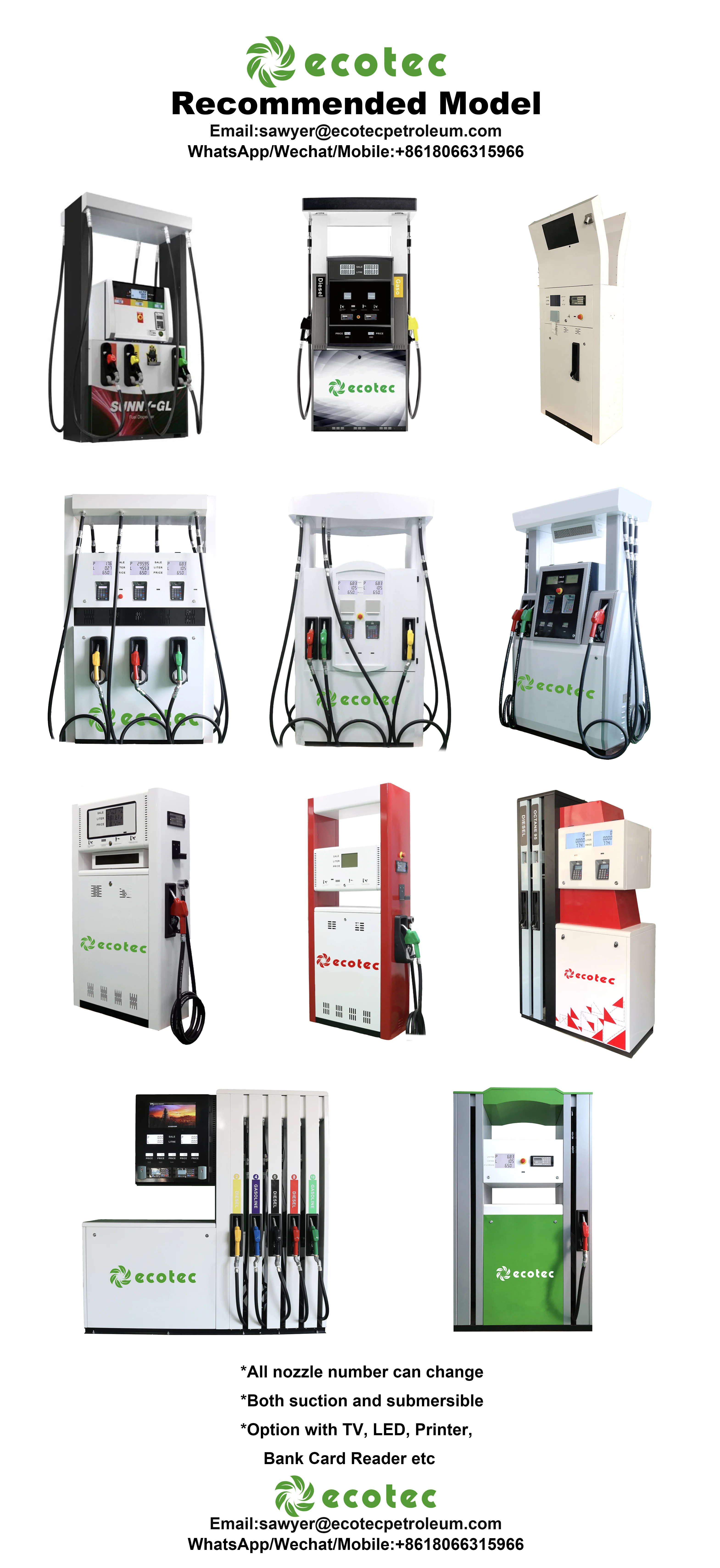

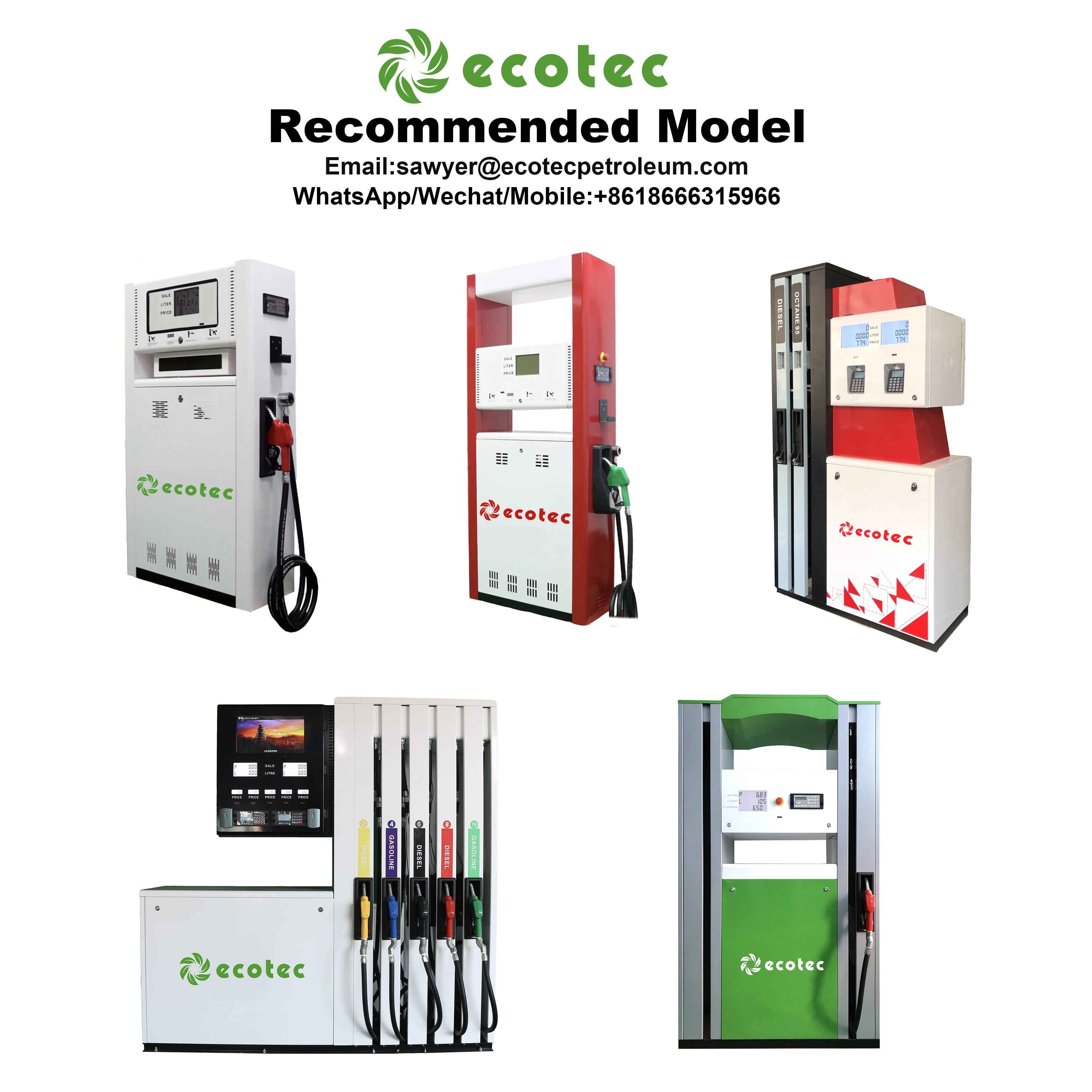

Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
- suitable for single nozzle to 8 nozzle
- suitable for both suction and submersible
- suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
- suitable for regular flow rate and high flow rate
- Option with TV, LED, Printer, Bank Card reader etc
Model List
| Dispenser | Model | Product/ Pump | Flow Meter/ Nozzle/Hose | Display | Flow rate LPM |
| Suction type | A112S | 1 | 1 | 2 | 50L/M |
| A122S | 1 | 1 | 2 | 45L/M | |
| A224S | 2 | 2 | 4 | 50L/M | |
Remote / Submersible type | A112R | 1 | 1 | 2 | 50L/M |
| A122R | 1 | 1 | 2 | 45L/M | |
| A224R | 2 | 2 | 4 | 50L/M |
| ump | Type | Optional |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min.) | 55±5 | |
| Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |
| Flow Meter | Type | Optional |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V,50Hz/60Hz |
| Capacity(hp) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V,50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40ºC~~+55ºC | |
| Control Type | Solenoid Vale Control Type | |
| Preset | Function Provided(Small LCD Indicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Display(Counter) | Digit of Volume | 0~~999,999(6 Digits),Decimal point can be changed |
| Digit of Amount | 0~~999,999(6 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Amount | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Totalizer | 1~~9,999,999 | |
| Hose | 4.5m | |
| Weight | 205kg | |
| Dimension(L×W×H) | 1060*600*2200(mm) | |
| Dimension(L×W×H)Of Qty of Container | 40ft: 44 20ft: 22 | |
Packaging & Shipping
Standard Carton or Wooden for transportation
Our Services
Warranty : 12 months
Company Information
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer′s need, and struggle for it, Looking forward to cooperate with you
