Бесплатная доставка, SDK C #, встроенный считыватель карт, радиочастотный идентификатор лица, терминал времени посещаемости, устройства распознавания лица, терминал турникета

Features&Advantages

Support Real Time Human Body Detection .

Using Linux operating system, better system stability.

Face recognition algorithm to accurately recognize faces, face recognition time is less than 1s.

Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.

Support for AD file playback.

Support PIR human body sensing wake-up function.

Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.

Support 65000+ face matching library and 500,000 face recognition records.

Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.

Support tracking of personnel movements under strong backlight conditions.

The host supports an external ID card reader (For Chinese ID card).

The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

Hardware

Processor

Sextuple processor + 2G memory + 32G flash

Operating system

Linux Operating system

Storage

Support TF card storage

Camera module

U21R

Sensor

1/2.8" Progressive Scan CMOS

Lens

6mm(optional)

Performance

Recognition height

1.2~2.2 meters,Angle can be adjusted

Recognition distance

0.5~5 meters,depends on lens

Face angle

30 degrees left and right, 30 degrees up and down

Recognition time

Less than 1 second

Function

Support 250,000 capture library, real-time capture, support 65,000 list library

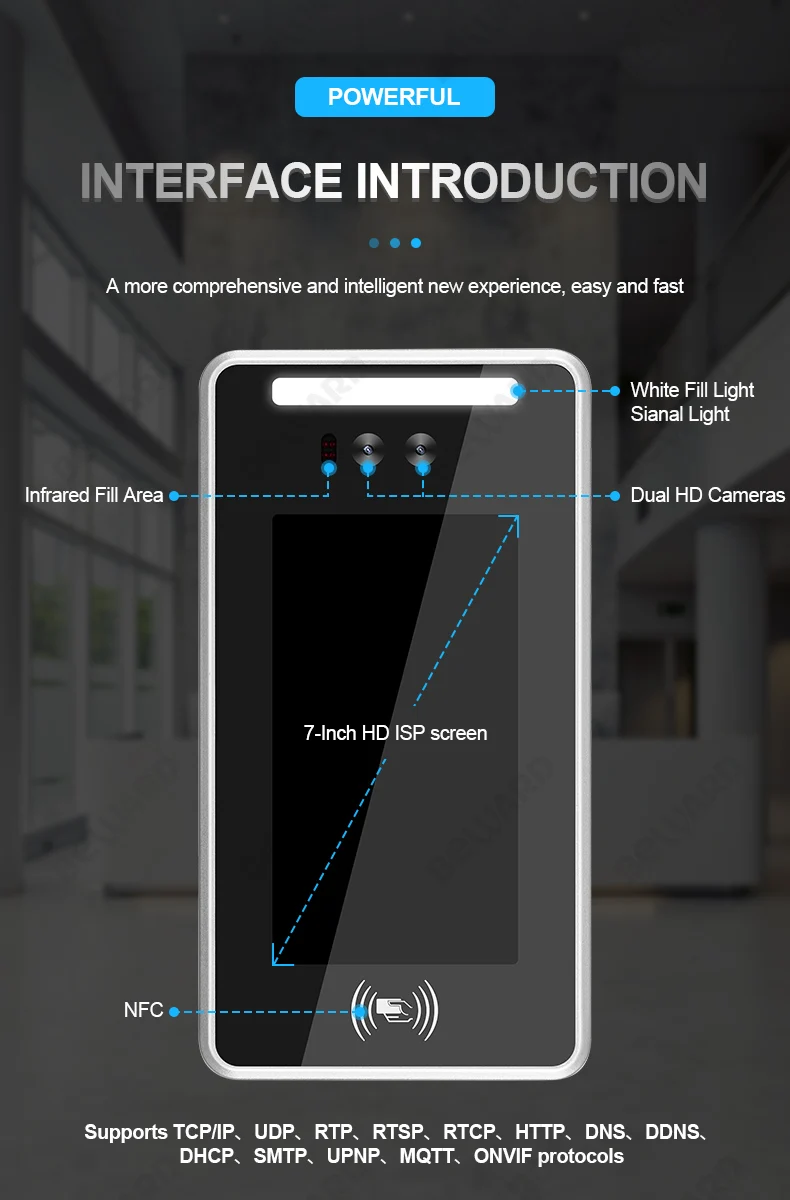

Interface

Switch  inputs

1ch switch input

Power

DV12V/3A

Network Interface

1x RJ45 10M / 100M Adaptive Ethernet port

Wiegand Interface

1ch Wiegand interface input/output

USB interface

1ch  USB interface

Camera Data

Camera

Two cameras: 1x B/W camera ; 1x color camera

Effective pixels

2MP,1920*1080

Min Illumination

Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)

SNR

≥50db(AGC OFF)

WDR

≥120db

Video Coding

H.265 Main Profile /H.264 BP/MP/HP /MJPEG

Resolution

Main stream:50Hz: 25fps (1920×1080,1280×720)
                       60Hz: 30fps (1920×1080,1280×720)

Sub stream:720*576,1-25(30)fps/640*480,1-25(30)fps
                      320*240,1-25(30)fps
