LNG natural gas filling station construction
- Category: >>>
- Supplier: Shandong Auyan New Energy Technology Co. Ltd.
Share on (62306325676):
Product Overview
Description
Intergrated LNG gas station prefabricated space frame steel structure petrol station constructionLNG natural gas filling station construction
Product display

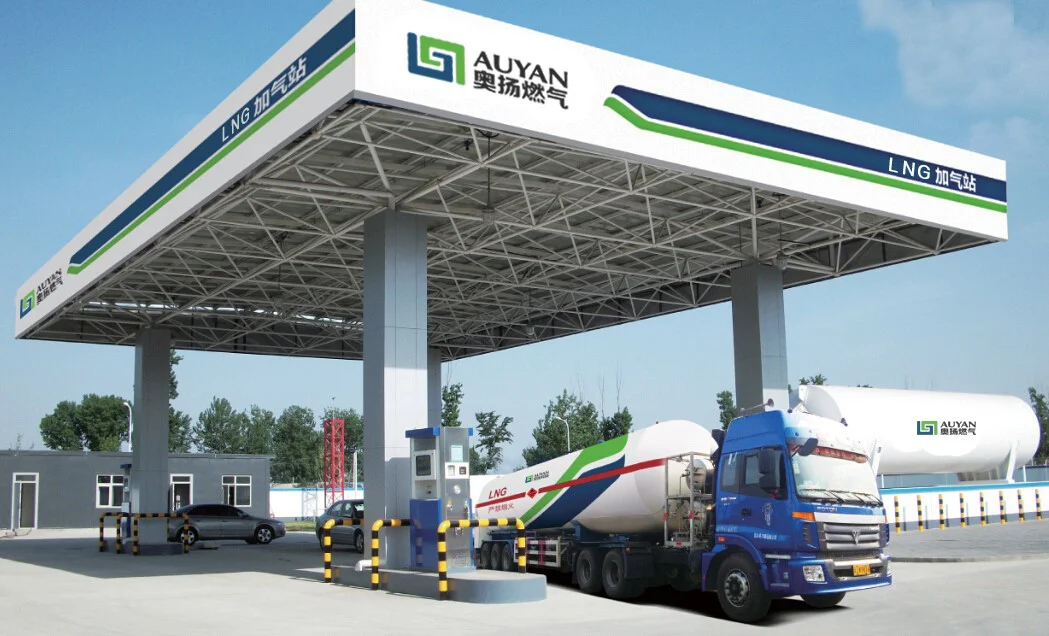

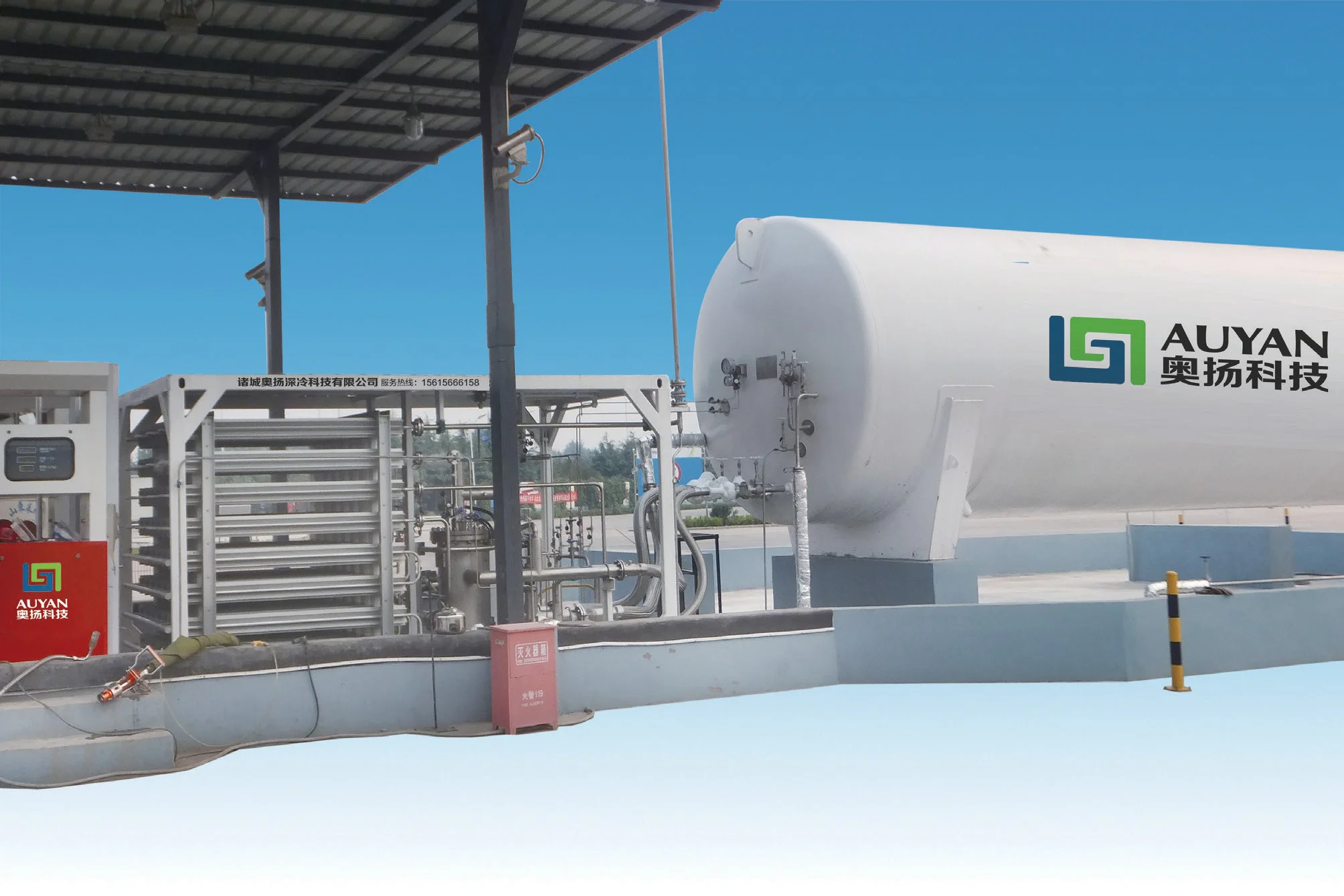

Fixed filling station

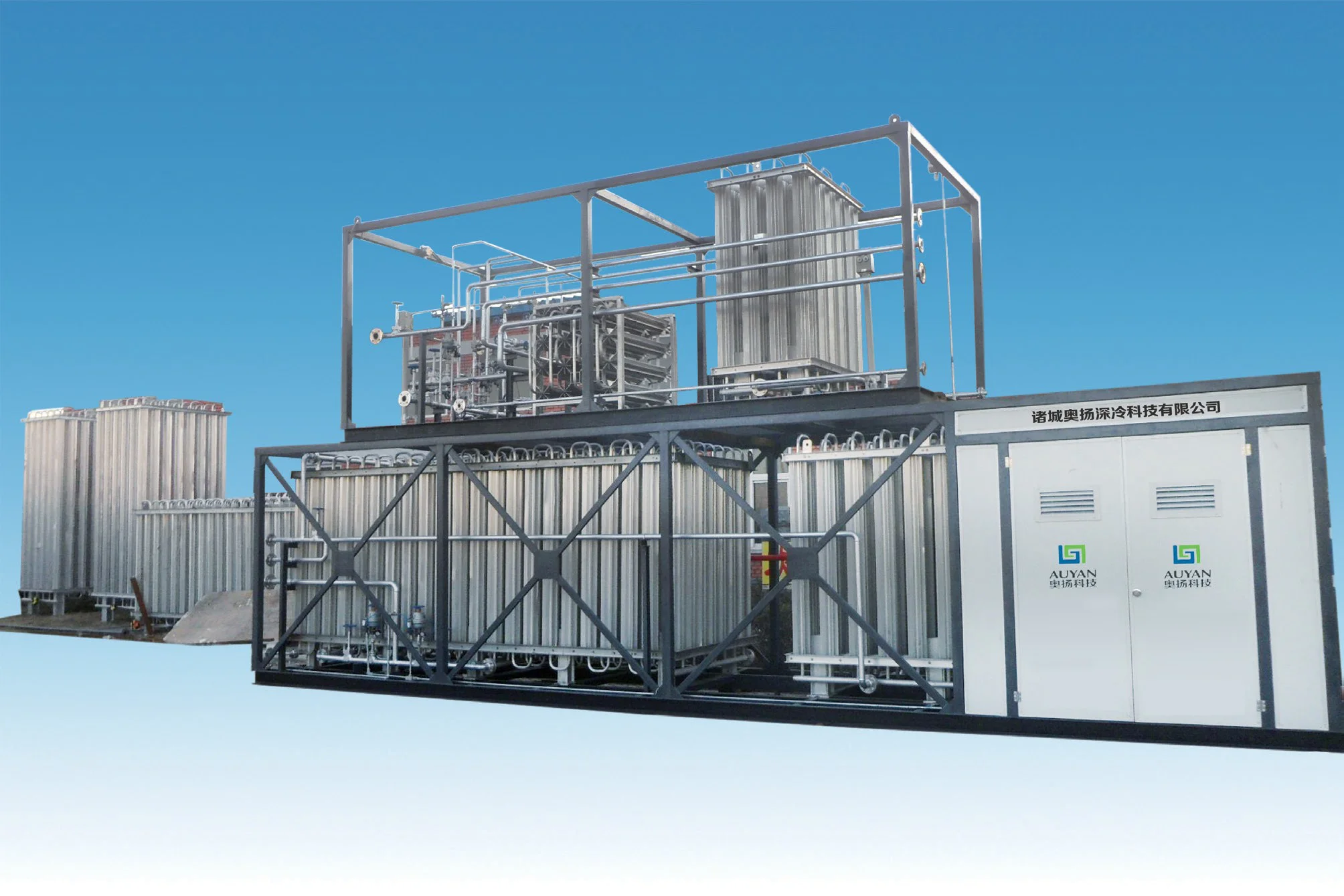

Skid-mounted filling station
Classification and Configuration Table of LNG Gas Station | ||||
category | Application | Configuration details | ||
Skid-mounted filling station, explosion-proof box filling station |
It mainly integrates power system and pipeline system control system and metering system to facilitate various forms of station construction needs, to meet customer requirements to the utmost extent, shorten the time of operation, and facilitate the logistics, bus, port and terminal, urban city center LNG station construction needs . | model | AYJQ-0030 | AYJQ-0060 |
|
| Gas storage capacity (m³) | 30m³ | 60m³ |
|
| Daily gas filling capacity (Nm³/day) | 15000 | 30000 |
|
| Tank design pressure(MPa) | 1.32 | 1.32 |
|
| Pipeline design pressure(MPa) | 2.0 | 2.0 |
|
| Number of filling pumps (set) | 1 | 1-2 |
|
| Number of dispensers(set) | 1 | 1-4 |
|
| Coverage of equipment(m²) | ≥300 | ≥300 |
|
| Equipment power (KW) | 20 | 20-40 |
| ||||
Fixed filling station |
It is mainly used for building stations with large traffic flow and great potential in the later market. | model | AYJQ-0060 | AYJQ-0120 |
|
| Gas storage capacity (m³) | 60m³ | 120m³ |
|
| Gas filling capacity (Nm³/day) | 30000 | 60000 |
|
| Tank design pressure(MPa) | 1.32 | 1.32 |
|
| Pipeline design pressure(MPa) | 2.0 | 2.0 |
|
| Number of filling pumps (set) | 1-2 | 2-4 |
|
| Number of dispensers(set) | 2 | 2-4 |
|
| Coverage of equipment(m²) | ≥1000 | ≥2000 |
|
| Equipment power (KW) | 20-40 | 20-80 |
Product advantages:
1. More safety: When there is abnormal pressure rise or pipeline leakage during filling and unloading, the system automatically closes the relevant pipeline valve, and can automatically cut off power in case of emergency.
2. More economical: less floor space, easy to move and transfer. 3. More intelligent: The PLC control system will monitor and control the equipment pressure, temperature and flow in real time, and automatically judge and repair all abnormal conditions to reduce the workload of the operators.
4. More reliable: After the on-site installation of the gas filling equipment, the operation failure rate is greatly reduced, and the construction quality and cold preservation effect of the LNG process pipeline are further improved.
FAQ
If you have questions about AUYAN® products, here's where you can find the answers. If you don't find the answer to your question here, feel free to contact us by telephone, email.
Q:What is the warranty of your Products?
A:The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1 year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
Q:What trade terms can you apply in the contract?
A:EXW, FOB and CIF are the regular terms we use.
Q:What are some methods of payment?
A:T/T, L/C, as well as Paypal are supported.
