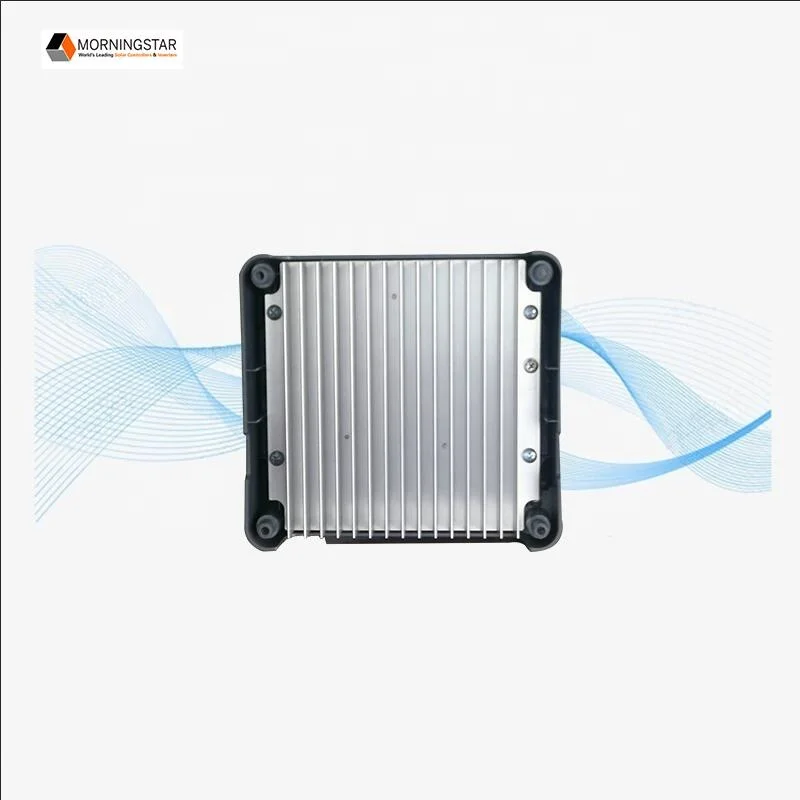

Контроллер заряда солнечной батареи Morningstar EcoBoost MPPT 40A с ЖК экраном
- Category: >>>
- Supplier: Beijing Shoushanxinda Technology Co. Ltd.
Share on (62306501076):
Product Overview
Description
Company Information
Morningstar Corporation is a world-leading manufacturer and supplier of solar charge controllers and inverters. Since their inception in 1993, over 2.5 million Morningstar units have been installed in over 112 countries around the world. Morningstar controllers and inverters have set new standards in performance, quality, reliability and innovative features, and global solar markets have consistently recognized Morningstar's products as the industry's best overall customer value.

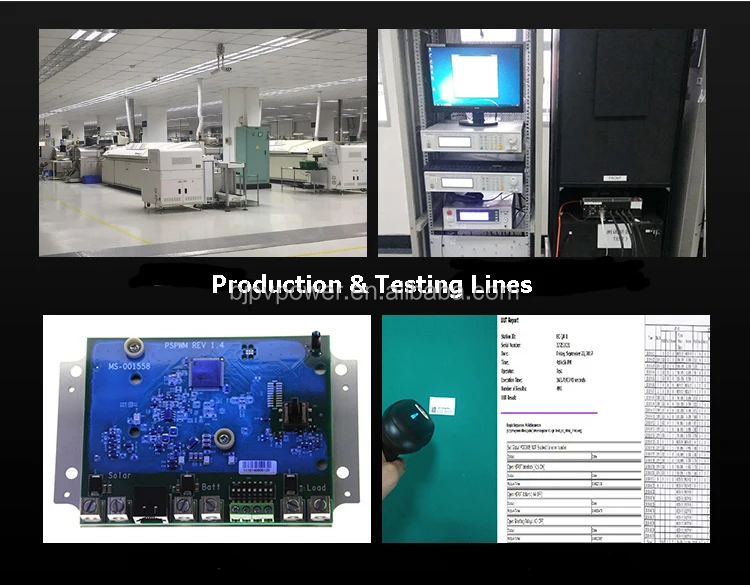

Manufacturing is conducted in a fully-automated, world-class ISO 9001 facility, and quality control includes 100% functional testing on every product, using the latest computerized test equipment and processes.
For over 20 years, Morningstar has preserved its ownership, management and strategy, which has allowed the company to build trusted, long-term relationships with its employees, customers and suppliers.
Product Description
EcoBoost MPPT™ Solar Charge Controllers
solar power charger
solar controller

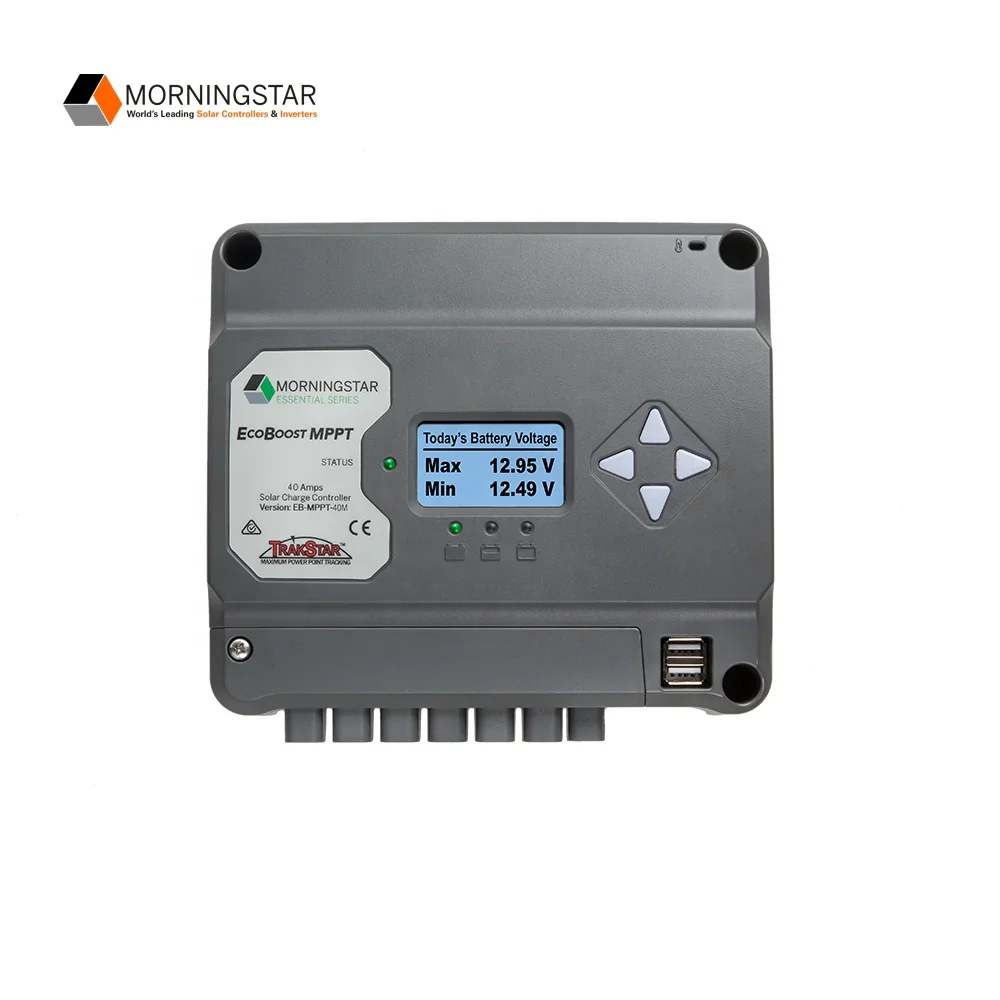

Model: EB-MPPT-40M
The EcoBoost MPPT™ solar charge controller brings Morningstar’s proprietary TrakStar Technology™ to our new line of Essentials controllers and accessories. The EcoBoost controllers automatically detect 12 or 24 V system configuration. They are highly efficient and accurate controllers designed to ensure that batteries attain a complete state of charge.

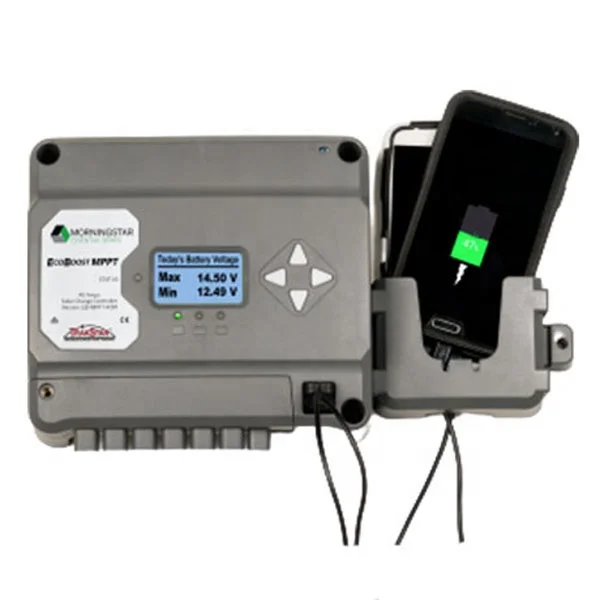

They are also sophisticated load controllers. Using this feature to manage DC power consumption protects the batteries from over discharge and helps ensure long term system reliability. Small DC loads can be powered directly from the EcoBoost by way of two USB charging ports.
Main features
• High Efficiency
At low, medium, and high power levels.
• Maximizes Energy Harvest
Using TrakStar MPPT technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
• Rugged, Maintenance-free Design

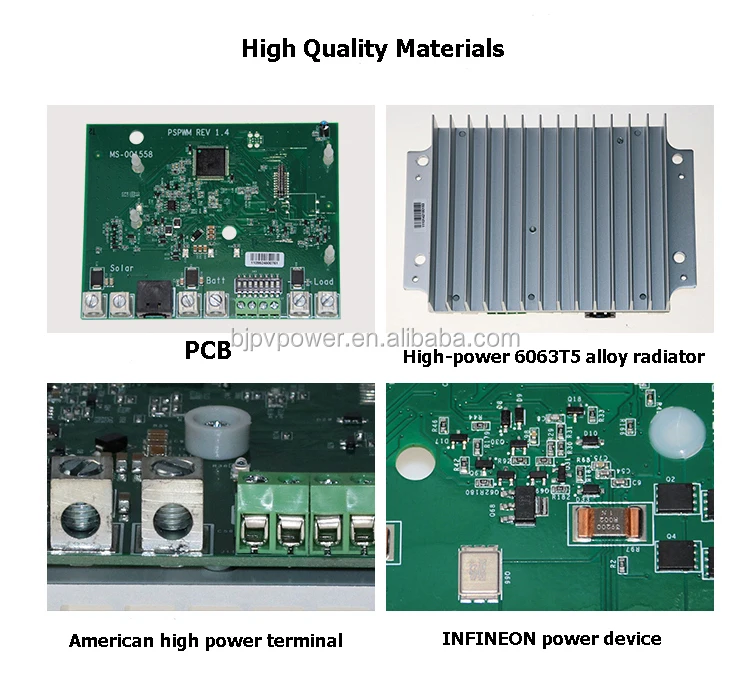

Conformally coated circuit board and corrosion resistant terminals.
• Optional Meter
Provides access to system operational information including current and historical performance data. All EcoBoost “M” controllers include the meter.
Product Overviews
| Brand | Morningstar |
| Model | EB-MPPT-40M |
| Electrical | |
| Maximum Battery Current | 40A |
| Load Current Rating | 30A |
| Nominal Battery Voltage | 12V or 24V auto-detect |
| Battery Voltage Range | 10-35V |
| Peak Efficiency | 98% |
| Self-consumption | <1.2 Watts |
| Maximum Combined USB Charging Output | 3A at 5V |
| Transient Surge Protection | 1500 Watts (solar, battery, load) |
| Environmental | |
| Operating Temperature Range | -40°C to +60°C |
| Humidity | 100% (non-condensing) |
| Tropicalization | Conformal coating, marine-rated terminals |
| Mechanical | |
| Dimensions (W x L x D) | 19.6 x 17.3 x 7.1 cm |
| Weight | 1.4 kg |
| Enclosure | IP20, Type 1 |

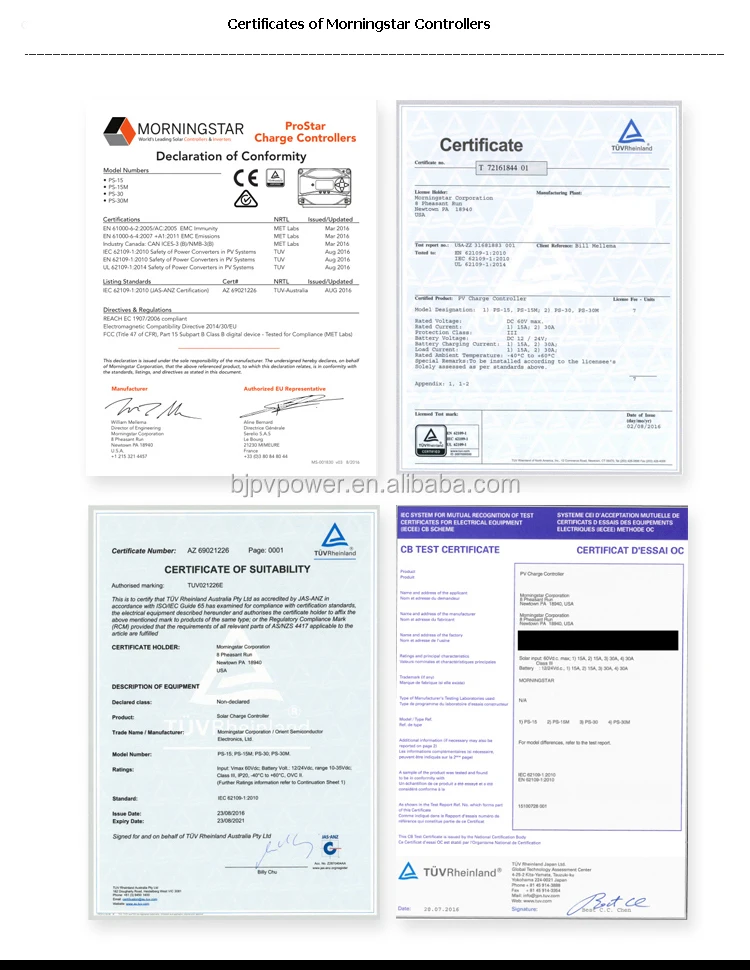

| Certifications | CE, TUV Listed: IEC 62109, EN 62109-1, Emissions 55014-1, Immunity 55014-2 |
| Warranty | 2 years |

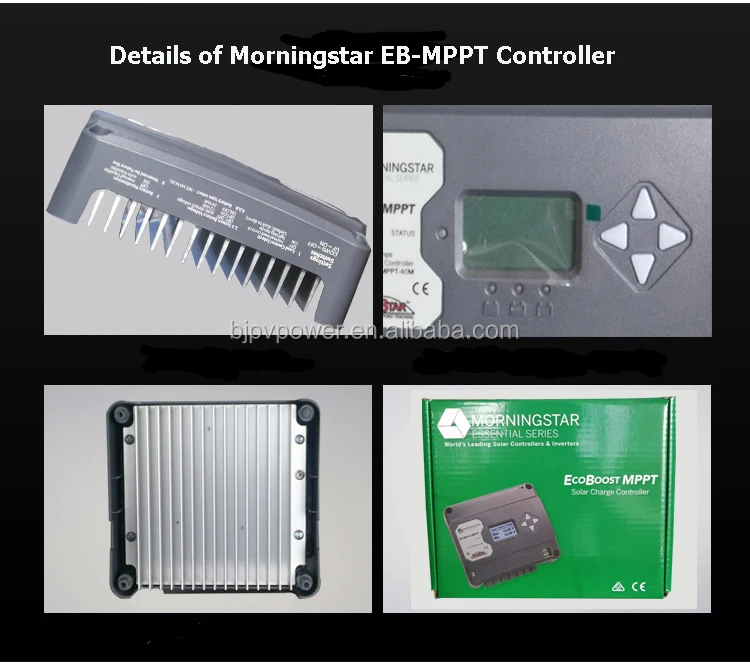

Pics
FAQ
1. Q: Are you a factory or trading company?
A: We are exclusive distributor of Morningstar since 2009 and gained Partner Awards for years.
2. Q:What kind of payment do you accept?
A:We accept all payment terms and prefer you to make a order online.
3. Q:Do you have any MOQ and how about the production capacity of your facotry one year?
A:MOQ is 1pcs. Annual production is 120000pcs and enough in instock of Beijing office.
4. Q: May I take some samples to test before placing the order ?
A: Yes, customers shall pay for the sample fees and express fees.
Please connect to Ms. Killy Sun for trial oder with best pricing online.
5. Q: How long can you offer the samples?
A: 2 days after the deposit payment is confirmed.
