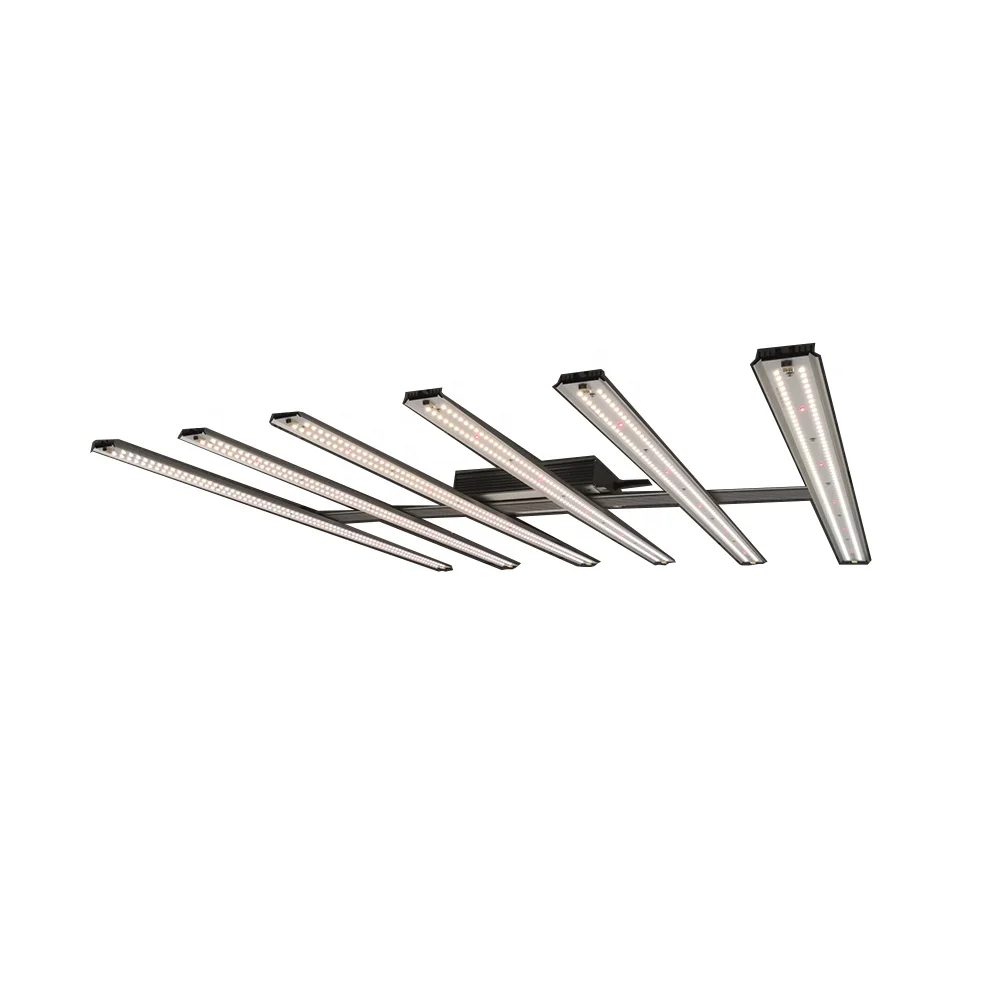

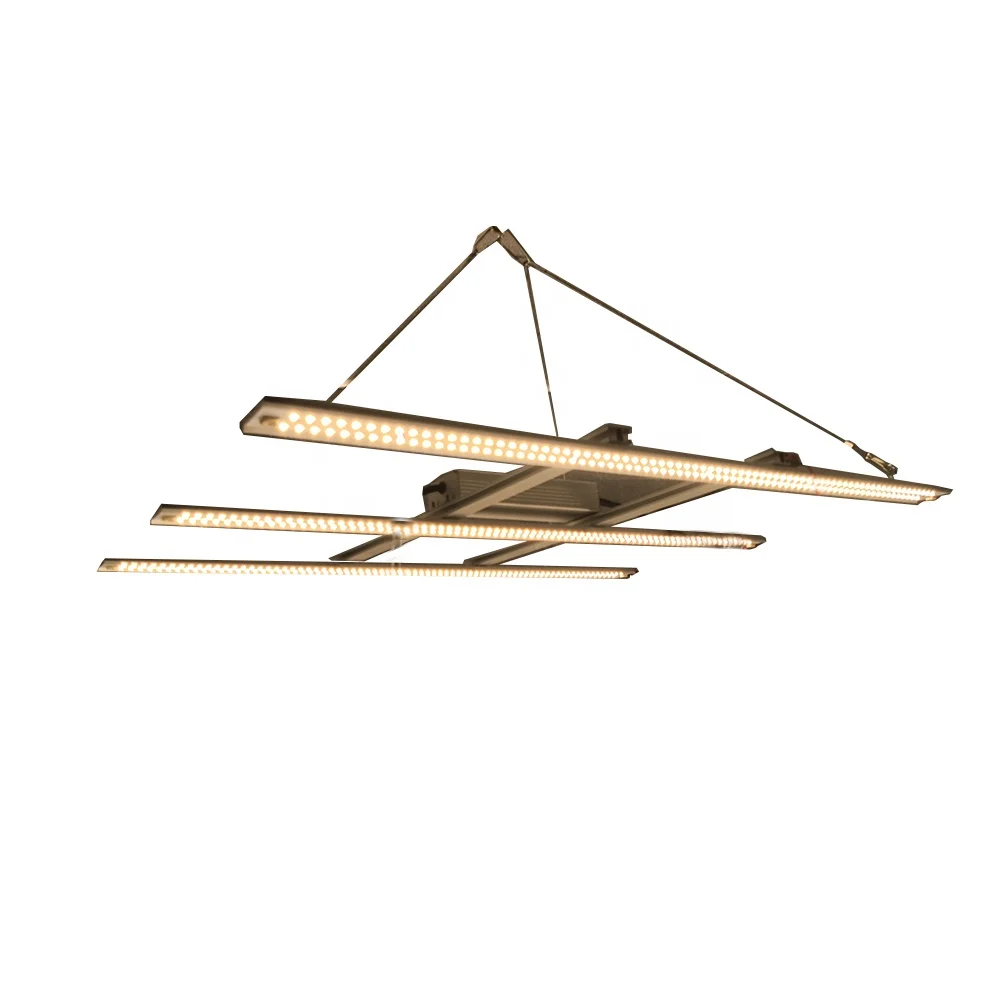

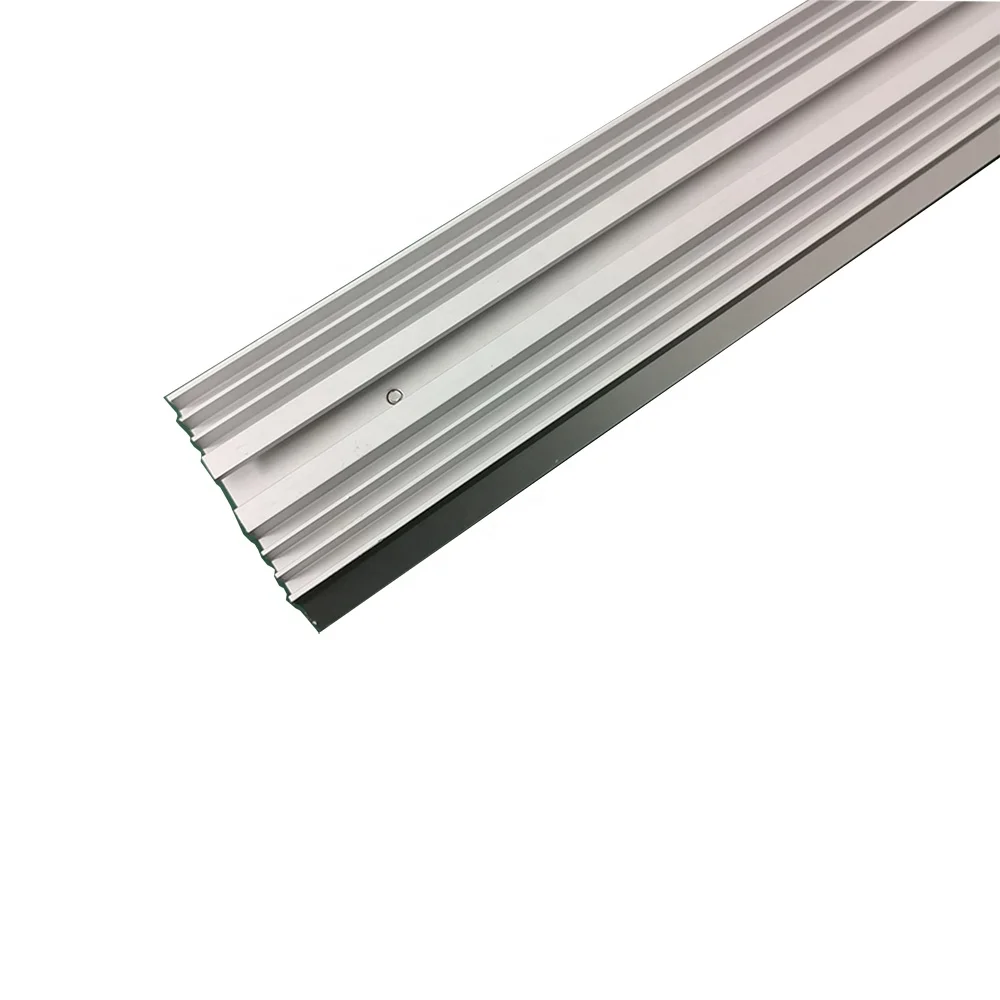

Hot Spider linear plant quantum full spectrum 240 600 800 1200 watts grow lamp led grow light bar for indoor plants
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (62306513093):
Product Overview
Description
Hot Spider linear plant quantum full spectrum 240w 600w 800w 1200w grow strip led grow light bar for indoor plants
Led light size: according customer request

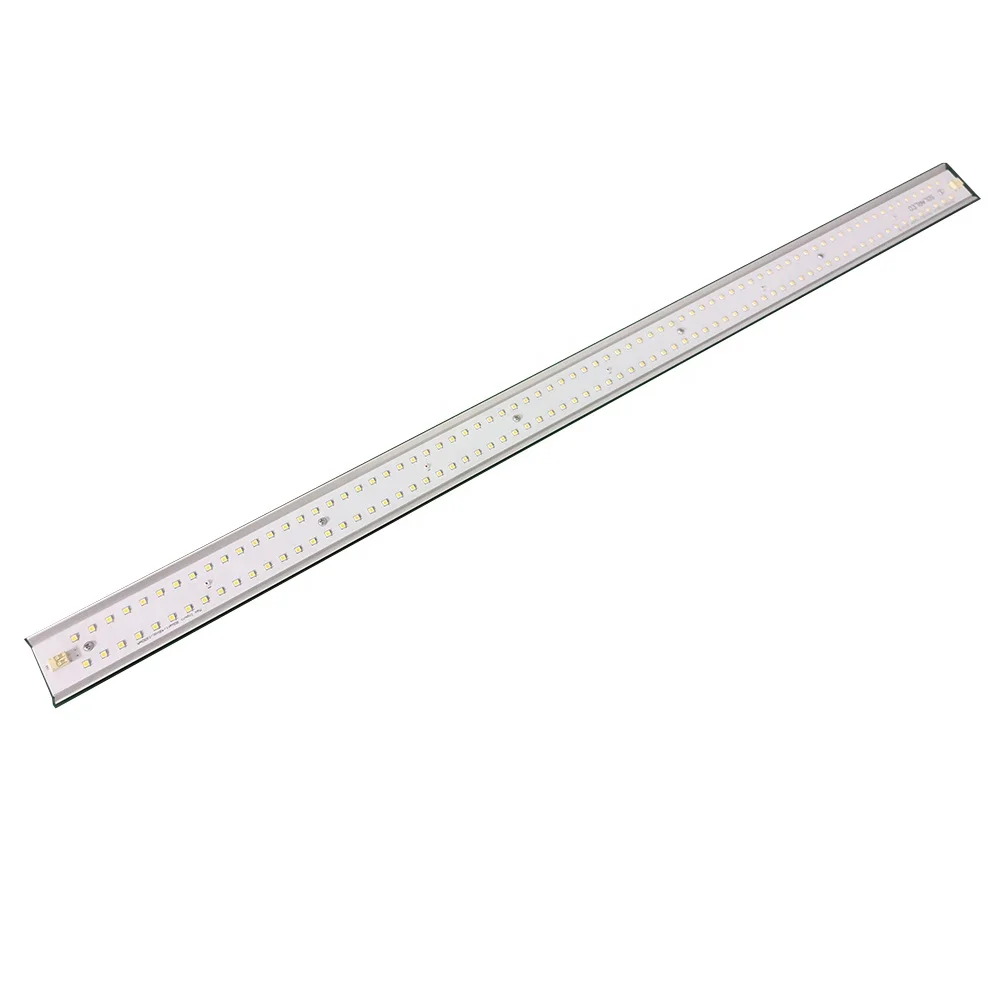

each bar size: 900*35mm
each bar power: 80watt
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.LM301B RA:80, CCT option: 3000k/3500K/4000K XPE/LH351H 660nm
Initiator: | Russell | Date: | 2019-7-17 |
Project Name: | Sun led grow light | New Project Code: | R2T-Sunbar-480w |
Function Request | |||
Electronic Requirement): | 80W 900*35mm strips with heatsink: 6pcs each strip with 150pcs LM301B chip Plus 5pcs XPE 660nm | ||
Optic Requirement: | total 900+30pcs chips, include 900pcs LM301b 3000K RA80 chips and 30pcs XPE Deep Red 660nm chips | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 1.6mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||
Spectrogram
Testing Data:

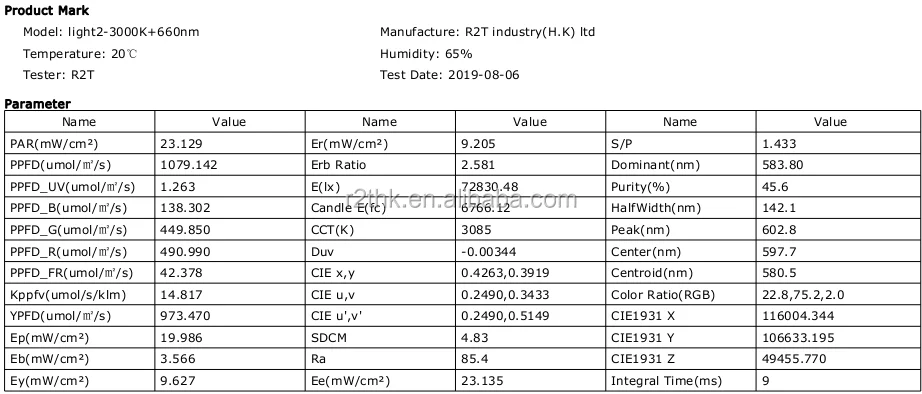

1: testing distance: 12inch

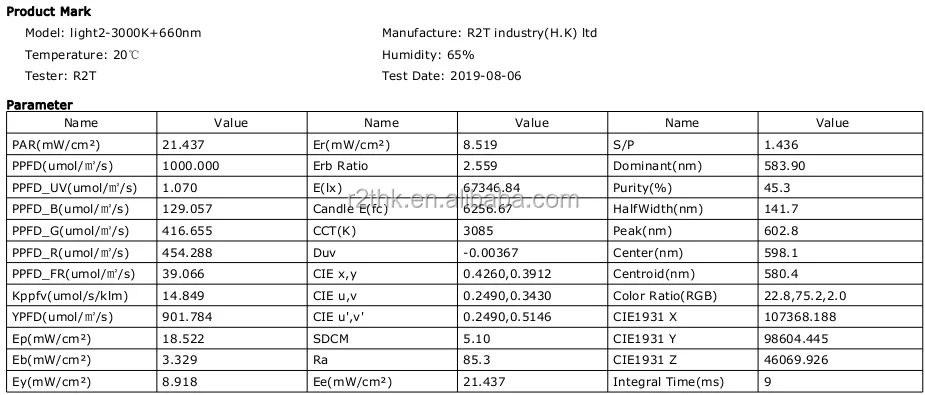

2: testing distance: 14inch

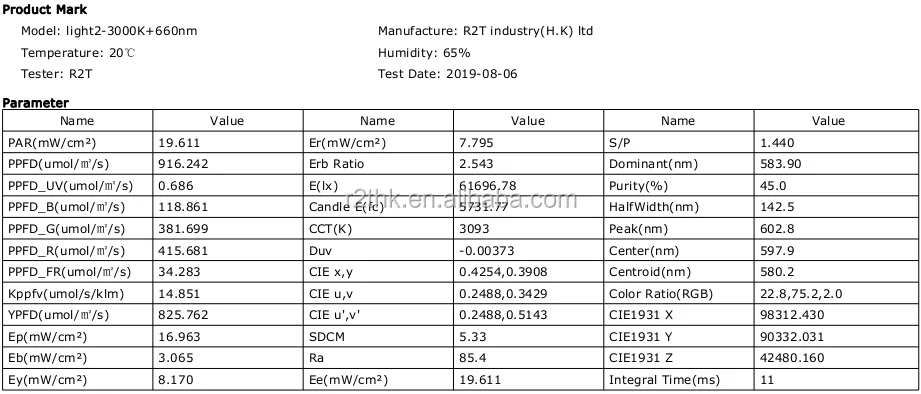

3: testing distance: 16inch

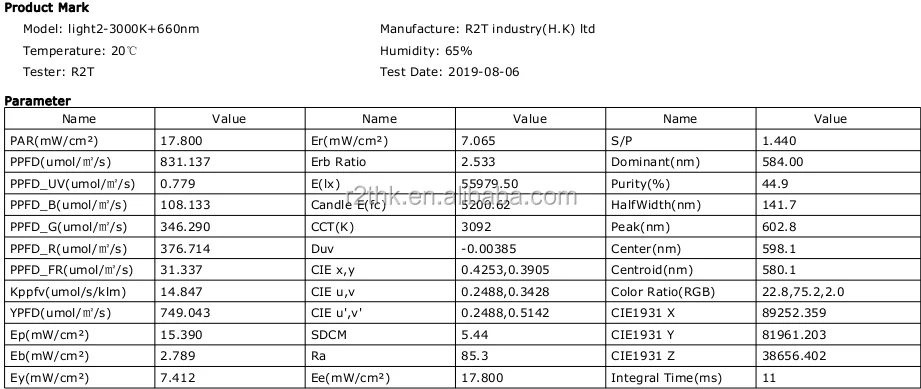

4: testing distance: 18inch

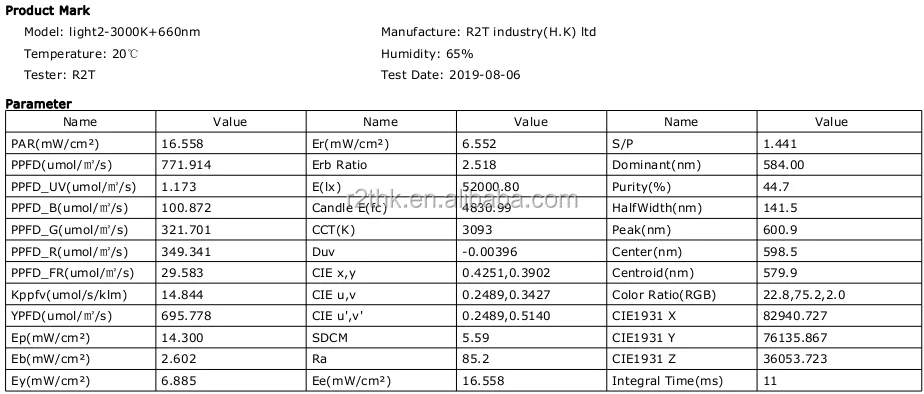

5: testing distance: 20inch

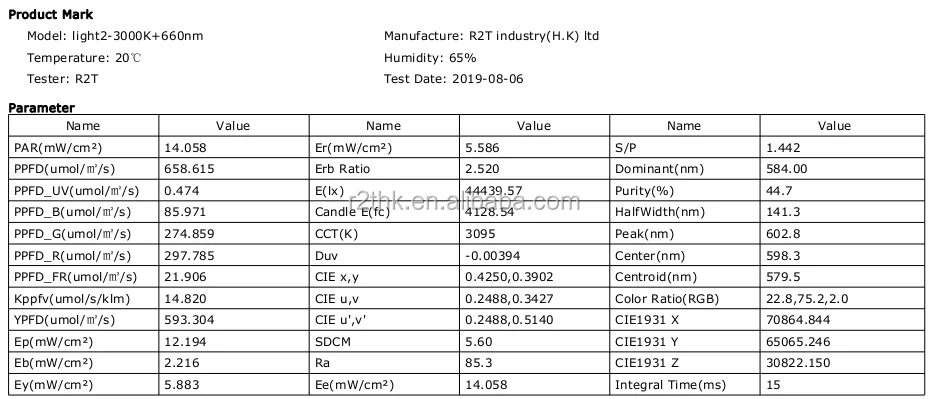

6: testing distance: 24inch
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
