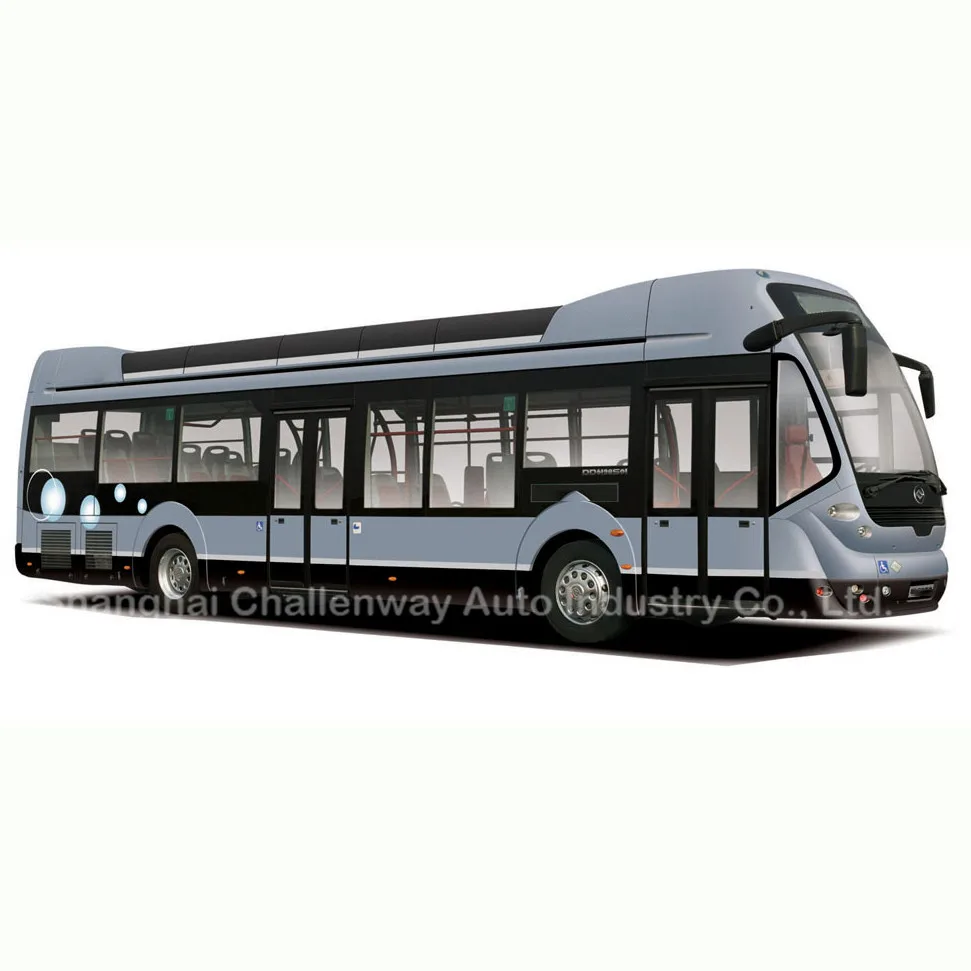

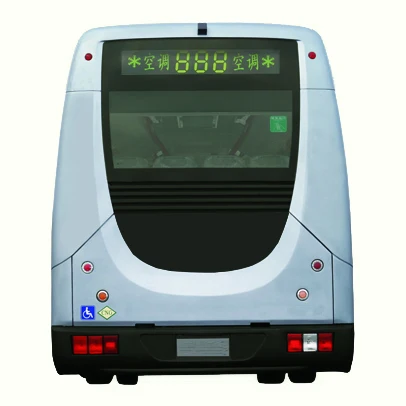

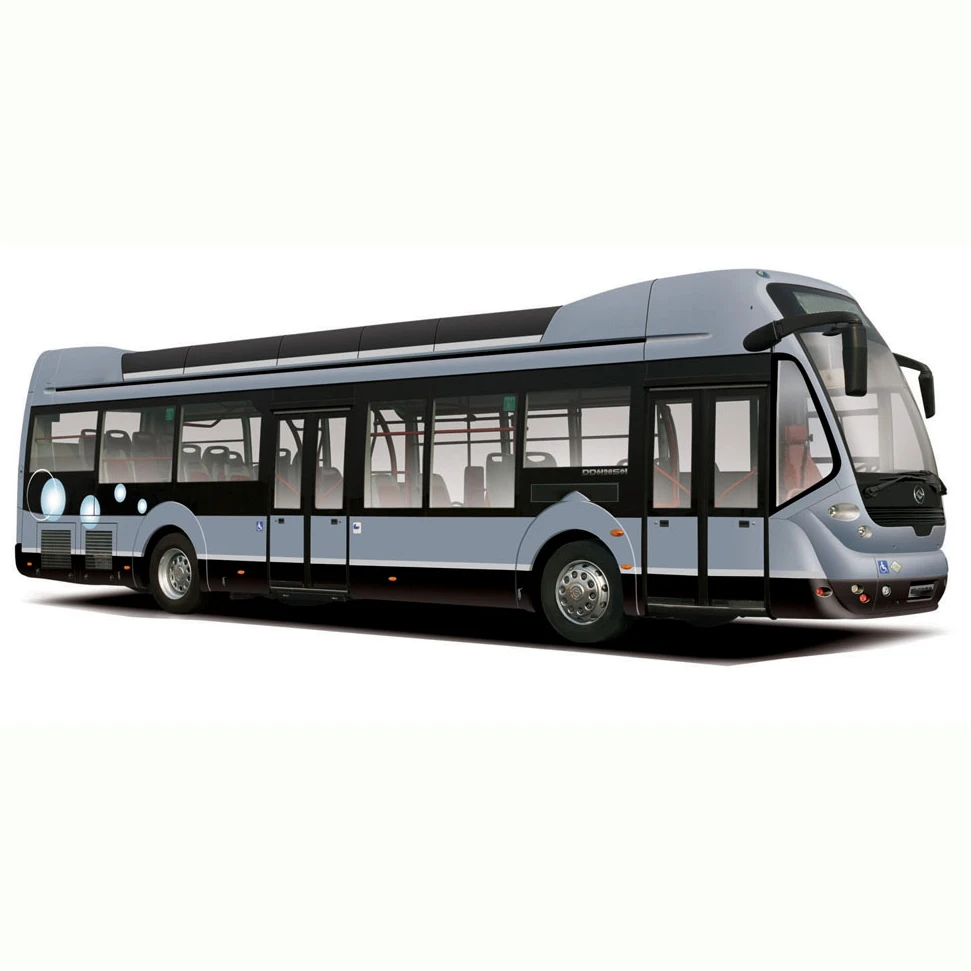

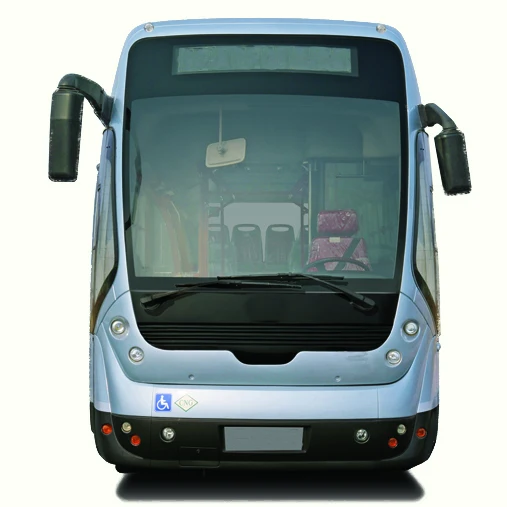

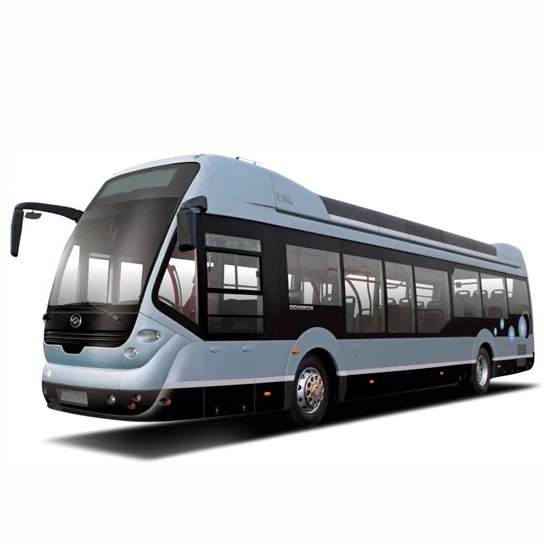

Sinomach City Minibus China 9 Places Right Hand Drive For Sale
- Category: >>>
- Supplier: Shanghai Challenway Auto Industry Co. Ltd.
Share on (62306513306):
Product Overview
Description
Product Description
Sinomach Luxury Bus Seat Coach Pullover China Tourism Buses Coach
Advantage
2.Support seat lay out customization.
Advantage
1.Seat cover material customized, leather or knitted.
2.Engine brand type is optional.
Size Information
Chassis Brand | CHALLENWAY | Chassis Model | |||
Overall specification | Overall length(mm) | 13480 | Engine | Engine model | OM457LA(Euro3) |
| Overall width(mm) | 2475 |
| Manufacture | Benz |
| Overall height(mm) | 1750 |
| Engine position | Rear engine |
| Wheel base (mm) | 6450/1540 |
| Engine Type | Diesel |
| F/R overhang(mm) | 2500/2840 |
| Max power (kW/hp)/rpm | 310/422/2000 |
| Max G.V.W(kg) | 21500 |
| Max torque(N.M/rpm) | 1900/1100 |
| Seat capacity | / |
| Tank volume (L) | 500L |
| Max speed(km/h) | 120 |
| Emission Standard | Euro3 |
Seq | Item | Standard | Optional | ||
1 | Engine | Benz Engine OM457LA ( Euro 3) |
| ||
2 | NG cylinder or tank | 500L fuel tank |
| ||
3 | Gearbox | Benz GO 190- 6E manual gear box. |
| ||
4 | Clutch | Imported Ø430 clutch. Free maintenance | |||
| 5 | Front axle | DONGFENG DANA front axle 6.5T |
| ||
6 | Rear axle/tag axle | DONGFENG DANA rear axle 13T. DONGFENG DANA tag axle 7.5T(non-steering) |
| ||
7 | Brake system | Pneumatic double circuit air brake, front drum brake ,rear drum brake, tag axle with disc brake |
| ||
