Современная машина для компостного Тернера Crwaler, машина для производства куриного навоза, компостная машина

Product Overview

Description

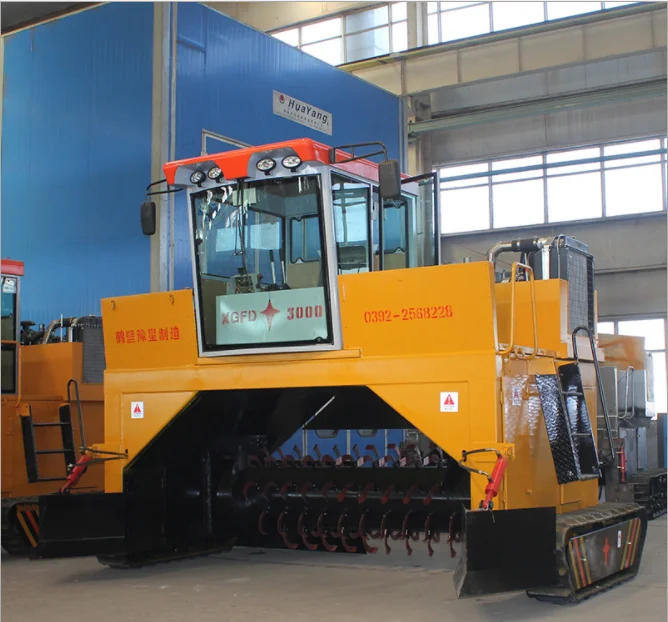

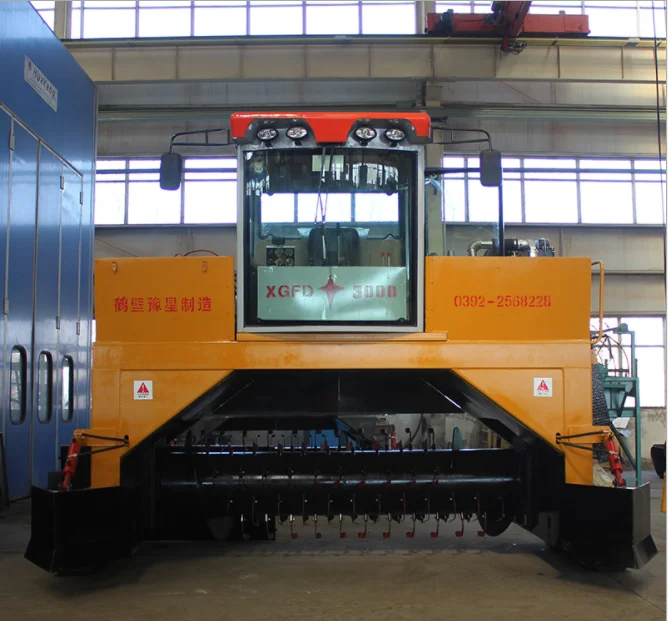

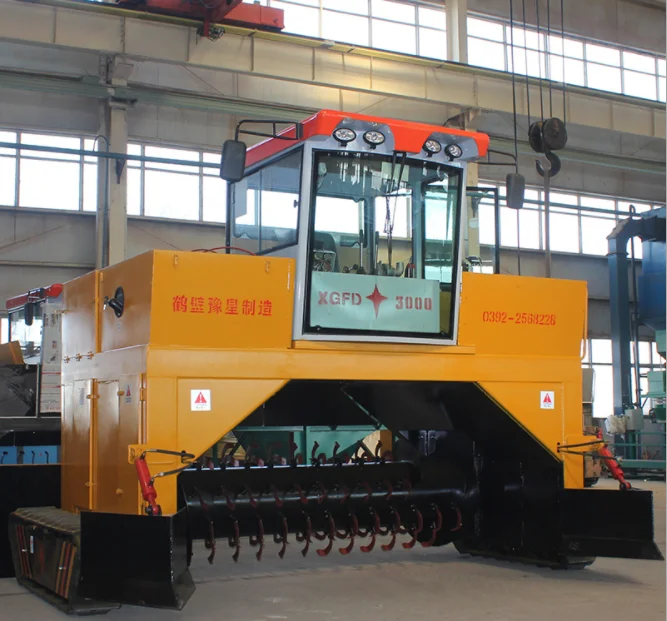

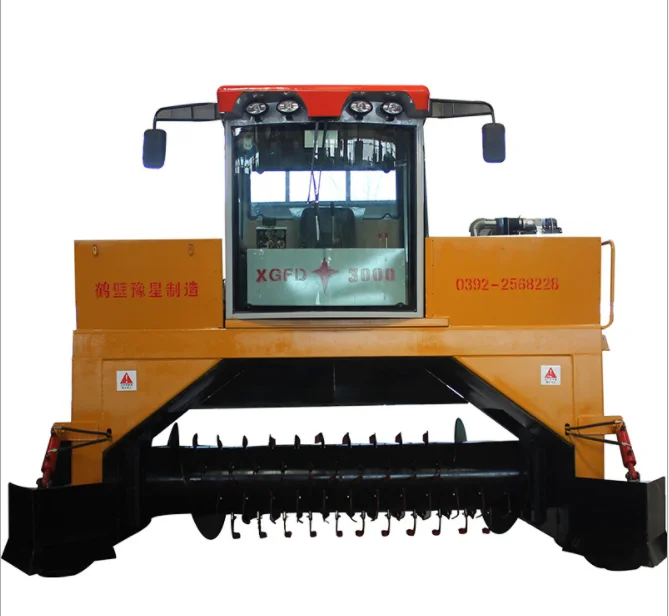

Model 3000 Crawler Compost Turner Machine



Model	XGFD-3000 mechanical crawler turner
Compost width	3000mm
Compost height	1000mm-1500mm
Stacking line spacing	0.8-1m
Material particle biggest diameter	250mm
Power	6105 type 115kw(156 hp)Turbocharged diesel engine
Walking system	Hydraulic motor walking (infinitely variable speed)
Maximum speed	2400rpm
Rated power speed	2400rpm
Working speed	6-10m/min
Driving speed	50m/min
Working blade diameter	910mm
Processing capacity	1000-1500 cubic meter per hour
Machine weight	5T
Machine size	2750*4500*3300mm



Main features

1. Turning machine can realize left turn right brake and 180 degree turn around.

2. This product uses soft start for turning and clutching (the domestic similar products use iron to iron hard clutch, the chain, bearing, shaft damage is serious)

3. The front hydraulic push plate is installed, no need to manually consume the whole pile.

4. Turning the shaft can be hydraulically lifted

5. The cab is air conditioned.

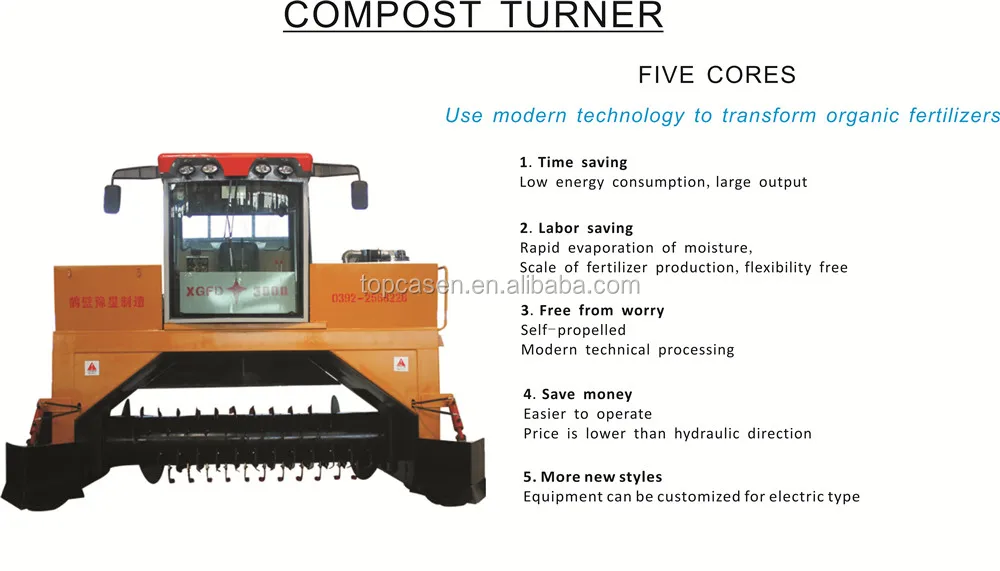

Advantages

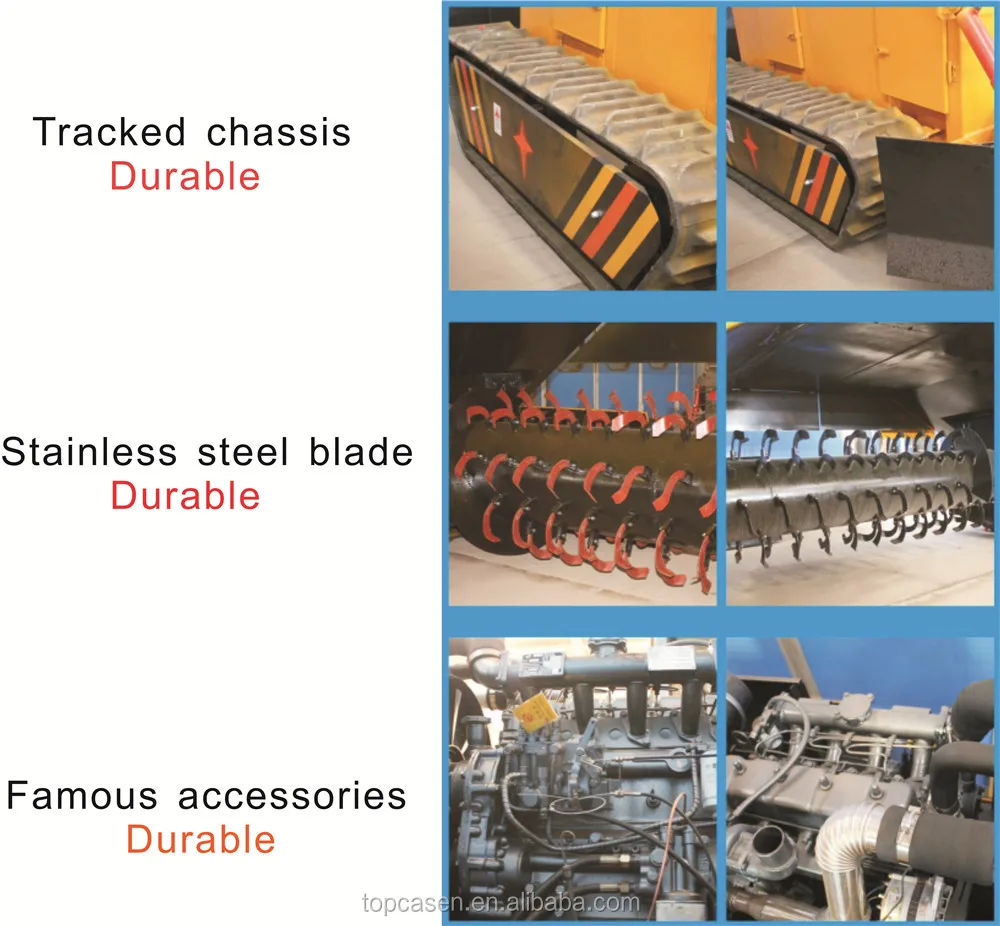

Spare parts show

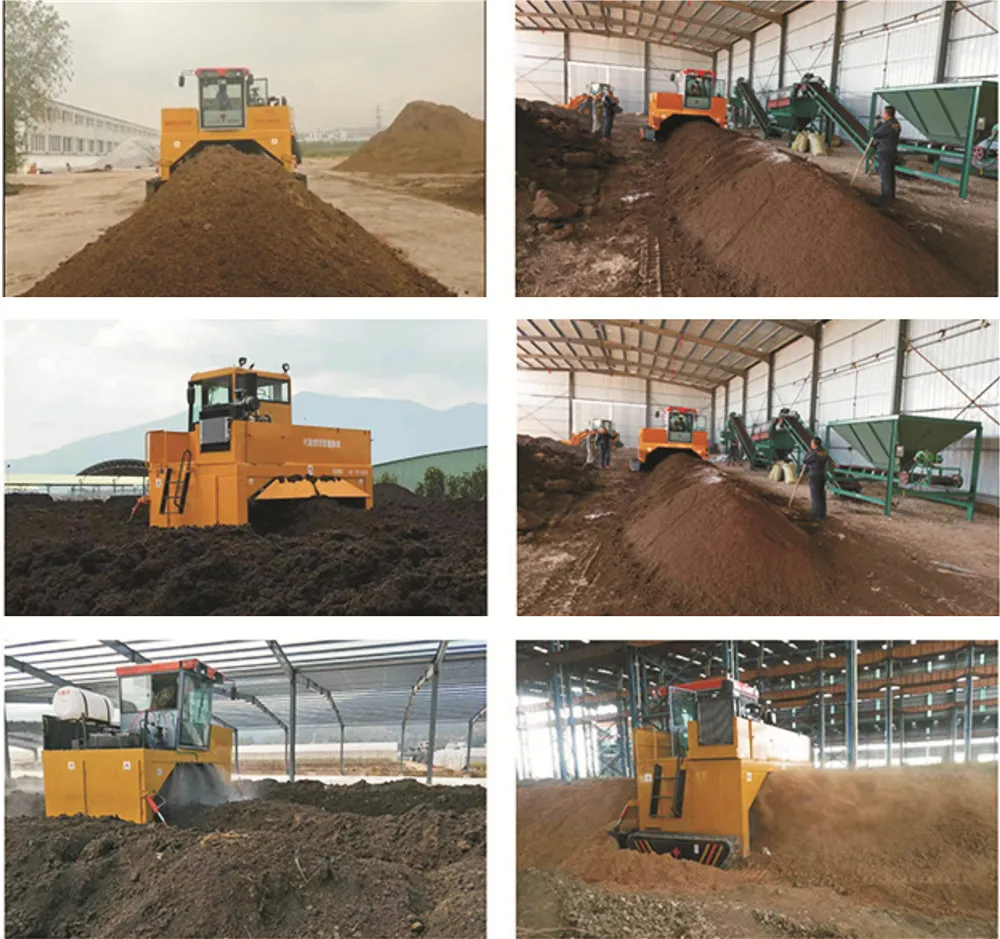

  Use spot

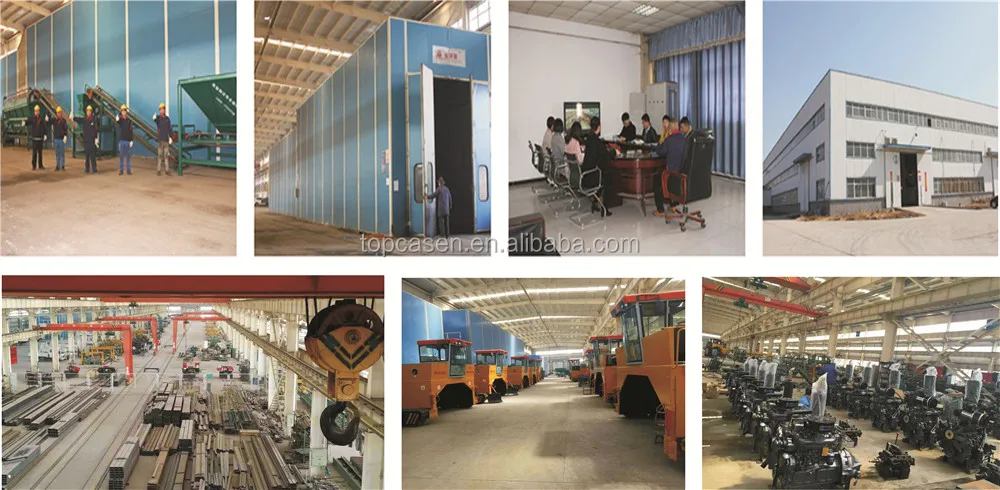

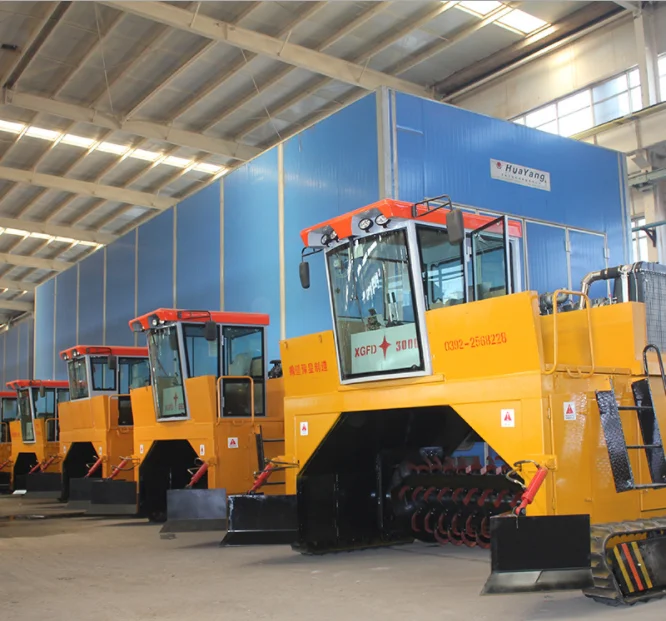

Workshop



 Shipment



Customer cases
