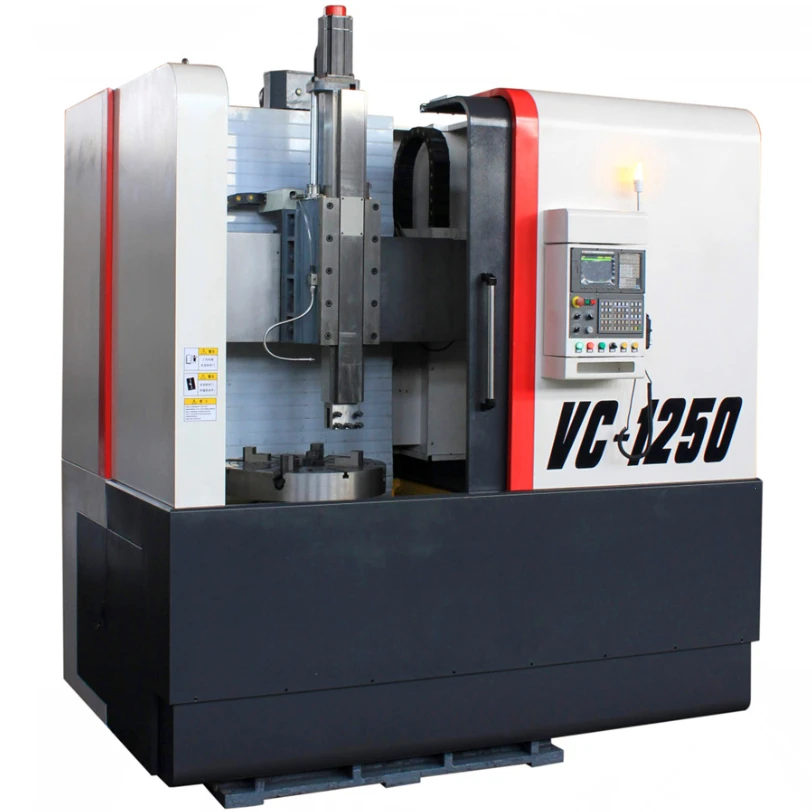

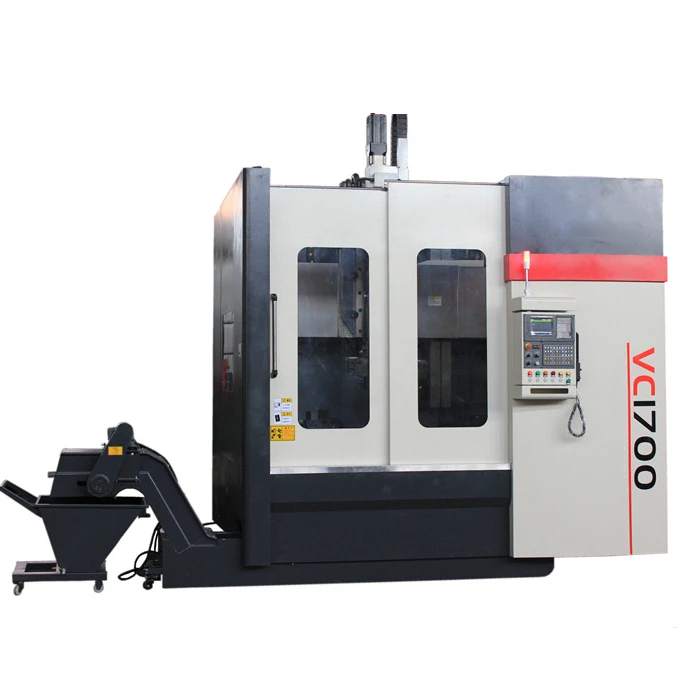

vertical cnc lathe VC 80 cnc vertical lathe machine
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (62306580629):
Product Overview
Description
Product Description
Specification
Item | VC-60 | VC-80 | VC-100 | VC-125 | VC-160 | ||||
Max rotation | 700 | 900 | 1100 | 1300 | 1700 | ||||
mm | |||||||||
Max machining diameter | 600 | 800 | 1000 | 1250 | 1700 | ||||
mm | |||||||||
Max working height | 800 | 800 | 1000 | 1100 | 1250 | ||||
mm | |||||||||
Spindle speed | 20-600 | 20-500 | 20-400 | 20-400 | 5-200 | ||||
Max loading capacity | 1 | 2 | 3 | 3.5 | 6 | ||||
T | |||||||||
Z axis travel | 650 | 650 | 650 | 650 | 750 | ||||
mm | |||||||||
X axis travel | 450 | 620 | 650 | 750 | 900 | ||||
mm | |||||||||
Z axis rapid movement | 5 | 5 | 5 | 5 | 4 | ||||
m/min | |||||||||
X axis rapid movement | 5 | 5 | 5 | 5 | 4 | ||||
m/min | |||||||||
Spindle motor power | 15 | 22 | 22 | 22 | 30 | ||||
KW | |||||||||
Standard System | KND system | ||||||||
Tool turret form | Square pillow, row knife, horizontal tool tower, vertical tool tower (optional) | ||||||||
Overall dimension(LxWxH) | 2200*2100 | 2400*2480 | 2700*2800 | 2700*2900 | 3350*4250*4350 | ||||
*2800 | *3000 | *3250 | *3300 | ||||||
Machine weight(approximately) | 5.5 | 10.5 | 12 | 12.5 | 14.5 | ||||
T | |||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
