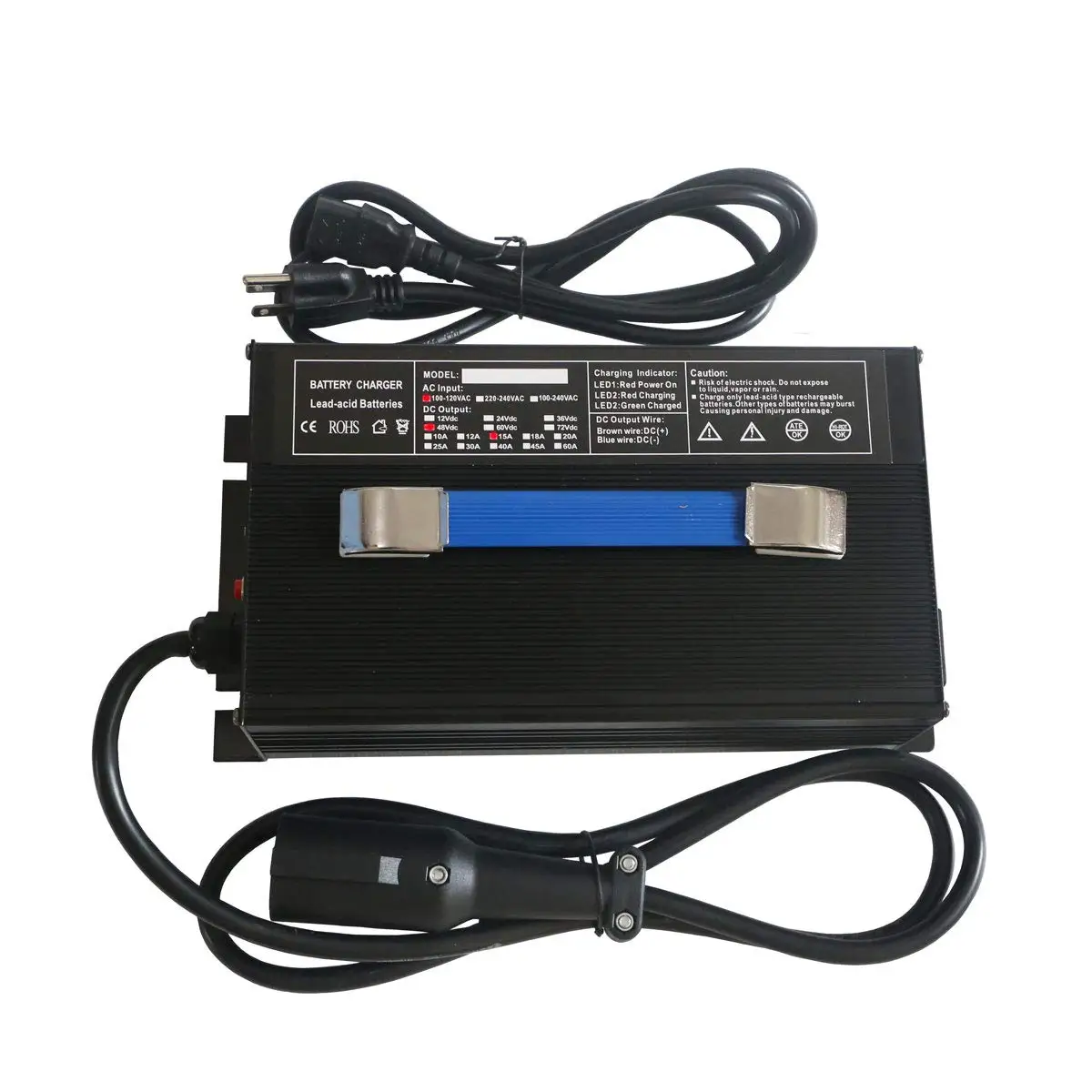

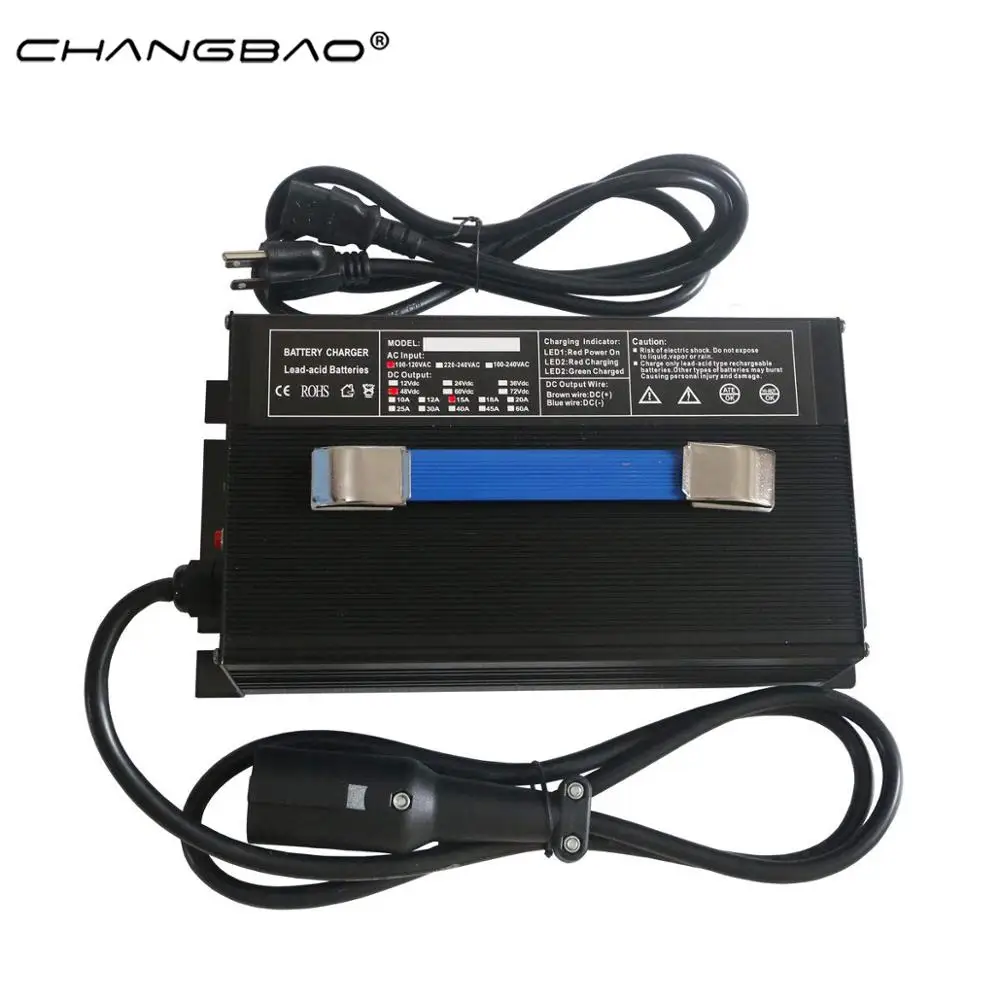

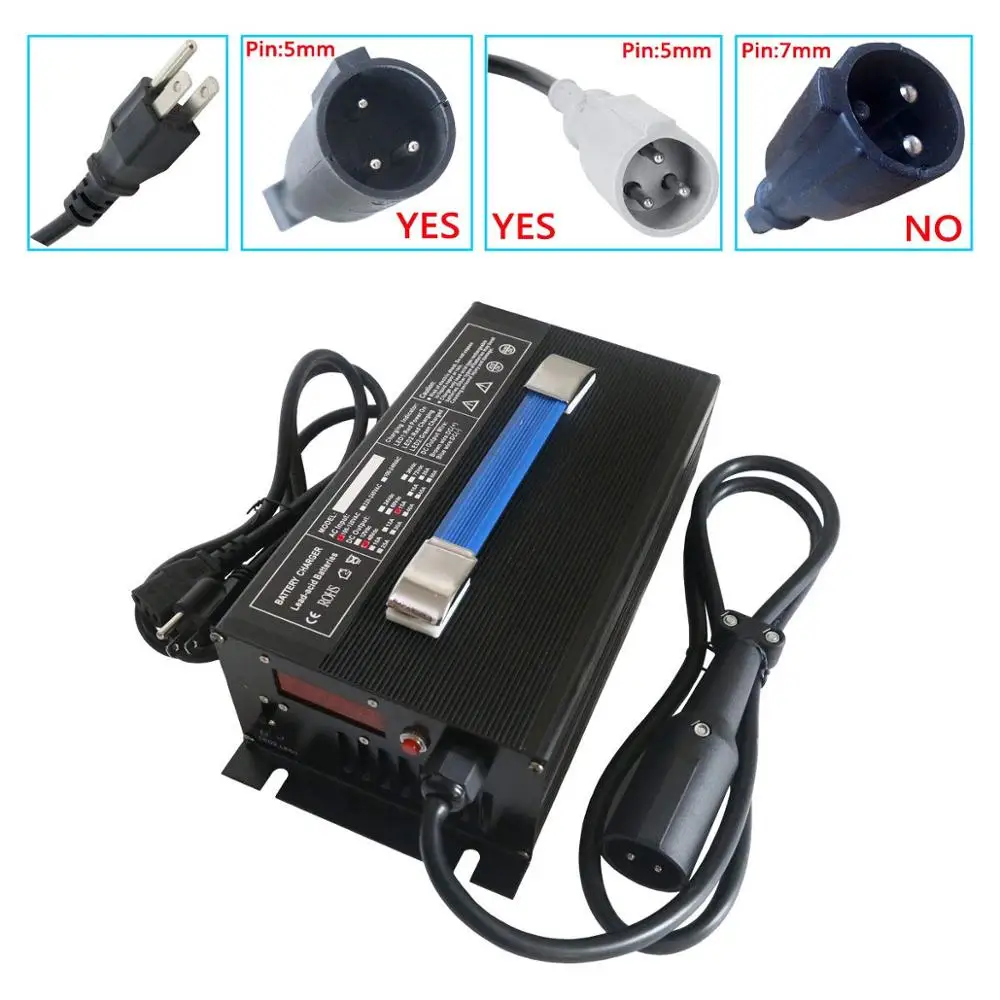

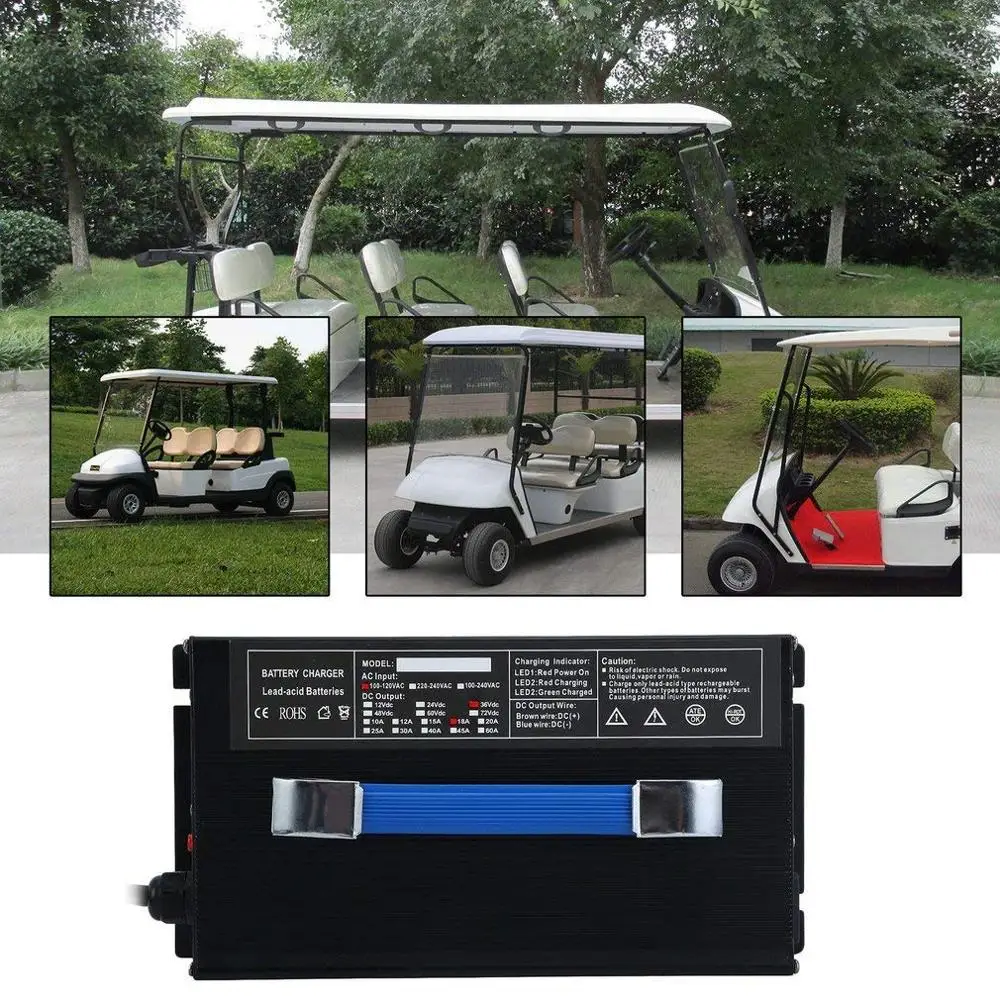

48V 15A клубный гольфмобиль гольф кары зарядное устройство 3 Pin круглый разъем EZGO для электрического мотоцикла qi беспроводная зарядка устройства прочный автомобильное зарядное устройство

Compatible Battery

Lead Acid/LiFePo4/Li-ion/Li-MnO2

Input

90 to 240 VAC 50/60Hz

Output

58.8V 15A

Charge voltage
(Lead Acid)

58.8V
(Lead acid battery voltage is 36V)

Float Voltage
(Lead acid)

57.0V

LiFePo4/3.65V Charge voltage
(S:connect in series)

58.4V(14S)
LiFePO4 battery voltage is 3.65V
CC mode

Lithium ion/4.2V
Charge voltage
(S:connect in series)

54.6.0V(13S)
Li-ion battery voltage is 4.2V <0.6A

LED Indicator

Solid Red LED = Charging (0-99%)
Solid Green LED = Fully charged (100%)

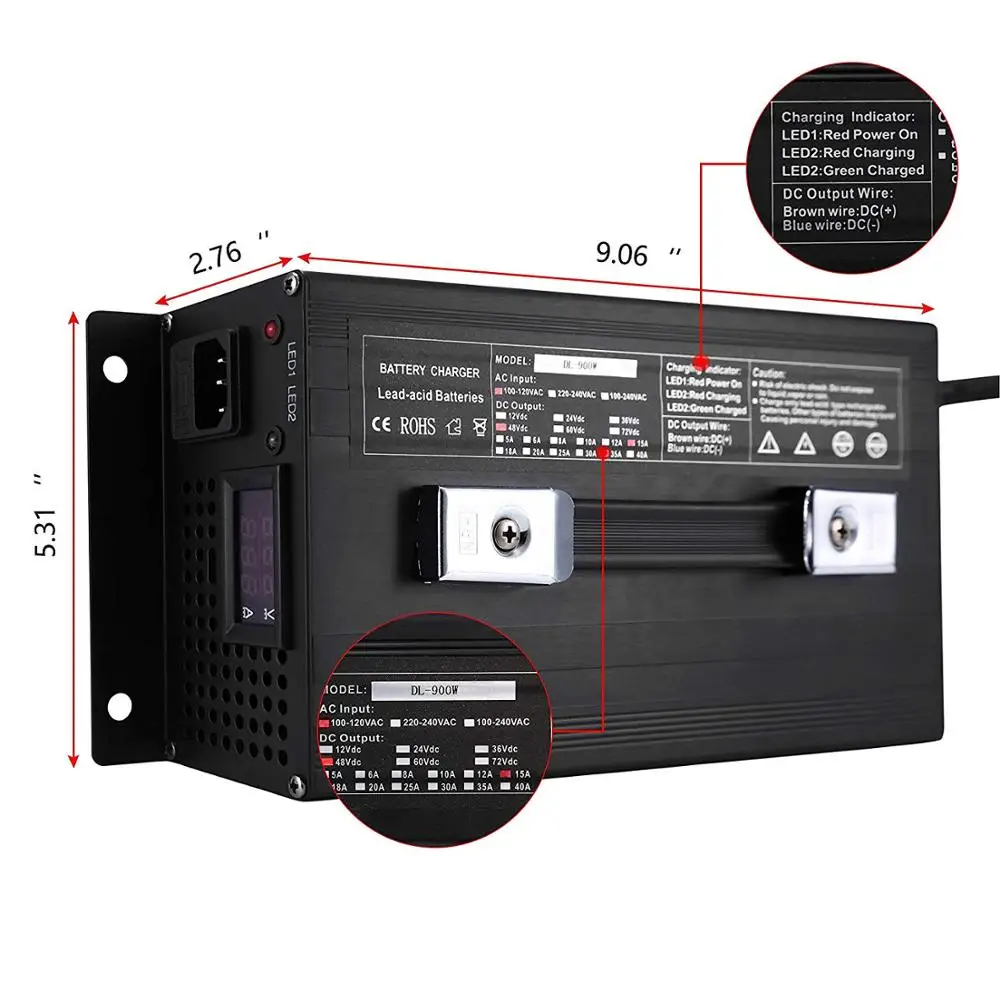

Dimension(LxWxH)

H230xW135xH70 mm

Weight

3.5Kg

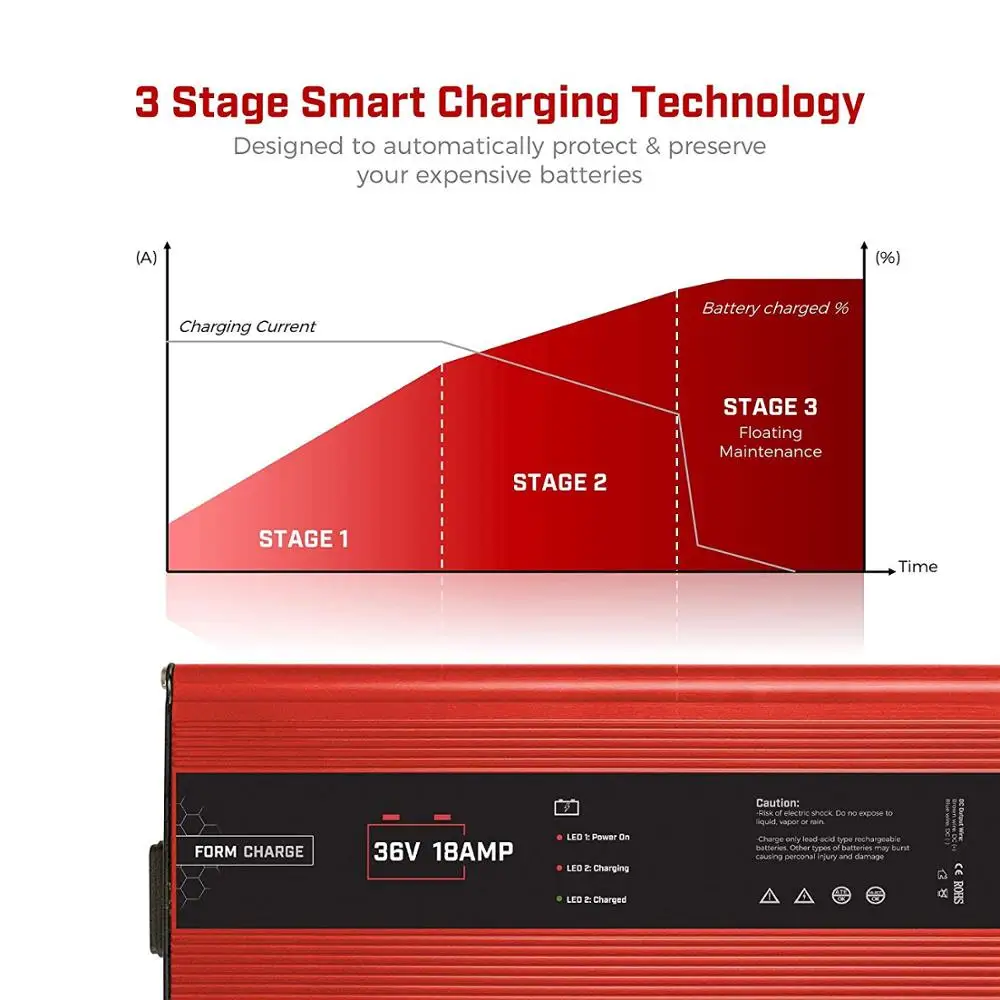

Charging Mode

CC/CV, Float/cut-off

Certification

UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us.

Charging Time

Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours)

Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours)

Protection

Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge.

Advantage

1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.
2). Aluminum case, Robust, Elegant and Reliable.
