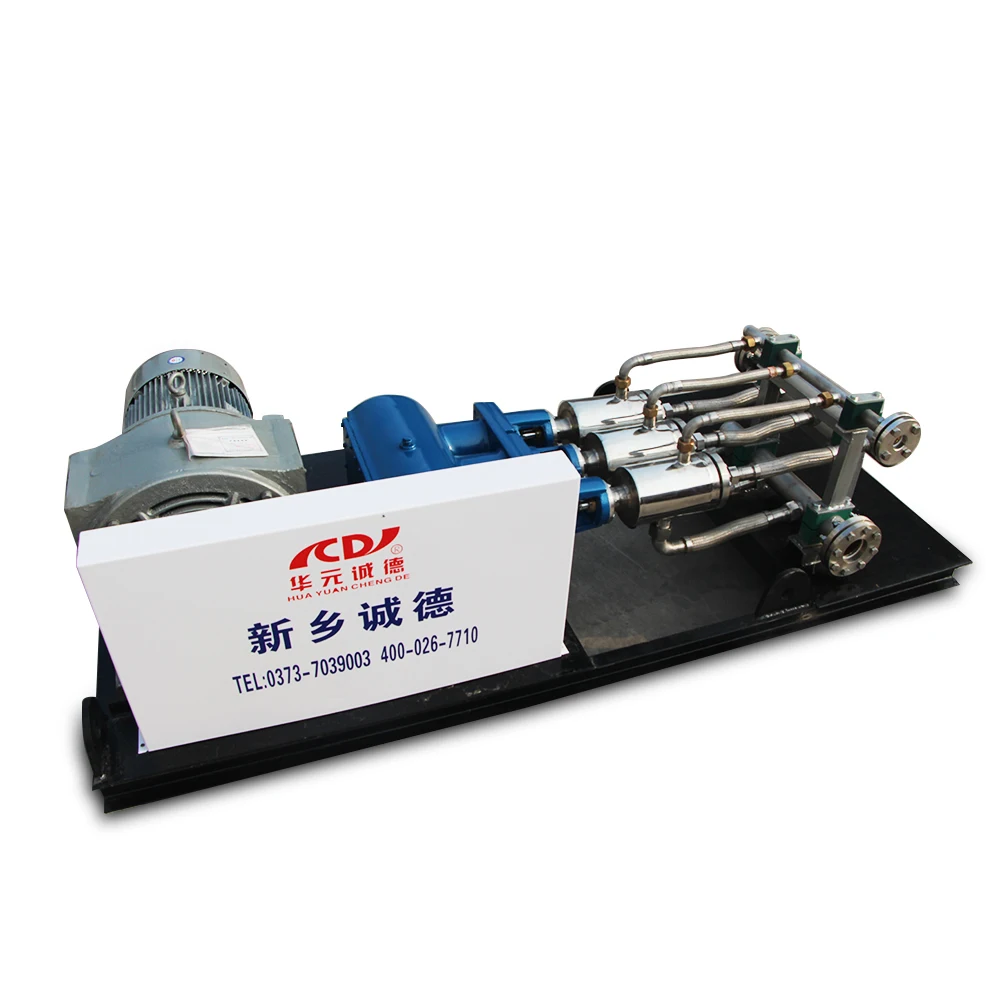

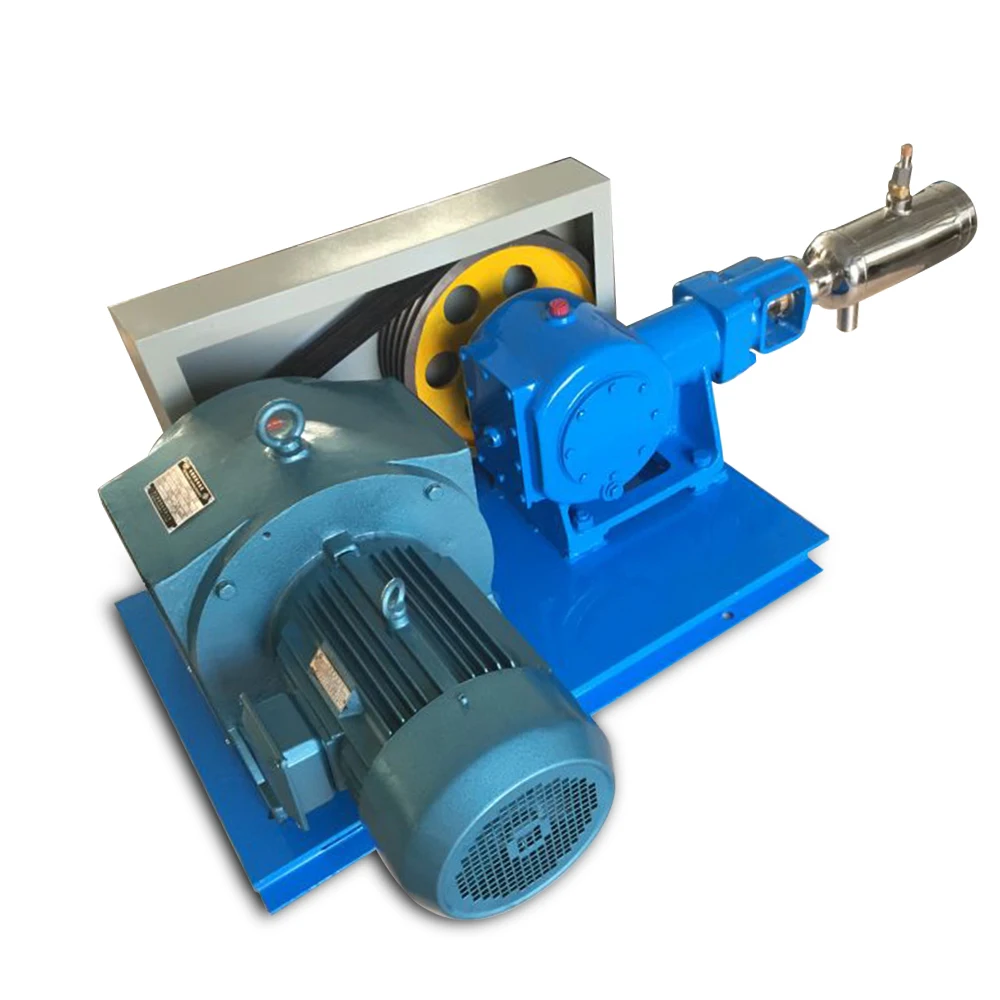

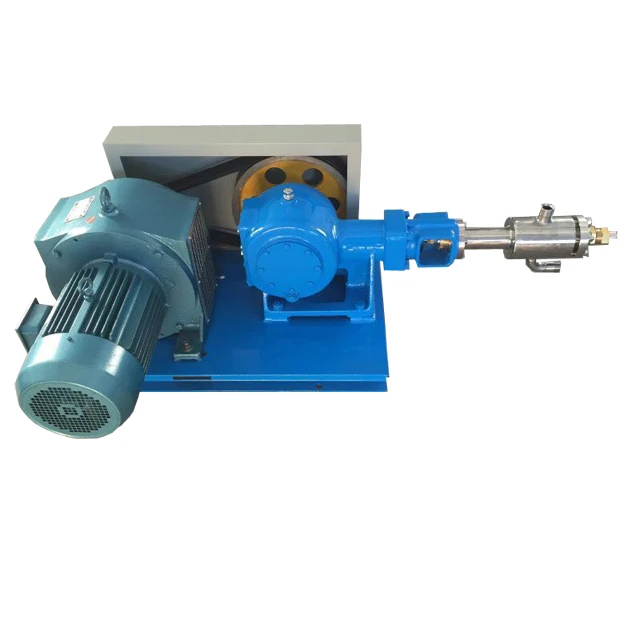

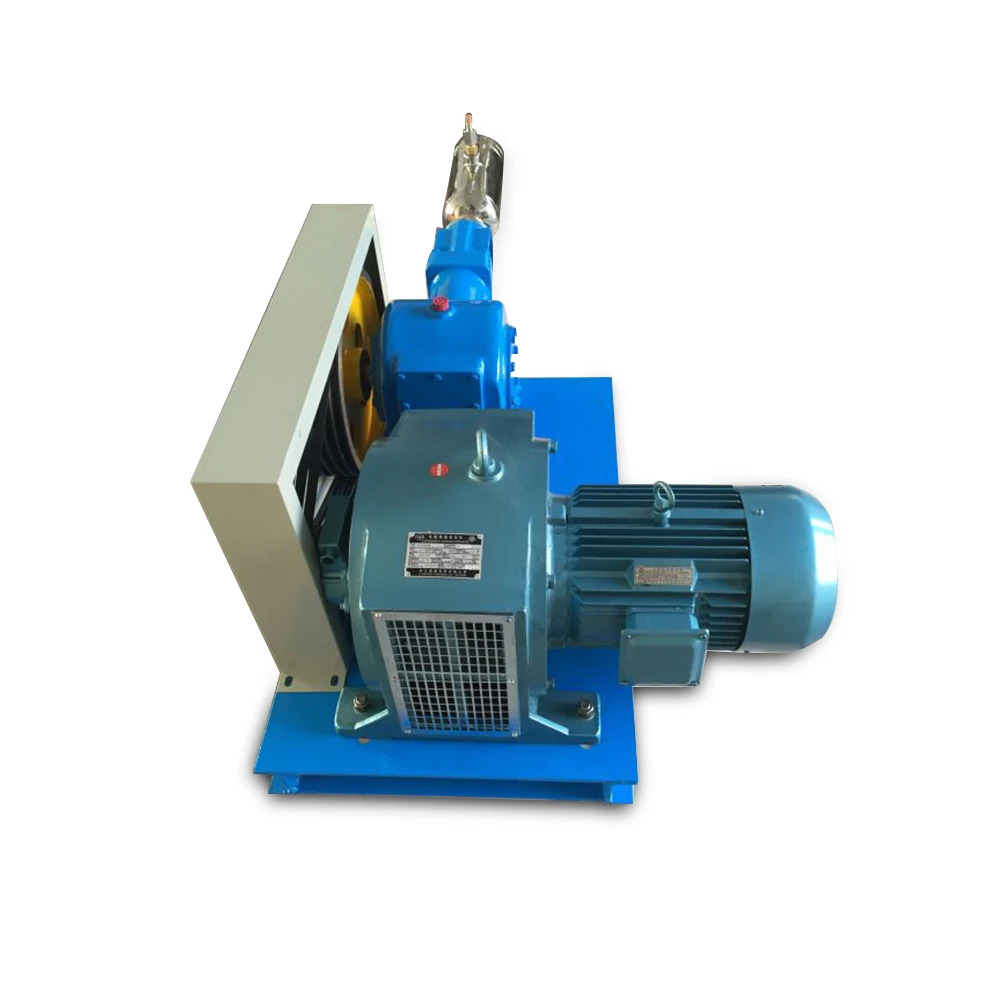

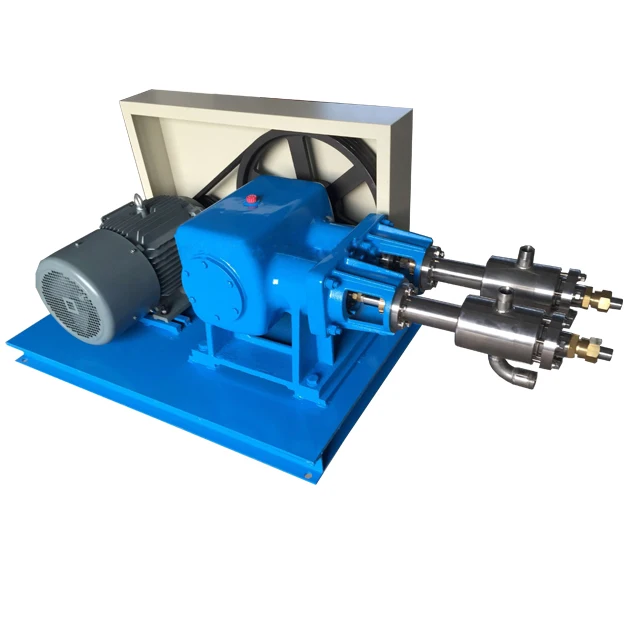

co2 filling pump

Industrial gas pumps are mainly used for air separation products:filling of liquid oxygen,liquid nitrogen,liquid argon,liquid carbon dioxide,air supply systems,the units are mainly single row,double row and three-row reciprocating pumps.Refer to each parameter table for specific parameters.

Its flow is 300~5000L/H and its maximum exit pressure is 35.0mpa.An electromagnetic adjustable speed motor,or a fixed rotating speed motor,or a variable frequency and variable speed motor,or an explosion proof motor or an explosion proof variable frequency motor can be equipped as per actual requirements.

Scope of application

a.Such pumps are mainly used for liquid oxygen,liquid nitrogen,liquid argon and liquefied natural gas.
b.Filling of all kinds of cylinders with light,medium and high loads.
c.Filling of all kinds of storage tanks
d.Air supply,air distribution systems.

Optional configuration

a.Stationary motor/electromagnetic speed regulation/frequency control
b.Safety valve/cryogenic stop valve
c.Back temperature interlocking device
d.Air outer temperature interlocking device
e.Air outer pressure interlocking device

Performance features

a.Such pump has classic design and stable performances,its service life can reach 20 years.
b.High vacuum jacket pump head is used,and the vacuum degree reaches10-5 torr so as to reduce cold loss.
c.Its seal is reliable,the service life of packing can each 150,000times/cylinder and service life of the piston ring is as long as 300,000 times/cylinder.
d.Maintenance is convenient,it merely takes two hours to perform a routine maintenance.
e.The pump can be continuously operated for 24 hours.

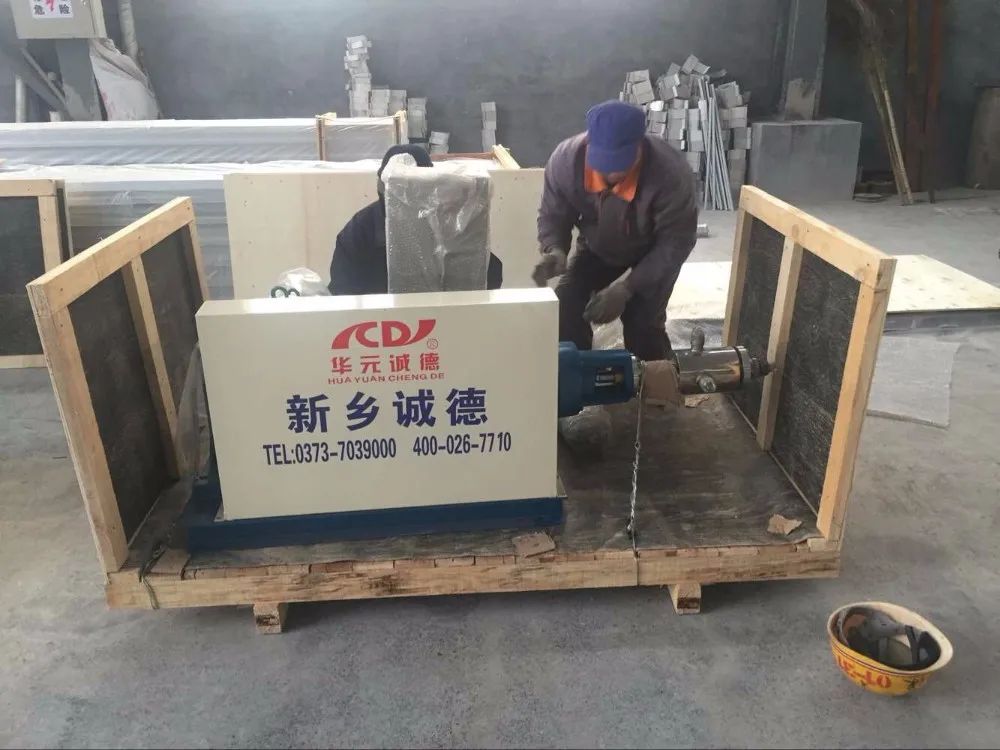

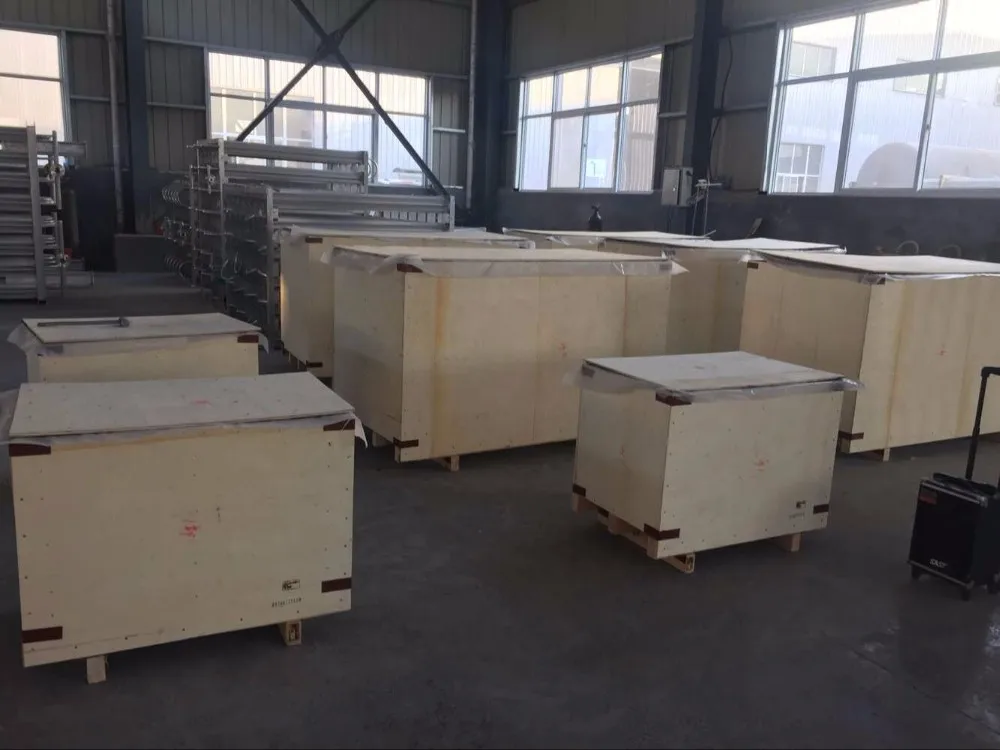

Packed in wooden cases.
