Construction Usage PP PE PC Hollow Formwork Construction Board Sheet Plate Extrusion make Equipment Machine
- Category: Plastic Extruders >>>
- Supplier: Jiangsu,Acemien,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Acemien Machine - Your Oversea Plastic Extrusion Expert
The First And Last Plastic Extrusion Equipment You’ll Ever Need.
333
Acemien Spirit- Win-win Partnership
If you are finding a Trustworthy Long-Term Oversea Plastic Extrusion Manufacurer Partner ?
Acemien is your first choice!
Plastic product analysis-design stage
The preliminary plastic products design will be conducted in Acemien professional testing laboratory.
Material customization-formula stage
CRMF (CUSTOM RAW MATERIALFORMULA) can be available to help you realize the localization of your products.
Machine installation-mass production stage -1
The most convenient installation methods, installation and debugging, and door-to-door maintenance. To guarantee your 100% satisfaction.
Machine installation-mass production stage -2
30-45-day delivery cycle,25% higher than competitors.We promise to provide you trustworthy logistics, installation and debugging service.
PP Hollow Sheet Professional Module
Product Application

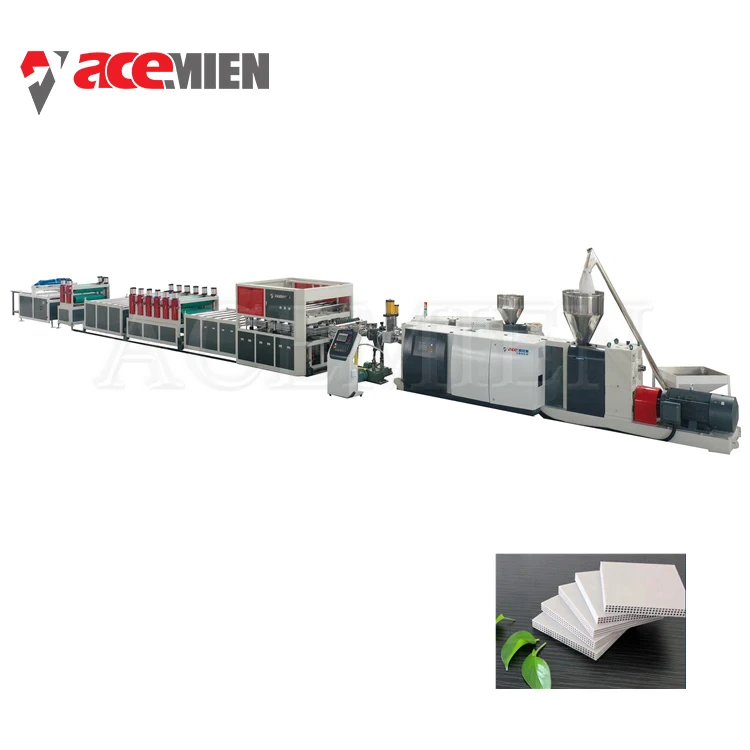

Machine name: PP Hollow Construction Formwork Porduction Line
Finished product : PP Construction Formwork , PP Formwork for Concrete Mould
Product Advantages:
No.1. Smooth and clean.The splicing of the formwork is strict and smooth, and the surface degree and finish of the concrete structure after demoulding exceed the technical requirements of the existing clear water formwork.
No.2. Portable and easy to install.Light weight, strong process adaptability, can saw, planer, drill, nail, can be composed of any geometric shape, to meet the needs of various shapes of building die.
No.3. Simple stripping.Concrete does not stick to the surface, no need of demoulding agent, easy demoulding, easy to remove ash.
No.4. Stable weather resistance.High mechanical strength, in - 20 ℃ to + 60 ℃ temperature conditions, contractive, not wet bilge, no crack, deformation, stable size, alkali resistant anticorrosive, waterproof, flame retardant from rat pest control.
No.5. Beneficial to maintenance.Templates do not absorb water, no special maintenance or storage.
No.6. High variability.Types, shapes and specifications can be customized according to the requirements of construction projects.
No.7.Reduce costs.More times of turnover, plane mold turnover more than 50 times, column and beam mold not less than 40 times, low cost.
No.8. Energy saving and environmental protection.Scrap and waste templates can be recycled, zero waste discharge.
PP Hollow Formwork Standard Size (Customizable) | ||||
Thickness(mm) | Width*Length(mm) | Weight(kg) | ||
15 | 915*1830 | 14-15 | ||
16 | 915*1830 | 15-16 | ||
17 | 915*1830 | 16-17 | ||
18 | 915*1830 | 17-18 | ||
15 | 1220*2440 | 24-25 | ||
16 | 1220*2440 | 26-27 | ||
17 | 1220*2440 | 27-28 | ||
18 | 1220*2440 | 29-30 | ||
Machine List | ||||||
No. | Name | Qty. | Remark | |||
1 | Screw loader for SJ120/35 extruder | 1 | ||||
2 | Vacuum Loader for SJ75/35 | 1 | ||||
3 | SJ 120/35 single screw extruder | 1 | For the middle layer | |||
4 | SJ 75/35 single screw extruder | 1 | For the surface layer | |||
5 | Screen Changer1 | 1 | For SJ120/35 Extruder | |||
6 | Screen Changer2 | 1 | For SJ75/35 Extruder | |||
7 | Metering Pump1 | 1 | For SJ120/35 Extruder | |||
8 | Metering Pump2 | 1 | For SJ75/35 Extruder | |||
9 | Distributor for 3 Layers | 1 | ||||
10 | 1000mm Extrusion Mould | 1 | ||||
11 | Vacuum Calibration Table | 1 | 3 Groups Calibration Mould | |||
12 | Vacuum System | 1 | ||||
13 | Cooling Bracket (Forward) | 1 | 3000mm | |||
14 | Haul-off Unit (Forward) | 1 | High Quality Rubber Roller | |||
15 | Cooling Bracket (Backward) | 1 | 3000mm | |||
16 | Haul-off Unit (Backward) | 1 | High Quality Rubber Roller | |||
17 | Cutter | 1 | ||||
18 | Staker | 1 | ||||
Detailed Images
Extrusion System
Name: SJ120/35 Single screw extruder
Technical parameters:
a.Main motor : Siemens Brand.
b.Siemens PLC control system
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d.Scew structure : Great plasticzing effect , energe saved 20%
Mould Part
Name: Extrusion mould
Technical parameters:
a.Unique die structure for hollow products using core molding optimized flow path through computer simulation to ensure uniform and stable flow,
b.Independent air flow control system to quickly balance the airflow in a short time to obtain a stable production .
c.Fine polishing of the cavity , lip and flowing channel.
Forming Part
Name: Forming machine
Technical parameters:
a.The module is a one-time die-casting molding ,
b.Module material: LY12 high quality aluminum
c.Advanced machine center, one-time clamping of the module,
d.Four cylinder lift more stable.

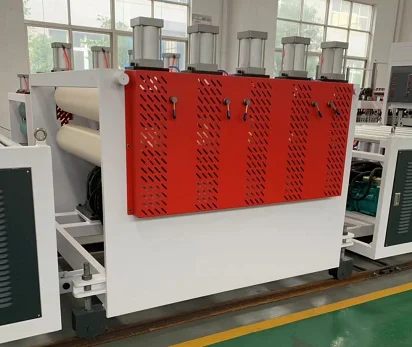

Haul-off-Roller
Name:Haul-off Roller
Technical parameters:
a.High quality rubber on the surface
b.Surface shore hardness 65-70,
c.Roller thicknee is more than 18mm
d.Increase the diameter of shaft heads and bearings ensure stable operation of thick board.
e.Double-row chain drive,forward and backward roller transmission coefficient is consistent .
Cooperative Brand
FAQ
Q1. Are you a factory or a trading company?
A1: ACEMIEN is a high-end export brand of ACMACHINE Group. We have our own factory-ACMACHINE industry, and many high-quality suppliers. We provide "all-in-one solusion" for all series of plastic extrusion machinery. We provide you with superior quality and guaranteed satisfaction, you will never overpay again.
Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3. Can I get free samples?
A3.ACEMIEN can send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
Q4. How long will I receive the quotation?
A4. Once we know the raw material, final product dimension and the special requirements, we will provide you a detailed quotation within 8 hours.
Q5. How do I get response quickly?
A5. If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
