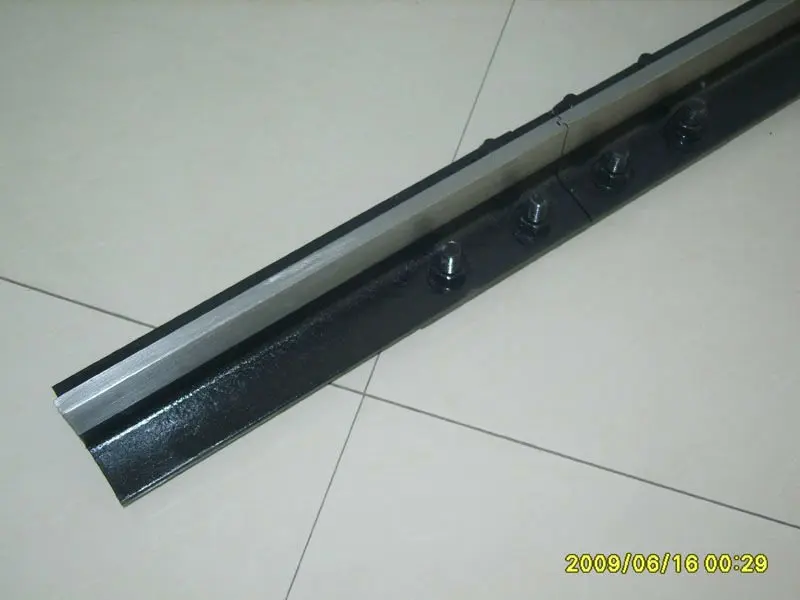

Elevator Accessories-machined elevator guide rail T75-3/B

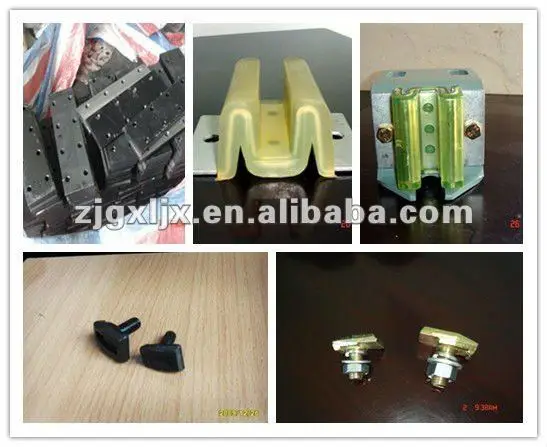

Our productes have been famous for its high quality and low prices. The main products are like T45/A, T50/A, T70-l/B, T78/B, T82/B, T89/B, T90/B, T114/B, T127-2/B, etc. At the same time, we can provide hollow guide rails, such as TH3,TH3A,TH5,TH5A and other accessories.

1.       All our material quality according to Q235A
2.       We're producing our elevator guide rail under international standard ISO 7465.
3.       The dimension for T75-3/B: 75mm*62mm*10mm

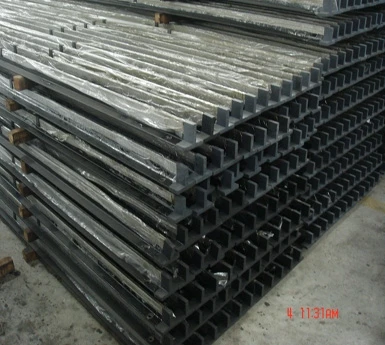

4.       We can produce many types of elevator guide rails:
T45/A         45mm*45mm*5mm
T50/A         50mm*50mm*5mm
T70-1/B       70mm*65mm*9mm
T75-3/B       75mm*62mm*10mm
T89/B         89mm*62mm*16mm
T90/B         90mm*75mm*16mm
T114/B       114mm*89mm*16mm
T127-2/B     127mm*89mm*16mm



Zhangjiagang Xinlin Machinery Co.,Ltd
Size & Tolerance of Guide rail(mm)				Size & Toerance of Guide rail fishplate(mm)
Type/Tolerance	b1	h1	k	Type/Tolerance	L1	b2	V
T45/A	45	45	5	T45/A	160	50	8
T50/A	50	50	5	T50/A	200	50	8
T70/B	70	65	9	T70/B	250	70	10
T75-3/B	75	62	10	T75-3/B	250	70	10
T78/B	78	56	10	T78/B	250	70	10
T89/A(/B)	89	62	16	T89/B	216	80	10
T90/B	90	75	16	T89/A(/B)	305	90	13
T114/B	114	89	16	T114/B	305	90	13
T127-1/B	127	89	16	T127/B	305	120	18
T127-2/B	127	89	16	T127-1/B(2/B)	305	130	18
TH3	75	55	10	TH3	220	72	2.5
TH5	87	60	16.4	TH5	350	87	4
TH3A	78	60	16.4	TH3A	200	78	4
TH5A	78	60	16.4	TH5A	200	78	4
