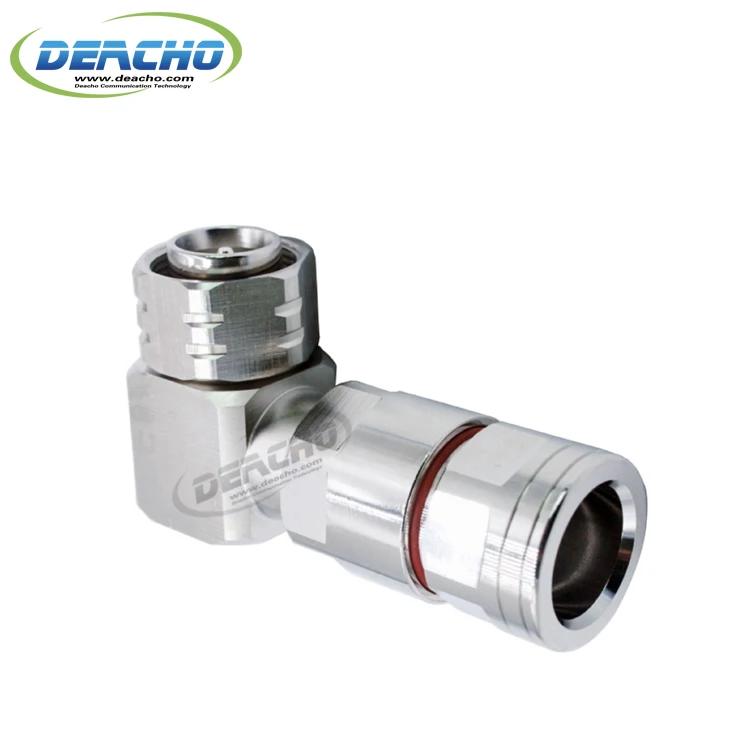

4.3 10 male elbow connector 90 degree angle mini din plug connector for 1/2 cable LDF4 LCF12 cable
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (62306928554):
Product Overview
Description
Product Description

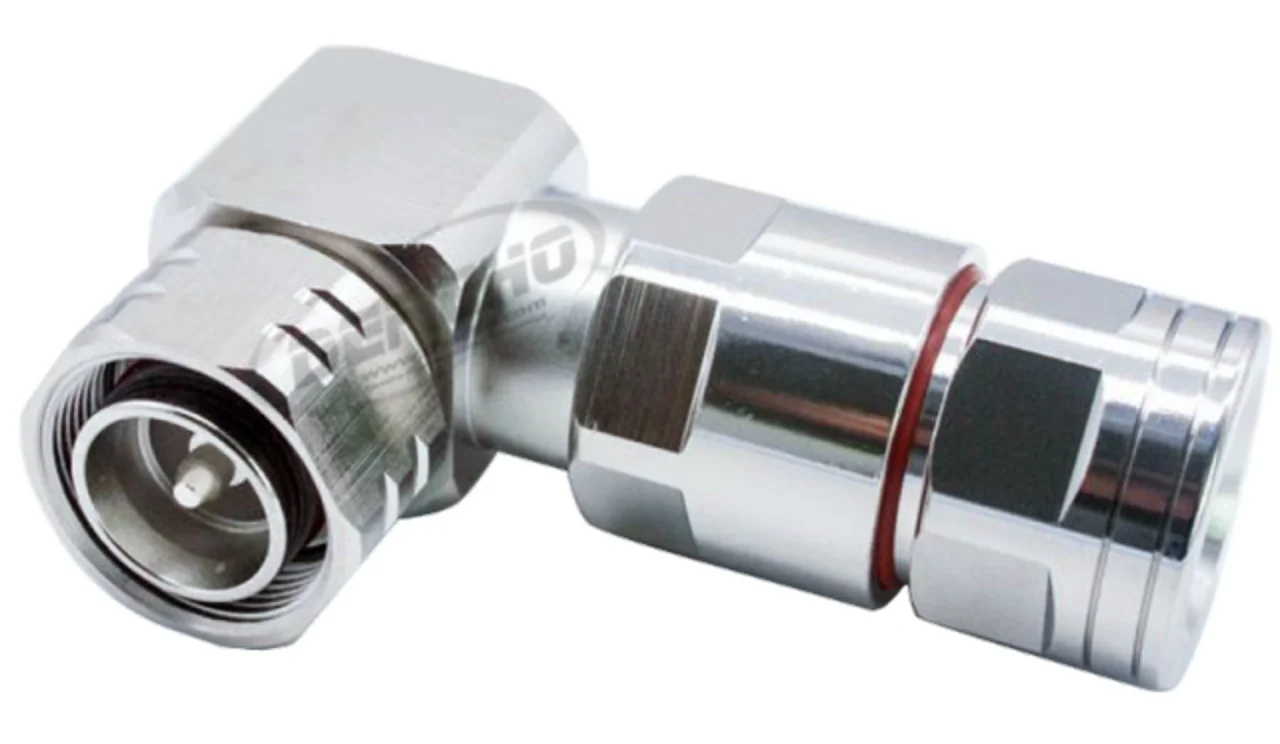

4.3-10 male 90 degree angle connector for 1/2 standard cable
Description.
The 4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna. Features of the 4.3-10 Connectors are compact connector sizes, best electrical performance, low PIM and coupling torque as well as the easy installation. Three different coupling mechanisms of the plug connectors screw, quick-lock/push-pull and hand-screw types are suited with all jack connectors.
Application.
Because of its characteristics the 4.3-10 is the ideal candidate for applications as in new base stations as well as for solutions for distributed antenna systems (DAS), in-building architecture and in small cells applications.
In base stations the 4.3-10 can be used for interconnections in the remote radio head as well as interface on the antenna and on the jumpers.
In multi-operator/multiband DAS the 4.3-10 can be used where RF signals have to be combined, terminated, or distributed to the antenna.
In small cells applications the 4.3-10 is particularly suited for the challenging space restrictions and electrical performances requirements.
Specification.
Interface | ||
According to | IEC 61169-54 | |
Electrical | ||
Impedance | 50 ohm | |
Frequency | DC-3GHz | |
VSWR | (DC-3GHz)≤1.12 | |
PIM (@2-tone×20w) | ≤-160dBC | |
Dielectric withstanding voltage | ≥2500V RMS, 50Hz, at sea level | |
Dielectric Resistance | ≥5000MΩ | |
Center contact resistance | ≤1.0m Ω | |
Outer contact resistance | ≤1.0m Ω | |
Mechanical | ||
Mating cycles | ≥100 times | |
Apply with the cable | 1/2" coaxial cable | |
Material and plating | ||
Body | Brass / Tri-alloy plating | |
Center conductor | Phosphor bronze / Ag plating | |
Dielectric | PTFE | |
Other | Brass / Ni plating | |
Environmental | ||
Temperature range | -40℃~+85℃ | |
Watertightness | IP67 | |
Rosh-compliance | Full Rosh-compliance | |
Salt-fog test | 96h | |
