Product Overview

Description

Molecular distillationpe is considered as the safest mode of separation and to purify the thermally unstable molecules and related compounds with low volatility and elevated boiling point.The process distinguishes the short residence time in the zone of the molecular evaporator exposed to heat and low operating temperature due to vacuum in the space of distillation.

Type	QYMD-60D	QYMD-80D	QYMD-100D	QYMD-150D	QYMD-200D	QYMD-230D
Barrel Diameter (mm):	60	80	100	150	200	230
Feeding rate (g/hr)	250-500	500-750	750-1500	1500- 3000	3500-5000	3000-5000
Feeding tank volume(L)	1	1.5	2	2	5	5
Effective evaporation area (m²)	0.06	0.1	0.15	0.24	0.35	0.5
Motor power (W)	90	120	120	120	200	200
Max speed (RPM)	450	450	450	450	300	300
Distillate Receiving Flask	1L	1L	2L	3L	5L	5L
Residue receiving flask	1L	1L	2L	3L	5L	5L
Processing flow (KG/Hr)	0.1 - 2	0.3 - 4	2	5-6	8-10	10
Voltage	220V/50HZ
Operation temperature	-90 C- 200C

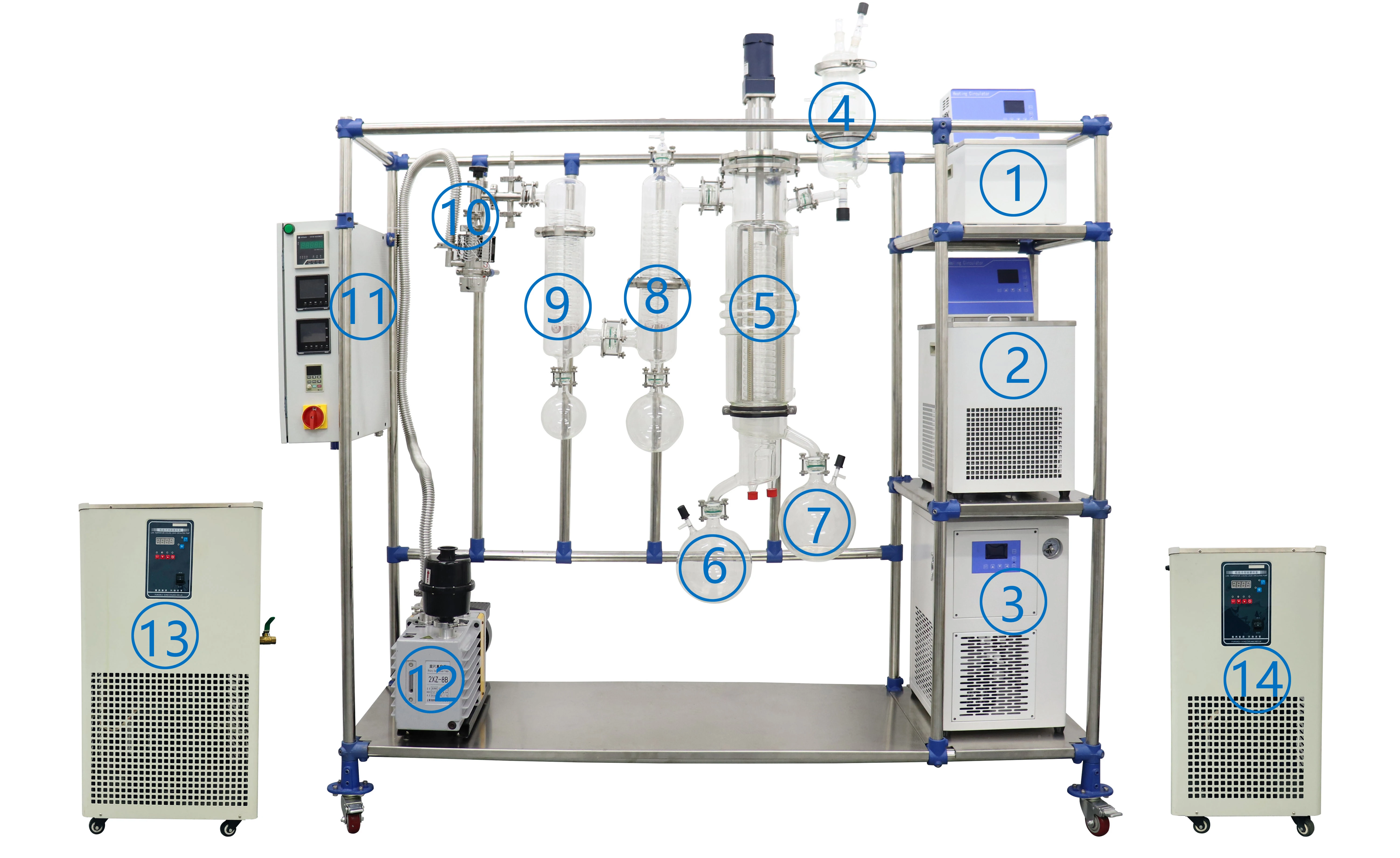

1:Heating device for jacketed  feeding vessel

2:Heating and cooling device for internal condenser

3:Heating device for main evaporator

4:Jacketed feeding tank with manual feeding valve

5:Main evaporator with internal condenser

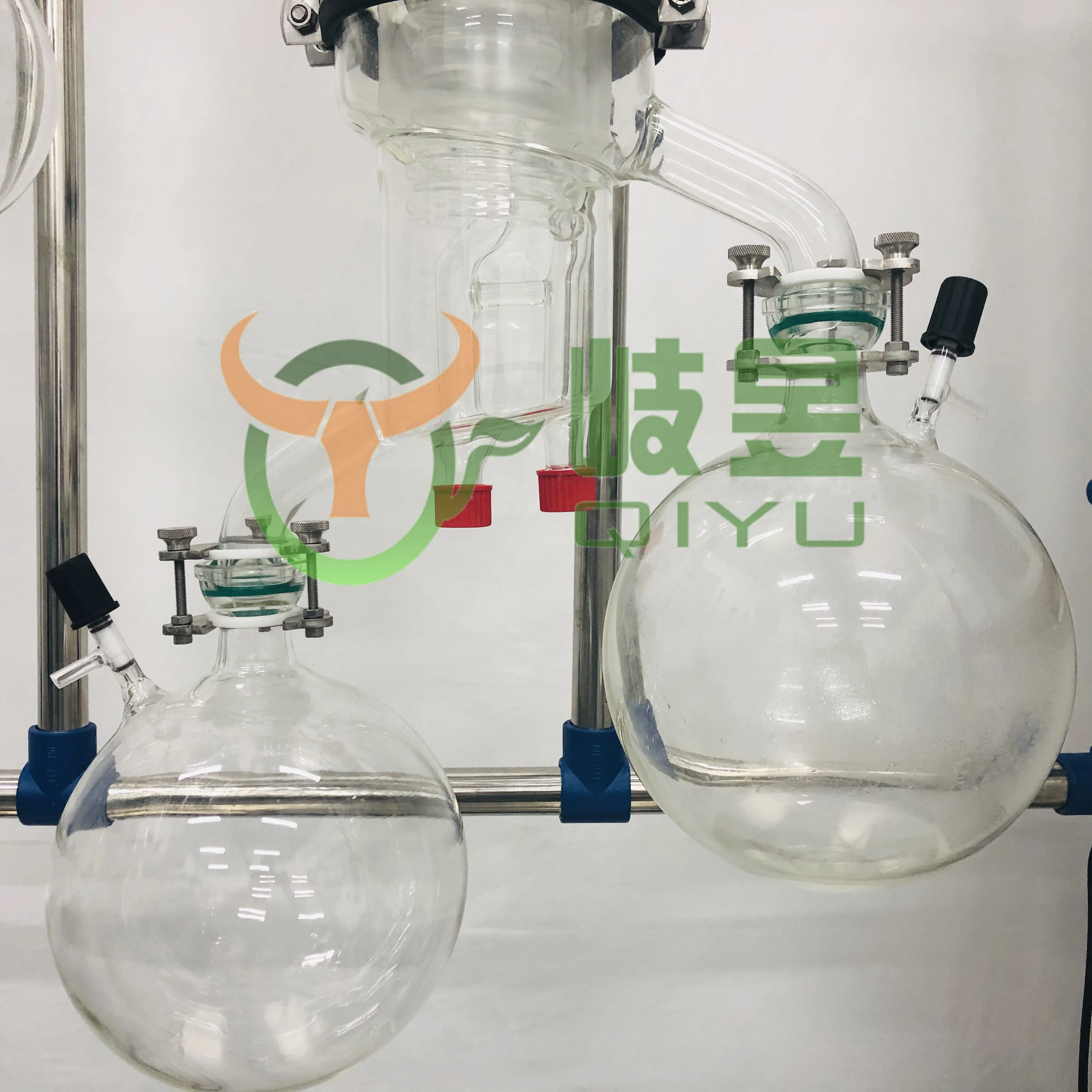

6:Receving flask CBD oil

7:Receving flask residue

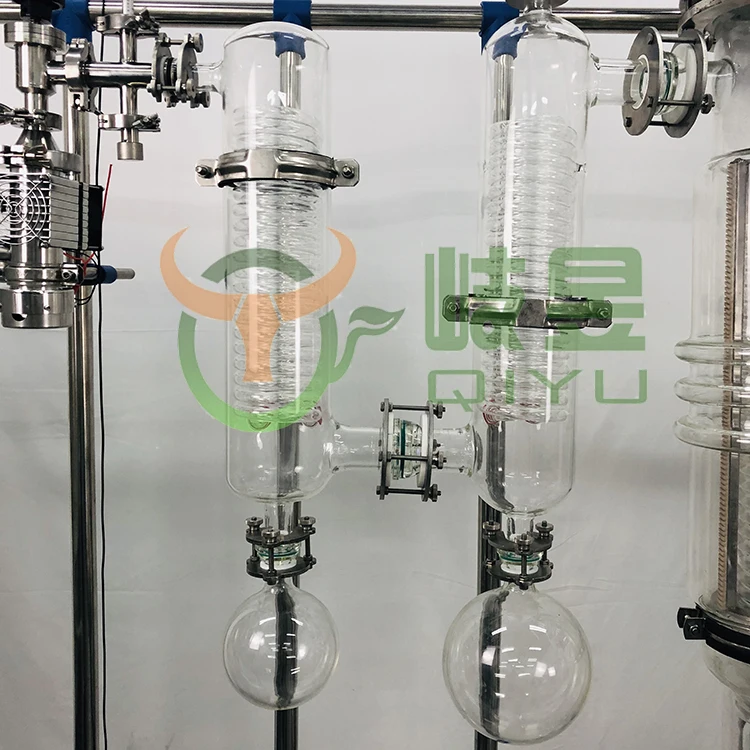

8:External condenser for collecting THC

9:External condenser for collecting terpenes

10:Diffusion pump

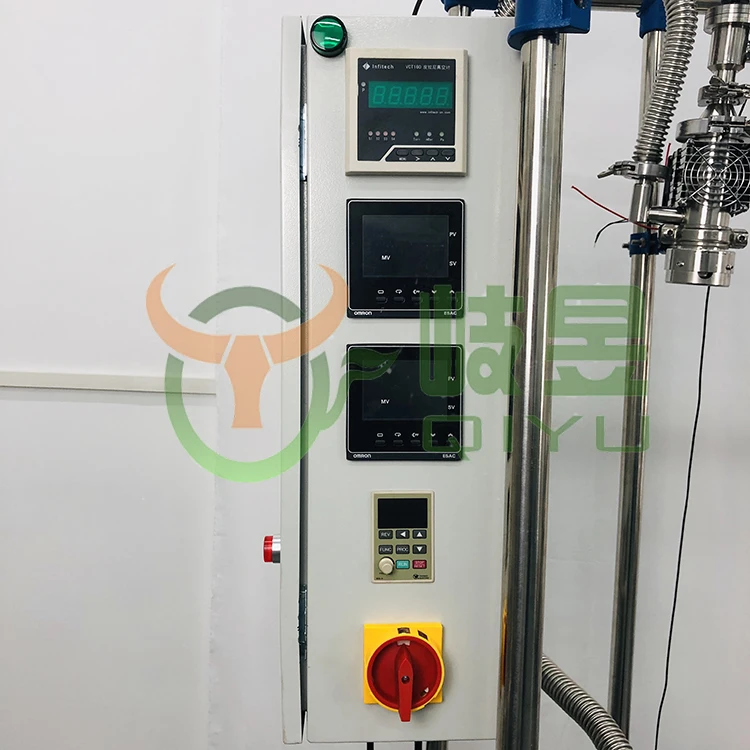

11:Control system

12:Oil pump

13:Cooling device for external condenser

14:Cooling device for external condenser



More advantages:



(1)High evaporation efficiency and reduced retention time ,with minimal time delay.

(2)Molecular distillation is made from high borosilicate glass 3.3 and PTFE,which have excellent corrosion resistance.

(3)High-precision distillation barrel allows the liquid to a form a complete and unified thin film on the heated surface.The smooth inner surface,avoid stick and scaling.

(4)Scraper Model and self-cleaning roller Model film forming system are available.

(5)The barrel of the distiller has glass and stainless steel material for selection.

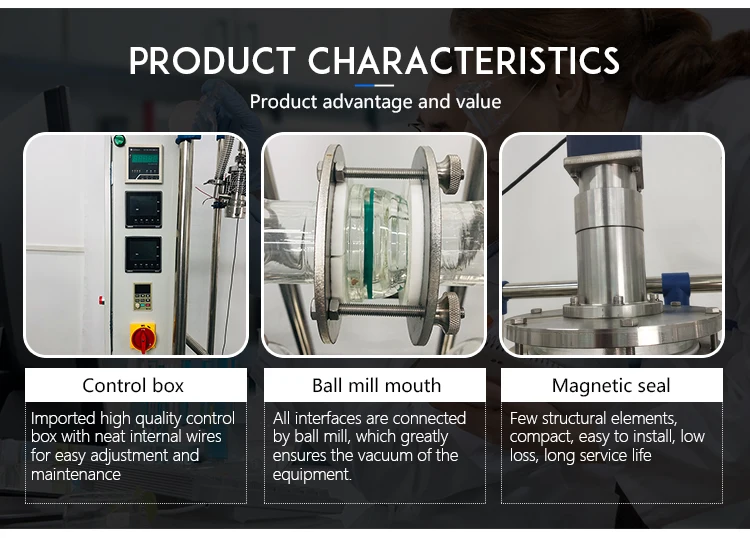

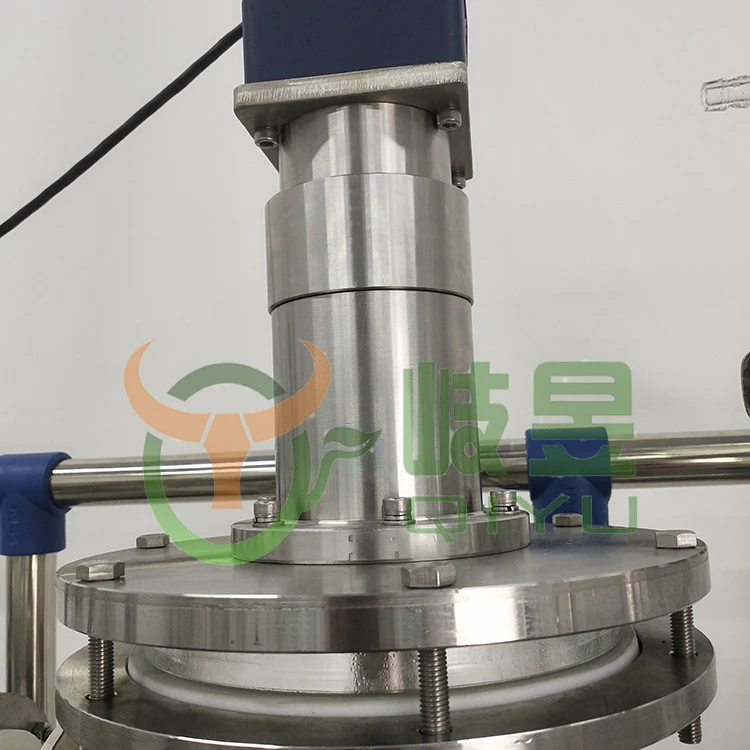

(6)Magnetic force transmission make film forming system separate from motor.The whole system performs a completed sealing.Min Vacuum degree can reach 0.001mba.
