High efficient luminescence cups/lens coating machine optics
- Category: >>>
- Supplier: Zhaoqing Dali Vacuum Equipment Ltd.
Share on (62307019776):
Product Overview
Description

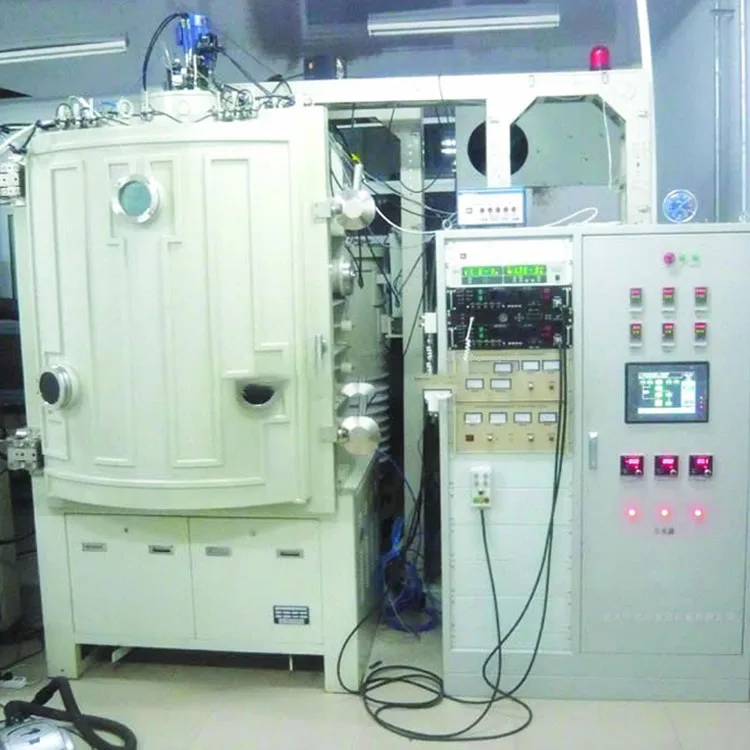

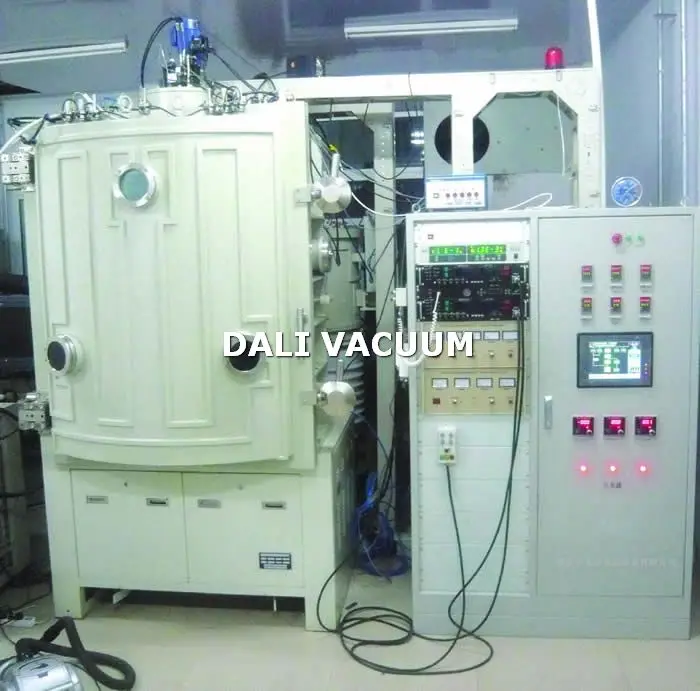

High efficient luminescence cups/lens coating machine optics
Product Description

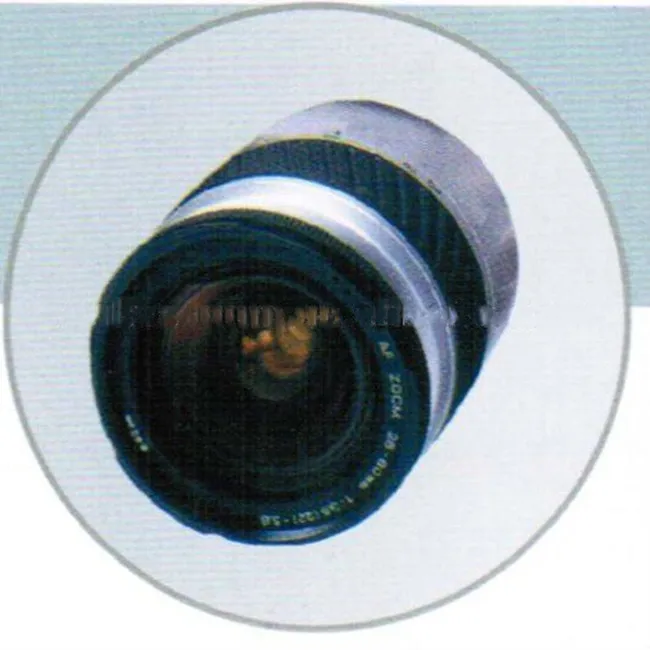

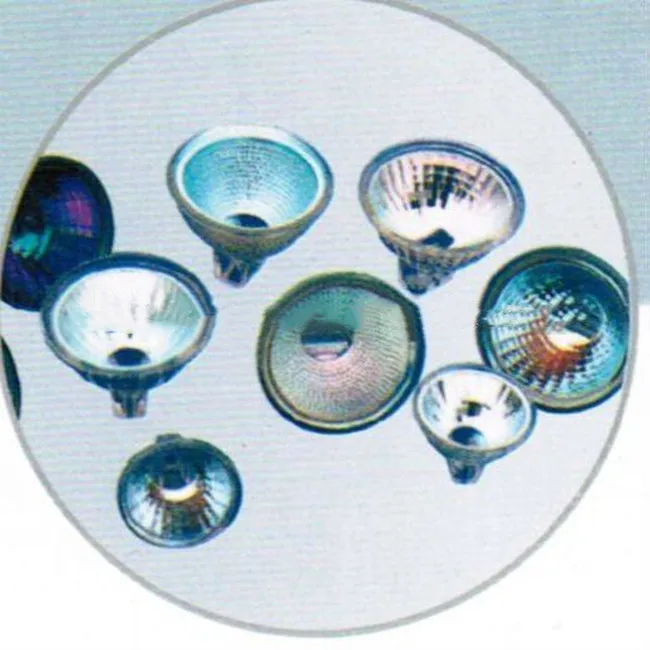

Our production coating machine is used for applying coatings for various optical device,such as telescopes,spectacle lenses,luminescence cups,and so on.the machine can be equipped with a variety of vaporizing sources and devices to produce films of varying thicknesses for different purposes,and is capable of applying coatings of metals,oxides,compounds and other high melting point materials.it also can coat super putamen on glass surfaces.
| Model | DZS-900 | DZS-1200 |
| Chamber size(mm) | Ø900×1050 | Ø1200×1250 |
| Ltimated vacuum | ≤3×10-4Pa | |
| Vacuum pumping time(min) | No-load pump from atmosphere to ×10-2Pa≤10min | |
| Heating system | Top heating mode,PID controller,max. temperature is 350°C | |
| Evaporation source and power | Resistance vaporing,two couples of water-cooling electrode which can load two vaporizing crucibles and each one 5KW | Resistance vaporing,four couples of water-cooling electrode which can load four vaporizing crucibles and each one 5KW |
Electron beam vaporizing,one set of e type electron gun (X,Y axes scanning four crucible),triangle-wave scanning, sine-wave and rectangle wave scanning(optional) | ||
| High pressure ion bombardment | DC 3KV,5KW,stick-shape cathode which used for parts cleaning before coating | |
| Ion source(option) | 5KW kerr ion source,used for cleaning before electroplating or supplementary plating in the process of electroplating,good for improving the refractive index of the film layer,firmness,density and attached force. | |
| Fixture form | Sphere capshaped,single part.rotation: 5-30r/min.sequential speed | Sphere capshaped,three parts.rotation: 5-31r/min.sequential speed |
Film thickness controlled system (option) | TELEMARK-880 crystal controller(imported) storage: 1-99 layers automatic coating procedure,99 kinds of programming data. precision:0.5±1.fixed error | |
Own-stated optics controller(e.g.:9704fitting color analyzed monitor) wavelength:330-870(adjustable).precision reached ±1.5nm | ||
| Gas filling | Mass flow controller | |
| Vacuum measuring system | One set of digital compound vacuum gauge | |
| Electrical controlling system | Vacuum pumping system and resistance vaporization are controlled by PLC autocontrol, electron beam vaporization is controlled by manual.and equipped with pro-interface(touch screen)to get easy operation. | |
| Installation power(KW) | 50 | 70 |
| Overall size(m) | About 3.5×3 | About 4×3.5 |
Packaging & Shipping
All the machine frameworks are protected by packing film .
machine pump is packaged in wooden box .
we export the machine in 20''or 40'' container .
Company Information

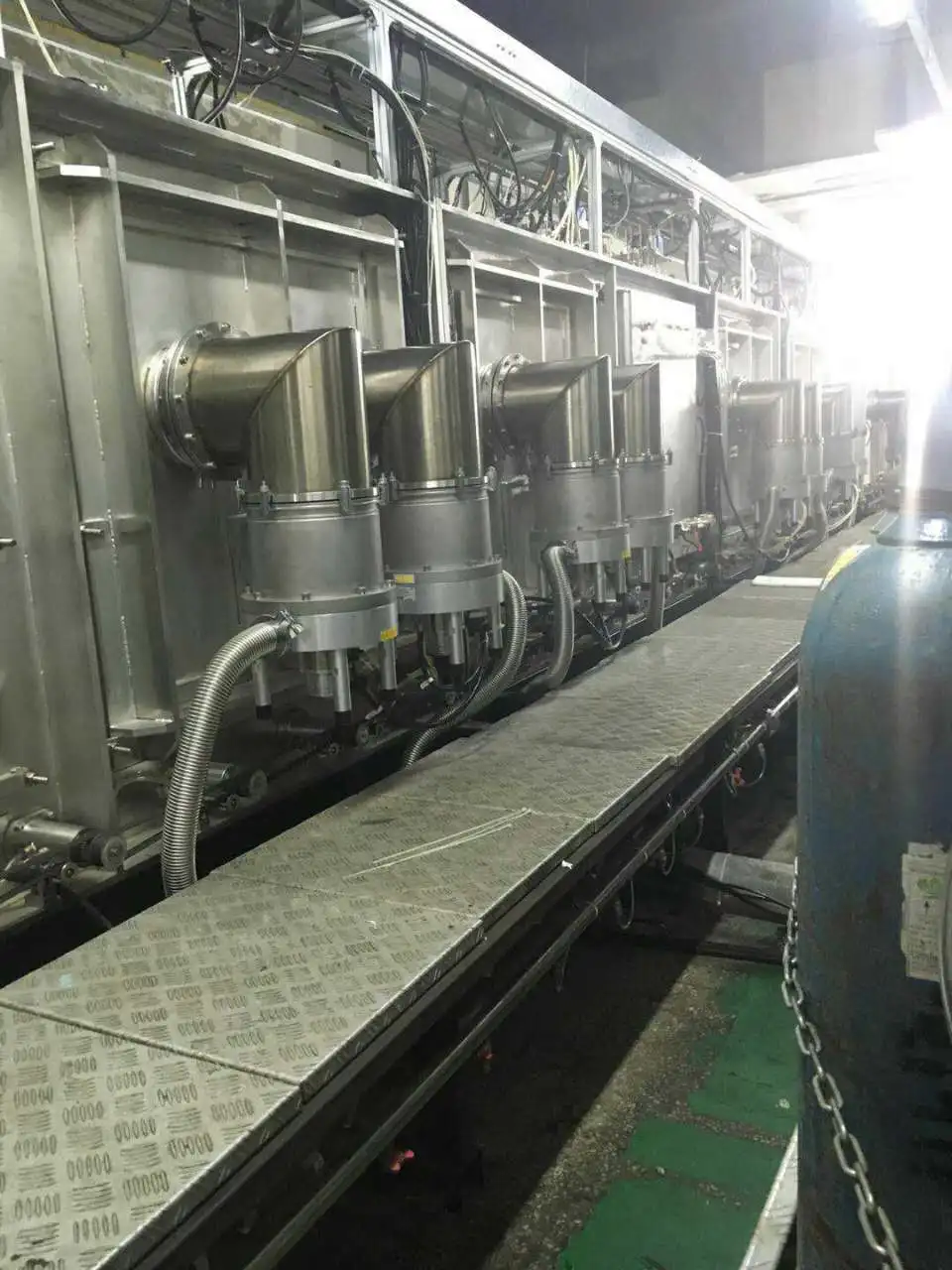

Zhaoqing dali vacuum equipment ltd is an innovative high-technology equipment manufacturing specialized in vacuum coating technology:evaporation coating and magnetron coating technology has reached international advanced level and has successfully developed and produced the evaporation coating and magnetron coating technology ,low-E magnetic coating production lines,high or meadium frequency magnetic coating machine line and silver mirror production line,and exported to north America.our products have also been granted for a number of national patents.zhaoqing dali vacuum equipment ltd follows the the guidelines of manufacturing base on the high standard management ISO9001:2000.we strive for perfection through high standard management style.
Other products
Bending furnace
loading/unloading machine
Coating machine
Painting machine
Production Line
Washing machine
Certifications
Our services
All our new machine are guaranteed by DALI VACUUM in one year ( except people deliberately problem ).
In addition ,our Engineer available to service machinery overseas after -sales
And we also can provide techncians to repair machine in client 's country in charge after one year .
Trade shows
During the 22 years , Our machine have exported to Turkey , Uzbekistan, Korea, Tunis , Algeria, Inida , Bengal, Thailand, Korea, Russia , Mexico, Australia, Vietnam ..and so on
