JQX 30F / 60F / 62F 10A 250VAC Electrical equipment power Relay
- Category: >>>
- Supplier: Tengen (wuhan) Electric Co. Ltd.
Share on (62307029569):
Product Overview
Description

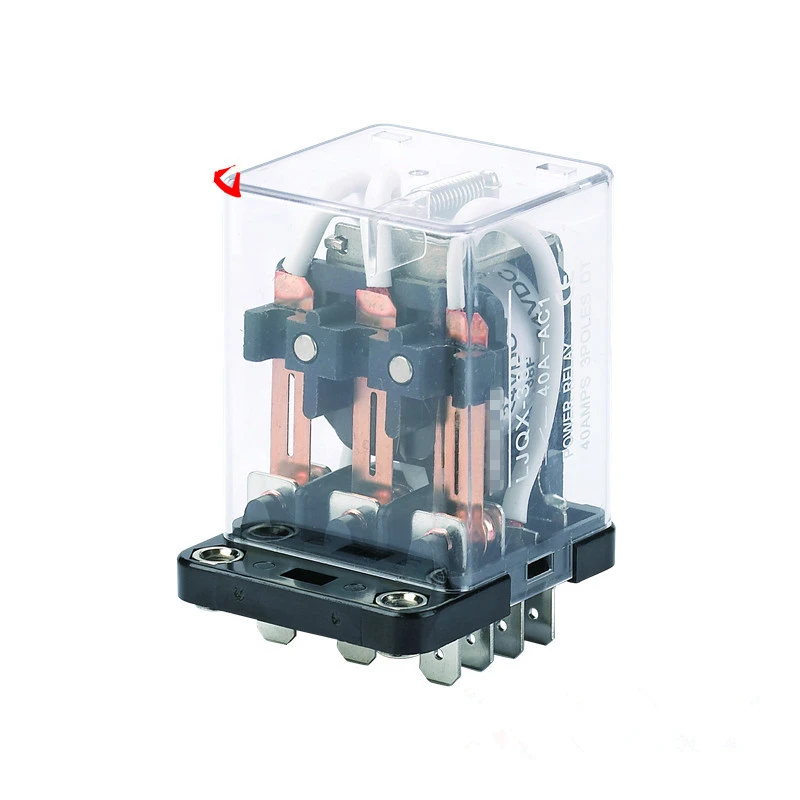

JQX-30F / 60F / 62F 10A 250VAC Electrical equipment power Relay

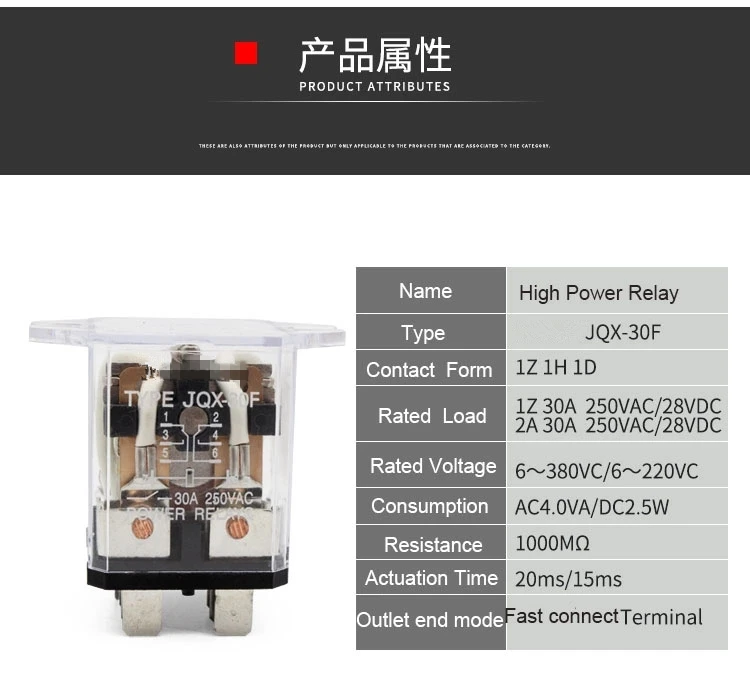

| Product Name | Power Relay |
| Model | JQX-30F |
| Coil Voltage | DC 12V |
| Contact Capacity | 30A, 250V AC |

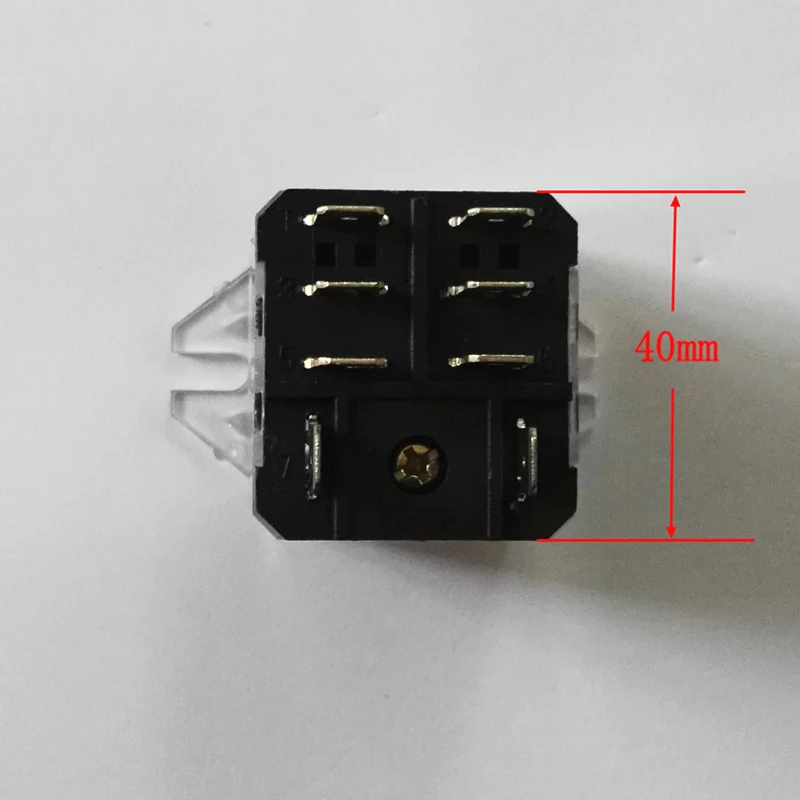

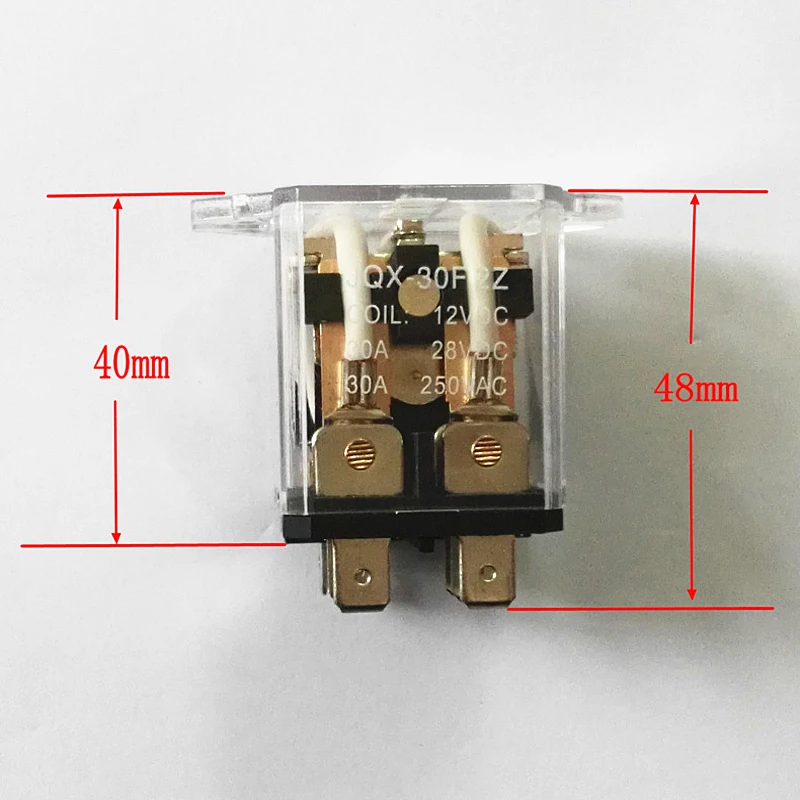

| Total Size | 5.2 x 3.5 x 4.8cm/2'' x 1.5'' x 1.9'' (L*W*T) |
| External Material | Plastic |
| Color | Black, Clear |
| Weight | 77g |
| Package Content | 1 x Power Relay |
| Contact Form | 2C |
| Contact Material | Silver Alloy |
| Max,Operating Current | 30A |
| Max.Operating Voltage | 250VAC |
| Max.Opearting Power | 7500VA |
| Rated Load(Resistive load) | 30A 250VAC |
| HInsulation Resistance | 1000MΩ |
| Dielectric Strength(Coil and Contact) | 2500VAC |
| Ambient Temperature | -40°C~+70°C |
| Operate/Release Time | 20ms/15ms |
| Mechanical Llife | 1000000 |
| Electrical Life | 50000 |
| Terminal Type | Socket |
