Miran Pull Rope Displacement Position Sensor MPS-XS-P Incremental Type Draw Wire Encoder Low Price


Electric Specifications
Stroke Length(mm)
100mm~1000mm
Square Wave
Incremental
Output Wave
Square Wave
Output Phase
AB phase or ABZ phase
Accuracy
± 0.05%FS
Resolution(mm/Pulse)
1, 0.5, 0.2, 0.1, 0.04
Wire Measurement
Diameter 0.8mm   SUS304
Circuit Character
voltage type, current type, push-pull type,line driver type
Starting Torque (at 25℃)
≤400g
Max Measuring Speed (back and forth)
1000mm/sec
Output Capacity
Sync. Current: 20mA; Residual Voltage: 0.5V or less
Max Response
300kHz~500kHz
Phase Difference
A, B phase difference 90℃±45℃ (T/4±T/8),Z phaseT±T/2
Waveform Rise/Fall
2us or less
Mechanic Specifications
Working Voltage
DC12-24V,DC5Vfixed
Working Temperature
0℃～+70℃
Storage Temperature
-20℃～+80℃
Max. Travel Speed
1000mm/sec
Ingress Protection
IP65


MIRAN Draw Wire Encoder(MPS)


Application
Miran Draw Wire Potentiometer/Draw Wire Displacement Sensor/Draw Wire Encoder MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.
Product Selection Guide
Model Example: MPS-XXXS-R-100mm
Measuring range and enclosure models
XXXS:100-200mm
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1250-4000mm
L:4500-8000mm
XL:9000-100000mm

There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1：0-5V
V2：0-10V
A1：4-20mA with 3 wires
A2：4-20mA with 2 wires
P：incremental pulse phase output AB phase or ABZ phase.

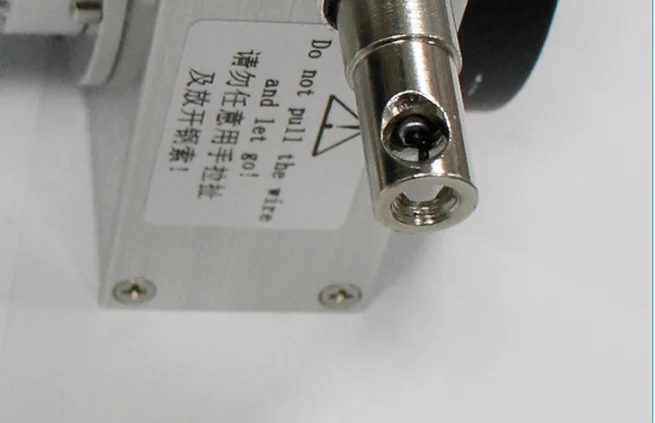

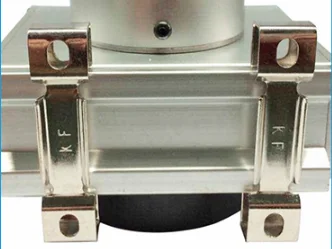

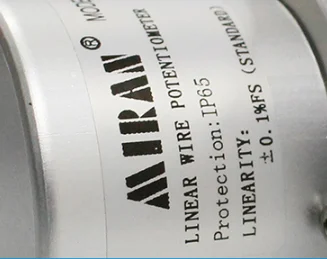

Detailed Images

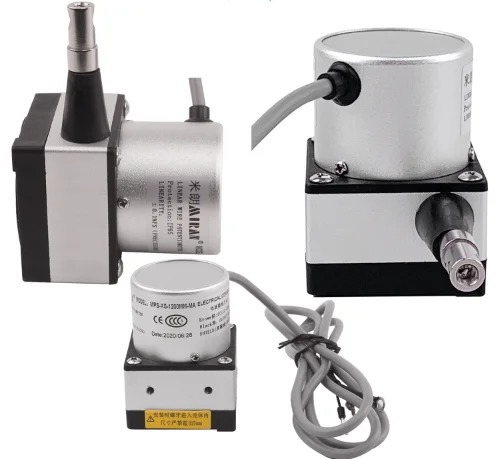

Miran Pull Rope Displacement Position Sensor MPS-XS-P Incremental Type Draw Wire Encoder With Low Price for 100-1000mm distance measurement

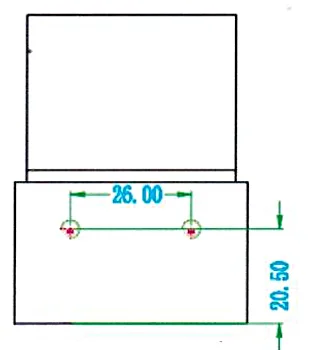

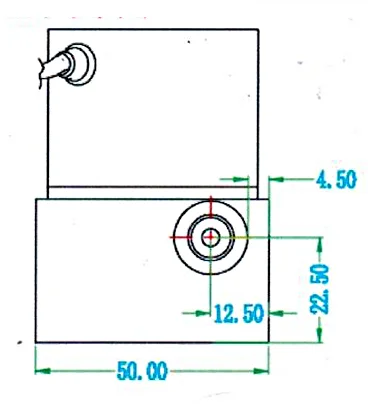

Product Size






Packing&Shipping


1.Packing with carton.
2.Shipping via DHL,FedEX,TNT,UPS etc.
3.Delivery time: around 3-5 days after receive the payment.(according to your quantity)
4.Port: Shenzhen


Related Products




Company Introduction


Since 2003 we have been developed and produced displacement sensors in Shenzhen.In order to meet more customer needs,we expend the scale of production.And set up our new factory in Hubei Province

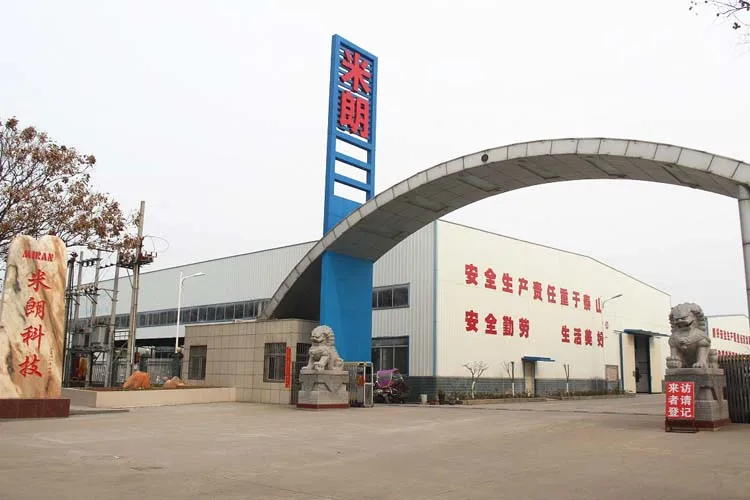

Zaoyang Miran Technology Co., Ltd. is the professional manufacturer of Linear Position Sensor in China.It's our new factory which is located in Hubei Provice.Our sales headquarters located in Shenzhen.
