1. With strict water / air pressure test,air pressure test for 48 hours before delivery 2. Cooling jacket with strict water / air pressure test 3. Dished head, thickness is 3mm, Cone angle can be custom-design 4. Sanitary top pressure manhole on top 5. 360 ° full coverage CIP cleaning arm 6. Carbon dioxide exhaust arm with butterfly valve 7. Mechanical pressure regulating valve 8. Liquid level gauge with soft pipe
Description:
1. Warranty: 5 years for the main equipment(tank);1 year for electronic components
2. Installation/Operation/ Service/ Maintenance Manual: Provided In English

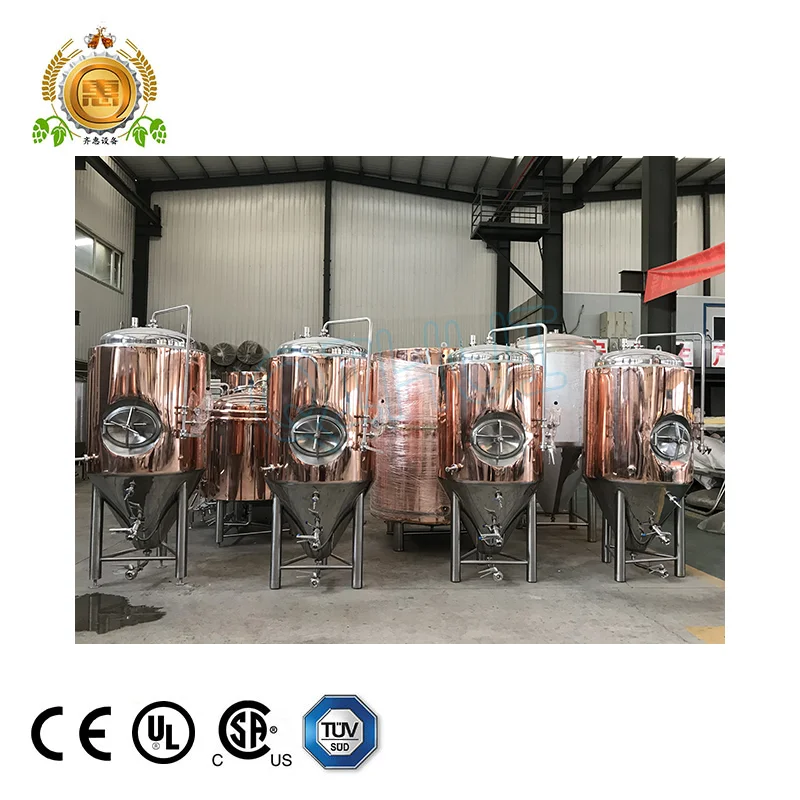

Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2
Yeast Adding Tank
SUS304 Stainless Steel
Cooling System
Glycol Water tank
Equiped with PU level indicator
Chiller
ISO900/CE certified electric elements,Copeland compressor
Pump
Cleaning System
Disinfection Tank
SUS304 full welded
Alkali Tank
Pump
Control System
Control Cabinet
Manual/Semi-automatic/Automatic
Optional
Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Customized
1. Quality: High quality Without driving leakage risk and nice appearance
2. Capacity: Can be customized
3. Processing: Fermenting
4. Thickness: 3mm
5. Volume design: Properly according to the capacity requests
6. Certification: ISO9001 / CE
7. Material: Stainless Steel304
8. Warranty: 5 years
Product Details:
1. Polishing:
Polishing is vital for tanks. Tanks should be polished wholly inside and outside.
Therefore it can ensure there is no place for the bacteria to hide in tanks.
Our polishing system consists of auto and semi-auto polishing machine and manual polishing.
2. Welding:
Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding
Qihui Standard
Qihui Standard:
Sparging spray ring
This device is very import for cleaning the lauter tank, it will be clean more good than normal only CIP ball, because Lauter tank is not same with other brewhouse tank, it must be do strong cleaning.
The Rack
We use the new-style rake; the structure is varied so that it can agitate the wort lengthways and transversely. Also we equip with VFD to adjust speed. It can help to make the wort flow smoothly.
Related Products
Related Products:
Our Services
Our service:
5 years warranty
24 hours service
Guide and free installation
Beer recipes
Spare parts
Quality guarantee
3D drawing and details drawing
Manual operate book
Packaging & Shipping
Packaging:
1.With export standard film packaging, then for wooden case packaging for
alone beer tanks and less brewery equipment -LCL shipping. 2.If more tanks or complete set of brewery, with film packaging- FCL shipping. 3.By bulk carrier or independent containers, the size and quantity rely on the
configurations and capacity. 4.Buyers requirement on packaging and shipping, please tell us in advance.
