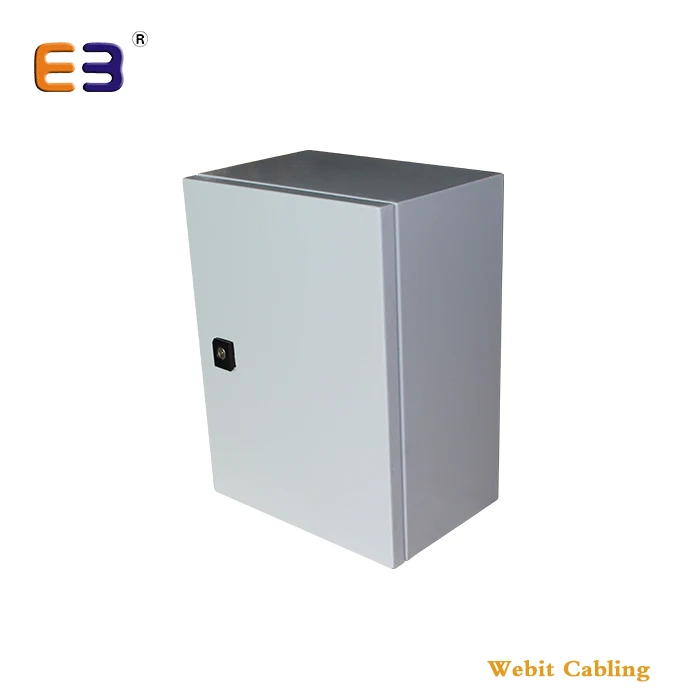

IP65 Waterproof Protection Level New Design 2022 19' Outdoor Cabinet

WB-OD-P follows the IEC's standardized International Protection Code system for measuing capabilities.

The IP Code reflects the degree of protection as "IP" followed by two numbers;

•


  the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.





•


  The second digit indicates the extent of protection against water.




We carry IP65 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitively-priced outdoor enclosures.

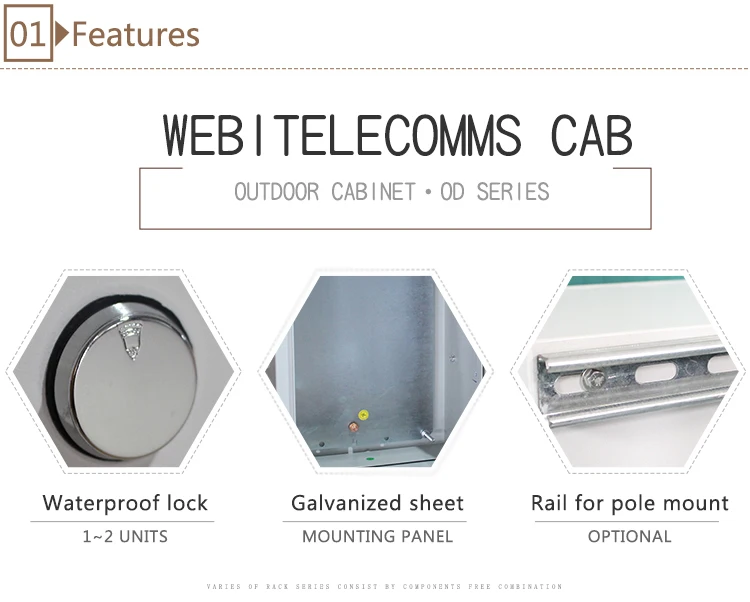

IP65 Enclosures' Characteristics:

•


  Complete protection from dust, oil, and other non-corrosive material





•


  Complete protection from contacting with enclosed equipment





•


  Protection from water, up to water projected by a nozzle against enclosure from any direction





•


  Available in wall-mounted, free standing, trough, and telegraph pole mounting





•


  Silk-screening logo, anodizing, or engraving services are available






•


  Custom with cutouts,insulation, hinges, latches or locks




IP55 Enclosures' Characteristics:

•


  Protection from dirt, dust, oil, and other non-corrosive material





•


  Complete protection from contact with enclosed equipment





•


  Available in aluminum, carbon steel, and stainless steel






•


  Available in wall-mounted, free standing, trough, and telegraph pole mounting





•


  Engraving, silk-screening, or anodizing services available





•


  Custom with cutouts, insulation,cooling system, hinges, latches, or lock

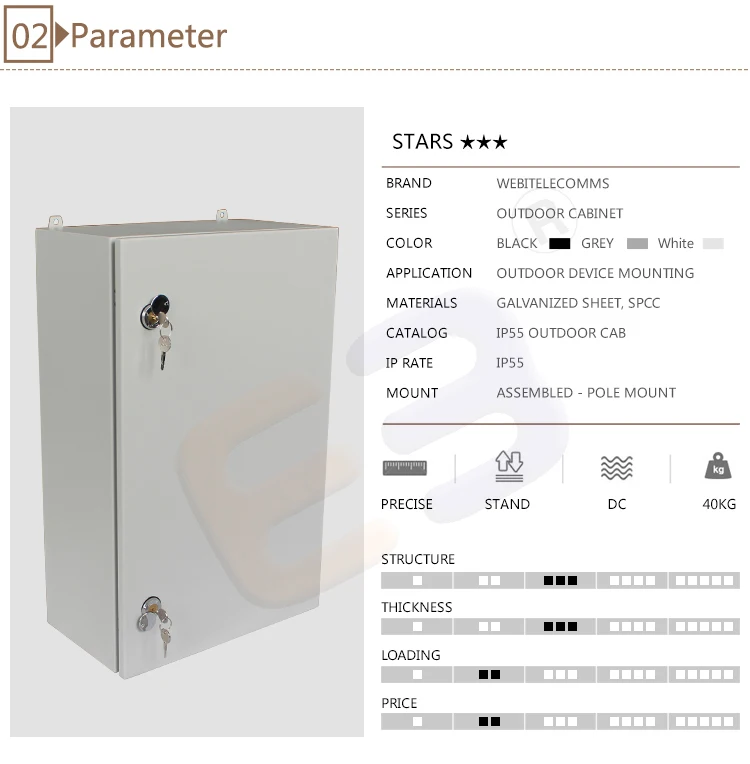

Specifications

1. Completed enclosed design with IP55 design

2. Bottom cabling entrance & cooling fan [IP55 only]

•


  Flange connecting





•


  AC cooling ( optional)




3. Material options:

•


  SPCC cold rolled steel





•


  Stainless steel





•


  Galvanized steel




4. IP rate : IP65 or IP55

5.Waterproof,dust proof:materials such as dirt, oils and non-corrosives

6.Strict rubber ealing belt

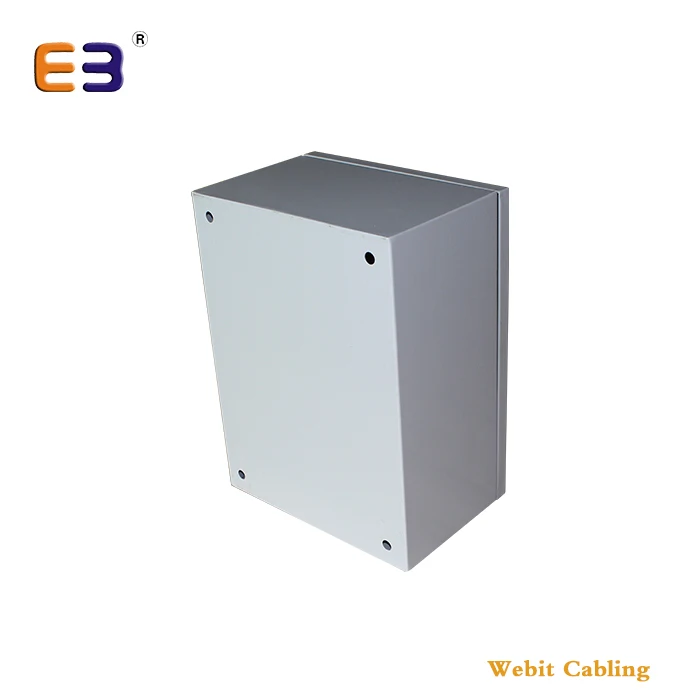

7. 4 ×Rear wall mounting kit /  pole mount kit

8.Machine protection solution:the cabinet is designed specifically to protect it from human damage, earthquake and other damages.

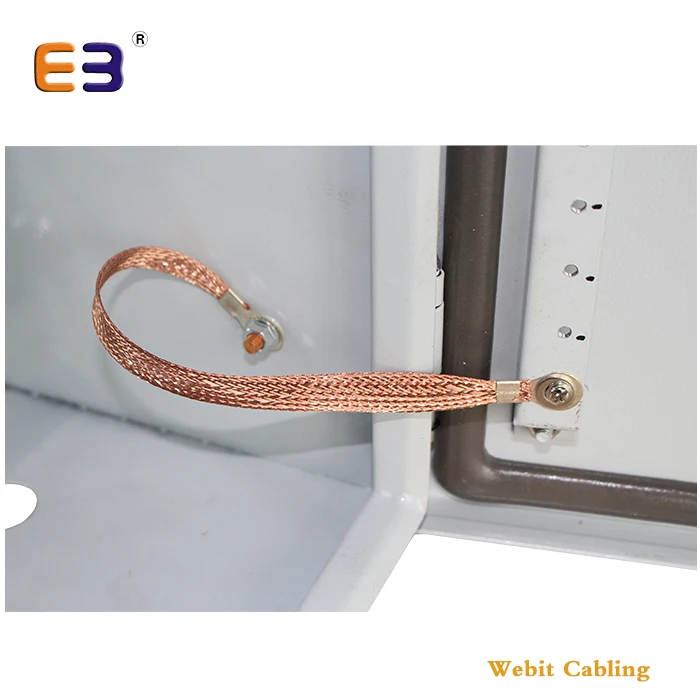

9.Yellow-green earthing cable for front door

10.Max static loading : 30 KGS

Standards

Width: 300  mm Depth: 200 mm Height: 300 ~ 800, customized dimensions

Customized size is available WELDED STRUCTURE ONLY!

Industry Standard and Material:

Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material:SPCC cold rolled steel or EG steel

Thickness:

Mounting plate :1.5 mm,others:1.00 mm to 1.20 mm

IP degree: IP-65 or IP-55

Loading capacity: Max Static loading---30 KG

Body color:RAL9005(black);RAL7035(grey),etc
