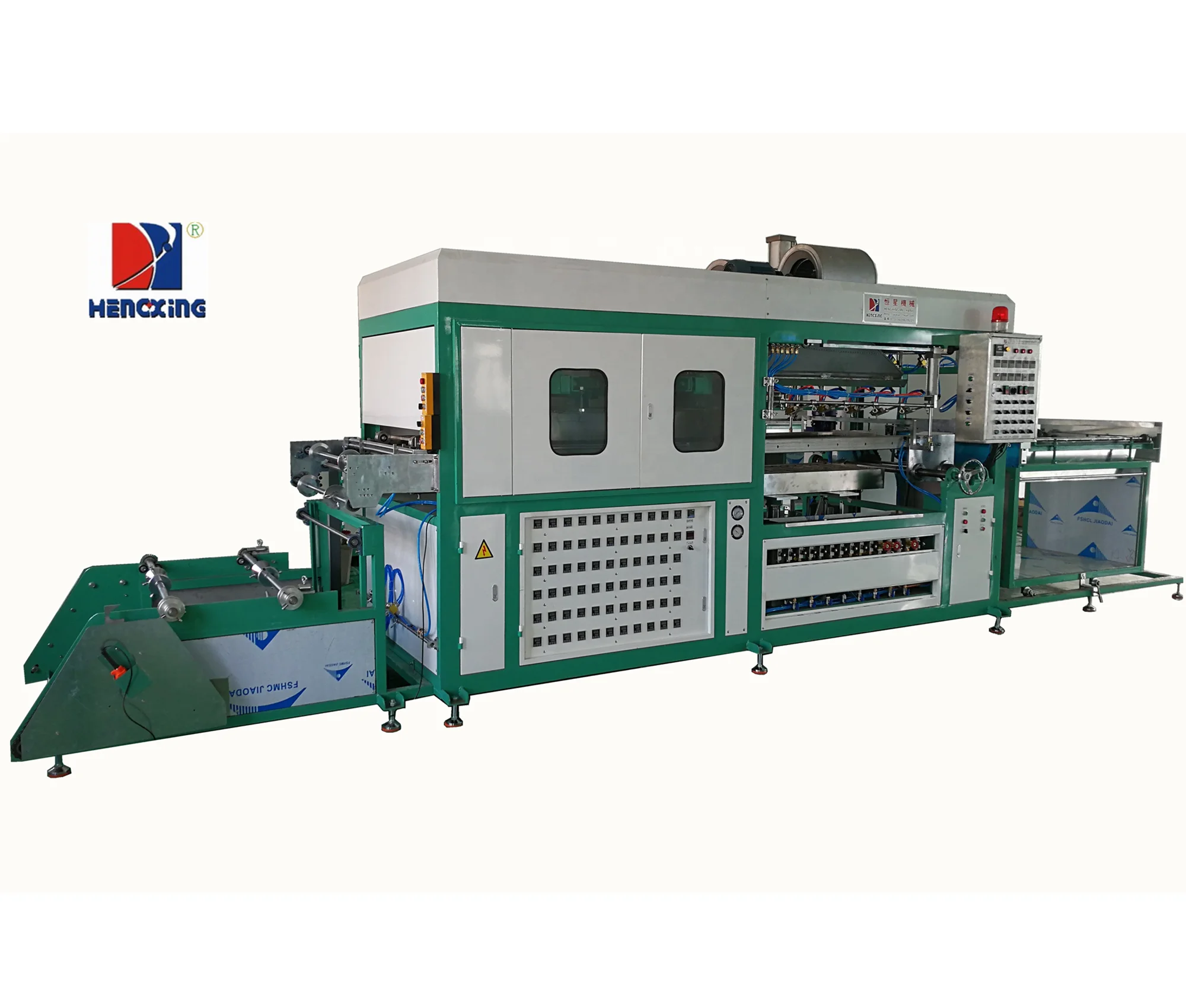

Foam Food Container / Automatic Vacuum Forming Molding Machine /Thermoforming machine
- Category: >>>
- Supplier: Hengxing Blister Machinery (Shenzhen) Co. Ltd.
Share on (62307346390):
Product Overview
Description
Related Products
HX-76HZ Digital Timer control
Automatic Forming Machine
Forming size:760*1250 mm
High speed machining
HX-61H Compact type
Automatic forming machine
Forming size:610*710 mm
Cost performance
HX-61B Semi-automatic
Forming size:560*610 mm
Low price
HX-61A Semi-Double station
Semi-Automatic
Forming size:560*610 mm
reasonable price
Product Description
PVC / PET / PP / EVA Automatic Blister Vacuum Forming Machine
Application：
1. Vacuum forming machine is suitable for forming PVC, PET, PP, PC, PEGT, CPET, OPP, POF, PS, ABS, EVA and other materials. 2. Vacuum forming machine can be used to produce egg containers, salad boxes, snack boxes, fruit boxes, biscuit boxes, toothbrushes, batteries, gifts, hardware, stationery, decorations, medical, electronic and other plastic containers.
Control type | PLC control | ||||
Parameter | Forming width | 480-760mm | 18.89-29.9 inches | ||
Forming length | 660-1250mm | 25.98-29.21 inches | |||
Forming height | MAX.200mm | 7.87 inches | |||
Three choices of one die: 410-660mm, 450-710mm, 480-760mm | |||||
Material | Application type | PET、PVC、PP、PS、ABS、PC、EVA、CPET， etc. | |||
Material | Genre | Reel feed | |||
Thickness | 0.1-2.0mm | max.0.08 inches | |||
Reel / Material width | 520-800mm | 20.47-31.49 inches | |||
Dynamical system | Compressor | 20HP | |||
Dynamical system | Vacumm value | 100 m³/h | |||
Heater type | Quartz Or Ceramic | 500W Or 600W | |||
Heating zones | 60 pcs | 30Kw Or 36KW | |||
Main Features
(1) Energy saving
a) The heating brick adopts the latest quartz energy-saving heat transfer, saving 20% compared with the traditional heating brick;
b) One-button heating design, the temperature can be set within 1 minute, waiting for 3-5 minutes to produce, ordinary heating brick preheating takes 20-30 minutes to produce.
c) Special heating furnace adjustment function, which can save 1/6 electric energy by misalignment;
(2) Saving materials
a) Adopt variable frequency motor pull-tab, fast drawing speed, transmission error ±1mm, reducing material and power loss;
b) Adopt new aluminum + steel beam, purchase material width = mold width + 25-30mm (conventional machine needs + 40-50mm), for example: 180 tons of material per year, calculate according to mold width 600mm, save 10mm by saving material, ie save 1/60 material, saving 3 tons of raw materials per year;
(3) efficient
a) 2P cold air fan, cooling rate is faster;
b) 5P chiller, spray cooling effect is good, can increase production speed;
(4) Data storage
The computer can remember to save the parameters. When the next production, directly call the parameters to reduce debugging time and improve efficiency.

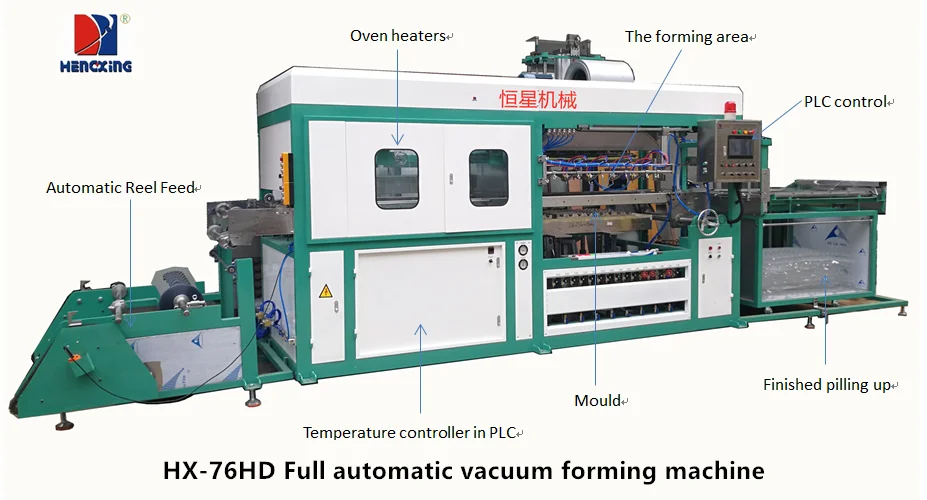

Machine function
(1)PLC control with 10“ Touch Screen
(2)60 sets of independent ceramic or quartz energy-saving temperature controllers
(3)400 Programme Memory
(4)Electric girders
(5)Vibration demoulding function
(6)Fast heating function
(7)Silicone oil function
(8)Secondary mold function
And many more
Ceramic panel oven heater
Contained about 60 Ceramic Heaters, Power:30kw (every 0.5kw)
Ceramic Heater size:12.5×12.5CM
Heating brick
Quartz Or Ceramic 500W Or 650W
Forming Part

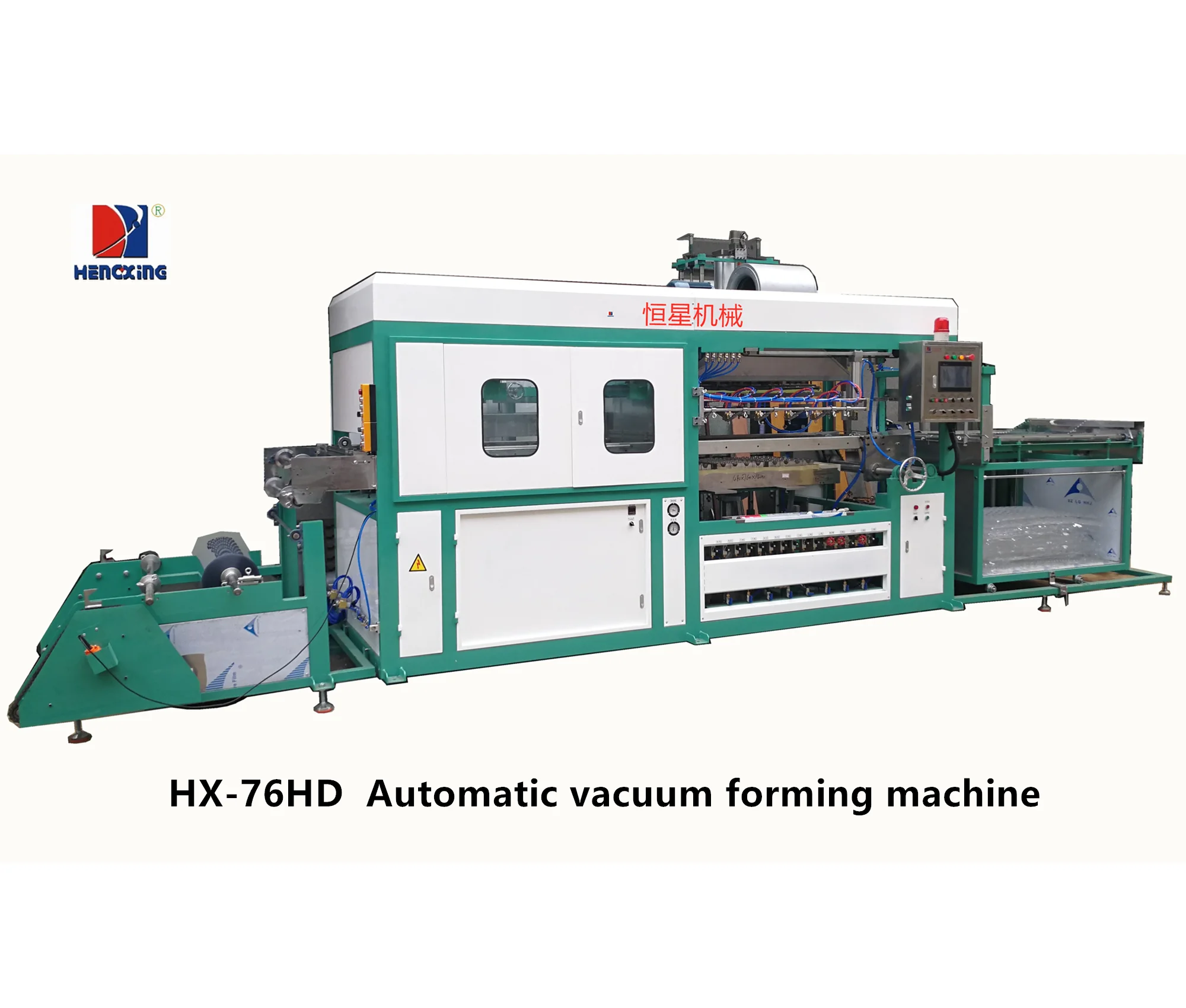

HX-76HD-PLC control is equipped with a max. forming area of 760 x 1250 mm.
Further information you will find in sections "Brochure" and "Technical Data".
Machine Video
Please copy below Youtube link to see our machine HX-76HD Series.
YouTube link:
https://www.youtube.com
YouTube link:
https://www.youtube.com
Details Images
PLC control system
Mature PLC operating system programmed according to more than 20 years of practical experience
PLC Temperature controller
Mature system: temperature can be set in 1 minute
Automatic feeding system
Name: Reel Feed
Brand:HengXing
Original: CHINA
Material is placed in this shelf,load bearing 100-200kgs,
the system can help you moved the sheet on the machine will become a breeze
Water-Cooled chiller
Name: Water-Cooled chiller
Brand: HENGXING
Original: CHINA
5P chiller, spray cooling speed, higher production efficiency
Brand: HENGXING
Original: CHINA
5P chiller, spray cooling speed, higher production efficiency
Vacuum pump
Name: vacuum pump
Brand: Rietschie Thomas
Original: Germany
100m³
Sample

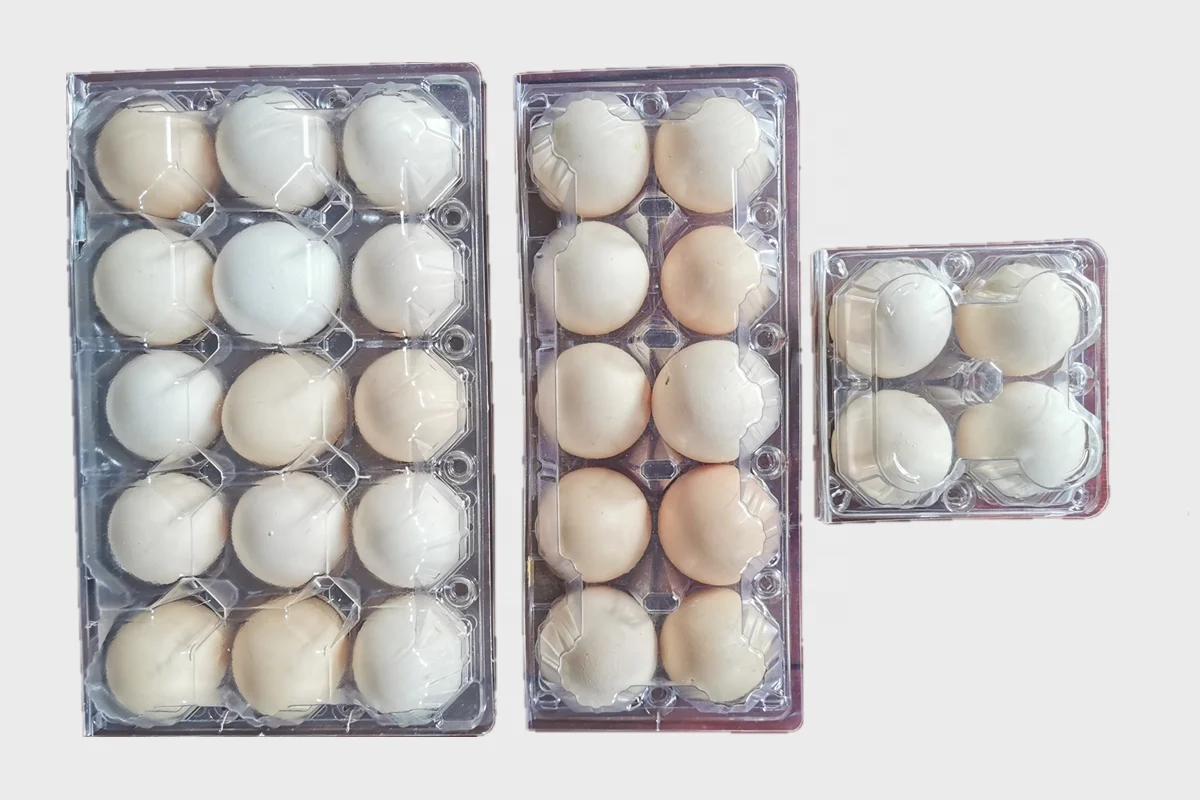

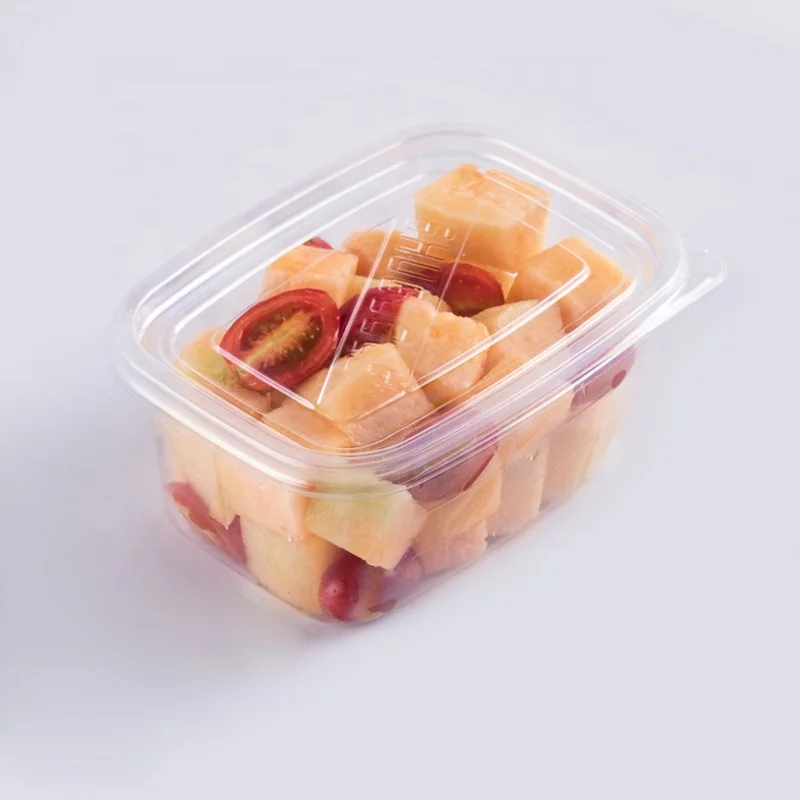

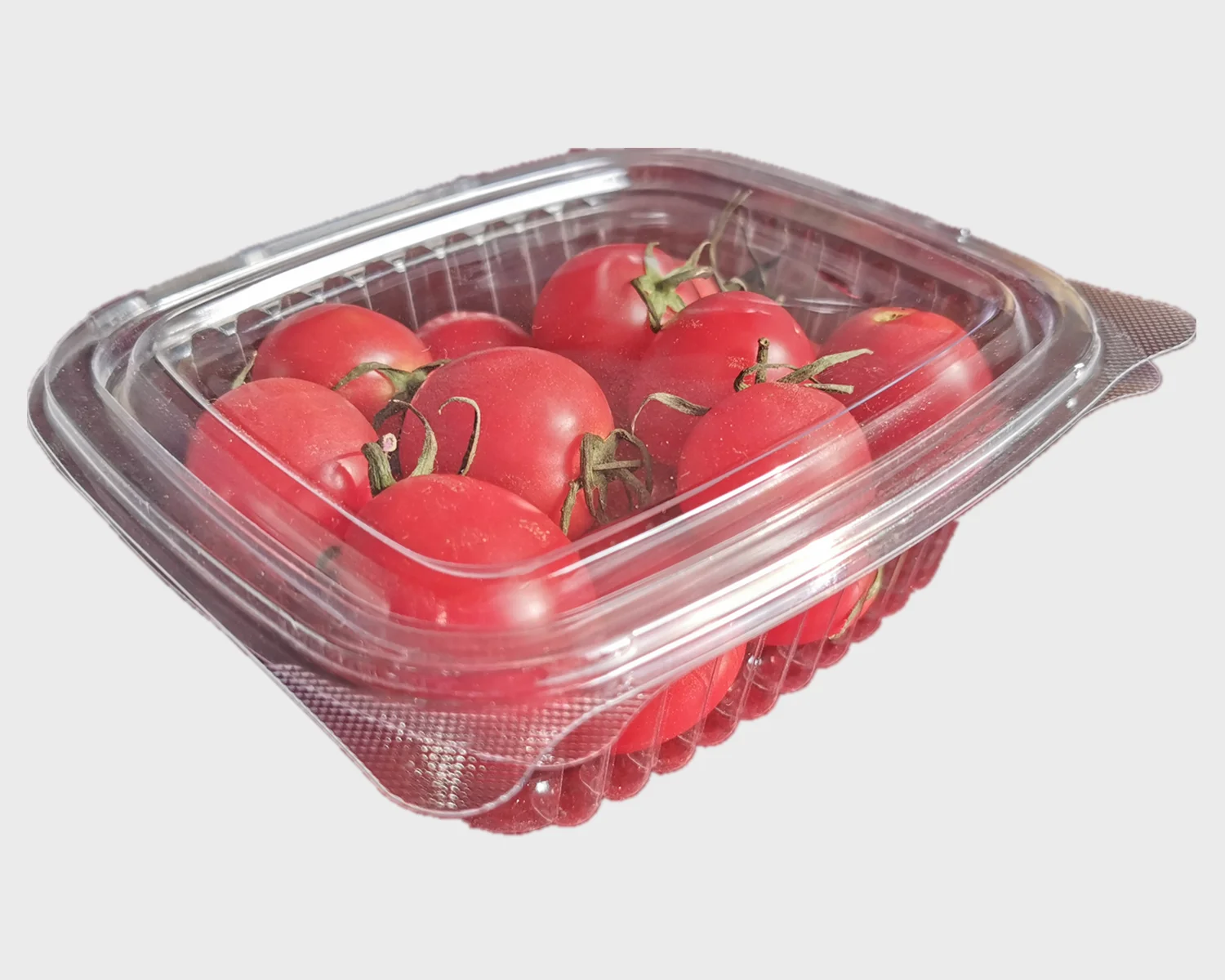

Fruit box, salad box, egg box

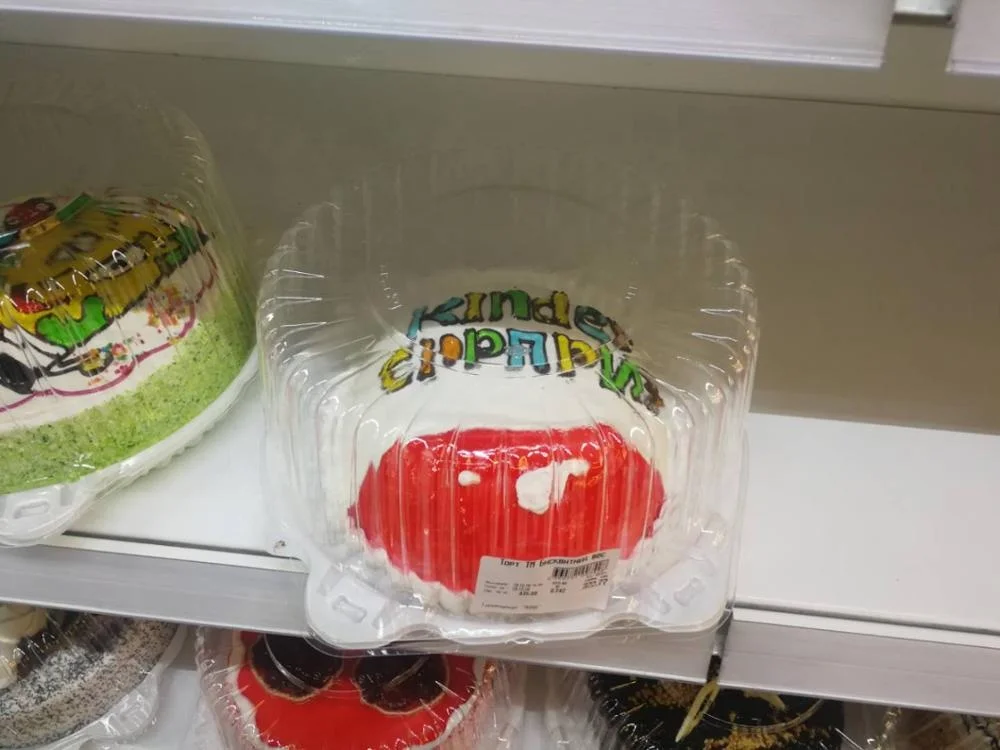

Cake box, dessert box
PS, ABS Electronic tray
Food Tray
Blister packaging box

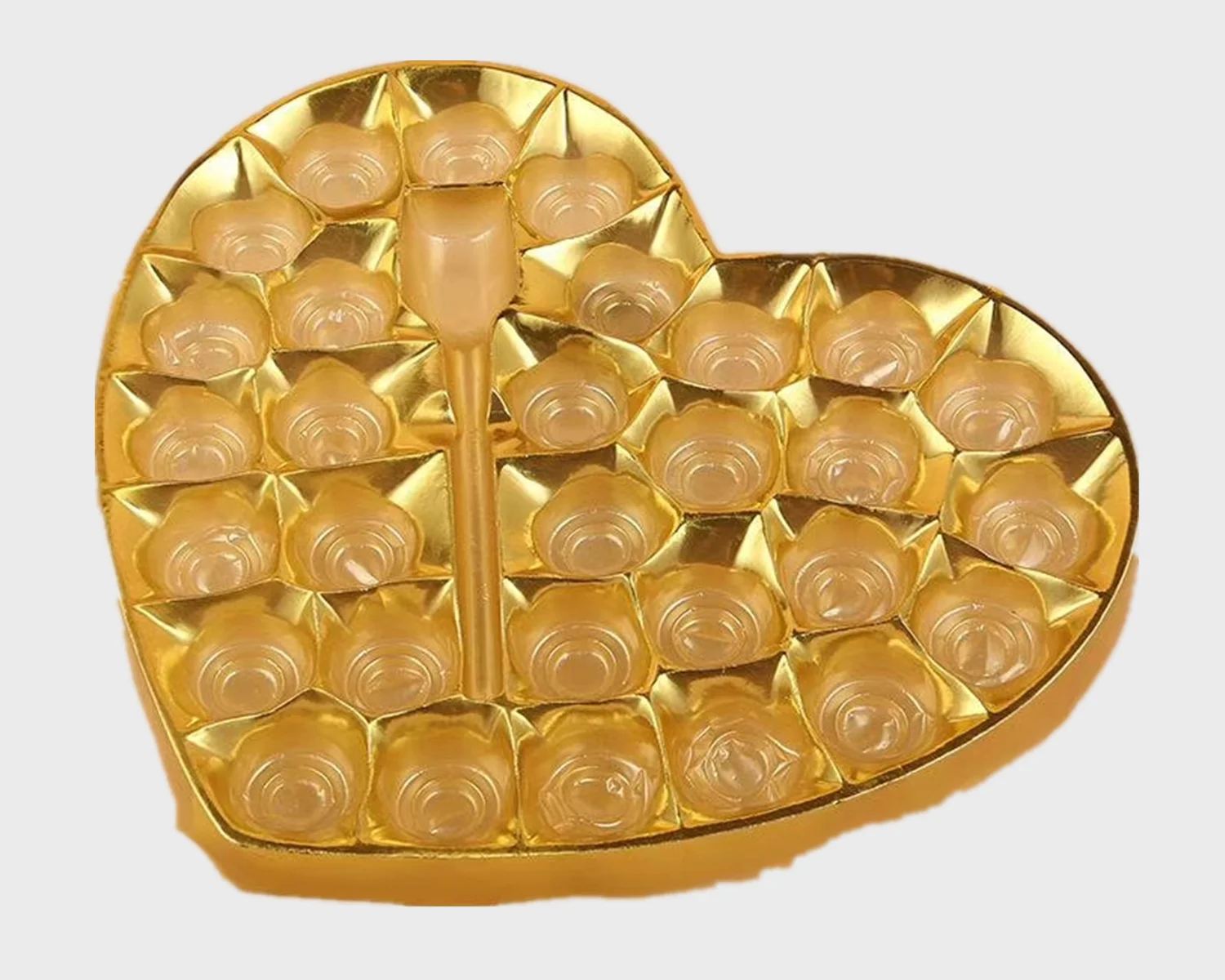

Cosmetic blister box, flocking blister box

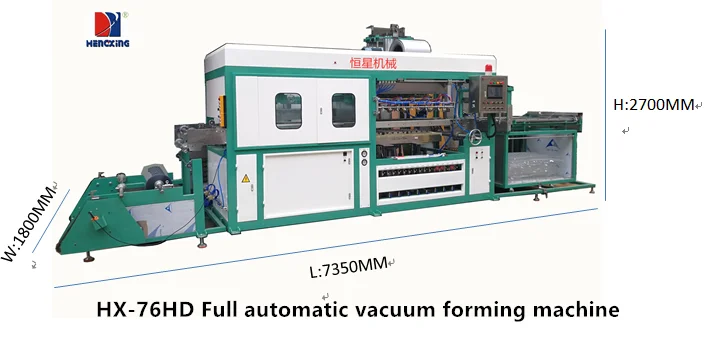

Machine Size
Place
1) The machine overs an area of 19.5m²;
2）Requires 40m² of space to place ;
3）In the open air environment;
4) Weight 3000kg
2）Requires 40m² of space to place ;
3）In the open air environment;
4) Weight 3000kg
Packing & Delicer
Packaging
The entire set (vacuum forming machine, air compressor, cutting machine) requires a 40-foot cabinet.
Related Products 1
HX-10T blister cutting machine
Working area:1160×400
HX-30T Hydraulic cutting machine
1.Working area: 510 × 1250mm
2.OEM
HX-6347 Thick plate plastic forming machine
1.Forming size:1500*2000 mm
2.OEM
HX-50 blister selling machine
1.Platen area: 300 × 500mm
2.OEM
HX-3350 Blister folding machine
1.Platen area: 330 × 500mm
2.OEM
HX-8000SR High frequency
1.Platen area: 400 × 600mm
2.OEM
Company Profile
About US
HengXing Blister Machinery (Shenzhen) Co., Ltd. was established in 1998. Is a professional manufacturer of plastic vacuum forming machine, semi-automatic plastic molding machine, thick plate plastic molding machine, printing positioning plastic molding machine, high-frequency welding machine. With more than 22 years of production experience, we serve more than 2,000 companies worldwide. Our products have won high praise from customers all over the world for their high quality and competitive price.
our service
1. Provide overseas installation and training services
2, equipment warranty for 1 year
2, equipment warranty for 1 year
FAQ
1. If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.
All above service is free.
The service cost in customers` country was not included if requires oversea service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.
4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.
