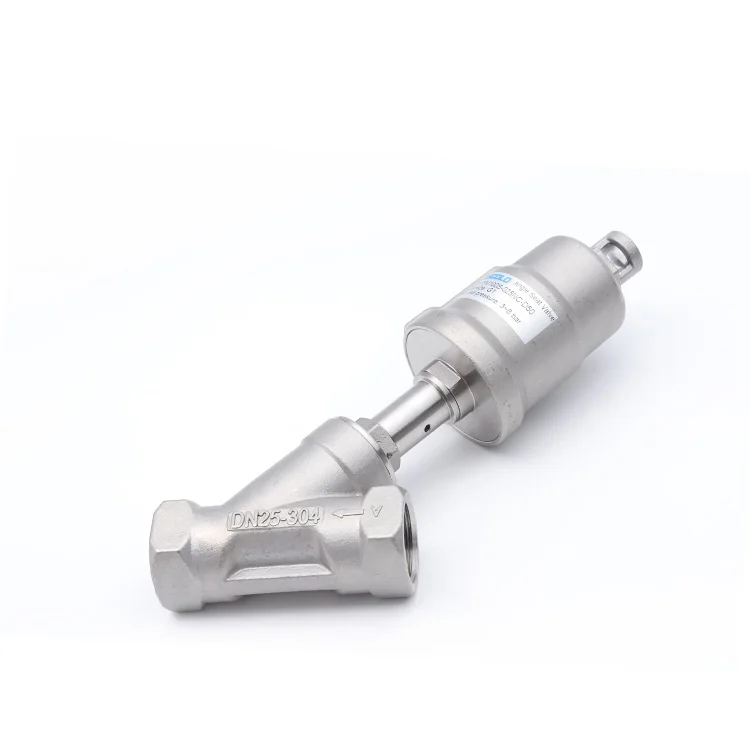

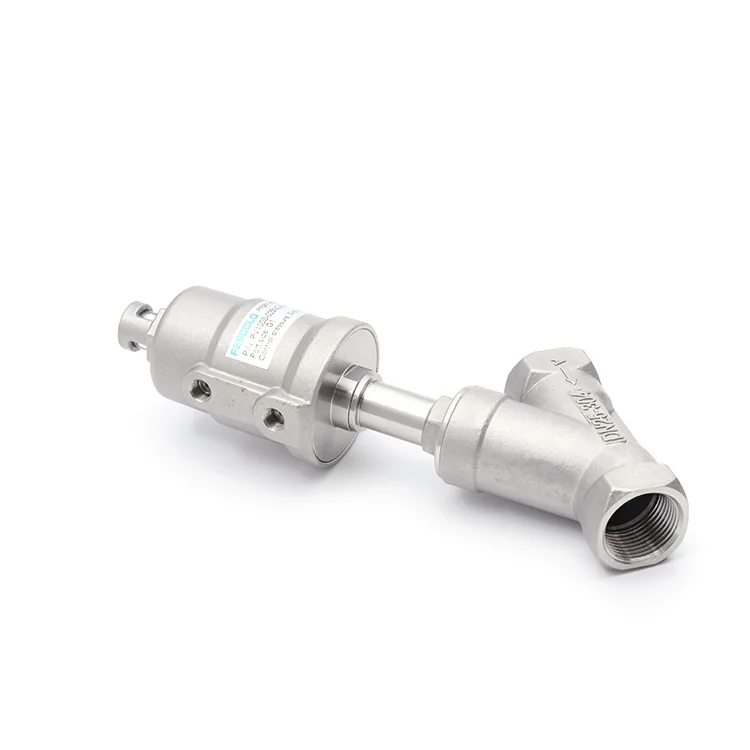

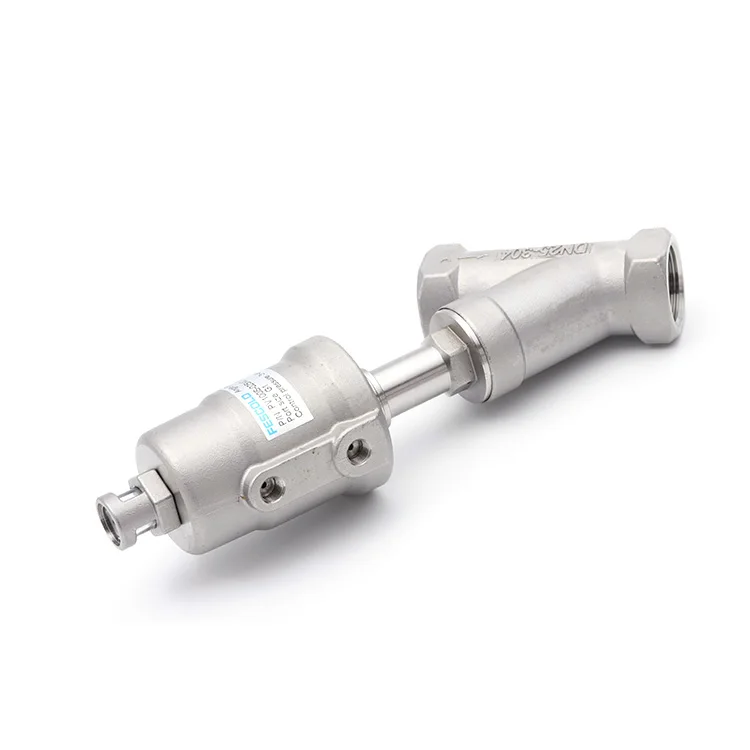

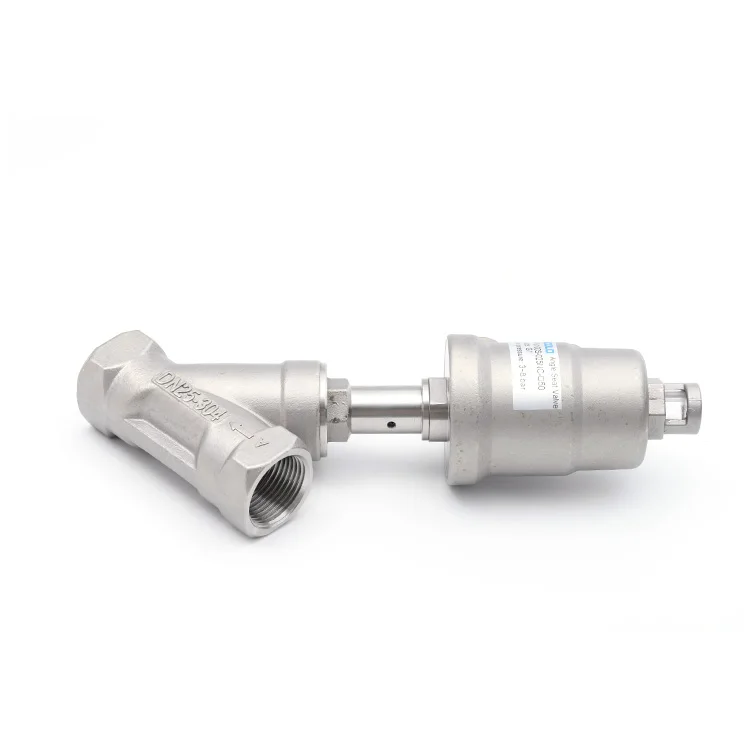

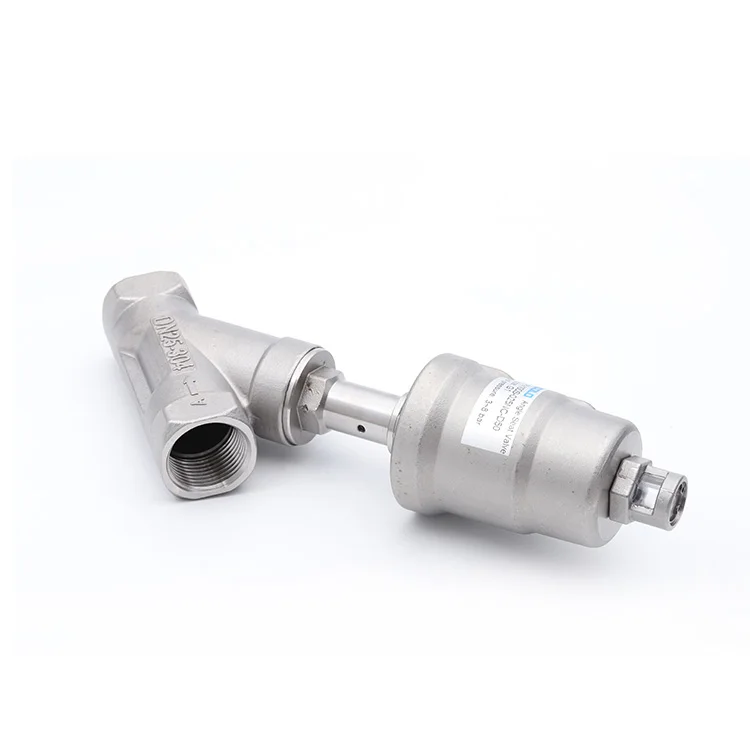

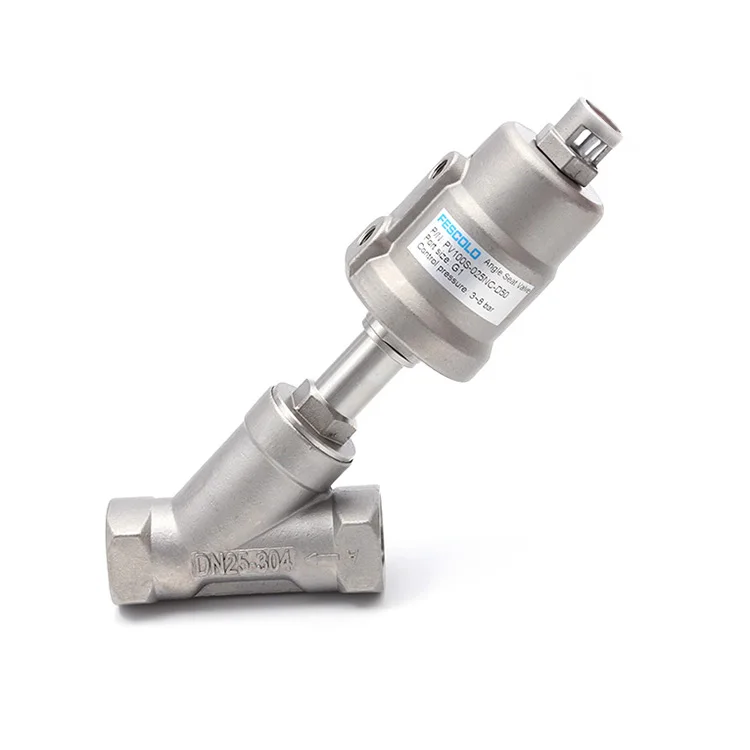

PV100S series full stainless steel high temperature resistant y type angle seat valve

♦ Product name:  PV100 series angle seat valve

♦ Ordering code:

   PV100            S          -       25              NC

 Valve type   Actuator type      Port size     NC: Normally closed

                     P: Nylon                                NO: Normally open

                     A: Aluminum alloy

                     S: Stainless steel SS304,SS316

♦ Characteristic:

 1) Made in SS304, SS316 or Gunmetal material and sealed with NBR, VITON, PDFE.
 2) PV100 Series Plunger pilot angle seat valve is propelled by piston actuator, either single acting or double acting.  Actuators are made of three different materials, applicable to different working temperature.
 3) 2/2 ways stainless steel valve with big flow capacity, and V type seals ensure reliable and effective sealing.
 4) Maintenance free, compatible with various accessories. Direction indicating, stroke limiting or manual switching can be achieved conveniently.

 5) NC and NO universal actuators with modular universal accessary program up to control heads.

 6) Deliverable with flow direction below or above seat. Simple conversion of the circuit function.

 7) High flow rate. Long life cycle.

♦ Specification:

1) Can you provide a sample before a big order?

Answer: Yes, we can provide a sample.

2) What 's the delivery date?

Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.

3) Can you make NPT thread for the port size?

Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.

4) Are you able to make Non-standard or customized air cylinders?

Answer: One of our biggest advantage is for non-standard and customized products.

5) Which port can you delivery?

Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
