Planetary gear motor 24V 12V small DC motor

Product Overview

Description

Planetary gear motor 24V 12V small DC motor

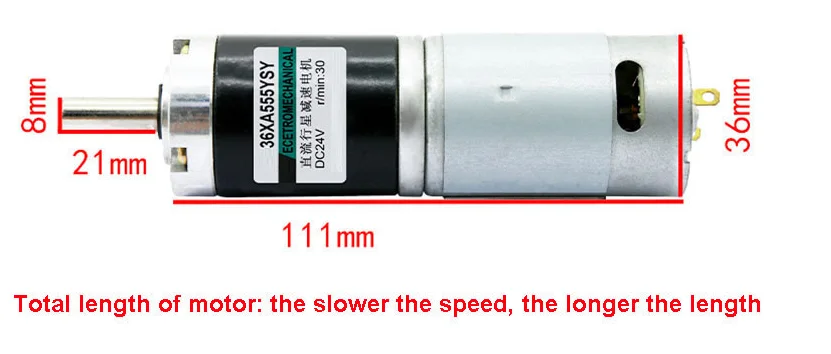

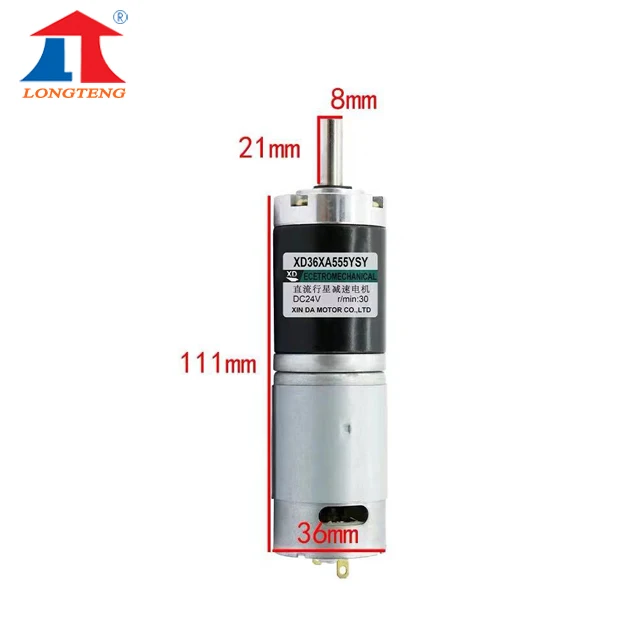

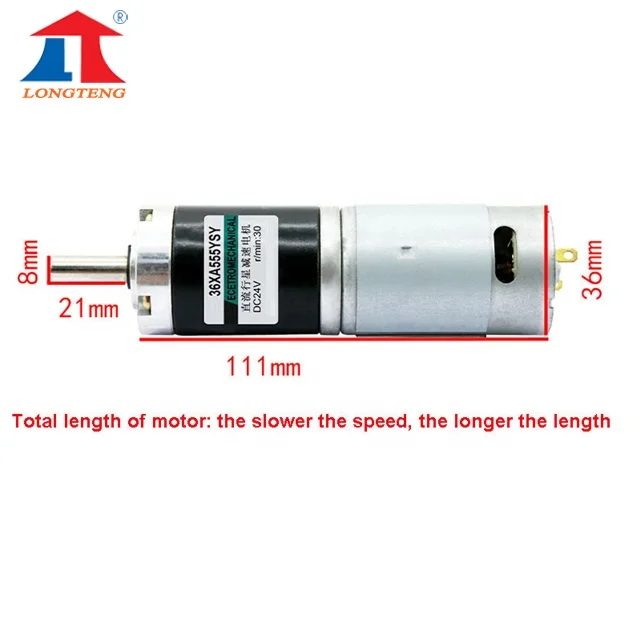

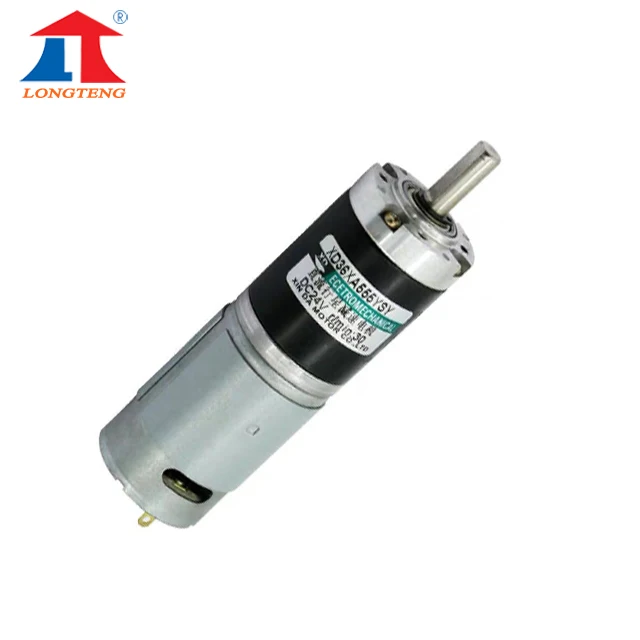

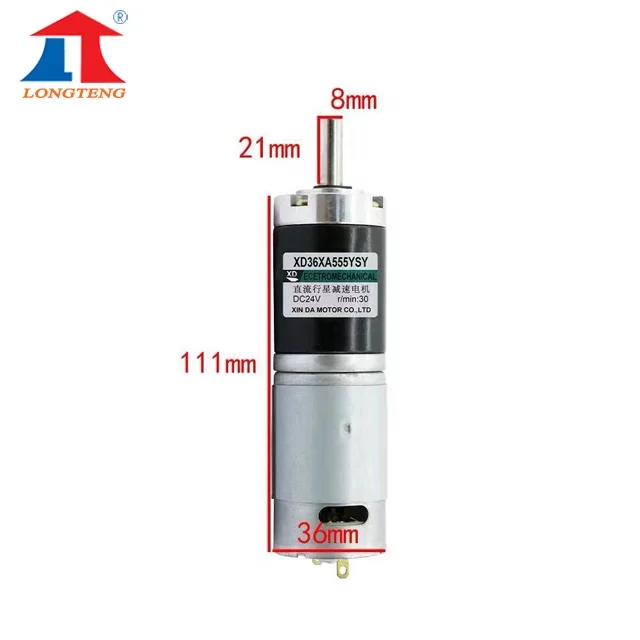

1. Motor Pictures:

    Model number:36XA555YSY





2.Specification of DC12V,24V:

Model	Voltage (DCV)	no-load speed (r/min)	no-load current (A)	load speed (R/MIN)	loading moment (KGF.CM)	locked-rotor current (A)	reduction ratio	power (W)	Reducer length(MM)	weight (KG)
XD36XA555YSY	12	5	0.15	4	68	1.1	719	15	54.7	0.5
		10	0.15	8	34	1.1	516	15	54.7	0.5
		20	0.15	17	17	1.1	189	15	54.7	0.5
		30	0.15	26	11.46	1.1	189	15	54.7	0.5
		50	0.15	45	6.87	1.1	100	15	45.8	0.5
		100	0.15	89	3.43	1.1	51	15	45.8	0.5
		200	0.15	178	1.7	1.1	27	15	37	0.5
		300	0.15	275	1.19	1.1	19.2	15	37	0.5
		500	0.15	465	0.71	1.1	13.7	15	37	0.5
		600	0.15	550	0.59	1.1	5.2	15	28.2	0.5
XD36XA555YSY	24	5	0.2	4	68	1.1	719	15	54.7	0.5
		10	0.2	8	34	1.1	516	15	54.7	0.5
		20	0.2	17	17	1.1	189	15	54.7	0.5
		30	0.2	26	11.46	1.1	189	15	54.7	0.5
		50	0.2	45	6.87	1.1	100	15	45.8	0.5
		100	0.2	89	3.43	1.1	51	15	45.8	0.5
		200	0.2	178	1.7	1.1	27	15	37	0.5
		300	0.2	275	1.19	1.1	19.2	15	37	0.5
		500	0.2	465	0.71	1.1	13.7	15	37	0.5
		600	0.2	550	0.59	1.1	5.2	15	28.2	0.5
