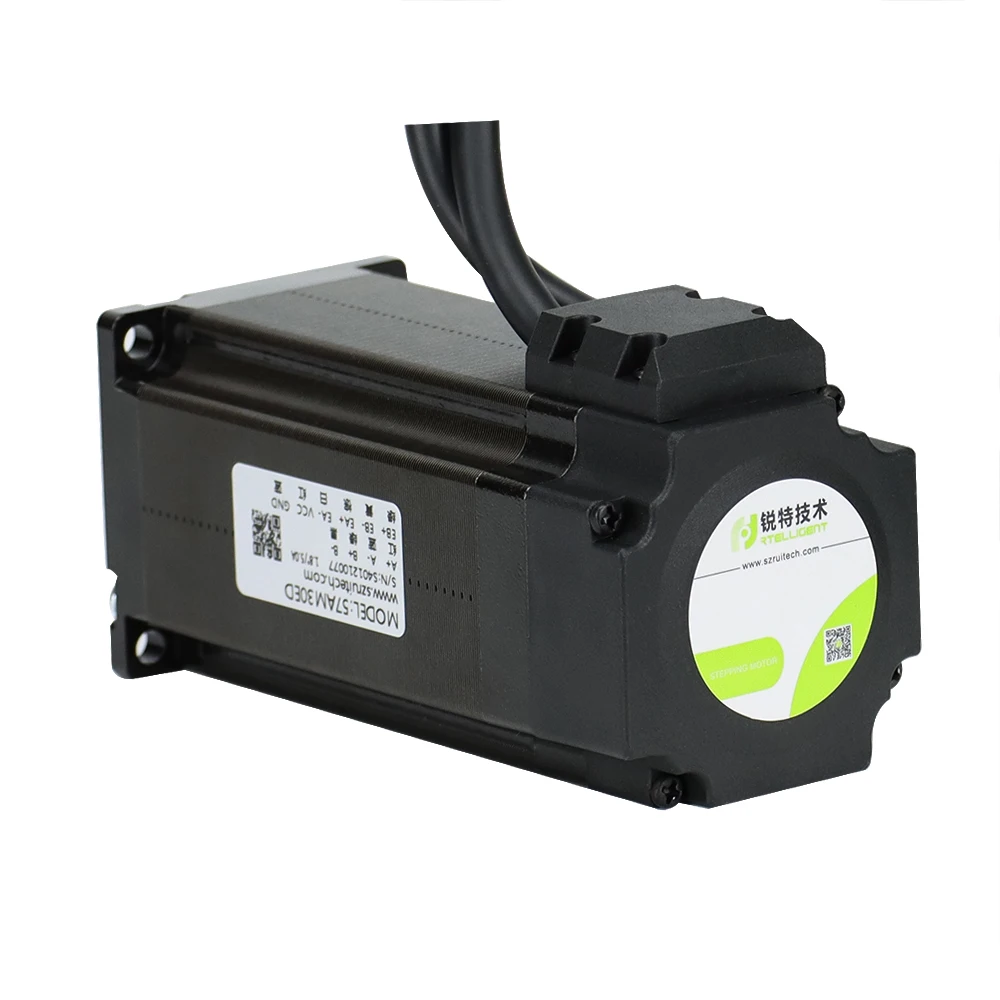

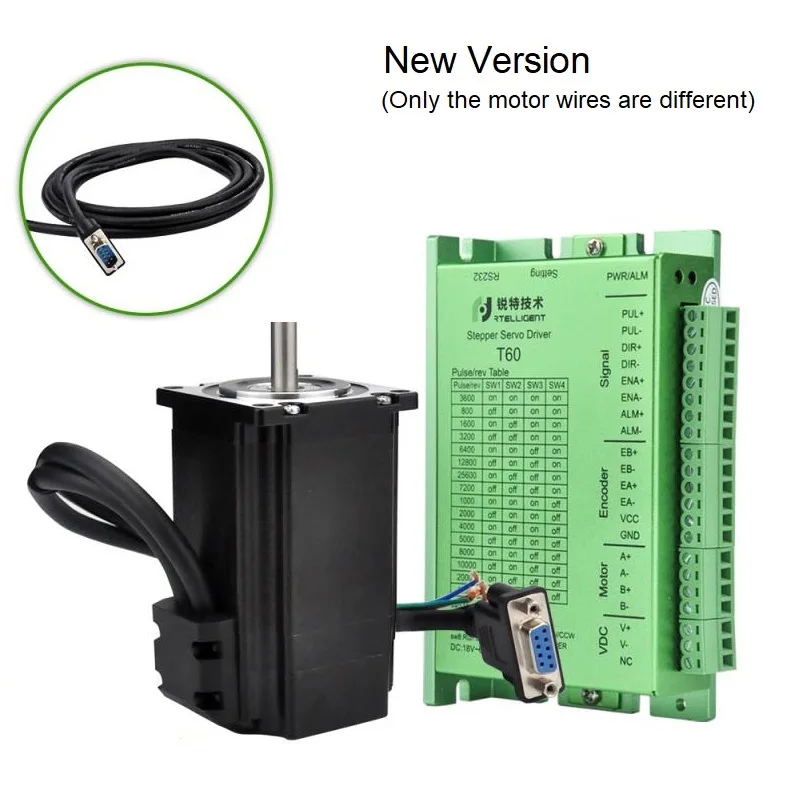

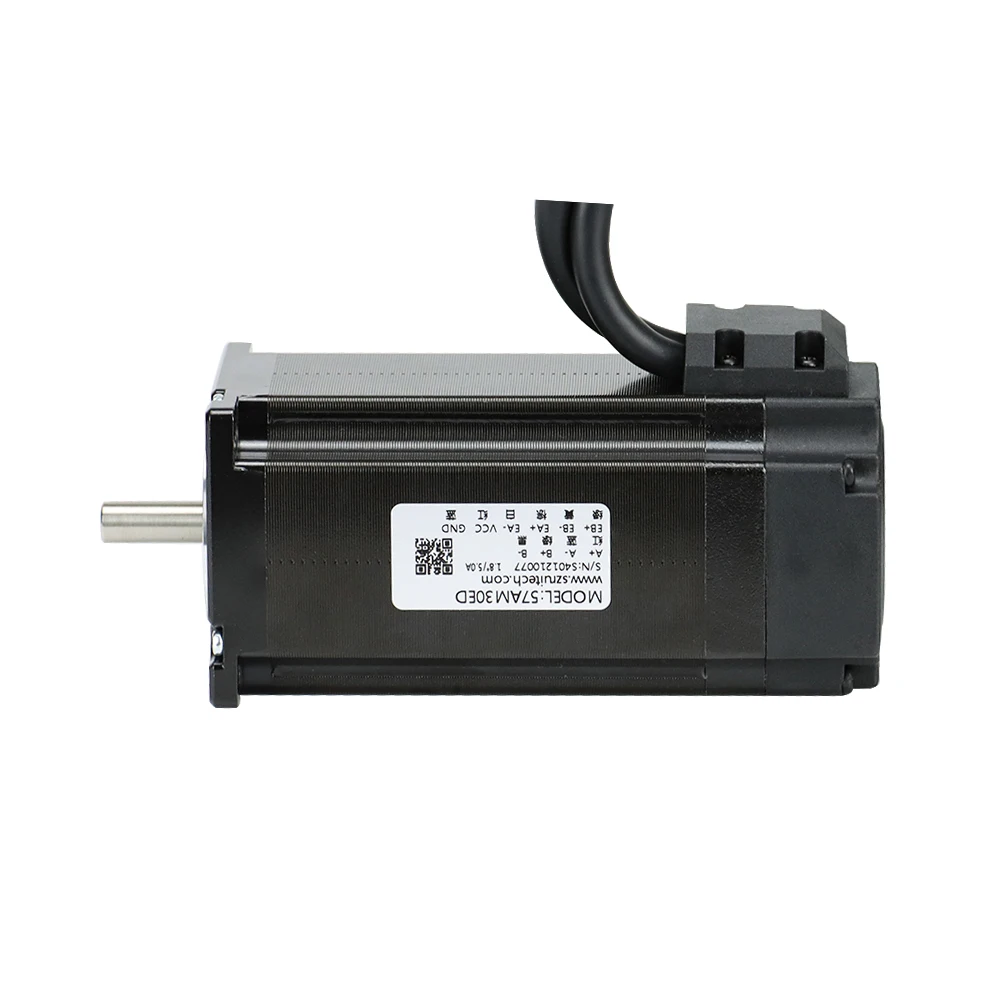

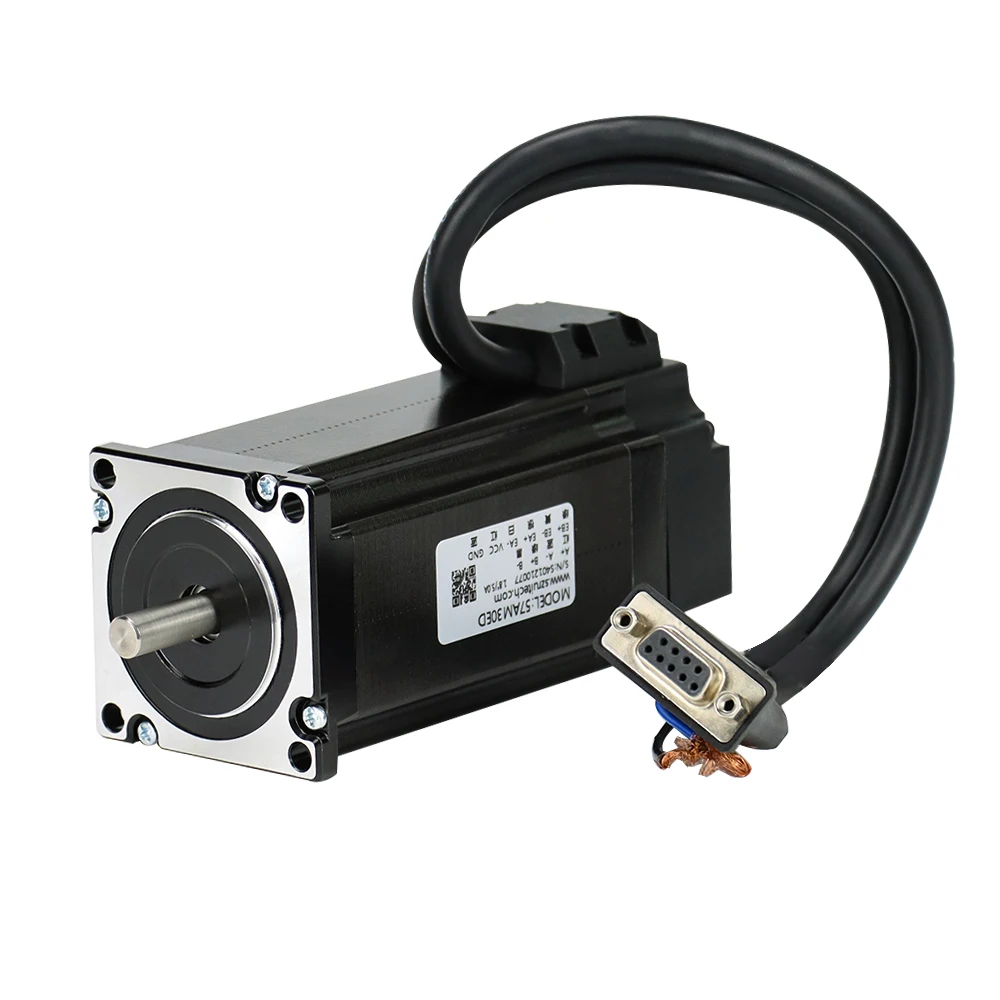

57mm cnc servo kit 2 phase 3.0 N.M Nema23 closed loop stepper motor with encoder
- Category: >>>
- Supplier: Shenzhen Rtelligent Technology Co. Ltd
Share on (62307525900):
Product Overview
Description
Product Description
General specification | ||
Step accuracy | ±5%(synchronizing, no-load) | |
Temperature rise | 80℃Max | |
Ambient temperature | -10℃—+50℃ | |
Insulation resistance | 100MΩmin.500VDC | |
Voltage resistance | 500VAC for one minute | |
Radial runout | 0.06Max.(450g-load) | |
Axial runout | 0.08Max.(450g-load) | |
Technical specifications | ||||||||||
Model | Step angle (o) | Holding torque N.M | Rated current A | Phase resistance Ohm | Encoder resolution | |||||
57AM13ED | 1.8 | 1.3 | 4.0 | 0.4 | 4000 | |||||
57AM23ED | 1.8 | 2.3 | 5.0 | 0.6 | 4000 | |||||
57AM26ED | 1.8 | 2.6 | 5.0 | 0.5 | 4000 | |||||
57AM30ED | 1.8 | 3.0 | 5.0 | 0.82 | 4000 | |||||

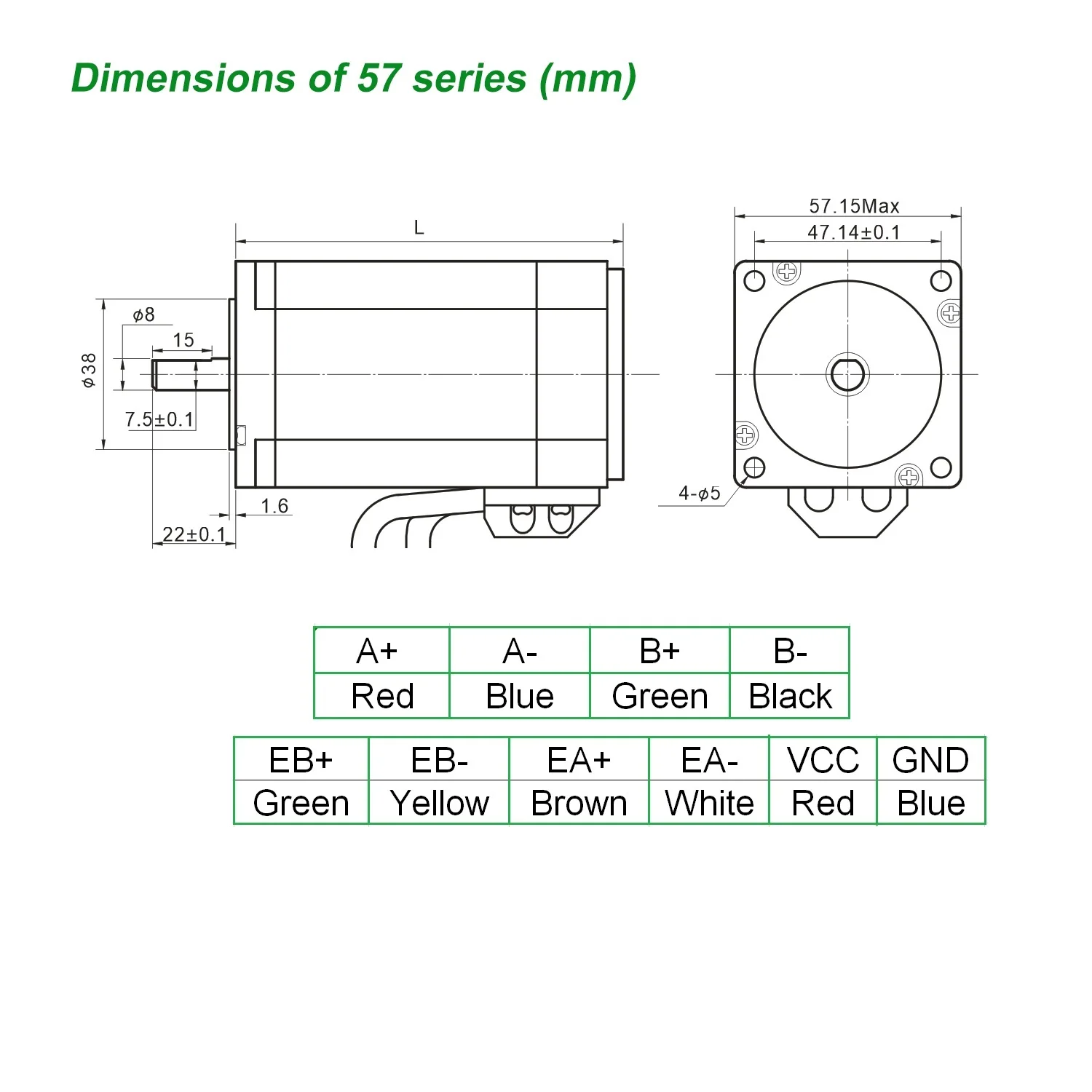

Model | Rotor inertia (kg.cm2) | Shaft diameter mm | Phase inductance | Motor body Length L(mm) |
57AM13ED | 260 | 8 | 1.6 | 77 |
57AM23ED | 460 | 8 | 2.4 | 98 |
57AM26ED | 520 | 8 | 2.1 | 106 |
57AM30ED | 720 | 8 | 3.7 | 124 |
Detailed Images

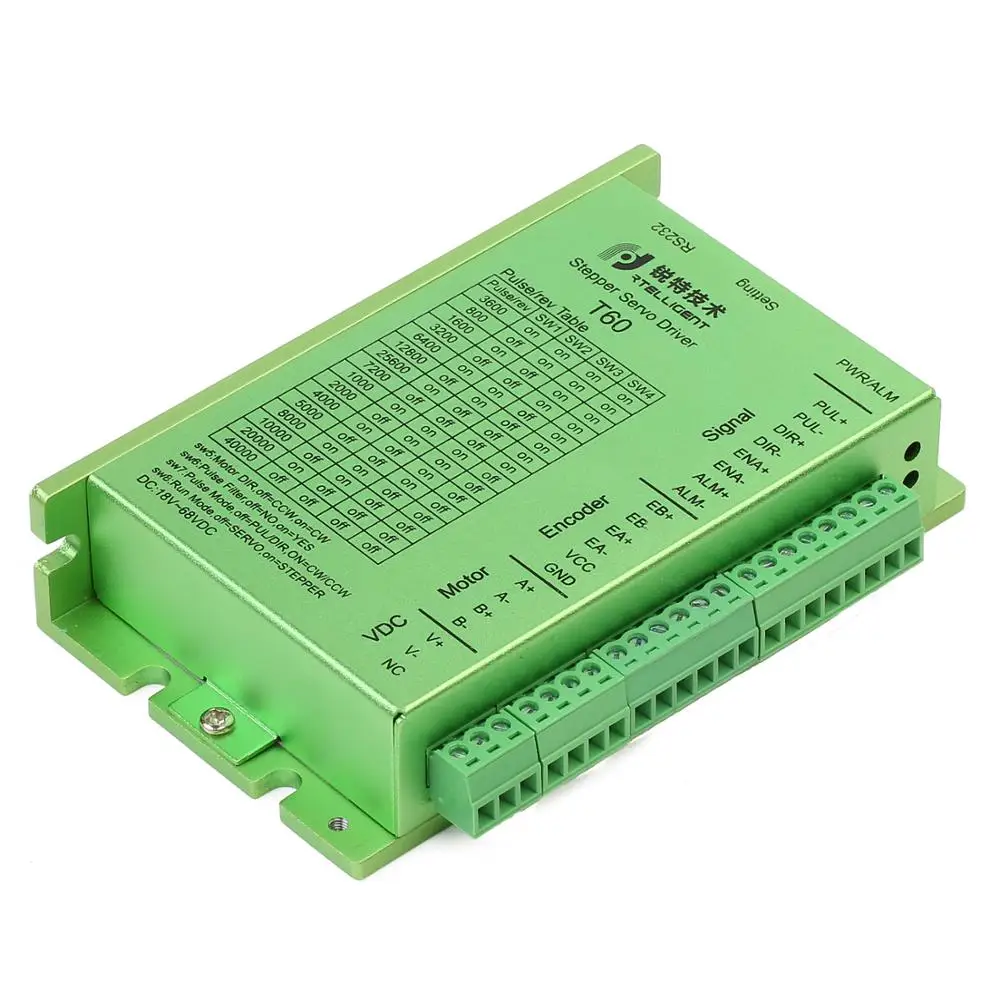

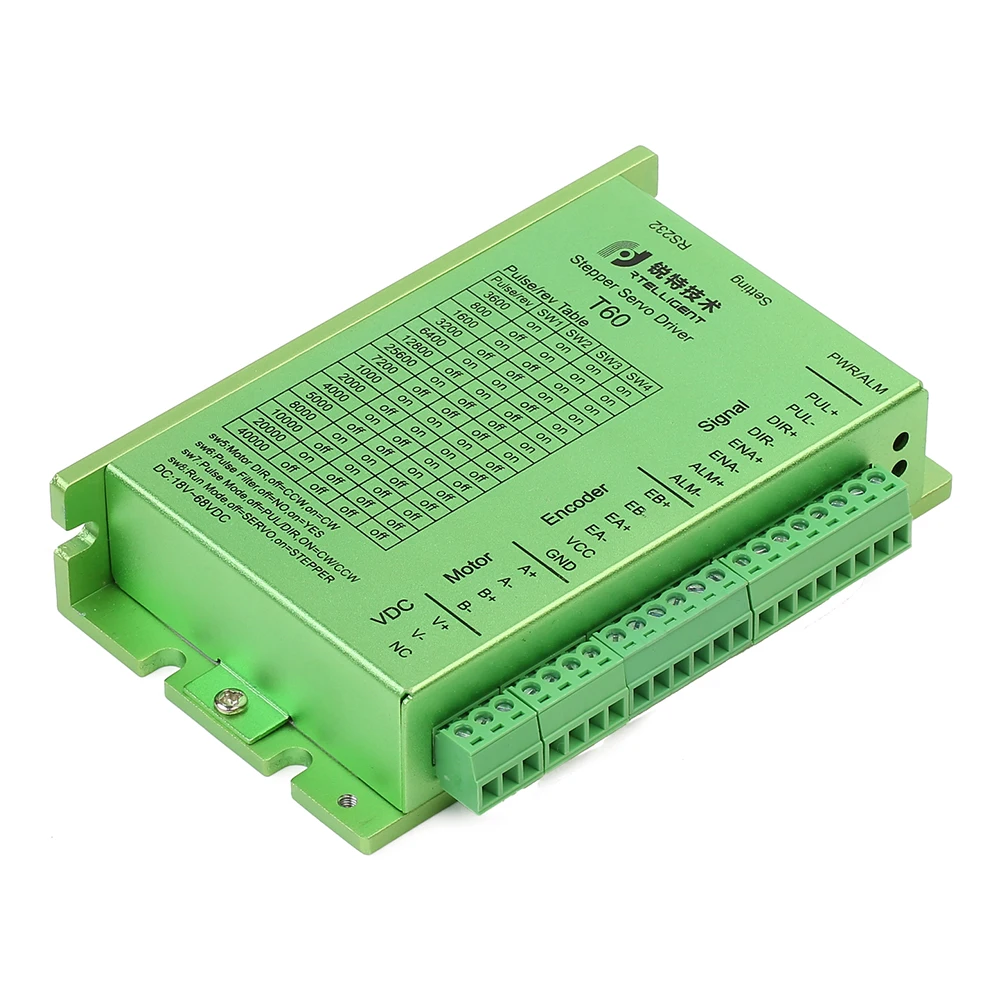

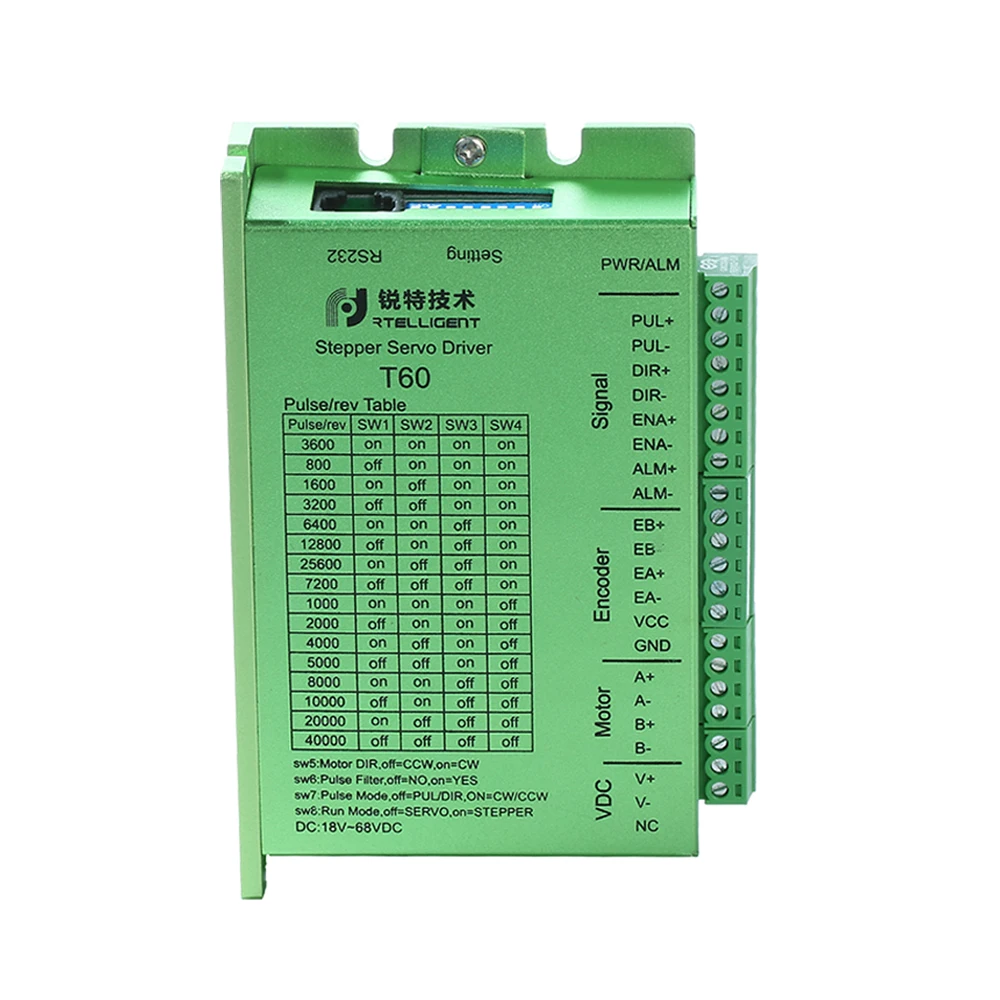

T60 Stepper Motor Servo Drive for Nema 17/23/24
Based on the new 32-bit DSP platform, provided with vector control technology and servo demodulation function internally and in combination with feedback from the encoder of closed loop motor, T60 stepper servo drive enables the stepper servo system to feature low noise, low heating, no loss of step and higher application speed, able to improve performance of the intelligent equipment system comprehensively.
♦ Pulse mode: monopulse/double-pulse
♦ Signal level: 3.3-24V compatible; serial resistance not necessary for the application of PLC.
♦ Power voltage: 24-50V DC, and 36 or 48V AC recommended.
♦ Typical applications: welding machine, servo dispenser, wire-stripping machine, labeling machine, carving machine, electronic
assembly equipment etc.
♦ Signal level: 3.3-24V compatible; serial resistance not necessary for the application of PLC.
♦ Power voltage: 24-50V DC, and 36 or 48V AC recommended.
♦ Typical applications: welding machine, servo dispenser, wire-stripping machine, labeling machine, carving machine, electronic
assembly equipment etc.
