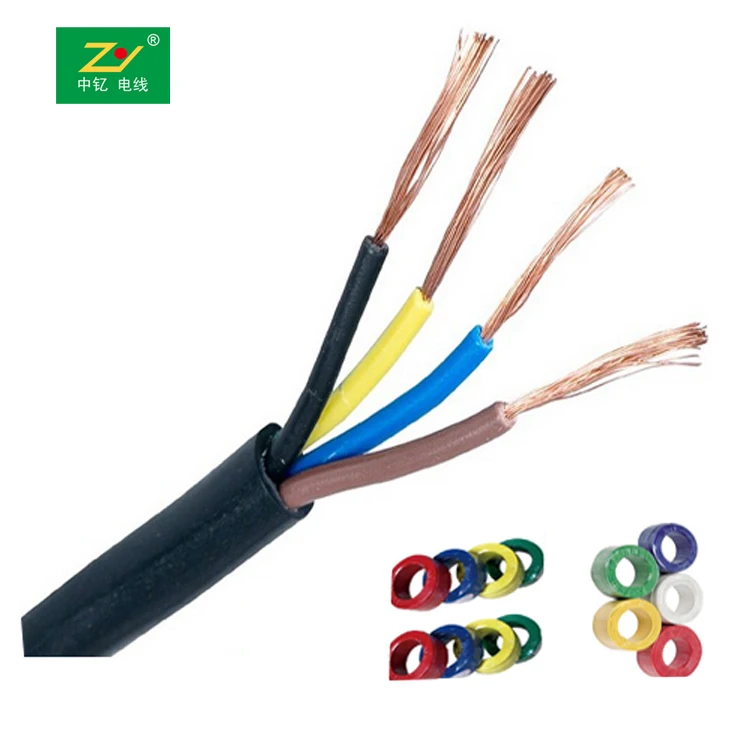

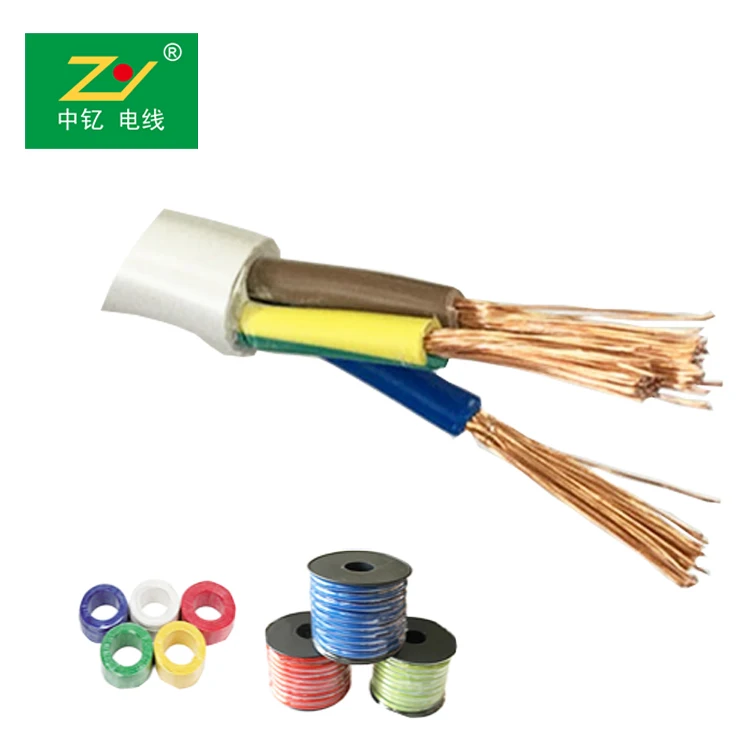

Copper electrical cable pvc cable 1.5mm2 4mm2 cable houslehold electrical cableis used to transmit and distribute power in power transmission and distribution system of 300V/500V or 450V/750V. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Voltage Rating:
Rated at 300/500V for multile core cable and 450/750V for single core cable with an operating temperature of 105°C.

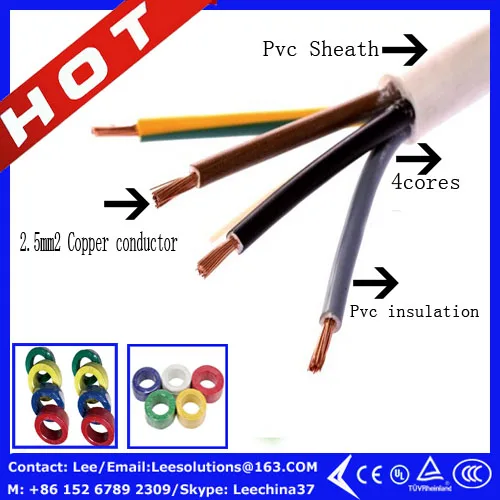

Construction:

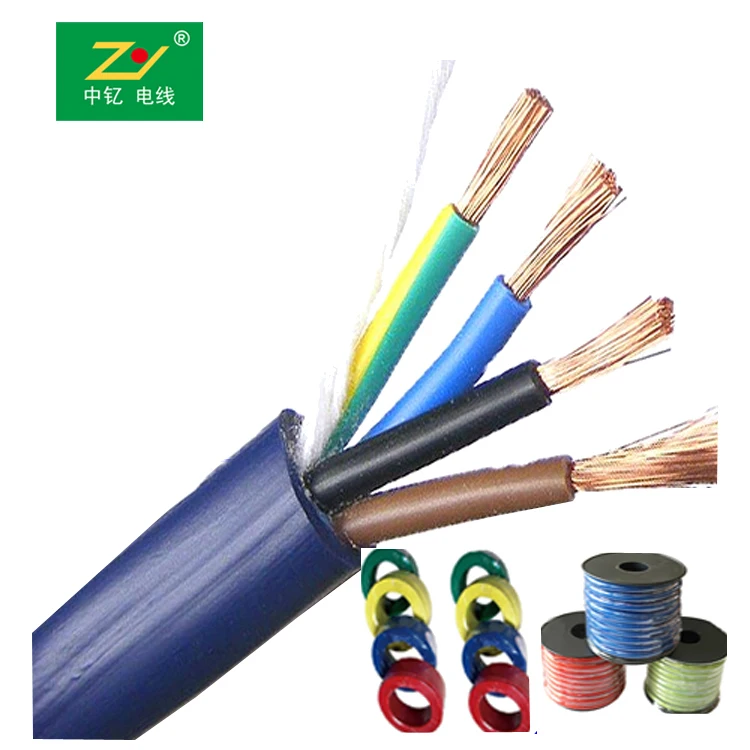

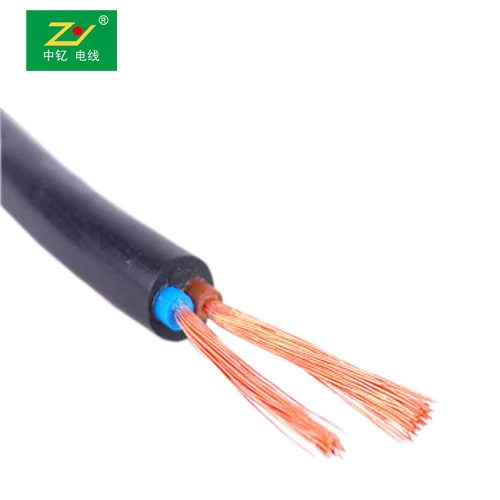

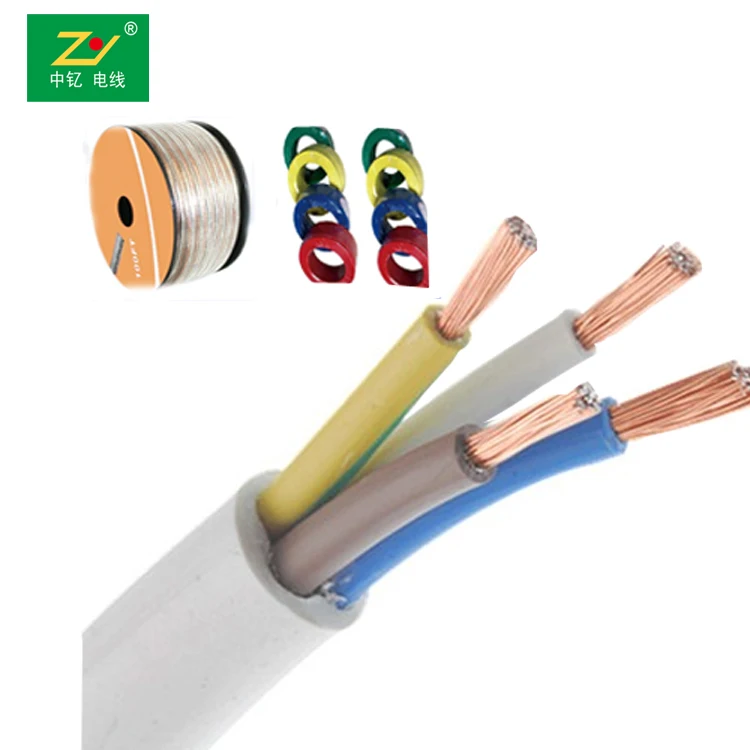

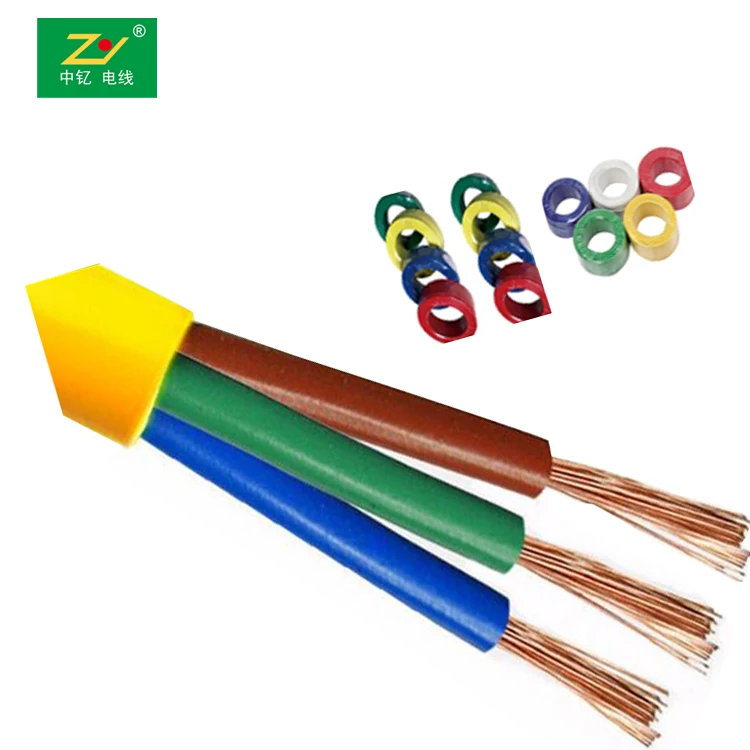

• Conductors – made up of soft annealed copper, flexible.Two Soft drawn bunched copper conductor .Available sizes are listed below.
• Two or above conductor are laid in and extruded with polyvinyl chloride(PVC) Lead free to form a two or above wire conductor. This thermoplastic is flam retardant and resistant to moisture.
Cable Marking: Standeard size
• Size
• No. of cores
• Type
• Voltage
• Manufacturers name
• Date
Standeard size: 1.5mm 2.5mm copper cable data sheet

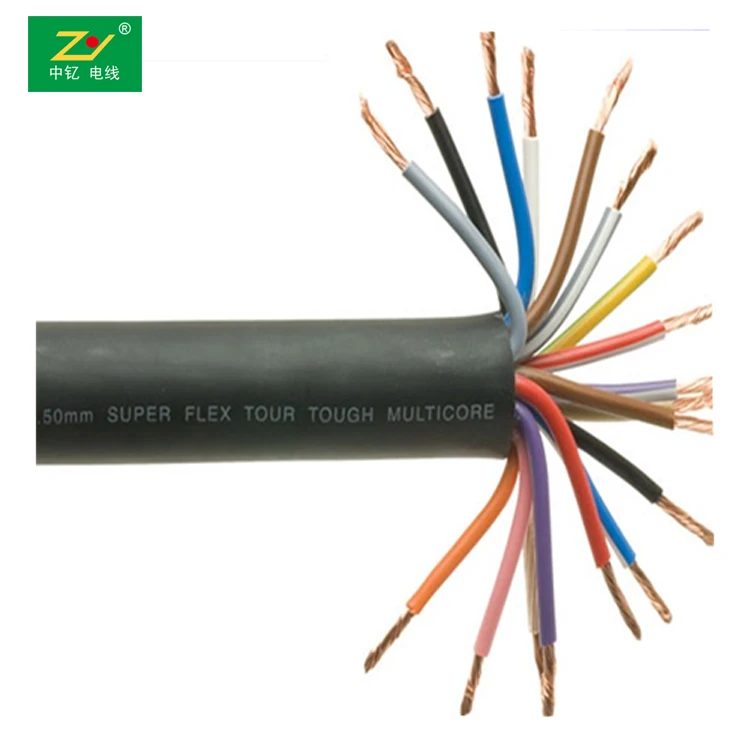

Multicore cable size
Household multicore cable size
Nominal section
No./dia. of core
Average dia.(mm)
Reference weight
Conductor resistance at 20℃
(mm2)
(mm)
min
max
(kg/km)
(Ω/km)
2x0.5
16/0.2
4.6 or 3.0x4.9
5.9 or 3.7x5.9
31.5
39
2x0.75
24/0.2
4.9 or 3.2x5.2
6.3 or 3.9x6.4
40
26
3x0.5
16/0.2
4.9
6.3
40.6
39
3x0.75
24/0.2
5.2
6.7
51.8
26
2x1
32/0.2
5.9
7.5
57.8
19.5
2x1.5
30/0.25
6.8
8.6
74.7
13.3
2x2.5
49/0.25
8.4
10.6
120
7.98
3x0.75
24/0.2
6
7.6
63.1
26
3x1
32/0.2
6.3
8
74
19.5
3x1.5
30/0.25
7.4
9.4
102
13.3
3x2.5
49/0.25
9.2
11.4
162
7.98
4x0.75
24/0.2
6.6
8.3
78.5
26
4x1
32/0.2
7.1
9
97.5
19.5
4x1.5
30/0.25
8.4
10.5
133
13.3
4x2.5
49/0.25
10.1
12.5
204
7.98
5x0.75
24/0.2
7.4
9.3
96.9
26
5x1
32/0.2
7.8
9.8
115
19.5
5x1.5
30/0.25
9.3
11.6
158
13.3
5x2.5
49/0.25
11.2
13.9
249
7.98
The Specifications as above is for your reference.We are appreciated if you can offer me the items.
