Factory professional supplier hvac spring anti vibration damper isolator mount

Product Overview

Description

Duct vibration isolator



Duct vibration isolator with the design of the anti slip and anti bolt, enlarged contact area, thus raising the pressure on the stability of the product.

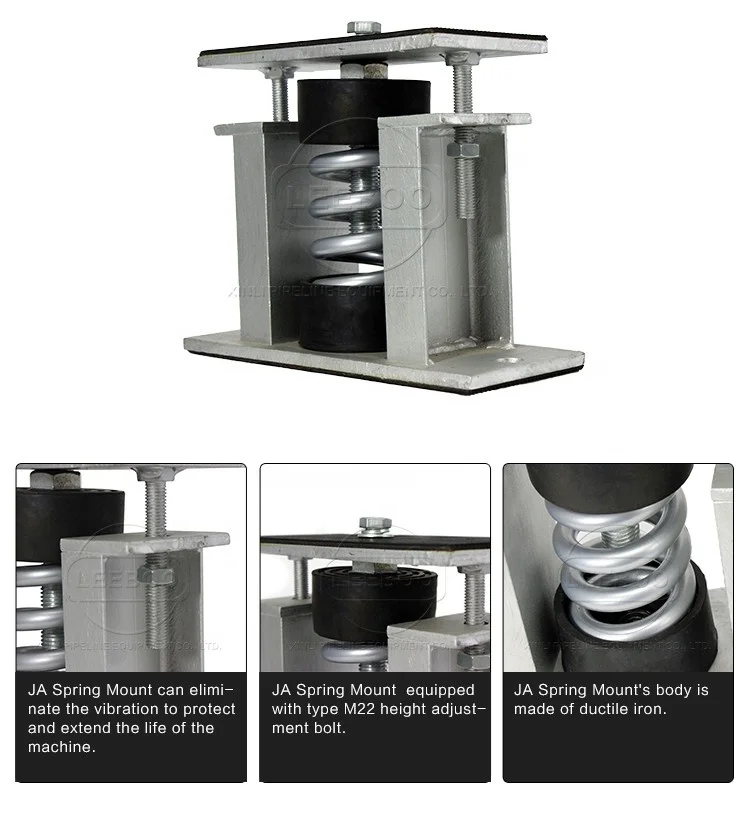

Professional supplier spring damper electric isolator equipped with type M22 height adjustment bolt, the installation is simple and can be adjusted according to the actual needs of the product height. So that the product can better adapt to the different actual installation environment.

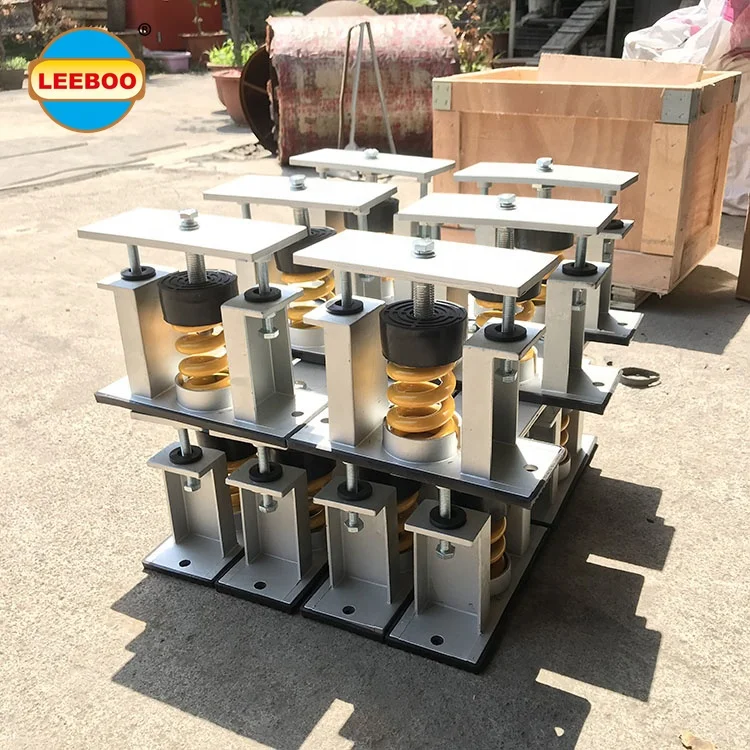

This product is composed of multiple groups of springs, which can be customized according to the actual situation of the user's actual use, thus it can meet the different environment of the installation requirements. Professional supplier spring damper electric isolator vibration damper can eliminate the vibration of the mechanical structure to protect and extend the life of the machine.

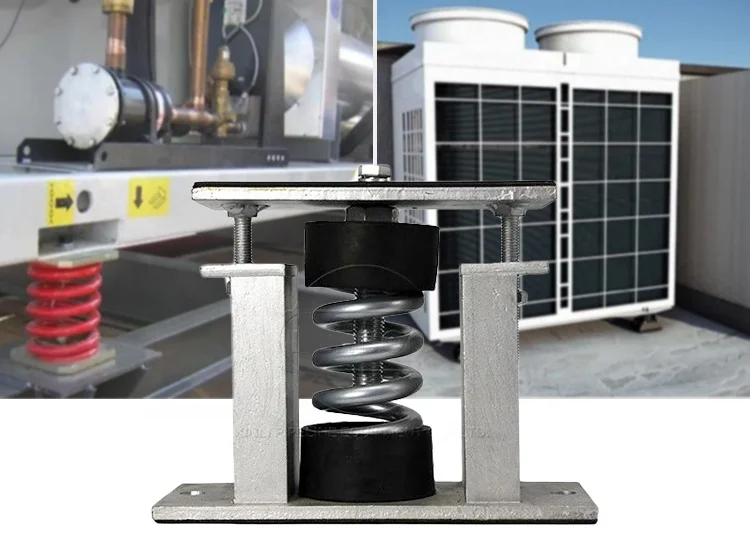

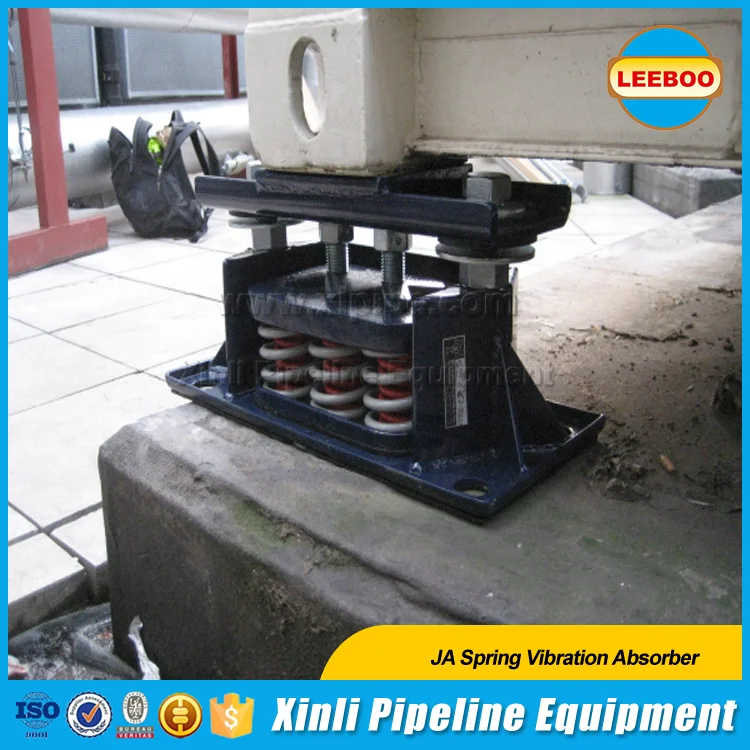

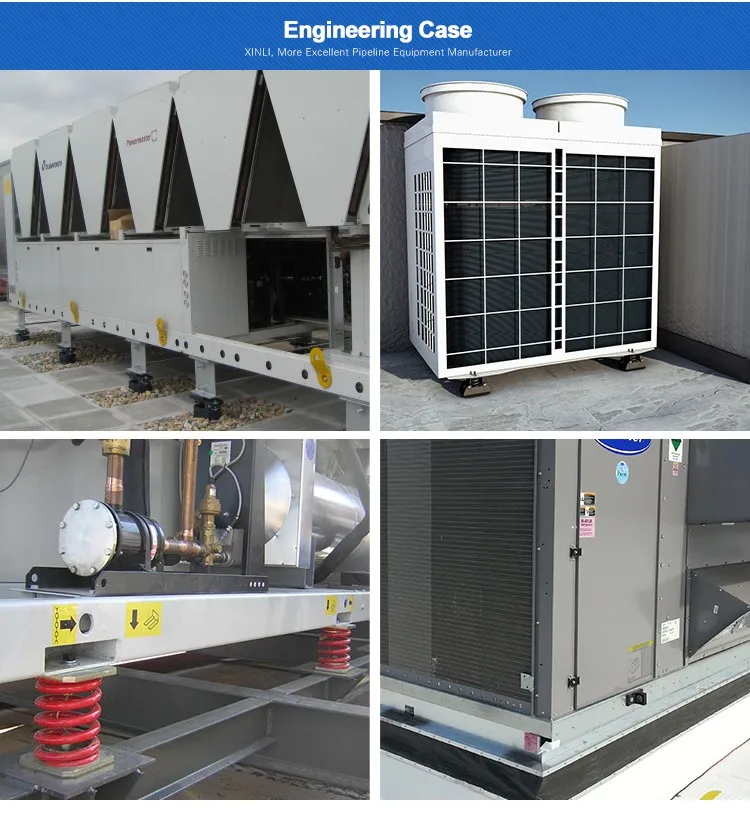

Professional supplier spring damper electric isolator is composed of multiple groups of springs, which can be customized according to the actual situation of the user's actual use.It mainly used for all kinds of heavy machinery, cooling tower, fire pump, sent to the opening of the fan, etc. with strictly regulated requirements of the construction environment.Xinli as a professional damping spring shock absorber supplier,has cooperated with many customers,and received high praise from customers.



As a 20-year-plus authority in lead-free pipeline equipment manufacturing, XINLI provides Professional supplier spring damper electric isolator with a distinct advantage in lead-free plumbing solutions.

We design, produce and inventory more styles and sizes of spring shock absorbers. We have become known as the "Problem Solvers" when it comes to shock absorber applications.

Professional supplier spring damper electric isolator by Xinli pipeline Equipment Company is mainly according to GB standard,DIN,ANSI and other standard manufactured of home and aboard.Poweverful company strength,strong technical force, more than 4000 square meters of workshop,advanced production equipment and testing equipment gradually replace by mechanization, all these greatly improved the production capacity, thus customers with urgent orders can also be perfectly satisfied.





Model	H(mm)	L(mm)	W(mm)	L1(mm)	W1(mm)	A(mm)	B(mm)	Application of Deflection	Fixed Bolt	∅BD
JA-1	195	260	100	210	100	230	0	25	16	M12
JA-2	200	235	220	235	125	195	180	25	14
JA-4	200	320	200	320	200	290	135	25	14
JA-6	197	400	170	400	170	370	140	25	18	*
JA-9	197	420	250	420	250	384	214	25	18
JA-1-A	195	260	100	210	100	230	0	40	16	M12
JA-2-A	200	235	220	235	125	195	180	40	14
JA-4-A	200	320	200	320	200	290	135	40	14
JA-1-B	240	280	130	280	130	250	100	50	16	M12
JA-2-B	240	280	220	280	220	250	190	50	16
JA-4-B	240	380	210	380	210	350	180	50	16
JA-1-C	290	310	230	310	230	260	18	75	18	M16
JA-2-C	305	320	280	320	280	270	230	75	18
JA-4-C	305	440	310	440	310	390	260	75	18
JA-1-D	390	370	260	370	260	320	210	100	20
JA-1-E	430	370	260	370	260	320	210	125	20



Model	KGF Scope Kgs	Elastic Coefficient Kg/mm
JA-1-100	90~105	4.2
JA-1-150	130~160	5.3
JA-1-200	160~210	7.1
JA-1-250	210~260	8.7
JA-1-300	260~320	10.8
JA-1-350	320~360	12.1
JA-1-400	360~430	14.2
JA-1-450	430~470	15.8
JA-1-500	470~530	19.2
JA-1-600	530~650	22.6
JA-1-700	650~700	26
JA-1-850	700~850	33.6
JA-1-1000	850~1000	46
JA-2-800	700~850	28.4
JA-2-900	850~950	31.5
JA-2-1000	950~1050	38.3
JA-2-1200	1050~1250	45.2
JA-2-1400	1250~1400	52
JA-2-1600	1400~1600	67.1
JA-2-2000	1850~2150	92.1
JA-4-1400	1300~1450	48.5
JA-4-1600	1450~1700	56.8
JA-4-1800	1700~1800	63
JA-4-2000	1800~2000	76.6
JA-4-2400	2000~2400	90.3
JA-4-2800	2400~2800	103.2
JA-4-3200	2800~3200	134.2
JA-4-4000	3200~4000	184.1
JA-6-3600	3000~3600	135.5
JA-6-4200	3600~4200	155.9
JA-6-5000	4200~5000	201.4
JA-6-6000	4600~6100	276
JA-9-4600	4200~4600	172.4
JA-9-5500	4600~5500	203.2
JA-9-6500	5500~6500	233.8
JA-9-7500	6500~7500	302
JA-9-9000	7500~9000	414
JA-9-10800	9000~10800	432
JA-1-150-A	130~160	3.5
JA-1-200-A	160~210	4.9
JA-1-300-A	270~310	6.9
JA-1-350-A	340~360	8.6
JA-1-450-A	420~460	11.9
JA-1-650-A	630~670	16.2
JA-1-700-A	680~720	18.3
JA-1-11000-A	720~1000	26.6
JA-2-300-A	260~320	7
JA-2-400-A	380~420	9.8
JA-2-600-A	540~620	13.8
JA-2-700-A	680~720	17.2
JA-2-900-A	840~920	23.8
JA-2-1300-A	1260~1340	32.4
JA-2-1400-A	1360~1440	36.6
JA-2-2000-A	1700~2000	53.2
JA-4-600-A	520~640	14
JA-4-800-A	760~840	19.6
JA-4-1200-A	1080~1240	27.6
JA-4-1400-A	1360~1440	34.4
JA-4-1800-A	1680~1840	47.6
JA-4-2600-A	2520~2680	64.8
JA-4-2800-A	2720~2880	73.2
JA-4-4000-A	3800~4200	106.4
JA-1-100-B	90~120	2
JA-1-150-B	120~160	3
JA-1-250-B	160~260	5
JA-1-350-B	320~360	7
JA-1-400-B	360~420	8
JA-1-450-B	420~470	9
JA-1-500-B	470~520	10
JA-1-600-B	570~620	12
JA-1-750-B	700~750	15.2
JA-1-850-B	750~870	17
JA-1-1000-B	870~1050	20.2
JA-2-1200-B	1050~1250	24
JA-2-1400-B	1250~1500	30.2
JA-2-1700-B	1400~1700	34
JA-2-2000-B	1700~2000	40.4
JA-4-2400-B	2000~2400	48
JA-4-2800-B	2400~2800	60.4
JA-4-3400-B	2800~3400	68
JA-4-4000-B	3200~4000	80.8
JA-1-100-C	80~120	1.3
JA-1-150-C	120~170	2
JA-1-250-C	170~270	3.3
JA-1-300-C	270~320	4
JA-1-350-C	320~370	4.7
JA-1-450-C	370~470	6
JA-1-550-C	470~570	7.6
JA-1-650-C	570~670	8.6
JA-1-750-C	670~770	10.9
JA-1-1000-C	750~1000	13.5
JA-2-1300-C	1100~1300	17.2
JA-2-1500-C	1270~1550	21.8
JA-2-2000-C	1950~2100	27
JA-4-2600-C	2300~2650	34.4
JA-4-3000-C	2650~3100	43.6
JA-4-4000-C	3100~4100	54
JA-1-100-D	90~105	1
JA-1-150-D	130~160	1.5
JA-1-200-D	160~200	2
JA-1-300-D	260~320	2.9
JA-1-350-D	320~360	3.5
JA-1-400-D	360~420	4
JA-1-450-D	430~470	4.5
JA-1-500-D	470~520	5
JA-1-600-D	530~650	5.9
JA-1-700-D	650~700	7
JA-1-800-D	700~820	8
JA-1-1000-D	820~1020	10
JA-1-200-E	160~200	1.6
JA-1-300-E	260~320	2.4
JA-1-350-E	320~360	2.8
JA-1-400-E	360~420	3.2
JA-1-450-E	430~470	3.6
JA-1-550-E	470~520	4.4
JA-1-700-E	650~700	5.2
JA-1-750-E	700~750	6
JA-1-900-E	750~900	6.8
JA-1-1000-E	900~1000	7.9
JA-1-1300-E	1000~1300	10



1. Quality: ISO9001:2008 quality certified, quality and pressure test in workshop and by third party.
2. Equipment: 20+ molding machines, updated numeric control equipment for machining.
3. Staff: manfacturer of rubber joint since 1997, with well-trained and rich-experienced local workers.
4. Fast delivery: Lots of stocks for urgent order. 5-15 days after payment
5. Price: competitive factory price let clients benefit more from us.
6. Low MOQs / OEM orders acceptable.

Customer visit of Professional supplier spring damper electric isolator

LEEBOO - China Famous Brand
Gongyi Xinli Pipeline Equipment Co., Ltd. is a professional manufacturer in the field of pipeline equipment for nearly 20 years and has 15 years sales experience.
Main products: Duct vibration isolator,rubber expansion joint, rubber duckbill check valve, dismantling joint, metal hose, metal bellows expansion joint, wall sleeves, valves, etc.

Our products have been exported to about 20 countries, such as Germany, Sweden, Russia, Italy, Portugal, Armenia, Dubai, Kuwait, Saudi Arabia, Egypt, South Africa, India, Singapore,Thailand, Vietnam, the Philippines, Australia, Argentina and USA.





1. Company Business Licence
2. ISO 9001:2008
3. AAA Grades Trustworthness Enterprise of China
4. Green Environmental Protection Top Brand
5. First Level Supplier of China National Petroleum Corporation (2008)
6. China Quality Sincerity Enterprise Association Member
7. China Famous Brand (2009)



Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Can you make the product as per client's requirement?
A: Yes, OEM service available.
Q: How can you guarantee the quality or any warranty?
A: Any quality problems during use, all the products can be returned for domestic clients; we will send more free product in next batch for overseas clients or according to the requests.
Q: Do you accept small quantity order?
A: Yes, MOQ 1 pc for standard size, 5 pcs for customized size.
Q: What is your payment terms?
A: Usually T/T(30% as deposit, the rest 70% will be paid before delivery). L/C, Western Union, Paypal also acceptable.
Q: Where is your loading seaport?
A: Shanghai. (Qingdao, Tianjin or as per request)
