Best Price advertising equipment capacitive touch foil,multi touch film,touch screen film

Product Overview

Description

If you need to buy touch screen to choose from the following three

IR Touch Screen Technical Parameters	The classification of IR Touch Screen :
Feature: (1)USB Interface, Plug & Play, Free Driver(RS232 Port optional)         (2)Scratch proof,vandal proof,Dust Proof         (3)Optional:Waterproof IP65(Plastic Frame Type)         (4)Optional:Anti Glare,Strong Sunlight(Aluminum Alloy&Plastic Frame)         (5)3mm/4mm/5mm Tempered Glass Resolution: 32768*32768 Touch Points: 21.5 inch below is 2 points;32 inch above is 10 points Response Time: 8MS-15MS Input Method: Finger or other Opacity Touch Medium  Compatible OS: WindowsXP, 7, 8, 10, Linux,Mac, Android Work Voltage: DC 5V(+4.75_+5.25V)	1. IR Touch Screen Plastic Frame(Waterproof IP65)   2.Aluminum Alloy Frame IR Touch Screen(Anti Glare,Strong Sunlight)   2. No-Frame IR Touch Screen
Capacitive Touch Screen Technical Parameters
Feature: (1)USB Interface, Plug & Play, Tempered Glass 3mm          (2)Scratch proof,Dust Proof          (3)3mm Tempered Glass Touch Points:10 points Input Method: Finger , Capacitive Touch Pen Transparency: ≥85%±5% Compatible OS: Windows XP, 7, 8, 10, Linux,Mac, Android Mechanical: (1)Connection Cable: FPC (2)Active Force: ≤10g (3)Surface Hardness:≥6H

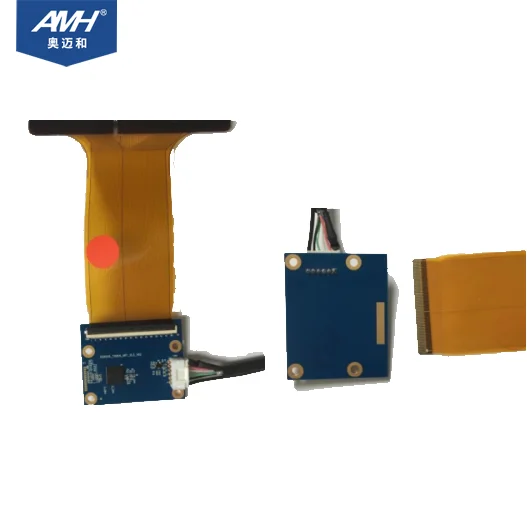

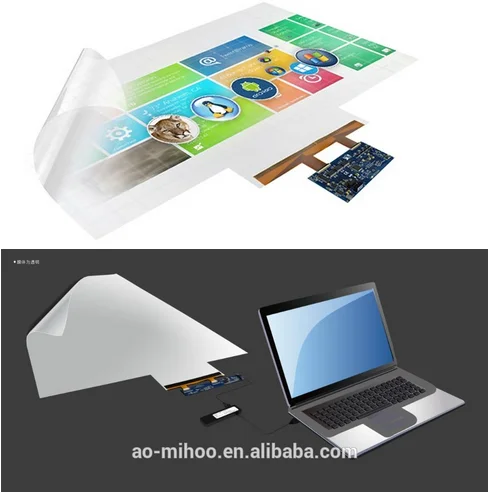

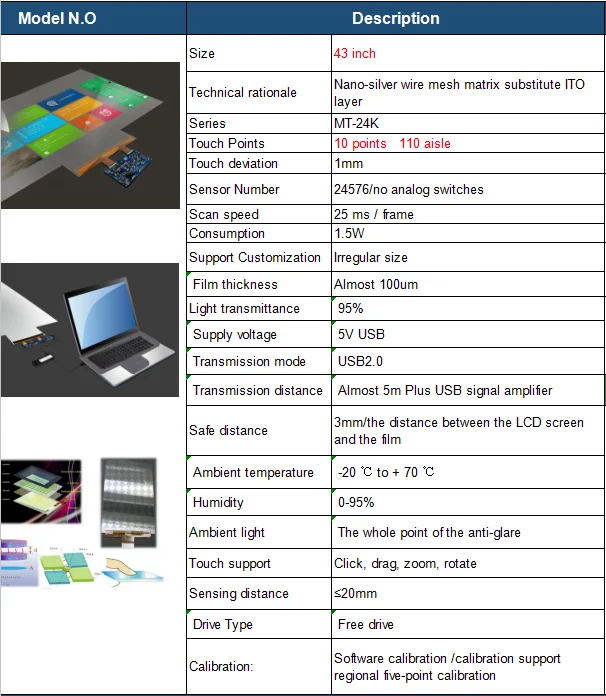

Nano Touch Foil  Technical Parameters
Feature: USB Interface, Plug & Play, 1.Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc" 2.Almost Transparent with Nano Touch Foil 3.High Penetration to Capture finger touch/gesture over the medium.   Touch Points:10 points 4.Large sizes available up to 167 inch Input Method: Finger Compatible OS: WindowsXP, 7, 8, 10, Linux,Mac, Android Connection Cable: FPC Active Force: ≤10g Thickness: ≤100um

Part2

Regular size for reference, any customized size required pls feel free to contact us, our fast reply will be provide,The sizes not listed,please contact AMH. (Can be customized)

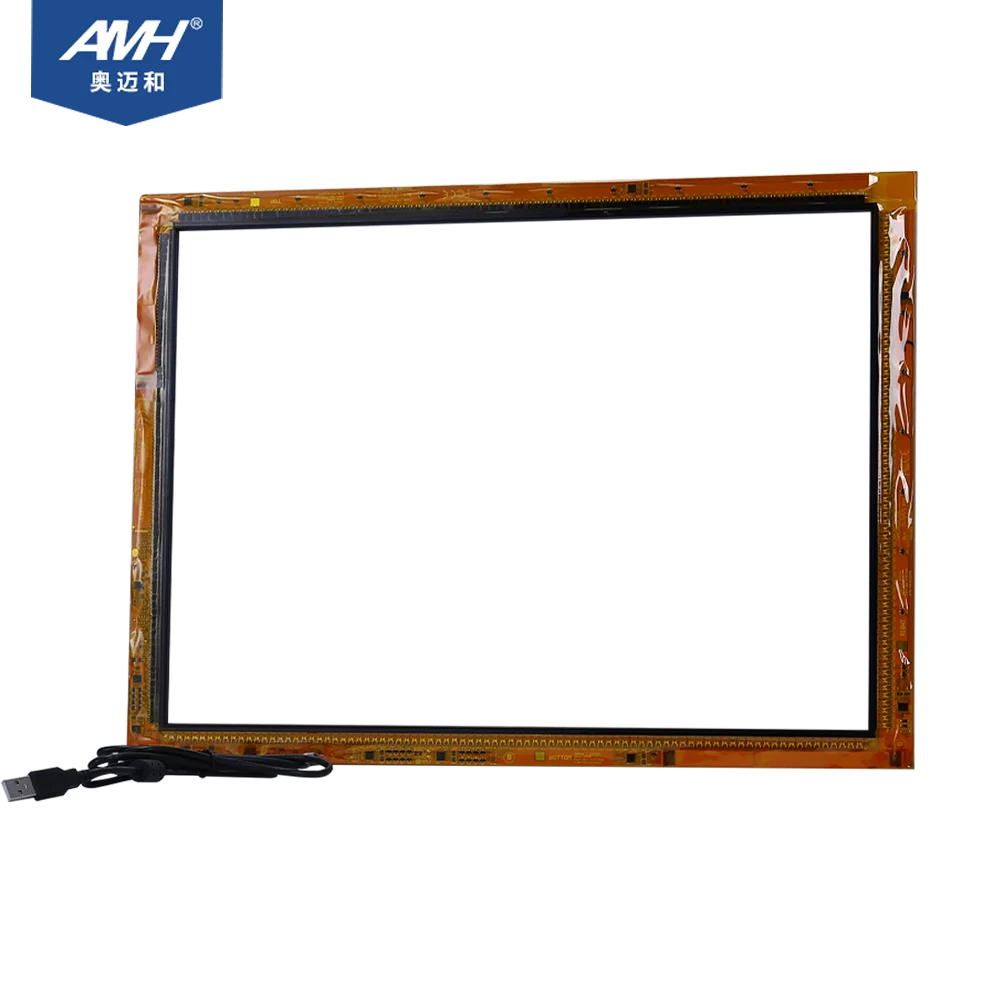

1.IR Touch Screen Available for size:

(1)IR Touch Screen Plastic Frame optional size:26‘’ 27“ 32“ 37“ 40‘’ 42“ 43’’ 46’’ 47’’ 49’’ 50’’ ect

(2)Aluminum Alloy Frame IR Touch Screen optional size:15’’ 17’’ 18.5’’ 19’’ 23.6’’ 26’’ 32’’ 43’’ 49’’ 50’’ 55’’ect

(3)No-Frame IR Touch Screen optional size:15’’ 15.6’’ 17’’ 18.5’’ 19’’ 21.5’’ 22’’ 23.6’’ 24’’ect.

2.Capacitive Touch Screen Available for size:

(1)optional size:15’’ 15.6’’ 17’’ 18.5’’ 19’’ 21.5’’ 23.6’’ 27’’ 32’’ 42’’ 43’’ 49’’ 55’’ 65’’

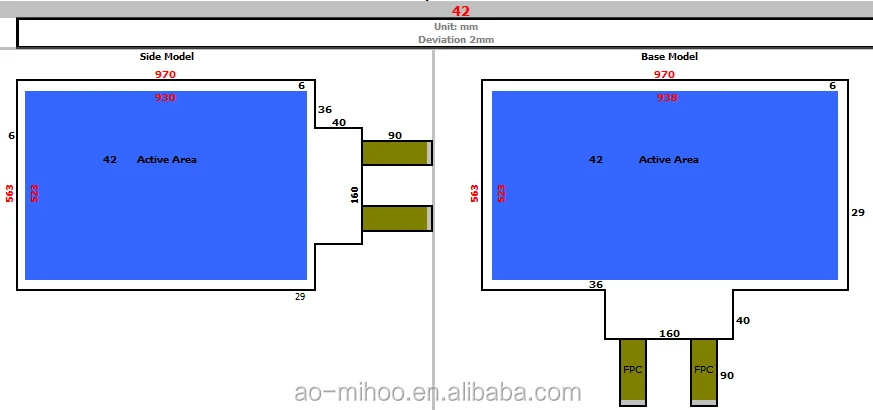

3.Nano Touch Foil Screen Available for size:

(1)optional size:24’’27’’ 32’’ 37’’42’’ 43’’47’’ 49’’50’’52’’ 55’’58’’60’’ 65’’70’’80’’84’’ect

Part3

Three kinds of touch screen contrast

Type	IR Touch Screen	Capacitive Screen	Nano Touch Foil
Structure	IR Touch frame	Glass+Glass	Foil+Foil
Exterior	Grooved	Smooth	Have lines
characteristic	Technolog is mature	High touch sensitivity	Long life, light
The price	The cheapest	Most expensive	Middle



Part 4

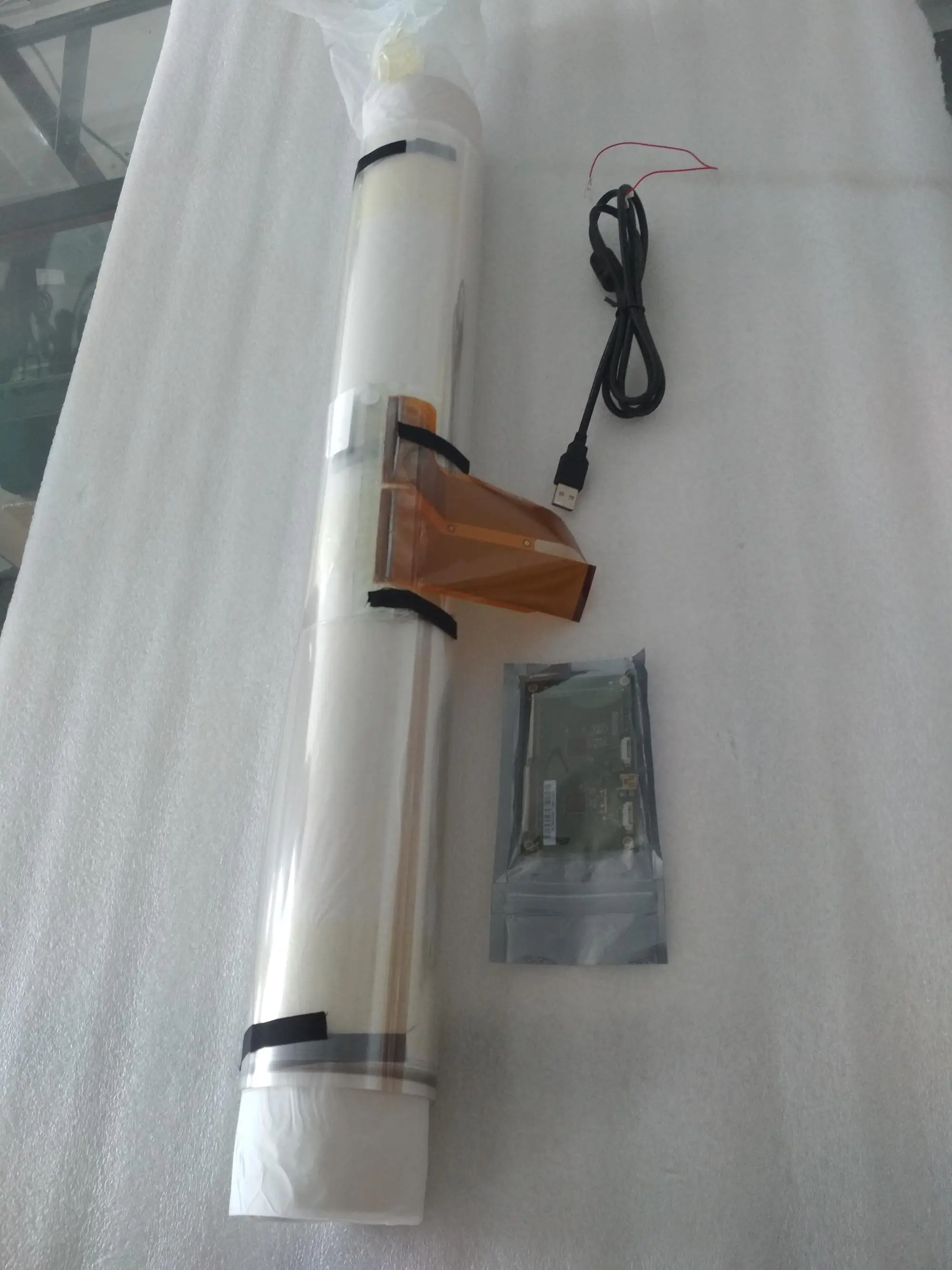

Packing and Shipping:

1. Outer protecting package could be customized if needed, our regular offer is with Bubble, Carton, Thick Corrugated Board Carton and Wood Case; Air cases is also available if it is needed.

2. Regular delivery date is about 3-7 working days about sample, 10-15 working days for mass order, customized device based on confirming about details.

3. Available trade terms: EWX, FOB Shenzhen, C&F, CIF, DDP, DDF.

4. The final packing size and details is sure according to order quantity.



Part 5

Our service:

1. We not only offer device, our own R&D teams is including shape design, and also covering software development. Any questions about our machines, we could provide you relievable question-solutions and after service.

2. During our guarantee, we will take the responsibility for any defects our products.

3. Some parts is available to be separated offered.

4. OEM/ODM are welcome

5. Any certificates needed please keep us informed, we will try our best to meet your demands.



Part6

Company information:

Shenzhen  Ao-Mihoo Electronics Company Limited was established in 2006, engaged in Digital Signage of LCD/LED, display related products, the infrared Touch Screen (Single Touch, Multi Touch), Touch screen Monitor, Touch Panel PC AIO, LCD advertising player(LAN/WAN/Wi-Fi), Inquiry LCD advertising player, Multimedia player, etc. Most products lead the domestic market, including some national patents to some models. And occupying 1200 square meters workplace,with 3 Automatic Production Lines and 2 fixed Assembly Lines.



    The OEM/ODM product is available for our clients’ application on professional Digital Display,acquired CE, FCC, ROHS certifications so far.With strong capacity and sure credit, Ao-Mihoo has established very fine strategic cooperation with some domestic and international brand companies, like LG, Philips, Skyworth, Kanka, etc, as well as some famous IC companies for market demands.
