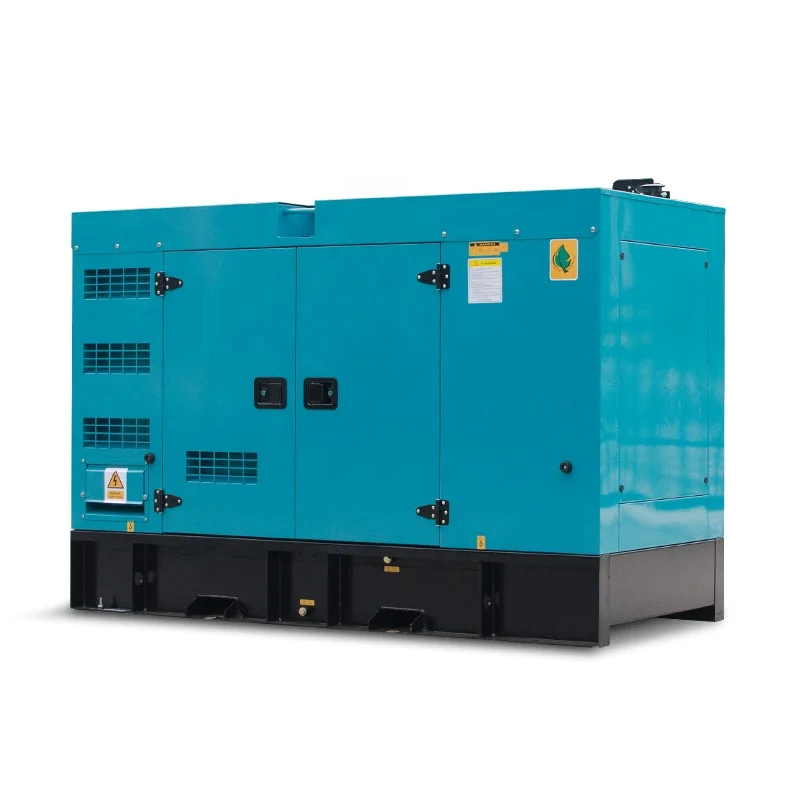

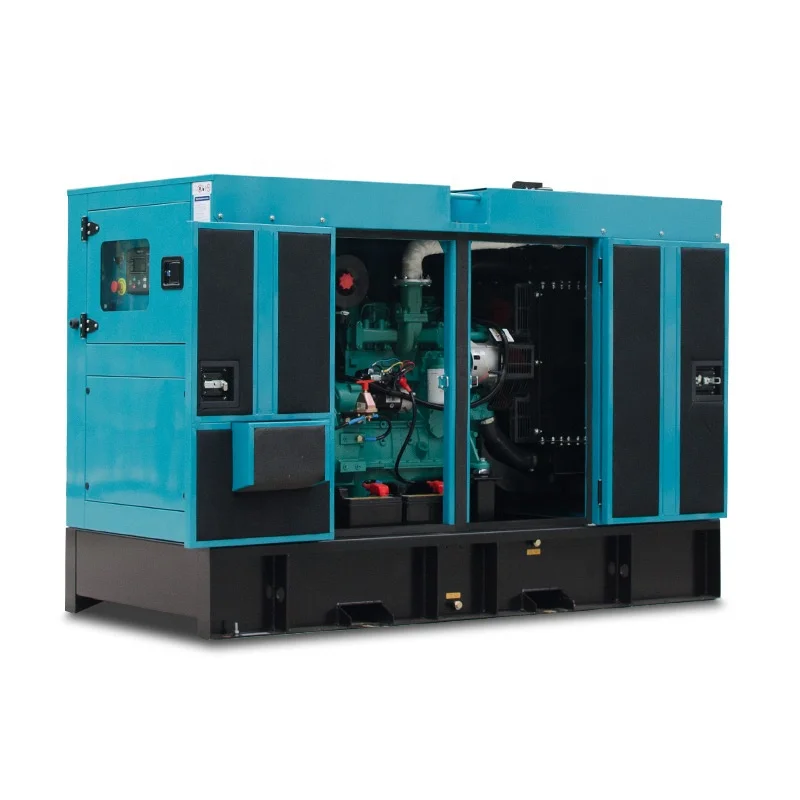

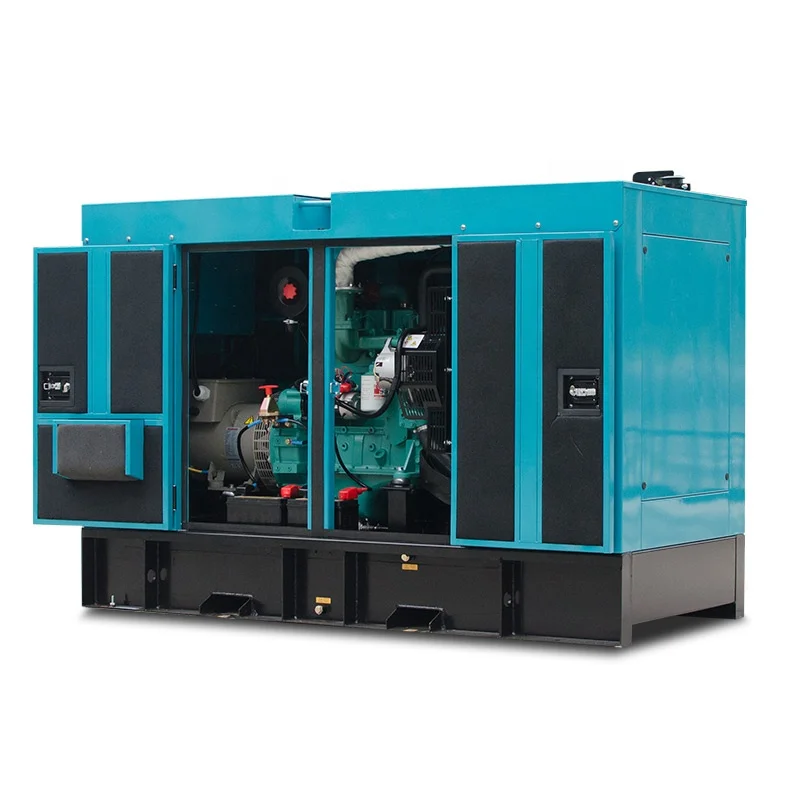

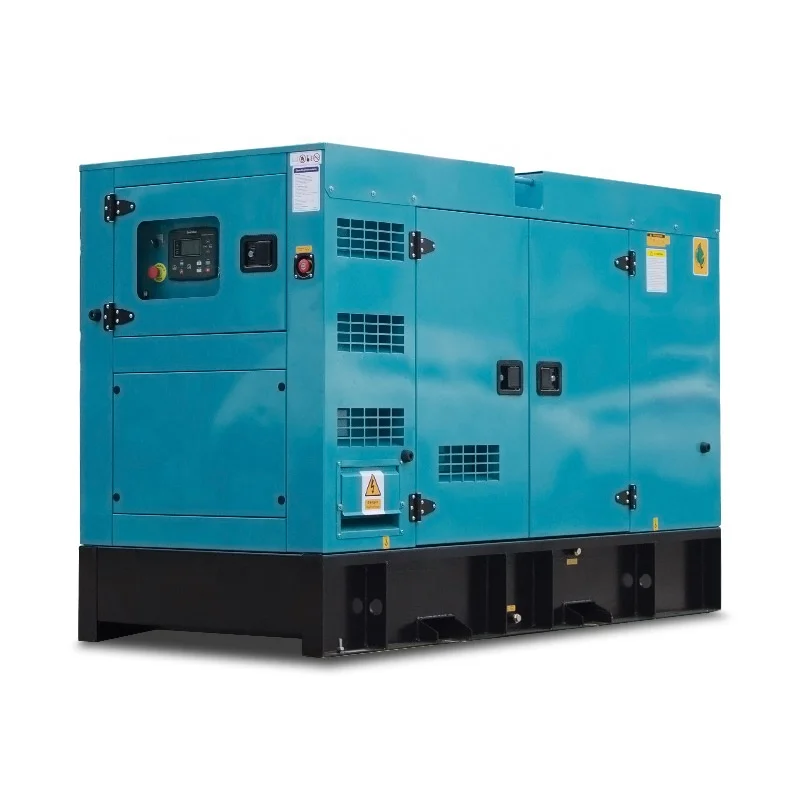

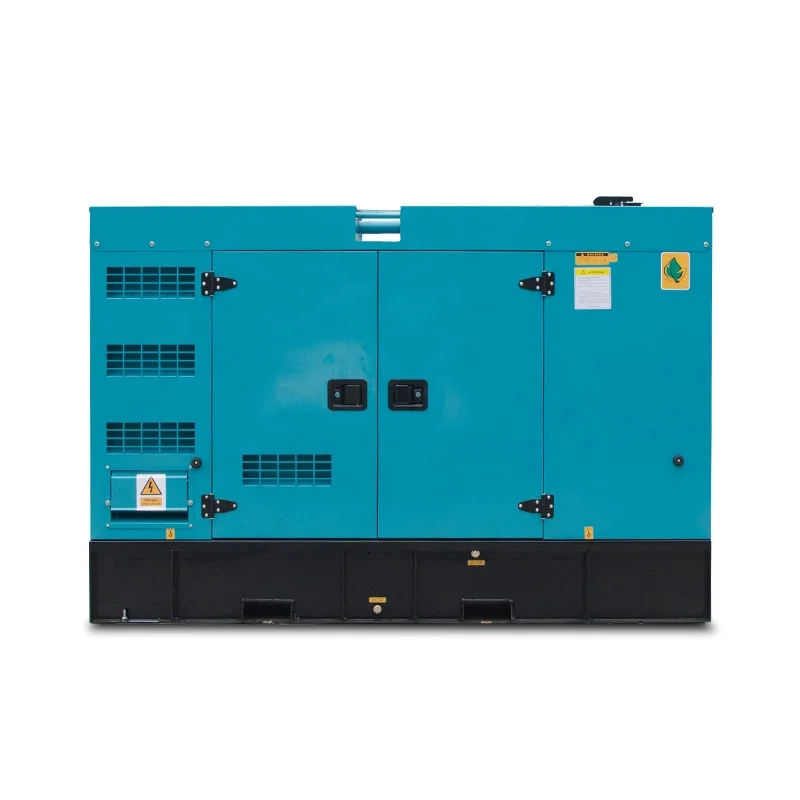

25kva 30kva 40kva 50kva 60kva silent diesel generator 100kva 150kva 200kva 250 kva with Cummins engine
- Category: Diesel Generators >>>
- Supplier: Taizhou Sutech Power Machinery Co. Ltd.
Share on (62308070659):
Product Overview
Description
25kva 30kva 40kva 50kva 60kva silent diesel generator 100kva 150kva 200kva 250 kva with Cummins engine
Related Products
30kva diesel generator (optional engine brands, alternator brands and Control panel)
| Rated power | Engine | Alternator | Control panel |
| 20kw~1300kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen |
| 8kw~1600kw | Perkins | ||
| 68kw~504kw | Volvo | ||
| 20kw~500kw | Deutz | ||
| 220kw-2400kw | MTU | ||
| 280kw-800kw | MAN | ||
| 600kw-1800kw | Mitsubishi | ||
| 50kw-650kw | Doosan | ||
| 2kw~2500kw | Chinese engine |
Product Description
25kva 30kva 40kva 50kva 60kva silent diesel generator 100kva 150kva 200kva 250 kva with Cummins engine
Engine Model | 4B3.9-G1/2 |
Engine manufacturer | CUMMINS |
Number of Cylinders | 4 cylinders |
Cylinders arrangement | Vertical in line |
Cycle | 4 stroke |
Aspiration | Naturally/Turbocharged |
Bore×Stroke | 102mm x120mm |
Displacement | 3.9L |
Compression ratio | 17.3:1 |
Prime Power/Speed | 24kw/1500rpm |
Standby Power/Speed | 27kw/1500rpm |
Speed Governor | electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 10.9L |
Fuel Consumption at 100% Load | 211g/kw.h |
Starter Motor | DC24V |
Alternator | DC24V |
25kva 30kva 40kva 50kva 60kva silent diesel generator 100kva 150kva 200kva 250 kva with Cummins engine
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 30kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
30kva diesel generator (Control panel)
Brand | Deepsea/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Product Overviews
High quality and cheap price 30kva diesel generator with cummins engine 4B3.9-G2
100kva diesel generator with Cummins 6BT5.9-G2
200kva diesel generator with Cummins engine 6CTA8.3-G2
250kva diesel generator price with Cummins engine 6LTAA8.9-G2
Company Information
Taizhou Sutech power Machinery Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 1kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA, TWGII alternators. Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
