SOLAR PUMP INVERTERsystem





SINCR 30kw vfd variable frequency drive solar pump inverter for agricultural irrigation



Product Description



  • Product Introduction


1. This Product is specially designed solar pump inverters. solar pump inverter transfer solar DC current to be AC to drive the water pump to work.



2. With unattended automatic operation function. No need for batteries, water storage instead of battery, easy installation,low cost and low maintenance,economical and environmental protection,zero carbon emissions.



3. Widely used in solar agriculture irrigation, irrigation station renovation, domestic water suooly, desert greening,etc.area.


1


3 phase solar inverter,solar water pump inverter,solar pump inverter;



  • Technical Features


       (22)



  • Applicabal for various motors like IM, PMSM, BLDC etc.

  • Use for single-phase 110V/220V and three-phase 220V/380V pumps.

  • Power range:0.75KW-220KW. Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.

  • Automatic shutdown and restart, fully sutomatic contro, unattended:


                      (1)Well: Automatically stop when shortage of water, and automatically restart when with enough water.


                      (2)Tank: Automatically stop when full of water, and automatically restart when with shortage of water.


                      (3) Automatically sleep when sun is weak,such as sunset;automatically restart when sun is strong, such as


                        sunrise;



  • Compatible with solar and mains power (or generator) input;

  • Optional boost module for small power solar water pump inverter, to reduce the number of solar panel and reduce the system cost.

  • RS485 real-time remote monitoring system, remote control and monitoring system status.






  • Solar pump inverter conventional wiring diagram


(1)

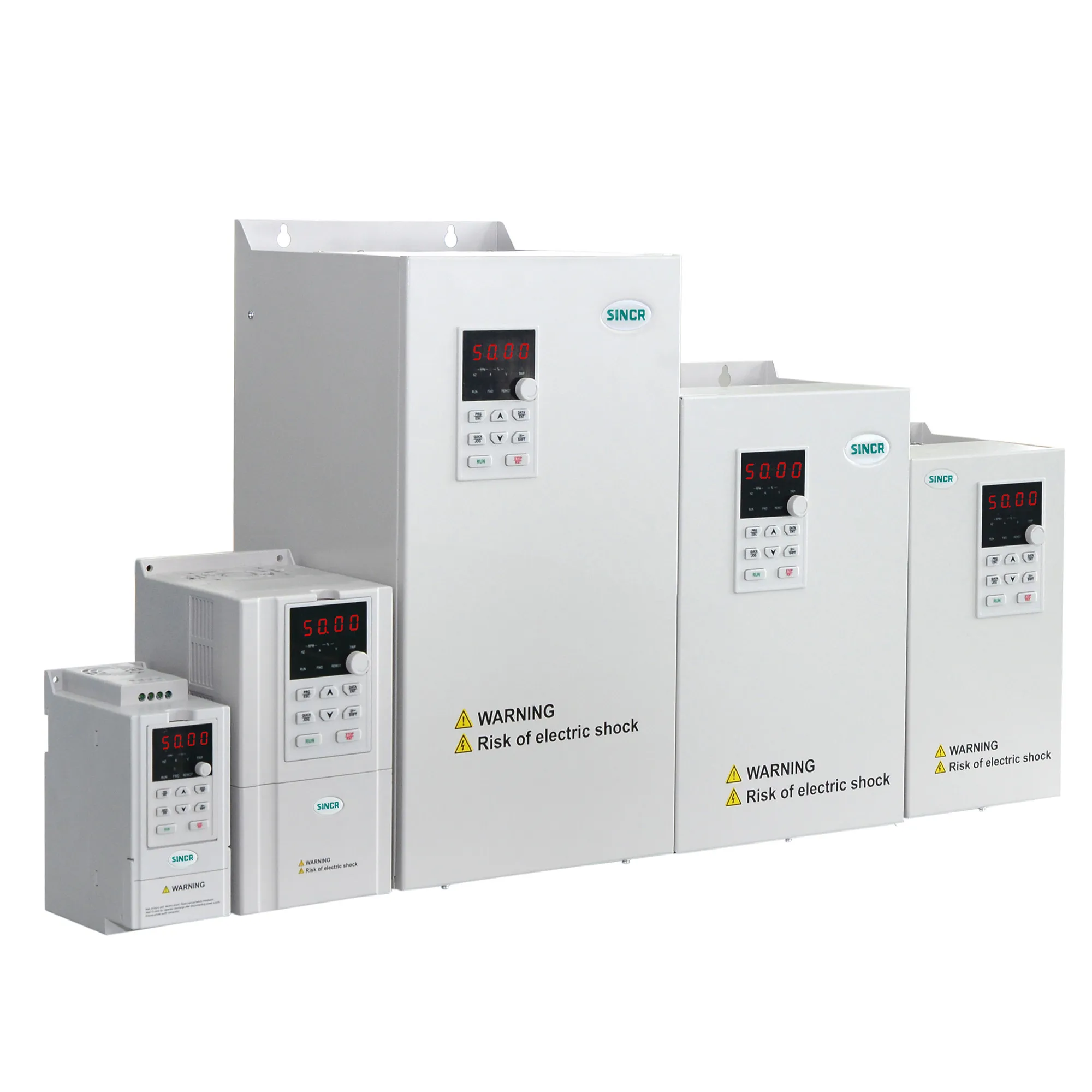

  • Product Display


0.75KW-15KW





2





Model Selection

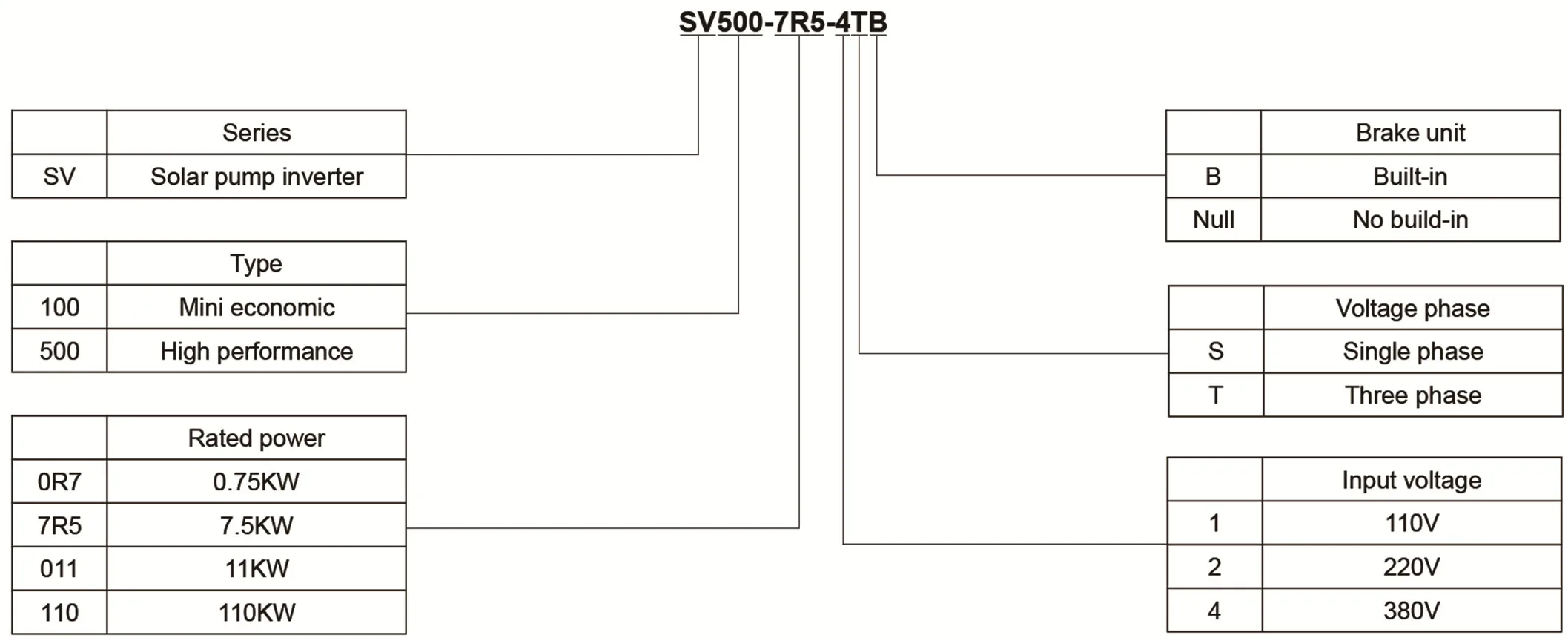

  • Model Definition


SV500









  • SV500 Series solar pump inverter




































































































































































































Model No.



AC  input Voltage(V)



MPPT  Voltage Range(Vmp)



Output Power
(KW)



Input Current
(A)



Output Current
(A)



SV500-0R7-4TB



3 Phase
380~480V AC



500~700V DC



0.75



3.4



2.5



SV500-1R5-4TB



1.5



5



3.7



SV500-2R2-4TB



2.2



5.8



5



SV500-004-4TB



4.0



10



9



SV500-5R5-4TB



5.5



15



13



SV500-7R5-4TB



7.5



20



17



SV500-011-4TB



11



26



25



SV500-015-4TB



15



35



32



SV500-018-4TB



18.5



38



37



SV500-022-4T



22



46



45



SV500-030-4T



30



62



60



SV500-037-4T



37



76



75



SV500-045-4T



45



90



90



SV500-055-4T



55



105



110



SV500-075-4T



75



140



150



SV500-090-4T



90



160



176



SV500-110-4T



110



210



210



SV500-132-4T



132



240



250



SV500-160-4T



160



290



300



SV500-185-4T



185



330



340



SV500-200-4T



200



370



380



SV500-220-4T



220



410



415



Input DC votlage range(VOC)



2S,2T:70~450V DC
4T:250~800V DC



Input Max open circuit voltage (VOC)



2S,2T:450V DC
4T:800V DC



MPPT efficiency



>99%



Over-load capacity



150%:60S;180%:10S;200%:1S



Ouput frequency



0~600HZ(Default:50/60HZ)



On grid/Generator input



Yes



Automatic switch between on grid/generator



Yes



Working temperature



-20℃~60℃;
 when >45℃ or altitude above 1000m, derating as required



Cooling Method



Fan Cooling



Communication port



Standard isolater RS-485, Modbus protocol



IP grade



Standard:IP20(can customized IP54 or IP65)



Built-in protection



shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection.












Product Application




  • The Actual Case


♦ Pakisitan 3KW solar water pump inverter for agriculture irrigation system
















































 Location



 Sindh-Pakistan



 Purpose



 Agriculture irrigation



 Water source



 River. water depth 8-10m, 2m from river to tank.



 Requiredments



 Pakistan is a large country with traditional agricultural production.Due to the shortage of elecricity,
 when agriculture irrigation requires water,it often loses power,which will have a great impact and
 loss on the cultivation of local farmers. In order to solve the actual pumpong difficulties,SINCREA
 solar pump irrigation system was introduced to meet the needs of agriculture irrigation.



Solution



 Solar Water pump



 3KW AISI304 submersible pump,3P 380V


 Rated water flow:20 m³/h; Rated lift head:10m



 Solar panel



 4.8KW,15pcs 320W Mono solar panel in series.



Solar pump inverter



 SINCREA,Model:SV500-004-4TB


 4KW Solar pump inverter,3P 380V.



 Mounting bracket



 Ground fixed Q235 hot galvanizing stell mounting bracket.



 Accessoies



 DC/AC cables, MC4 connector, water level sensor, DC/AC multi-meter, installation tool, etc.



 Benefits



Adopting SINCREA 3kw solar pump system,the 4.8kw solar panel drive the 3kw pump by the 4kw
solar pump inverter.The system pump water from the 8m depth river to the tank,and then flows to
each farmland through the channel,working 6-8 hours a day,100-150 cubic meters of water can be
pumped for farmland irrigation,solving the water shortage due to power outage and water shortage,
fully automatic operation,and no manual operation.









♦ Oman 100kw+50kw solar power pump system


160KW Solar power pump system















































 Location



 Muscat-Oman



 Purpose



 Farm fishery, animal husbandry



 Water source



 Tank



 Requiredments



 The farm is located in the mountains and deserts, with drought  and long sunshine radiation all
 the year,inconvenient for water supply,unable to meet the demand for electicity in the farm,and
 the high dependence of the fishery on water.Considering the power grid limit,the electricity price
 during the day is high and the slestricity price is loe at night.So to install SINCREA solar pump
 power supply system to provide protection for fish farming and farm electricity,saving electricity
 costs.



Solution



 Solar Water pump



 2pcs 15KW water pump +8pcs 7.5KW pump+ 4pcs 4KW pump.



 Solar panel



 150KW,480pcs 300W Mono solar panel in series and in parallel.



Solar pump inverter



 SINCREA, Model:SV500-015-4TB + SV500-7R5-4TB + SV500-004-4TB


 15KW,7.5KW,4KW solar pump inverter,3P 380V.



 Mounting bracket



 Ground fixed + roof type Q235 hot galvanized steel bracket.



 Accessoies



 DC/AC cables, MC4 connector, MC4 branch connector,Water level sensor,installation


 tool,DC/AC multi-meter etc.



 Benefits



 The SINCREA 100KW ground fixed+50KW roof-type photovoltaic pumppower supply system is
 installed in the farm.During the day,all solar energy is used topower the pump,and the electricity
 consumption at night is low.Now saves $1,500 in electricity bills per month,which not only solves
 the demand for electricity,but also saves the whole cost of electricity.






Company Information


2



  • National & Shenzhen High-Tech Enterprises.

  • Certification: ISO9001:2015 quality system certification,ISO4001:2015,CE certification.

  • 13 software patents and invention patents, including 2 national invention patents.

  • Product Series:Variable frequency inverter(VFD),AC drive, Special purpose frequency inverter, Solar pump inverter,Servo drive.ect industry control products.

  • 10 years of experience in R&D and production of electric drives.

  • 8 years experience in solar pump system design & installation.

  • Power range: 0.75KW-630KW.
