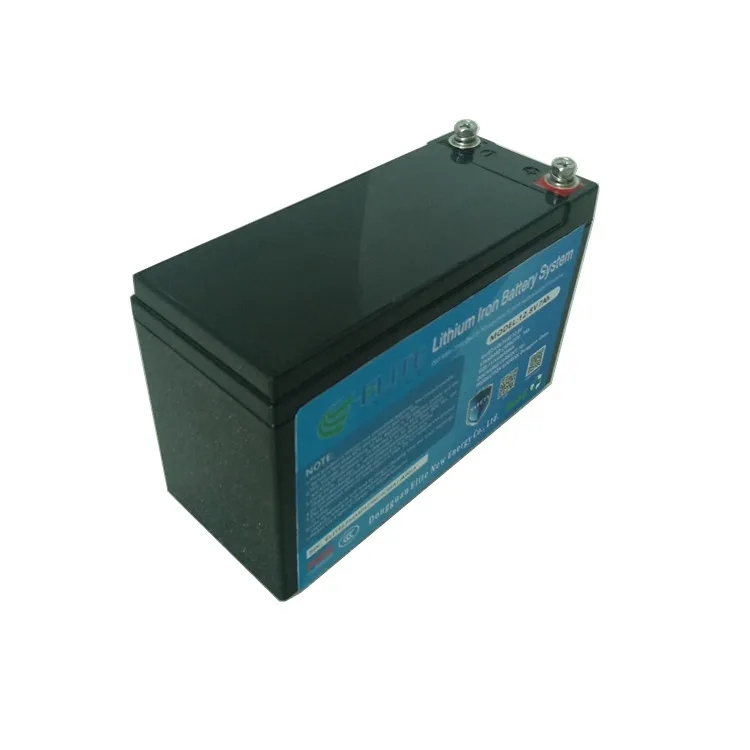

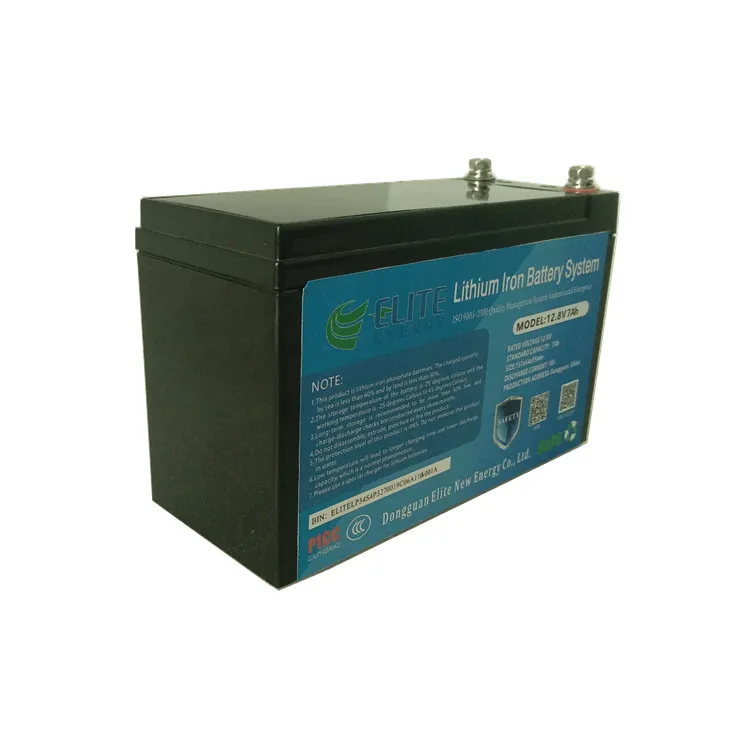

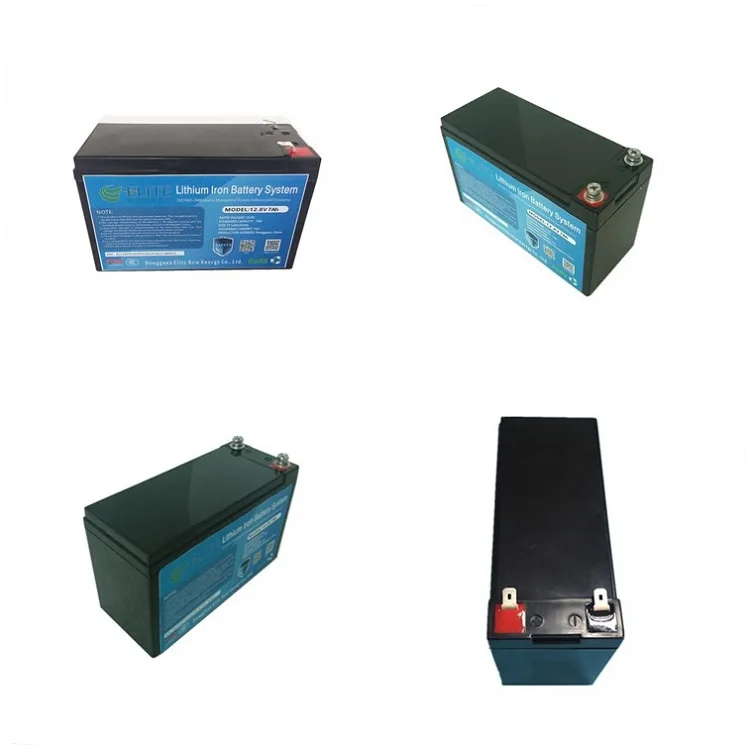

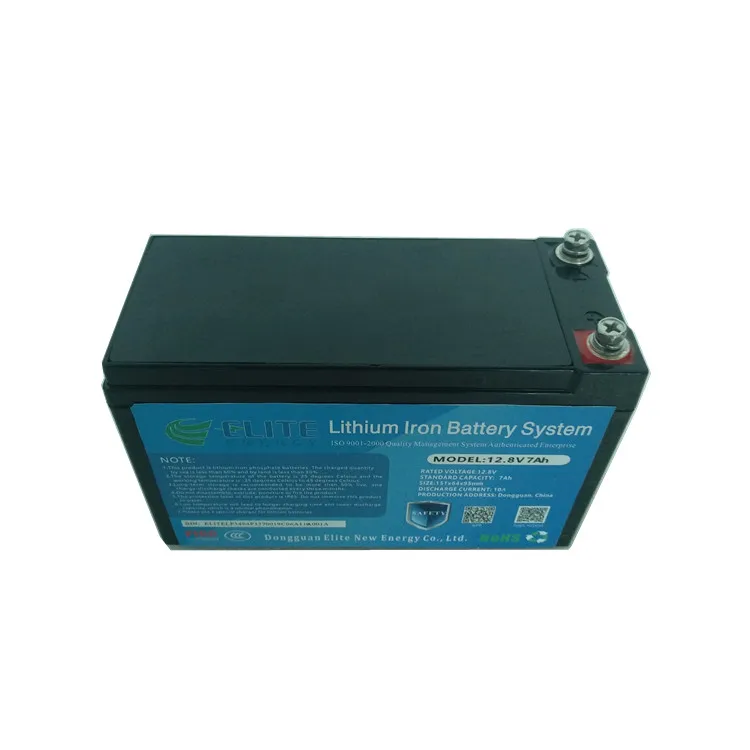

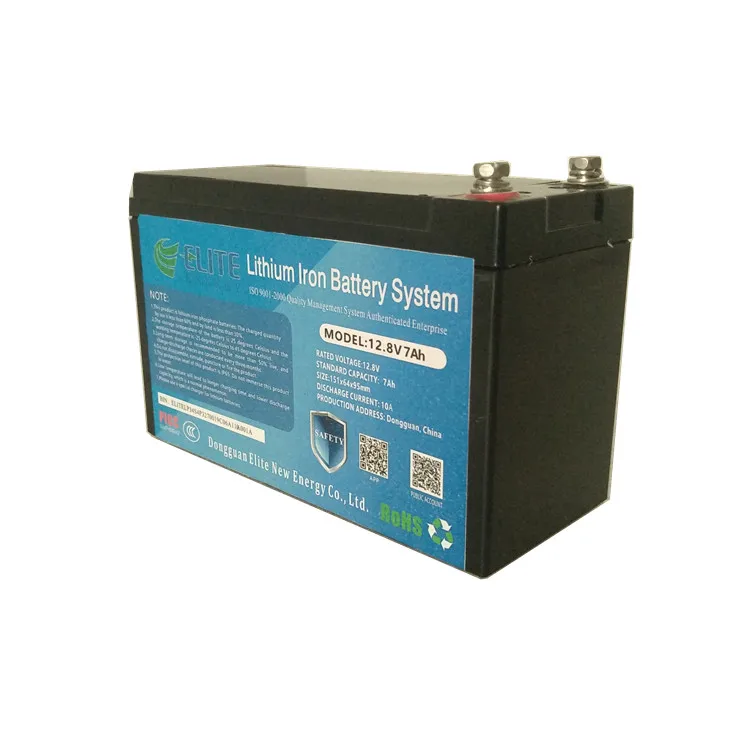

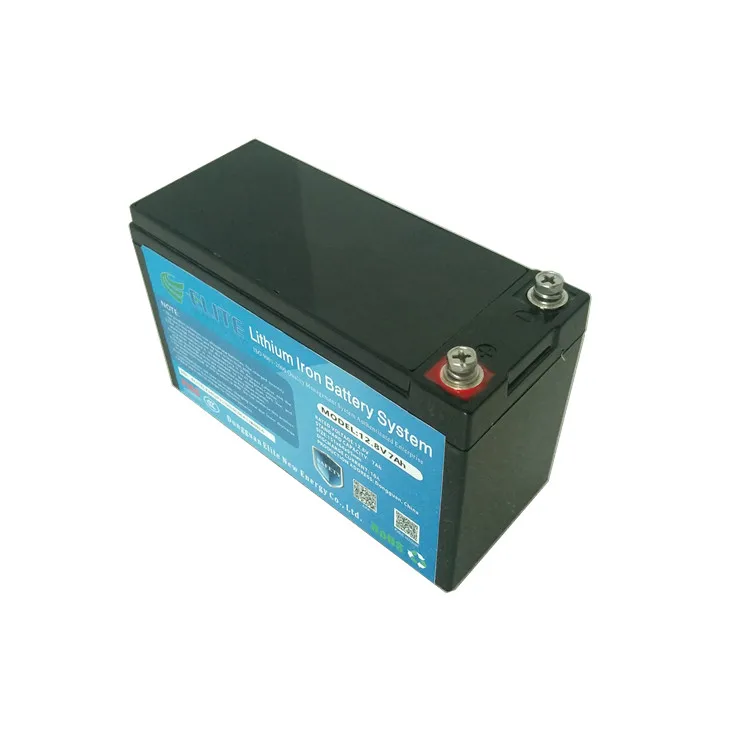

Elite li ion battery pack 12v 7ah battery lipo akku 12v 7ah deep cycle battery
Product Description

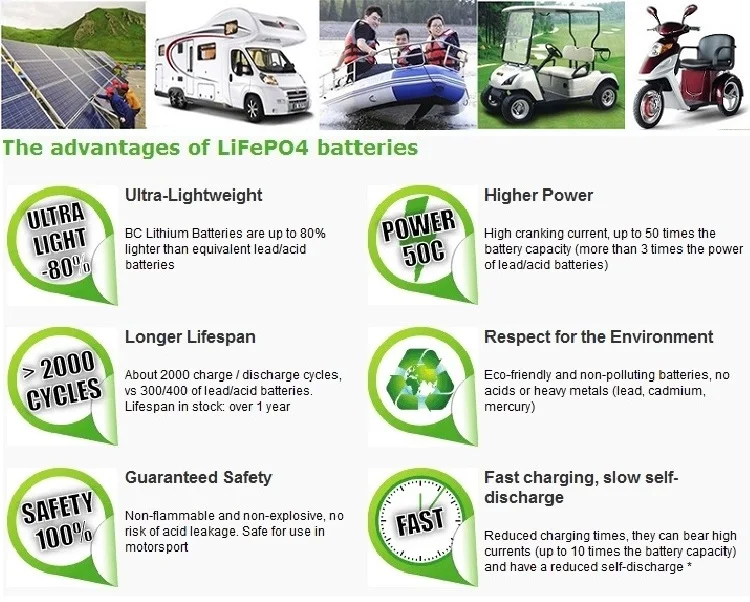

Feature
1. Safety: safest Lithium battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 7Ah | |
| Energy | 90Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | >2000 cycles@1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 1.5A | |
| Max. Charge Current | 7A | |
| Standard Discharge | Max. Discharge Current | 7A |
| Max. Pulse Current | 14A(10S) | |
| Discharge Cut-off Voltage | 10V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -10℃ to 60℃(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell&Method | 4S |
| Plastic Case | ABS | |
| Dimensions(in./mm.) | 151x 66 x 95 mm | |
| Weight(lbs./kg.) | 0.9kg | |

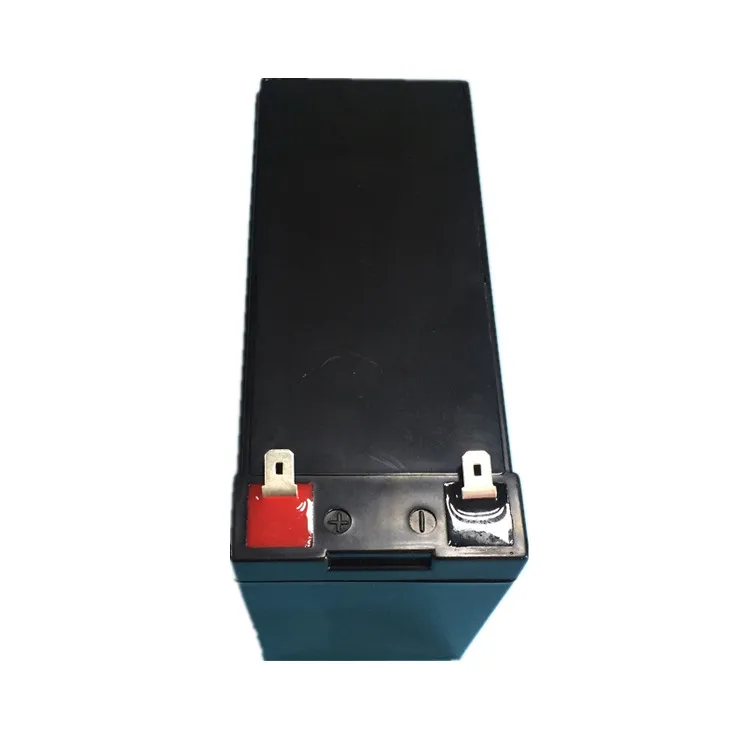

| Terminal | M6 | |
| Bluetooth | Option |
Packaging & Shipping
Package: With good quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
Company Information

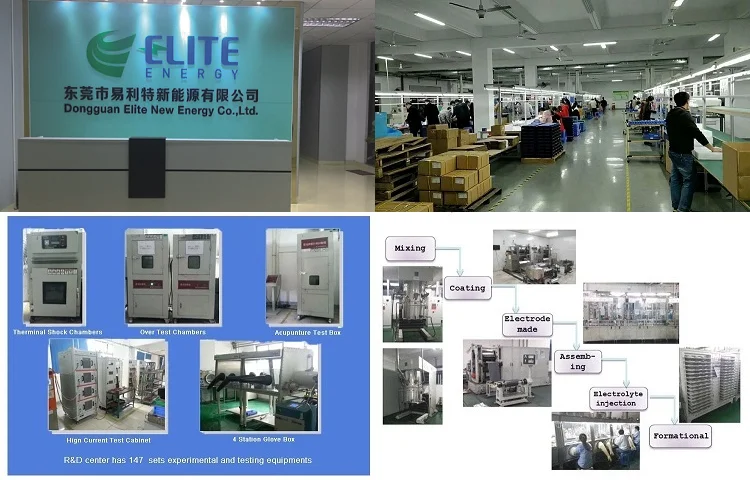

Dongguan Elite New Energy Co., Ltd is a leading battery manufacturer in China, we focus on LiFePO4, Li-ion rechargeable batteries, including BMS and the total power system solution, Our module 12.8V 20Ah, 50Ah, 100Ah LiFePO4 battery have passed the UN38.3 and MSDS test, and our 32650 3.2V 6Ah cell also pass the MSDS test.
Our company has rich experience in battery R&D, manufacturing and oversea selling. Our engineers are all from Optimum, HUWAI and BYD. With professional R&D team, experienced workers and advanced equipments, we are determined to provide you high-quality batteries.
In our ISO 9001:2015-certified factories, which span a total of 50,00 m2, we can turn out over 5,000,00Ah monthly production capacity.
