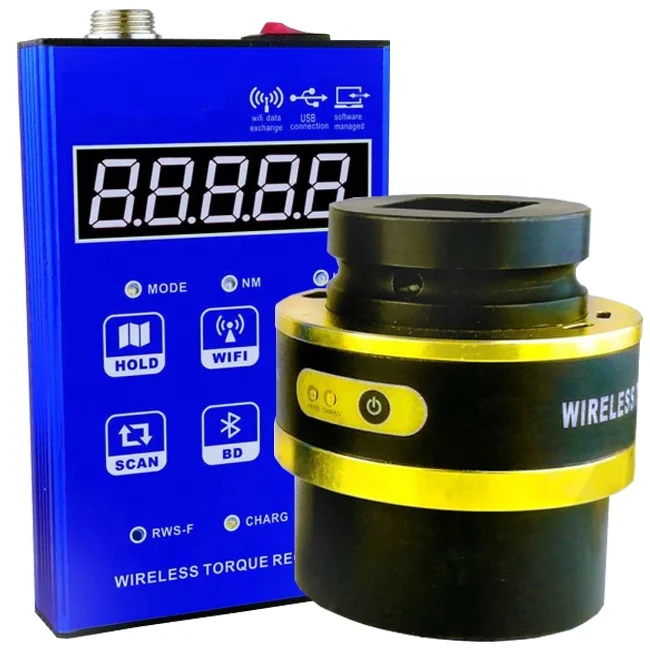

Wimunster Smart Socket/Wireless Torque Sleeve For Impact Wrench

Basic Parameter
Using radio frequency transmission, the number of data collection speed is 100.

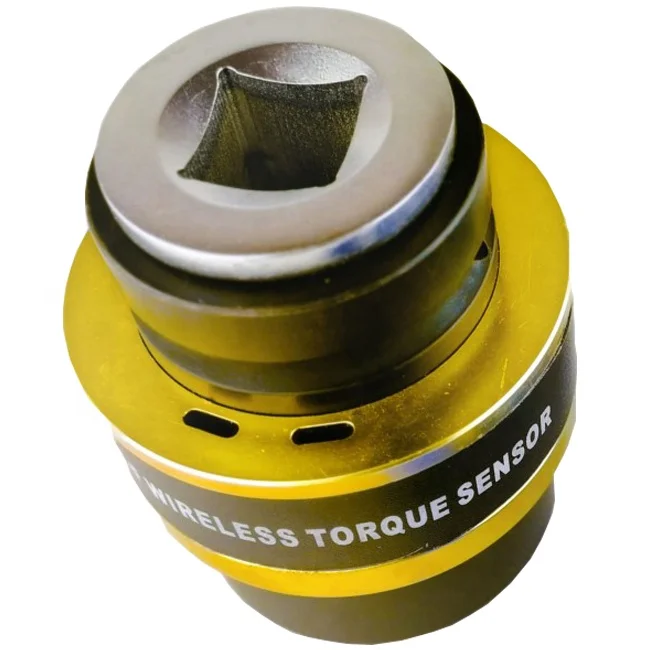

The torque socket is made of special materials and special processing technology.
The service life of the socket is more than 1 million times, and the rate of impact resistance and anti-overload is 130%.
The sensor's repetition accuracy, linear accuracy, temperature drift and time drift are combined to 0.3% F.S.
Power supply is 3.7V lithium battery. Universal charging USB adapter interface
Low battery indication, charge status indication, emission indication, preset torque reaching indication and overload indication
Features such as torque preset value setting, indication tracking, peak hold, preset torque correction, etc.
With calibration function, calibration by the torque socket USB port and instrument with 485 interface

Functional Description of the Socket:
The range of hexagonal opposite side distance: S=27~175MM
Torque range: 300-30000NM
The RF transmission distance is about 3-10M, or 5-20M.
There is a charging jack on the socket and 350MA/H is supplied by lithium power.
The socket is charged by universal USB, and it can work for about 8 hours when fully charged.
There is power switch, charging/full indication, emission indication and tracking/peak protection/open status indication on socket.
With calibration function, using USB port and digital display with 485 interface to calibrate and verify
With channel address setting function, the receiver starts working after scanning the channel address. (There are six channel addresses.)
A wireless torque socket can work on multiple receivers.

Basic Function

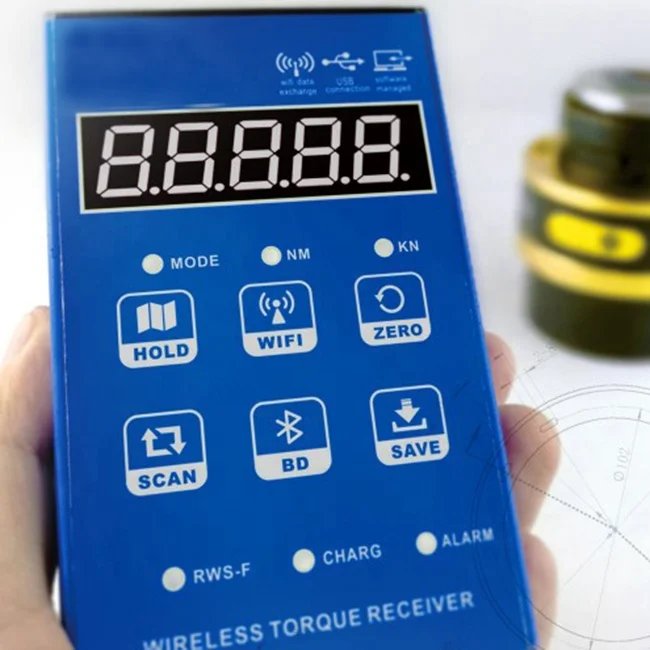

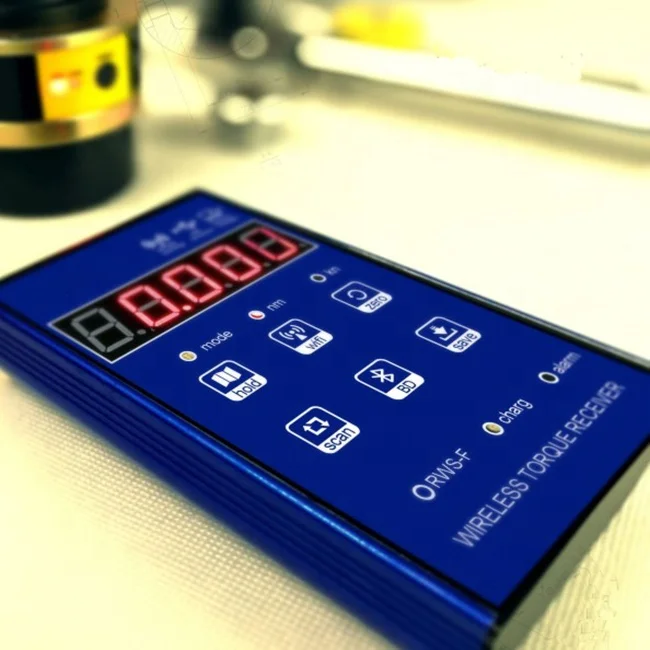

The socket and the controller can communicate with each other wirelessly.
The socket parameters can be set by the controller button.
Data can be read by the host computer through USB connection.
Closed loop control can be realized by setting parameters through communication interface.
The actual force value of the sleeve can realize real-time synchronous digital display on the controller.
Wireless data transmission function can be customized under WIFI coverage.

Product Selection

Product Selection Instruction

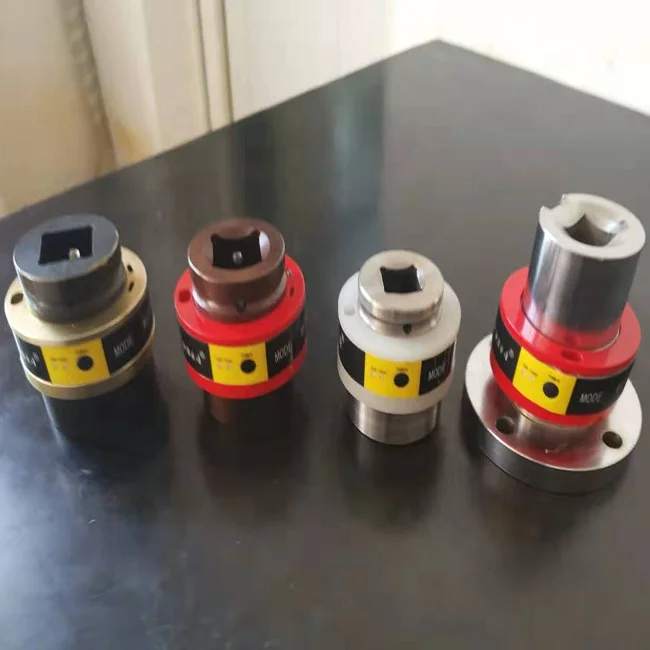

Product Model Selection Table

Product Regulation	Model	Measuring Range	Nut	Weight	Delivery Time
		N.M	M	KG	WEEK
Conventional Product	WMST-FD-N4/N6-10/36-AS WMST-FD-N4/N6-10/41-AS WMST-FD-N4/N6-10/50-AS WMST-FD-N4/N6-10/55-AS WMST-FD-N4/N6-10/60-AS	0-400 0-1000 0-1500 0-2000 0-2000	M24 M27 M30 M33 M39	1.6 1.6 2.3 2.3 2.3	1~3 1~3 1~3 1~3 1~3
Customized Product	WMST-FD-N4/N6-12/36-AS WMST-FD-N4/N6-12/30-AS WMST-FD-N4/N6-112/65-AS WMST-FD-N4/N6-112/70-AS WMST-FD-N4/N6-112/75-AS	0-400 0-200 0-2000 0-2500 0-3000	M24 M24 M42 M46 M48	1.3 1.3 2.6 2.6 2.6	3~5 3~5 3~5 3~5 1~3
Special Product	WMST-FT-T4/T6-12/41-AS WMST-FT-T4/T6-34/55-AS WMST-FT-T4/T6-38/41-AS WMST-FT-T4/T6-14/55-AS	0-1000 0-2000 0-1000 0-2000	M27 M33 M27 M33	1.6 2.6 1.6 2.6	4~6 3~5 3~5 4~6

Our Service

The sensor inside the socket can directly measure the nut value more accurately and closer to the real value.
It can cooperate with most tools to achieve universal adaptation and achieve digital display output function.
One socket can be combined with multiple tools, which is more cost-effective, more efficient and more convenient
Intelligent closed-loop control can be realized for full-automatic unloading without manual operation.
High operating accuracy, fast reaction speed, stable performance, can be customized to non-standard
Easy to use, free from environmental constraints, torque value traceable
Data of smart socket can be uploaded and downloaded to the host computer, or wireless data transmission

Genius-ln looks forward to serving you.
