300W Long Range Fiber Laser Barrier Clearing Device for Power Grid Removing Hangings, Bird Nests, Tree barriers, Ice

Product Overview

Description

300W Long Range Fiber Laser Barrier Clearing Device for Power Grid

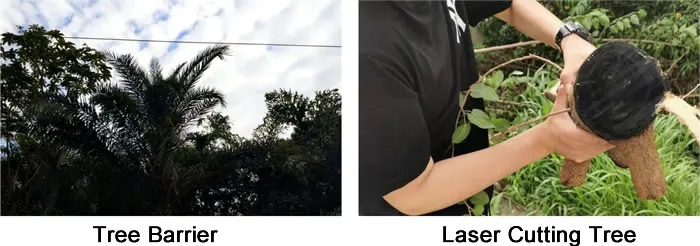

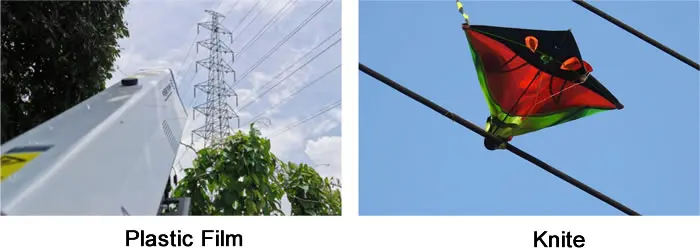

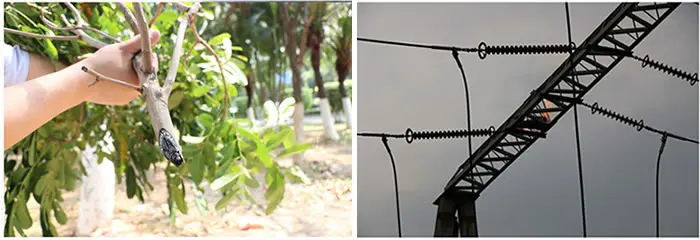

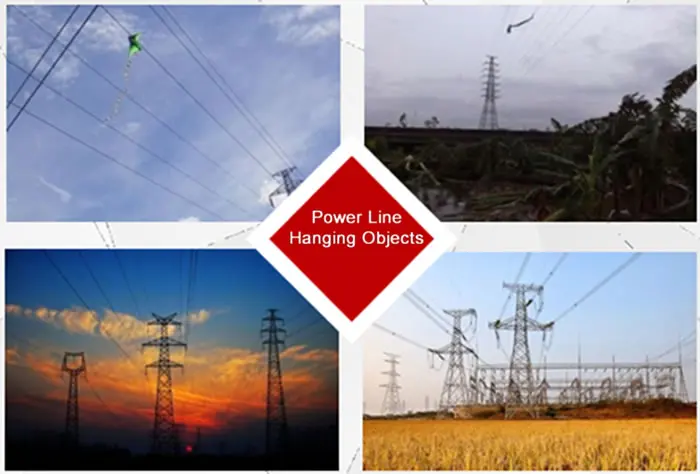

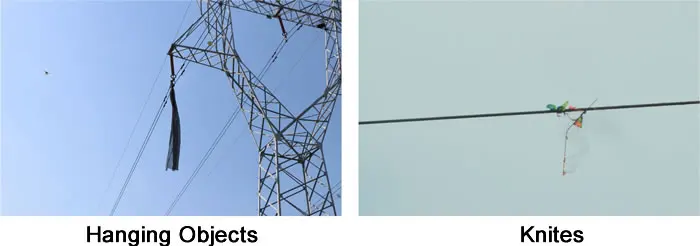

Laser barrier clearing device for power grid is a laser equipment to remove non-metallic floating and hanging objects on the power lines such as kites, sunshade nets, advertising cloth, tree barriers, and remove ice in winter.

It is featured light weight, compact size, easy and quick operation, and long distance operating, With this laser equipment, power line cleaning operation becomes effective and safe.





Laser barrier remover uses laser beam to irradiate foreign objects, burning them completely or cutting them into small pieces, to remove them from the power lines. The whole clearing process takes only a few minutes, saving much time, labors and resources at much lower risk. Without blackouts, power loss is reduced to least. Power supply becomes more reliable and stable while the power line maintenance workers can operate more efficiently and safely.

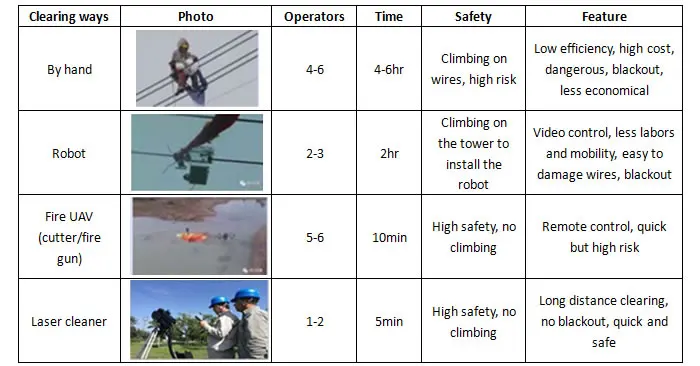

COMPARISON of Traditional Ways VS Laser Clearing

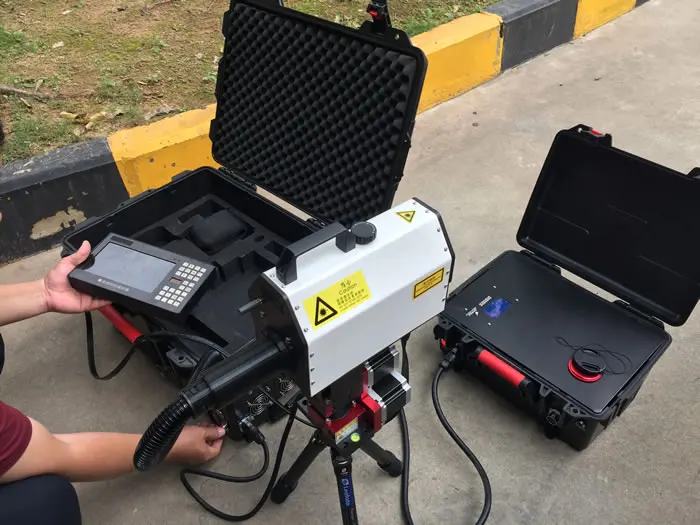

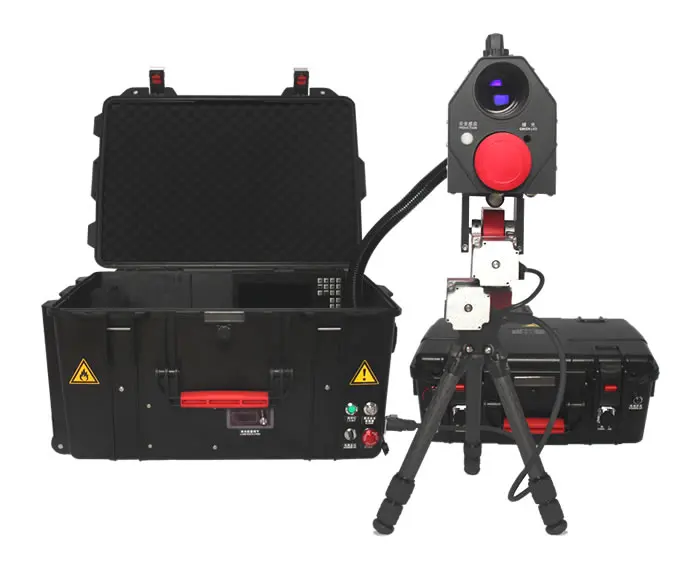

Fiber Laser Clearing Device

Optical fiber laser emitting device

Applicable for various environments, can remove hanging barriers in long distance and most tree barriers

Lightweight and portable

High automation

With 7 inch LCD screen and remote control

Support HDMI & WIFI image transfer

Automatic locating and aiming



Specifications:

Laser output: 300w

Wavelength: 1080±5nm

Effective distance: 5-300m

Laser focus mode: dynamic focus

Optical sight: 5-20x digital zoom

Continuous working time: >90min

Power supply: lithium battery

Voltage: 24V

Aim mode: automatic positioning and aiming

Installation time: <5min

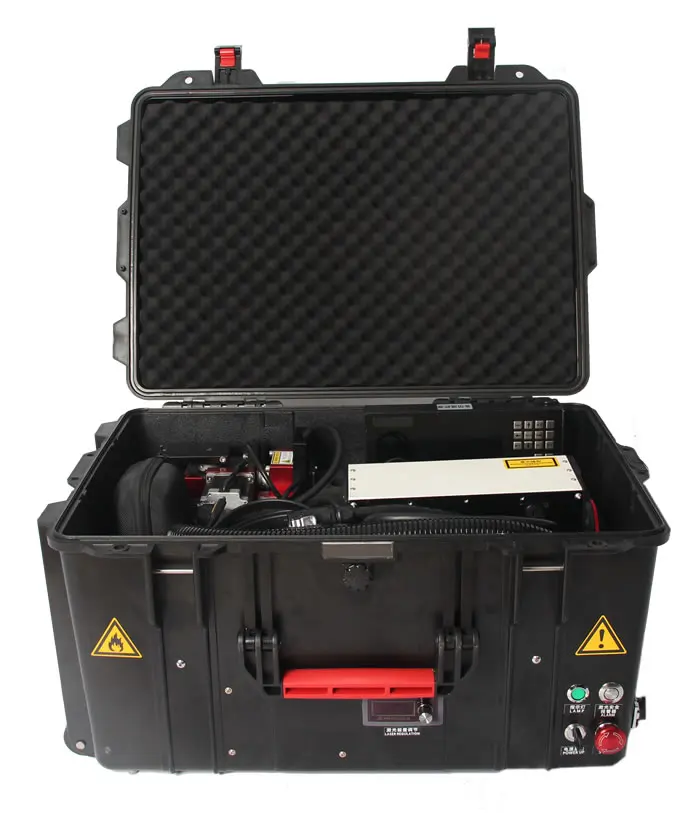

Configuration: with separate battery box

Weight: 36 + 14kg (battery)

Size: 613*460*320mm
