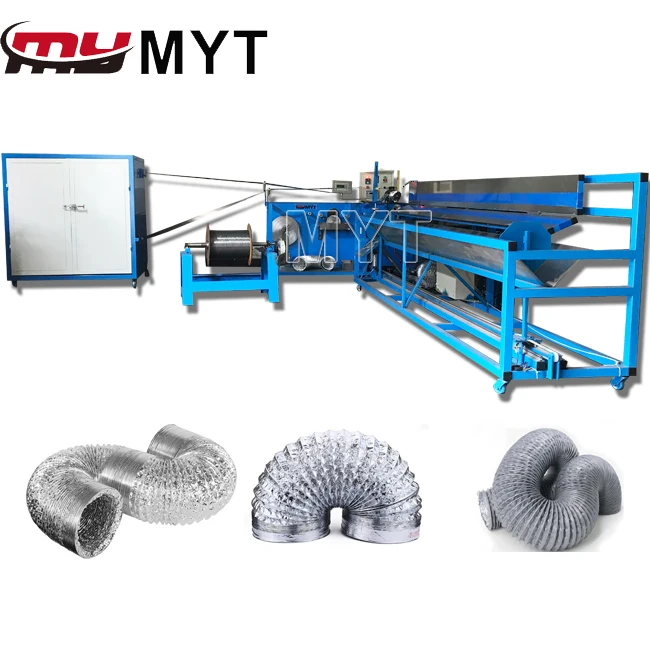

MYT HVAC Insulated spiral flexible aluminum duct forming manufacturing machine for air condition hose tube making

Product Overview

Description

MYT HVAC  spiral flexible aluminum duct forming manufacturing machine

1). Quality assurance system  flexible duct making machine
Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.  aluminum flexible duct tube pipe making machine
2). Quality assurance procedure for important out-source parts.
a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard and inspection standard. Aluminum foil flexible duct machine
d. Receiving inspection on site either in supplier or our company with related technician

Production Informaiton: spiral flexible aluminum duct forming manufacturing machine

diameter	80-600mm
material	Non-woven Fabric ,PVC Film ,Aluminum
Thickness	0.02-0.08mm
Strip width	80mm       35mm
	100mm      40mm
	125mm      45mm
	300-600mm  45-60mm
Feeding Speed	65m/min
Main Power	7kw
Weight	680kg
Dimension	2000*1500*1800mm

Detailed pictures : spiral flexible aluminum duct forming manufacturing machine

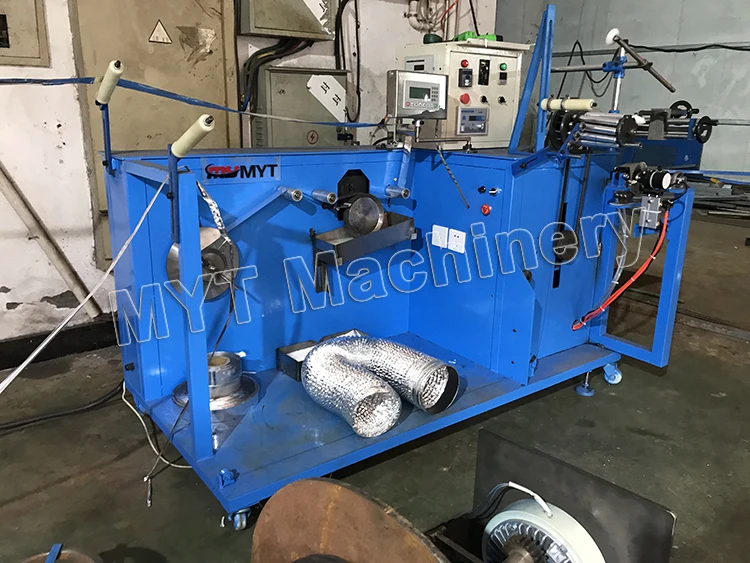

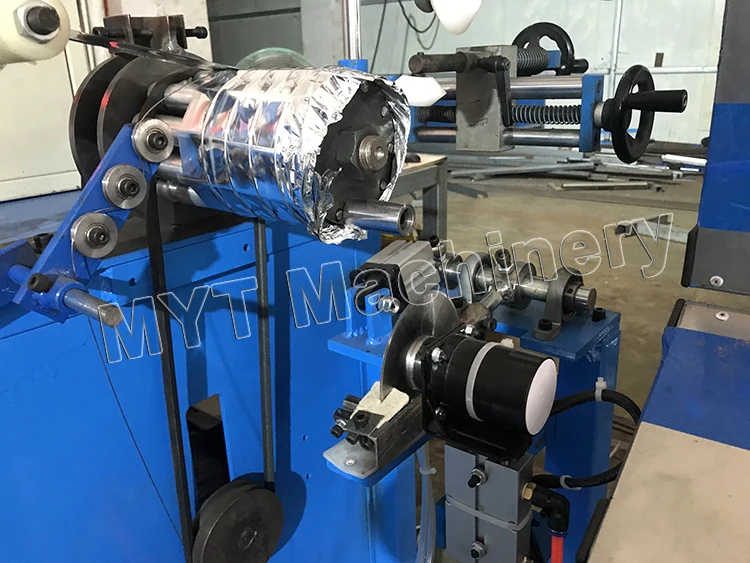

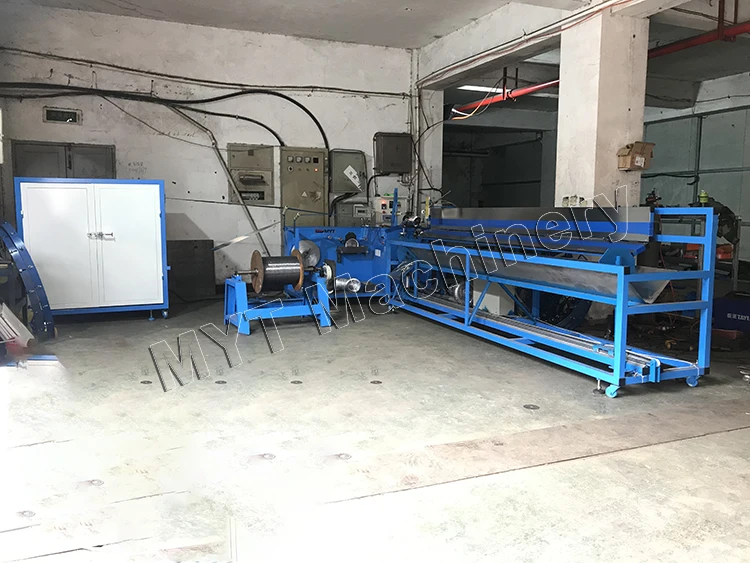

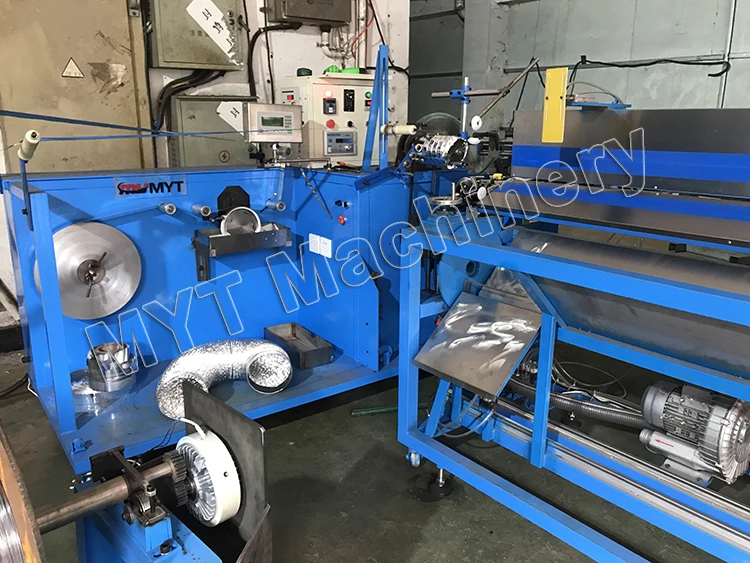

 spiral flexible aluminum duct forming manufacturing machine

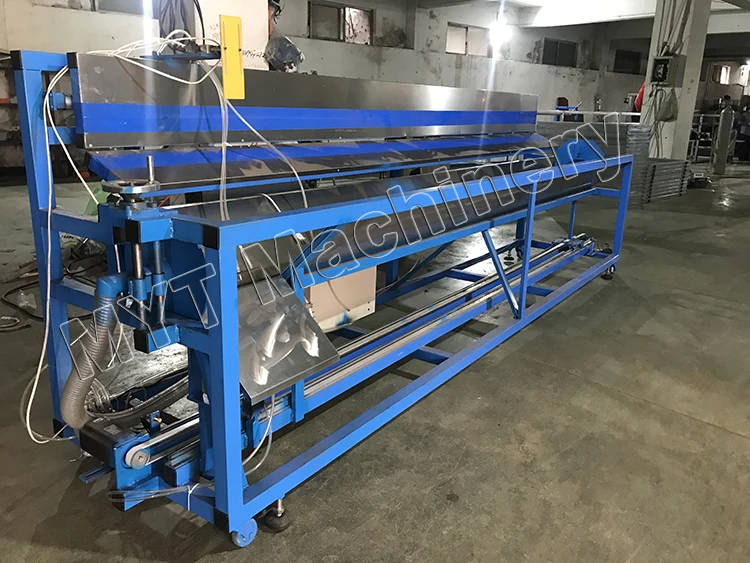

 spiral flexible aluminum duct forming manufacturing machine

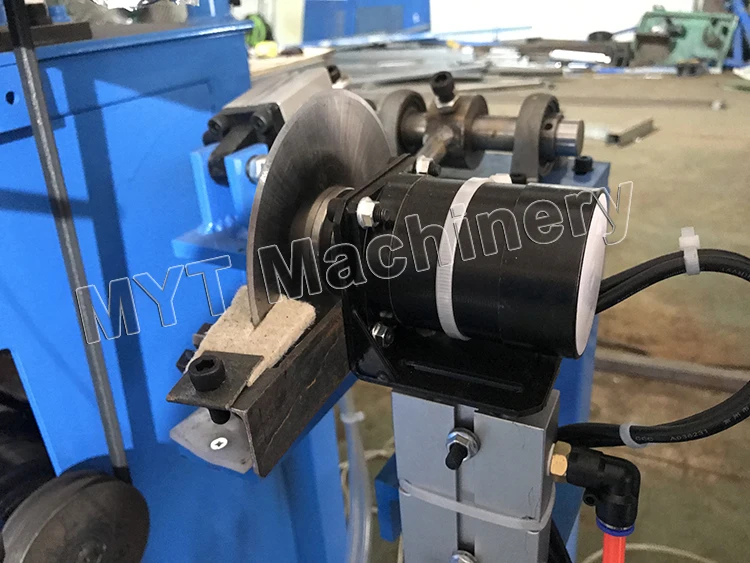

 Cutting blade for  spiral flexible aluminum duct forming manufacturing machine

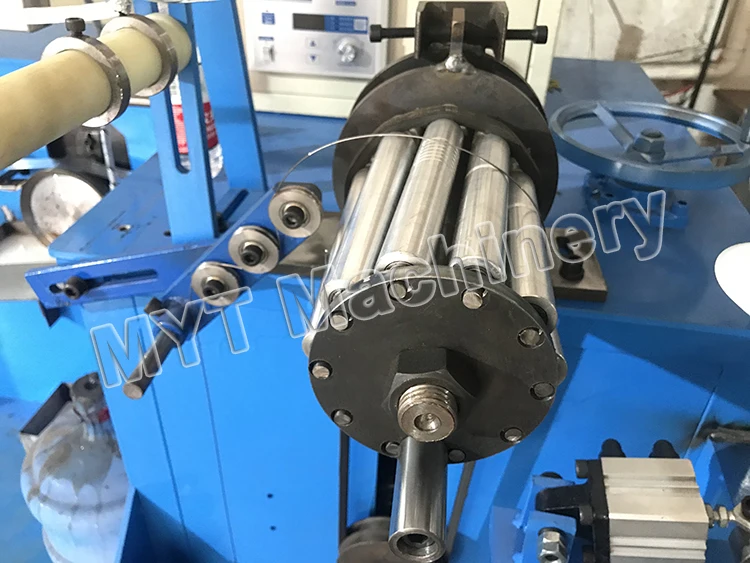

Mould for  aluminum f spiral flexible aluminum duct forming manufacturing machine

Automatic compressor  spiral flexible aluminum duct forming manufacturing machine
